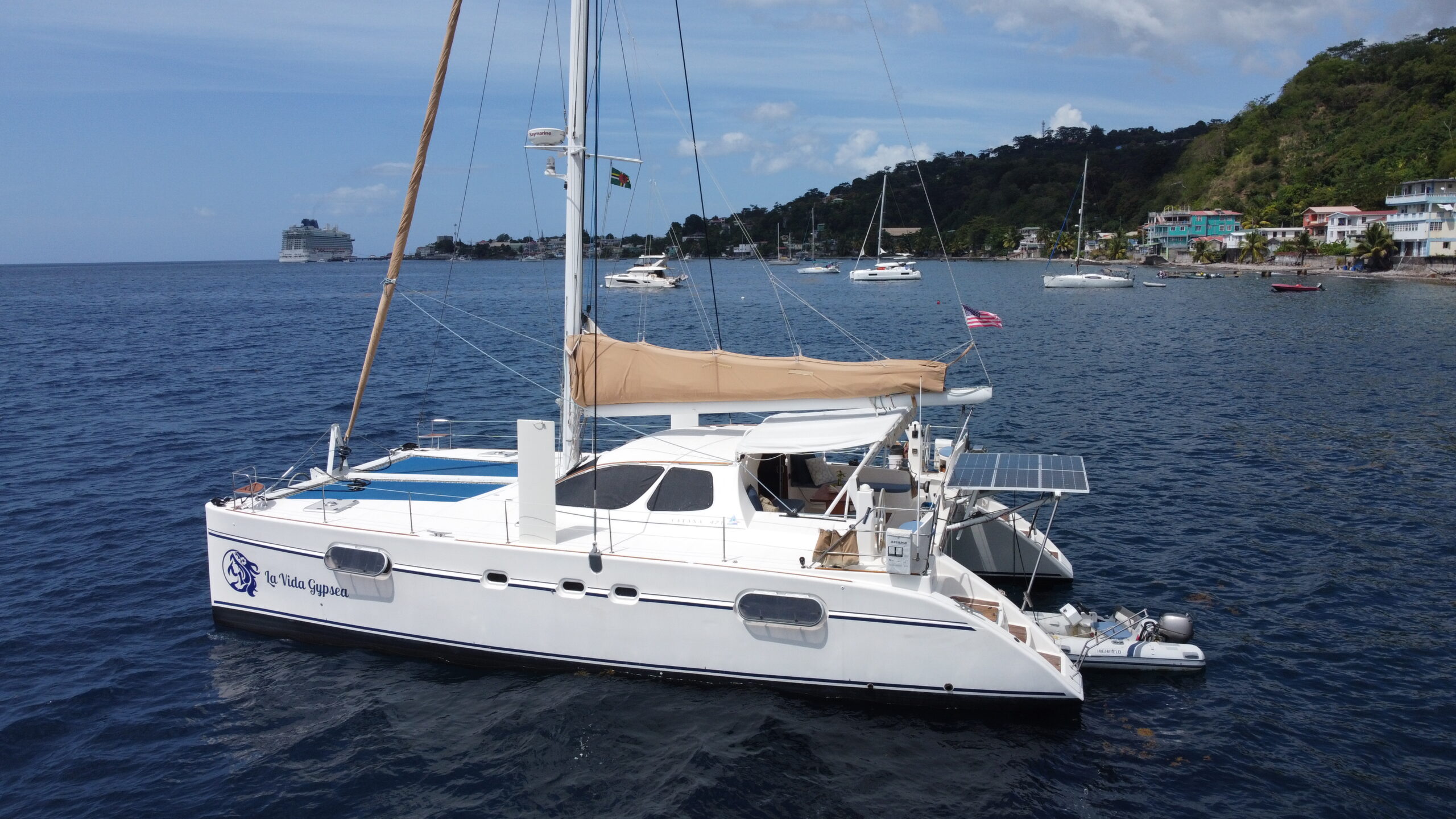

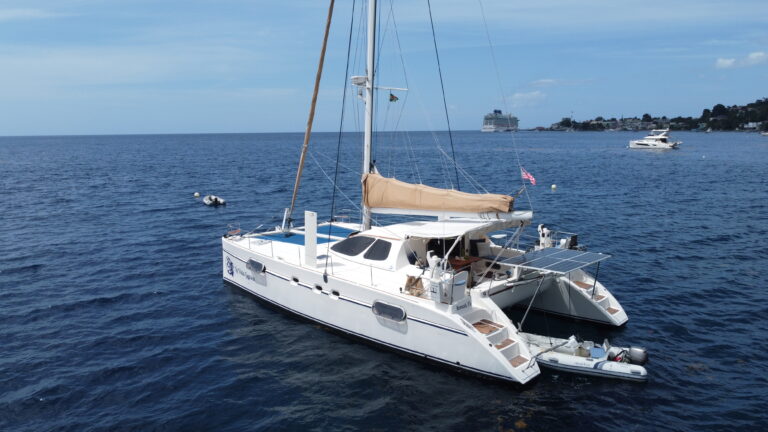

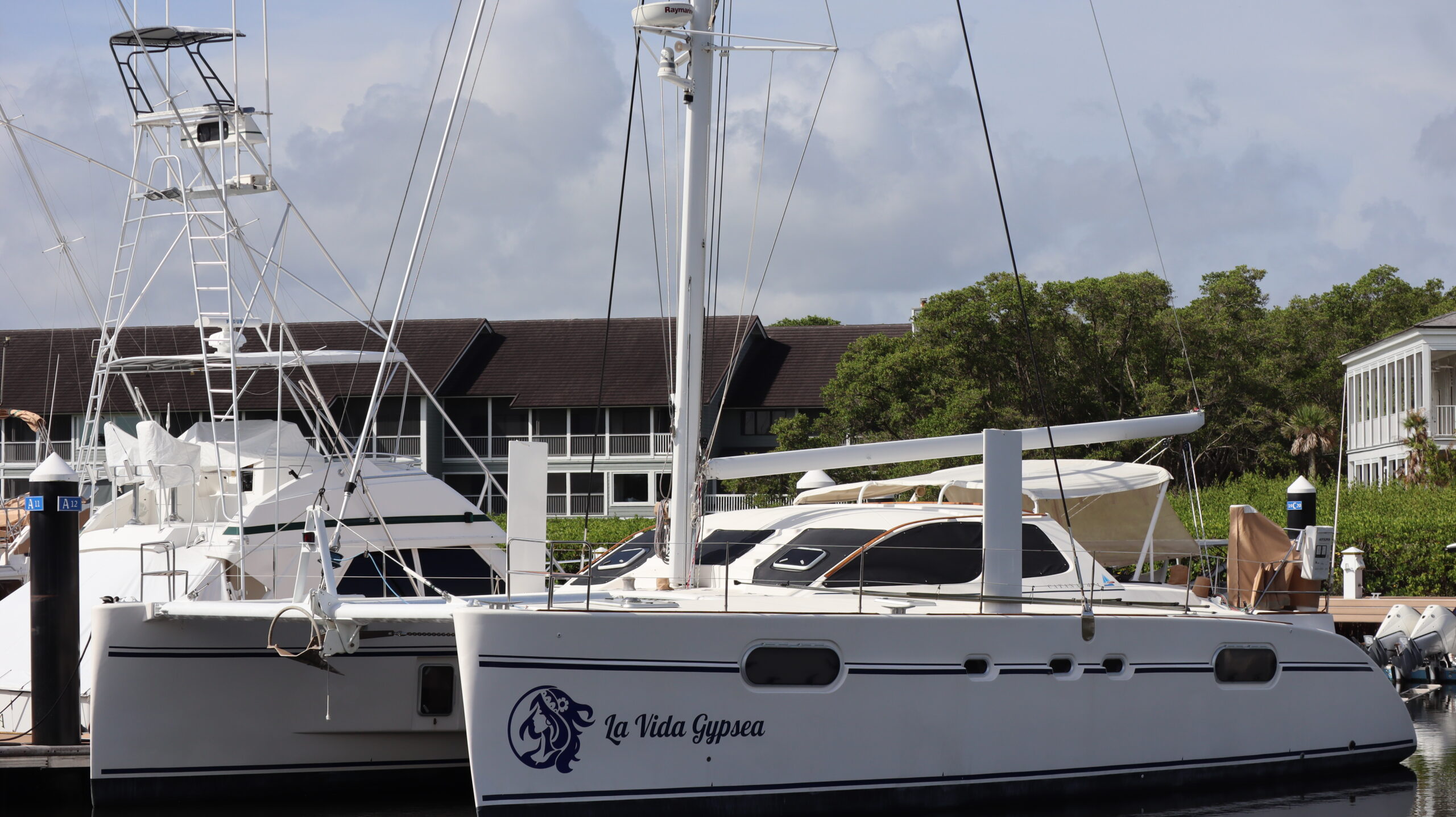

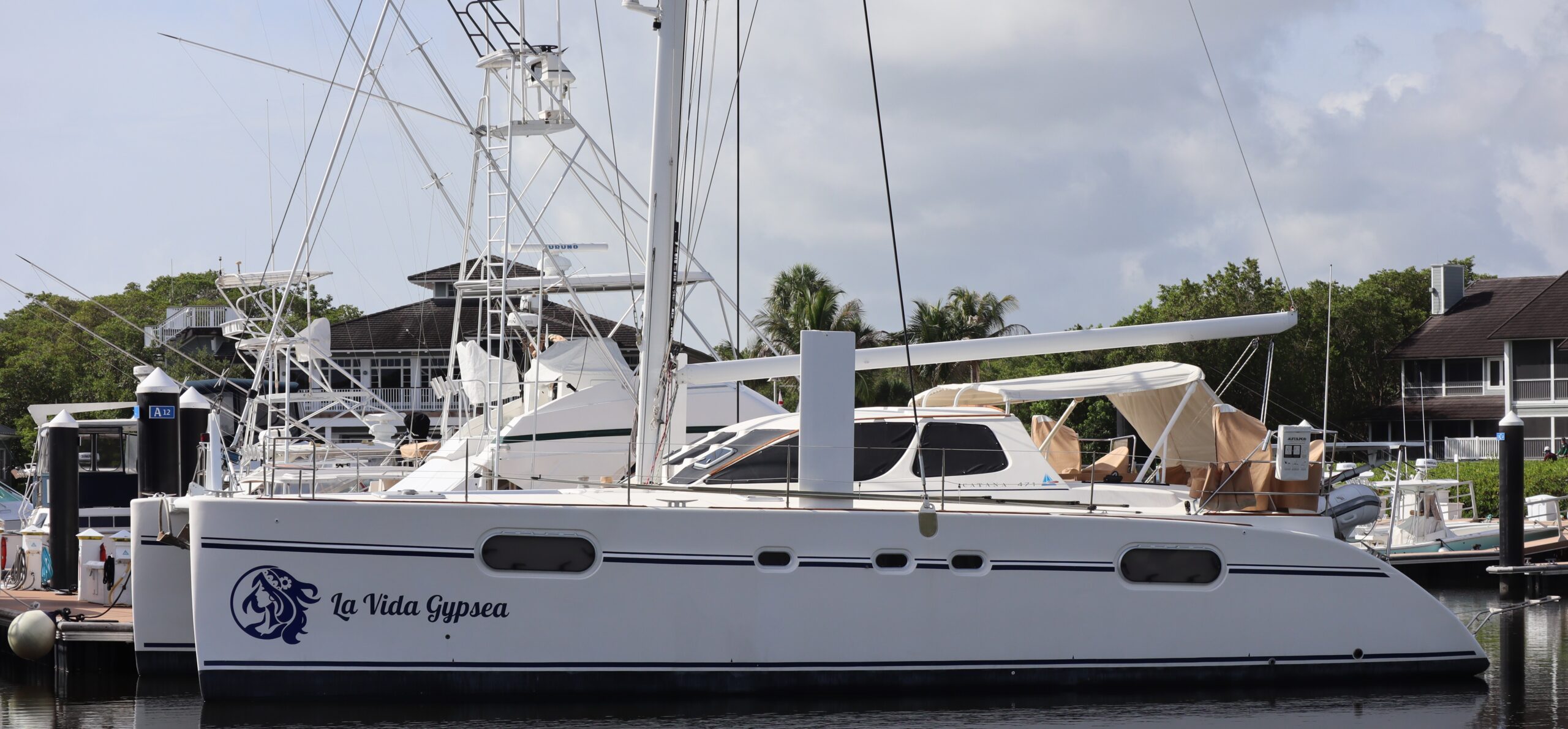

Catana 471

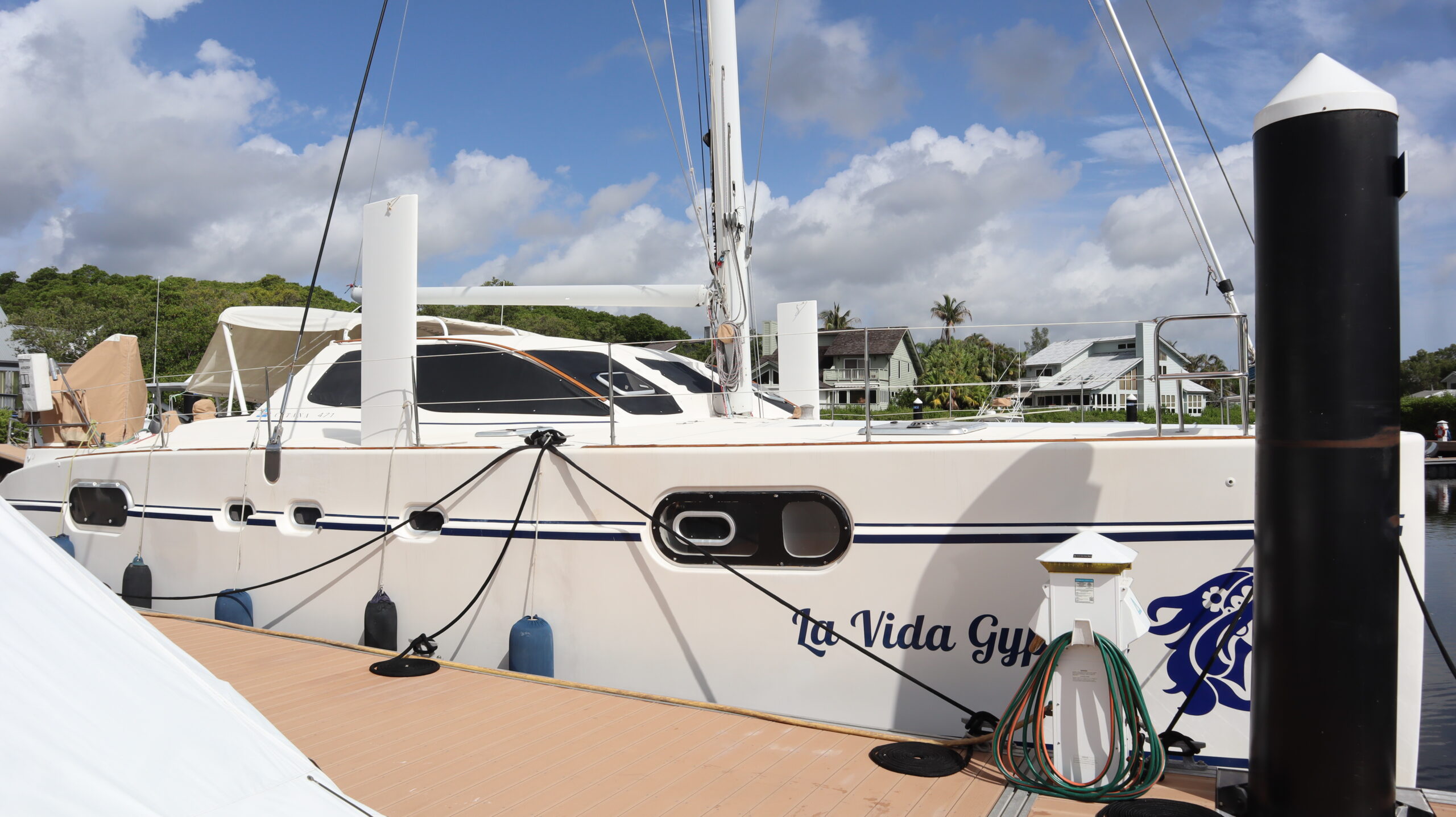

LA VIDA GYPSEA (lvg)
At the end of the last century Catana introduced the first of their second generation models which significantly raised the bar of performance cruising blue-water catamarans due to their innovative sail management system and luxurious wood interiors while still maintaining Catana’s signature hull shape consisting of asymmetrical hulls for added stability at the waterline. Tulip-shaped bows to resist large waves, and bulbous bow stems below the waterline. Today these same attributes has earned Catana a cult following for sailors looking for an affordable blue-water performance catamaran.
I know this Catana 471 very well having sold this Catana 471 to her original Peruvian owner based in Lima (x-SALVAJE) and sold her to her current owner (4th owner) when LA VIDA GYPSEA was based in Puerta Vallarta, MX in 2021. Current owner explored the Pacific coast down to Panama and for the past couple of years has been enjoying the Eastern Caribbean.

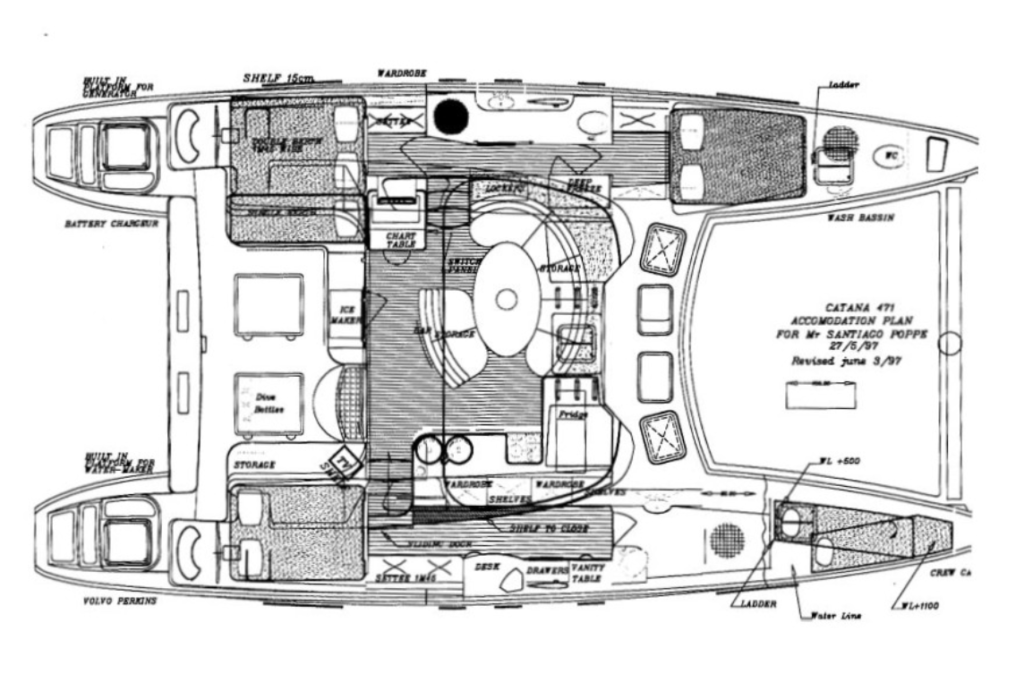

The interior layout of LA VIDA GYPSEA is a very unique PRESTIGE layout with the guest bathroom having a separate shower stall and a custom built-in backrest/bar for the forward facing settee.
don@navigatoryachtgroup.com Cell Phone: +1-561-301-8649
PRINCIPAL DIMENSIONS
| Metric | Imperial | |
| Year | 1998 / Hull #5 | |
| Length on Deck | 14.30 m | 46.92 ft |
| Length on Water | 13.80 m | 45.27 ft |
| Beam Overall | 7.70 m | 25.26 ft |
| Draft w/Daggerboards Up | 0.90 m | 2.95 ft |
| Draft w/Daggerboards Down | 2.20 m | 7.22 ft |
| Light Displacement | 10,000 kg | 22,046 lbs |
| Maximum Displacement | 11,500 kg | 25,353 lbs |
| Mast Height @ Waterline | 21.50 m | 70.53 ft |
| Mast Length @ Deck | 19.50 m | 63.97 ft |
| Mast Height @ Waterline | 18.01 m (approx) | 59.1 ft (approx) |
| Sail Area: | ||
| High Roach Mainsail | 90 m² | 969 ft² |
| Genoa | 60 m² | 646 ft² |
| Symmetrical Spinnaker | 150 m² | 1,615 ft² |
| Fuel Capacity | 1x 400 lt + 1x 200 ltr | 1x 106 gal + 1x 53 gal |
| Water Capacity | 2x 400 ltr | 2x 106 gal |
| Certification CE cat A | ||
| Naval Architect Lock Crowther | ||
| Designer Christophe Barreau | ||
1998 CATANA 471 CATAMARAN
S/V LA VIDA GYPSEA INVENTORY
| DESIGN: |
Classic Lock Crowther influenced hull shape with asymmetrical hulls for added stability, tulip shaped bow stems for increased wave resistance, daggerboards for less leeway beating to weather as well as safety in large beam seas, and dual aft helm stations for excellent visibility and improved rudder feedback. Innovative sail management system managed from the safety of the cockpit plus enabling single-handed sailing.
| CONSTRUCTION: |
The two outer hull molds and one inner hull/bridgedeck mold are vacuum bagged using Isophthalic Polyester resin, cored with PVC closed cell foam with unidirectional cloth for outer laminate & Twaron aramid cloth for inner laminate. The separately molded daggerboard trunks are laminated to be considerably stronger than the daggerboards.
The deck/coachroof is a one-piece mold, vacuum-bagged using Isophthalic Polyester resin, cored with Nidacore honeycomb with unidirectional cloth for outer laminate & Twaron aramid cloth for inner laminate, and molded diamond pattern non-skid decks. The deck to hull joint is bonded by fiberglass creating a strong seamless monolithic structure.
| ENGINES: |

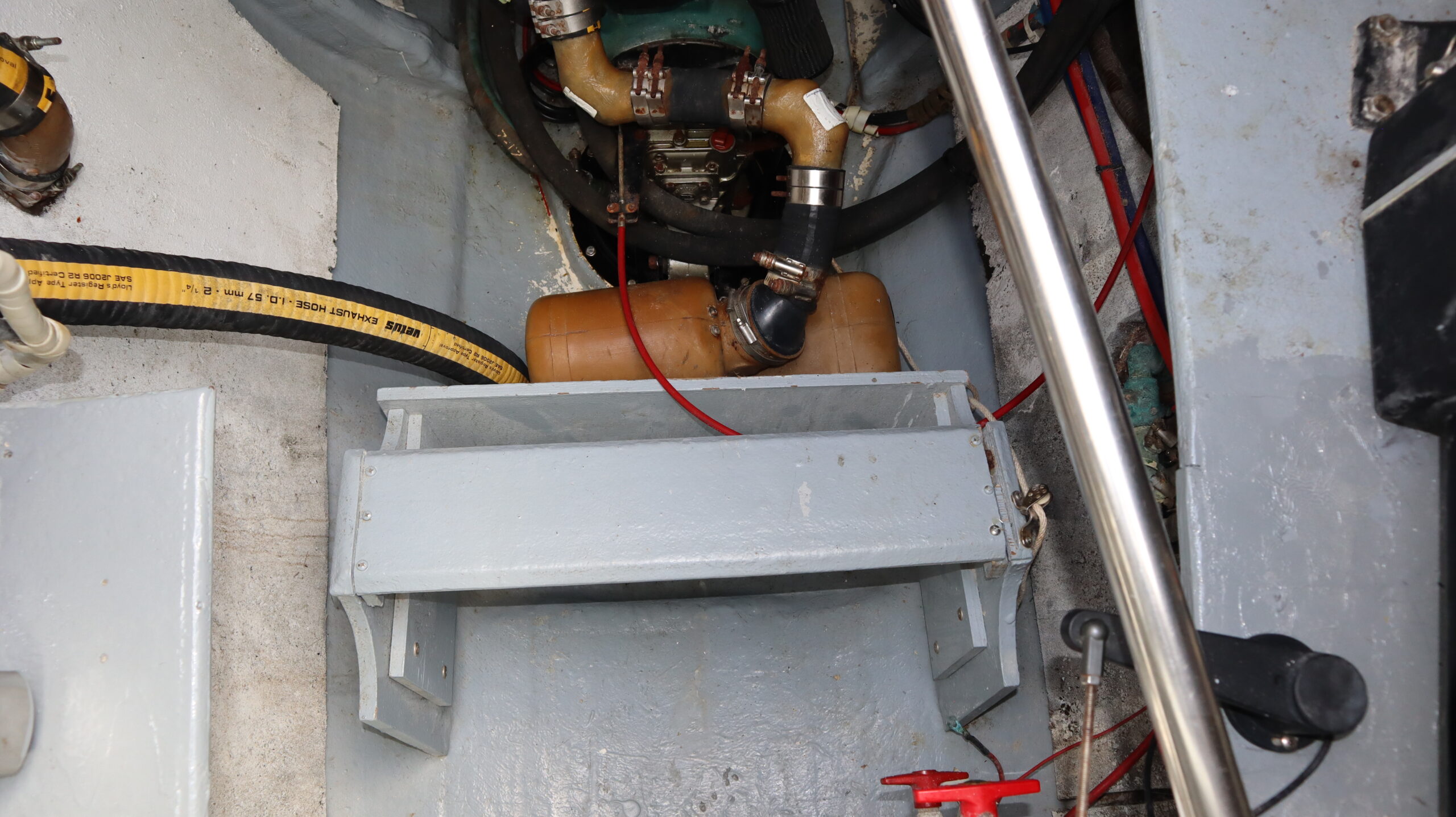

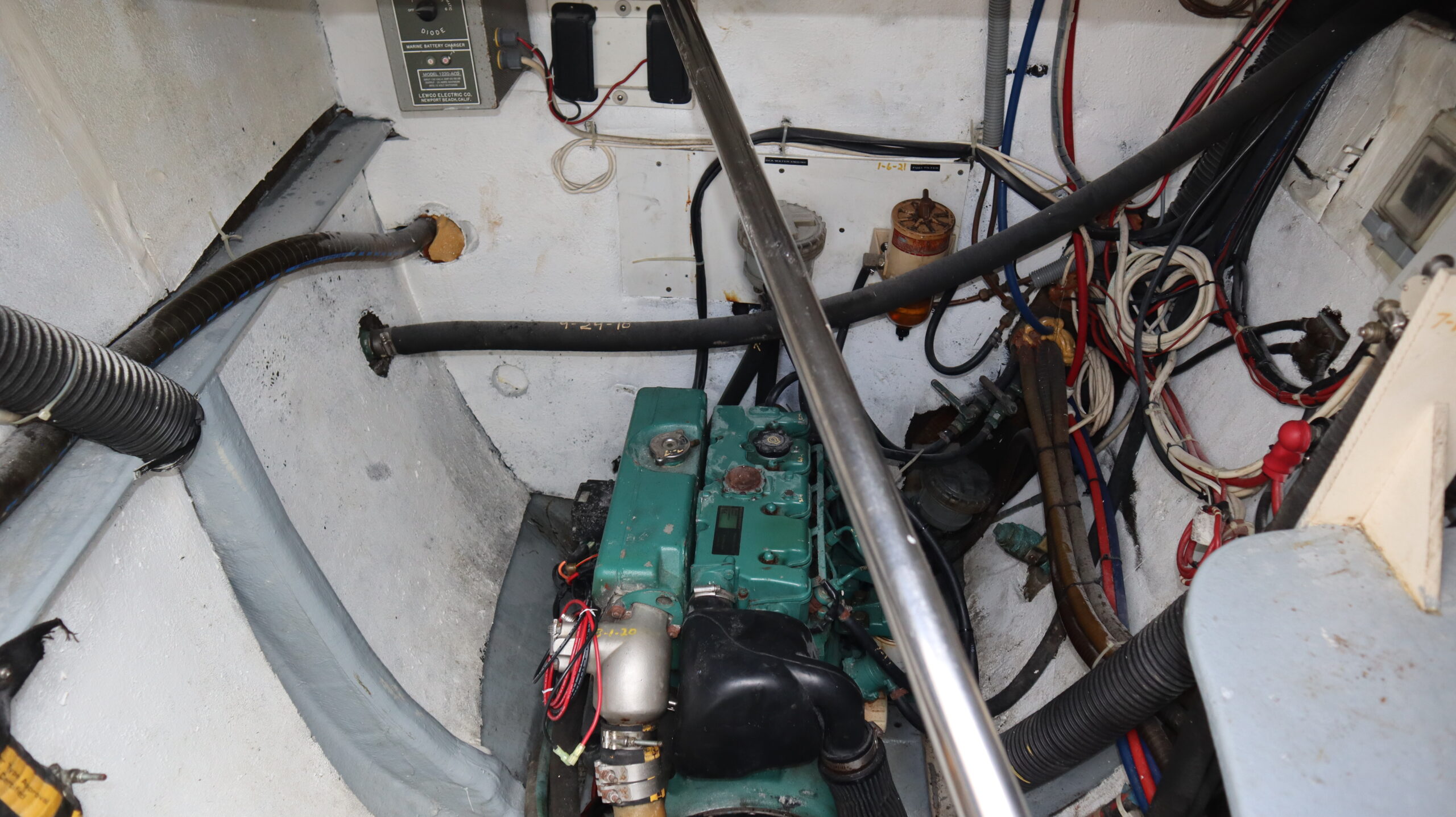

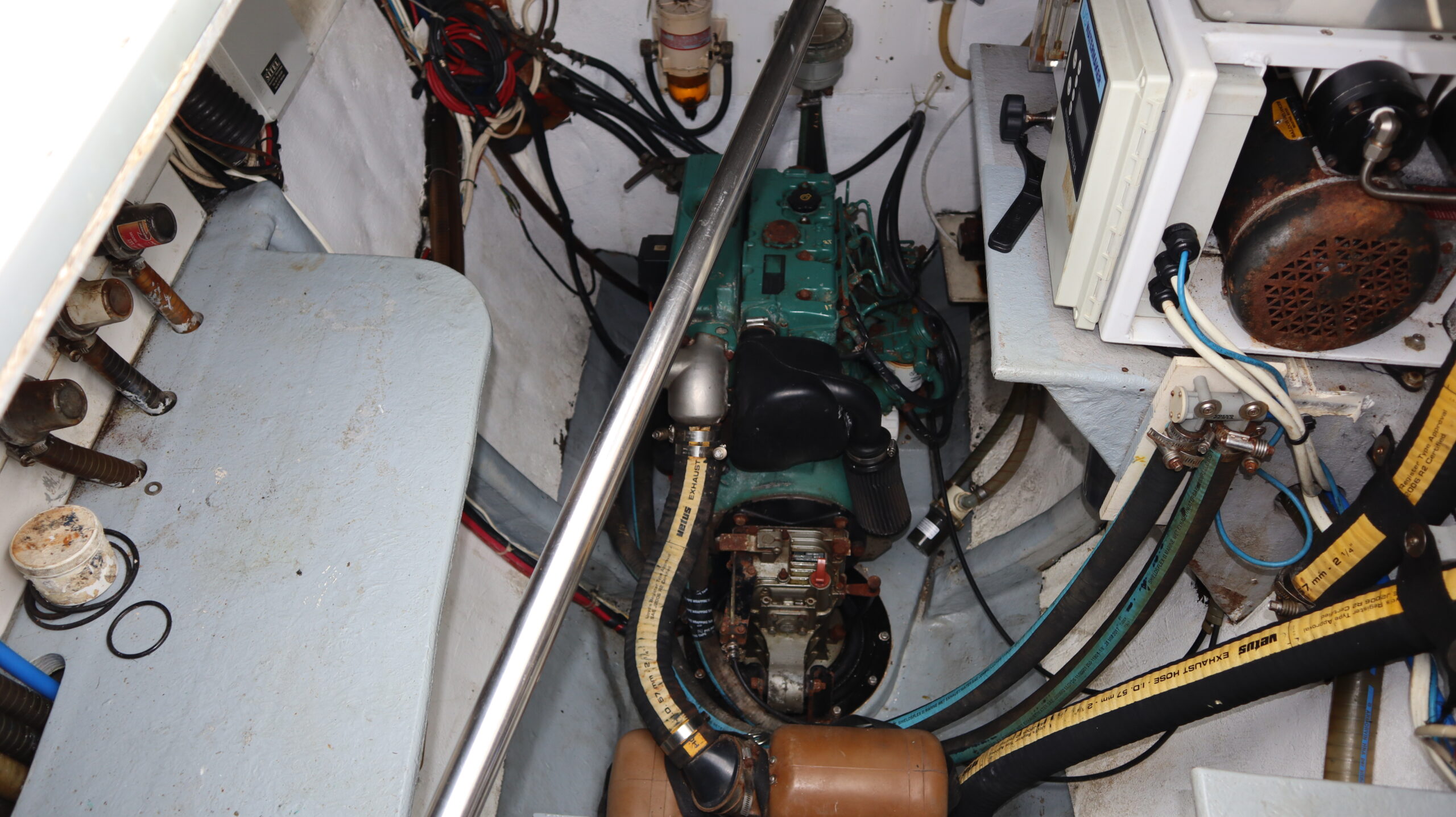

- Located Aft In Each Hull With Access via Moonlight Teak Transom Hatches
- 2x Volvo-Penta D2-55E Diesel new 2008 (4,250 hrs as of March 2026)
- 2x Volvo-Penta 130S Saildrives
- 2x Volvo Penta 3-Blade Folding Props
- Fuel/Water Filters (1 each per engine)

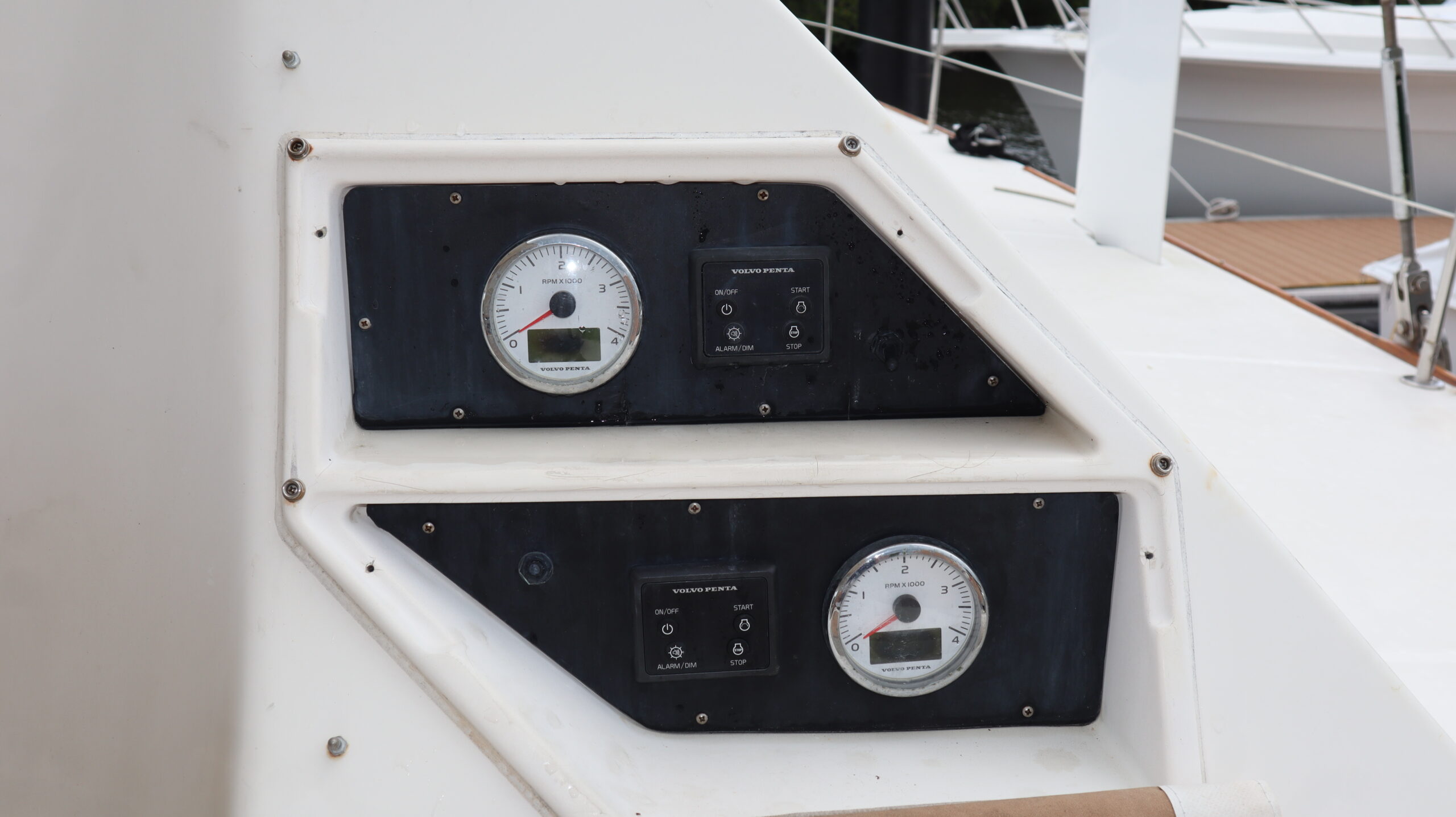

- Vetus Dual Single Lever Engine Cable Controls @ Starboard Helm
- 2x Deep Cycle AGM Engine Batteries
- 2x 60 Ah Alternators
| STEERING SYSTEM: |

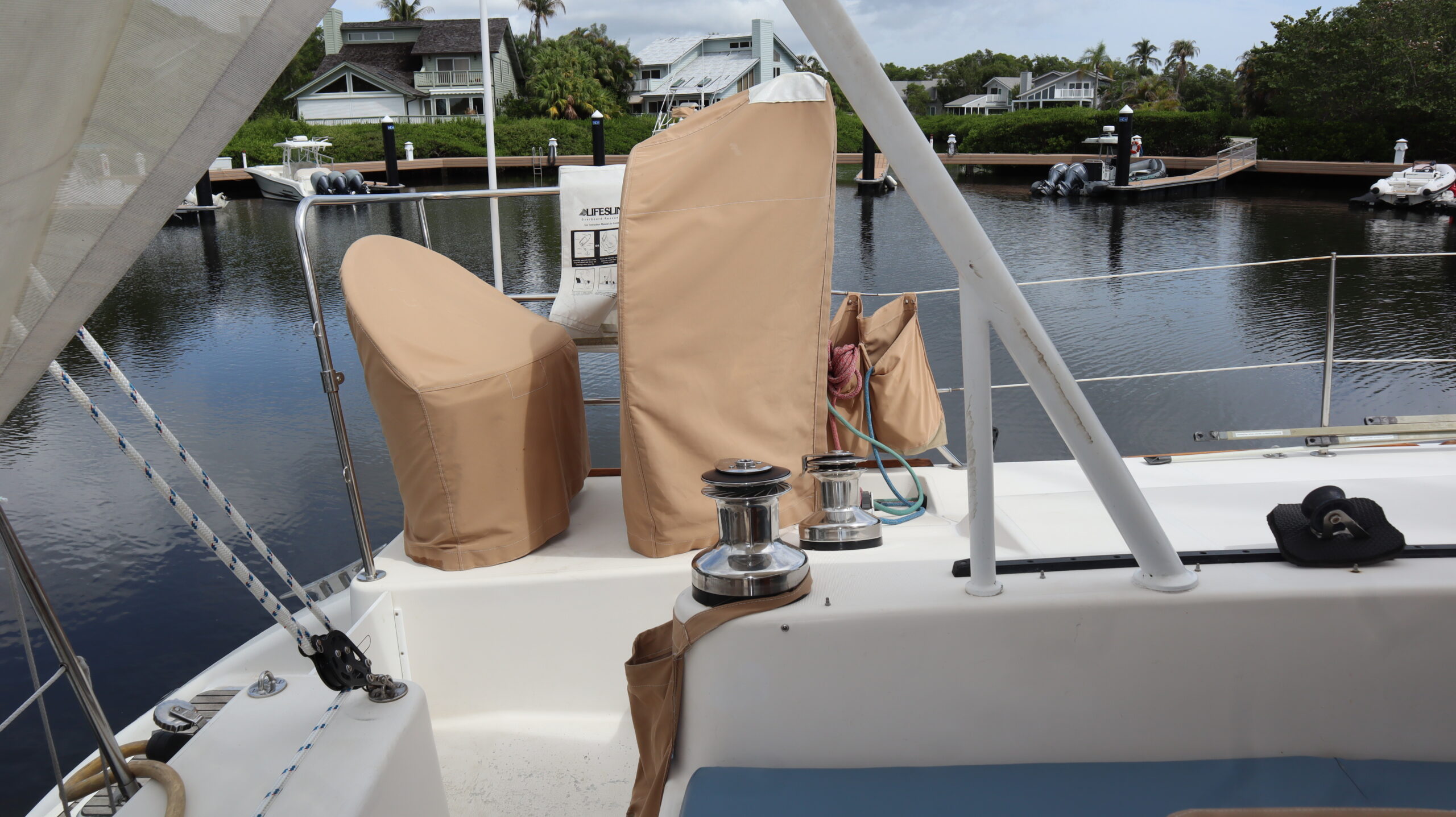

- 2x Composite Helm Seats w/Backrests
- 2x Composite Helm Consoles for Compass, Electronics, Engine Controls
- 2x Leather Covered Stainless Steering Wheels
- Lewmar (x-Whitlock) Rack & Pinion Steering System for Precise Rudder Feedback
- JP3 Upper/Lower Self-Aligning Rudder Bearings (lower bearings replaced 2023)
- Dual Plastimo Olympic 135 lighted compasses
| ELECTRICAL SYSTEM: |
- 12VDC / 110VAC 60Hz Electrical Systems
- Northern Lights M673 6kW Diesel Generator w/Sound Shield & Remote Panel (5,100 hrs as of March 2026)
- Honda EU2200i Backup Inverter Generator (new 2024)
- 3x 200Ah Victron Smart Lithium House Batteries (new 2021)
- Victron Lynx Smart BMS (new 2021)

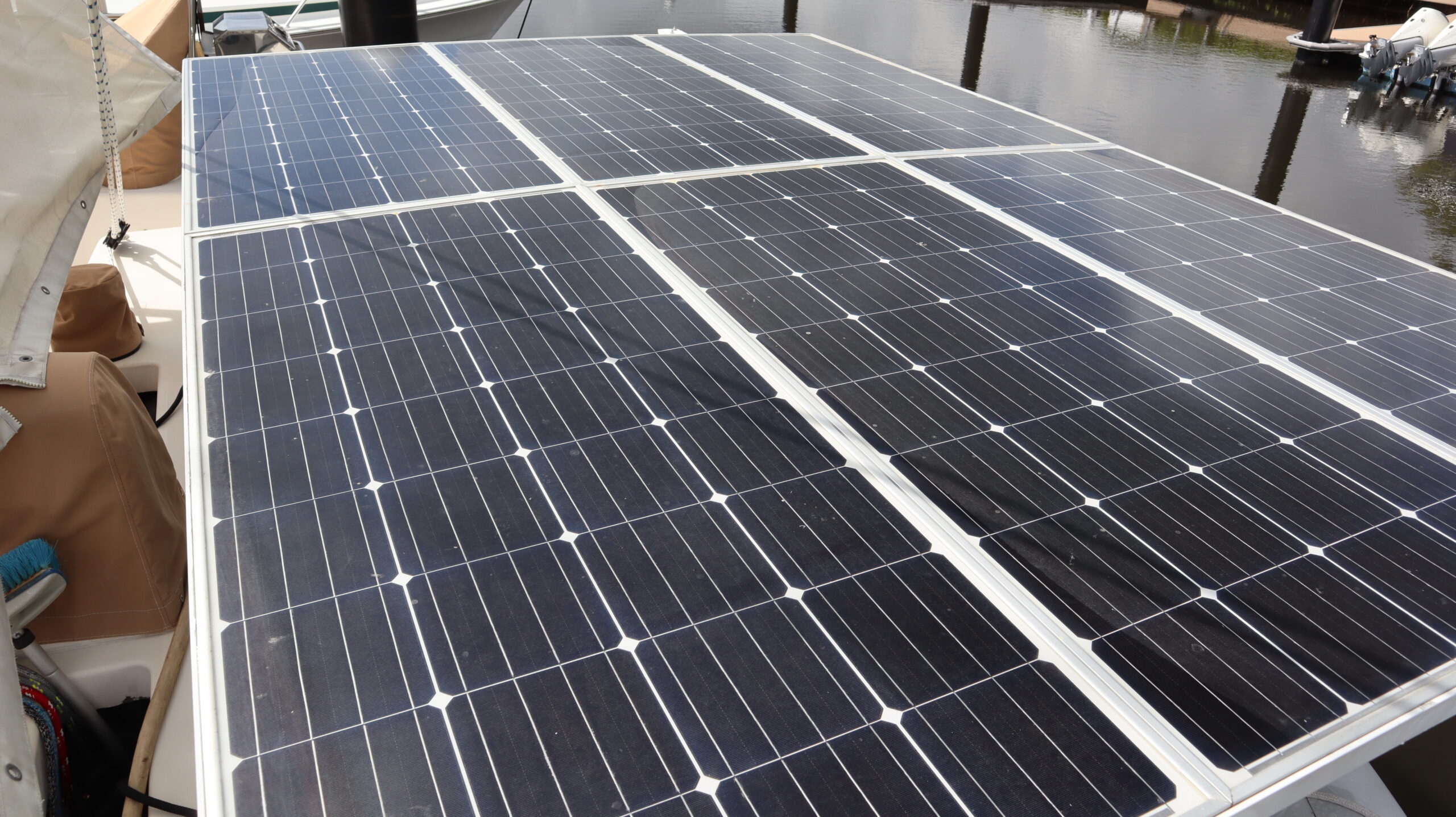

- 6x 175W Rigid Solar Panels Mounted Above Tender Davits
- 2x Victron Smart MPPT Solar Controllers (new 2021)
- Victron MultiPlus 3,000W Charger/Inverter (new 2021)
- 2x Victron Orion Smart 12 DC-DC Chargers (new 2021)
- Victron Cerbo GX Monitoring System (new 2021)
- AC/DC US Interior Outlets
- All Interior/Cockpit LED Lights
- 50 amp Shore Power Cord

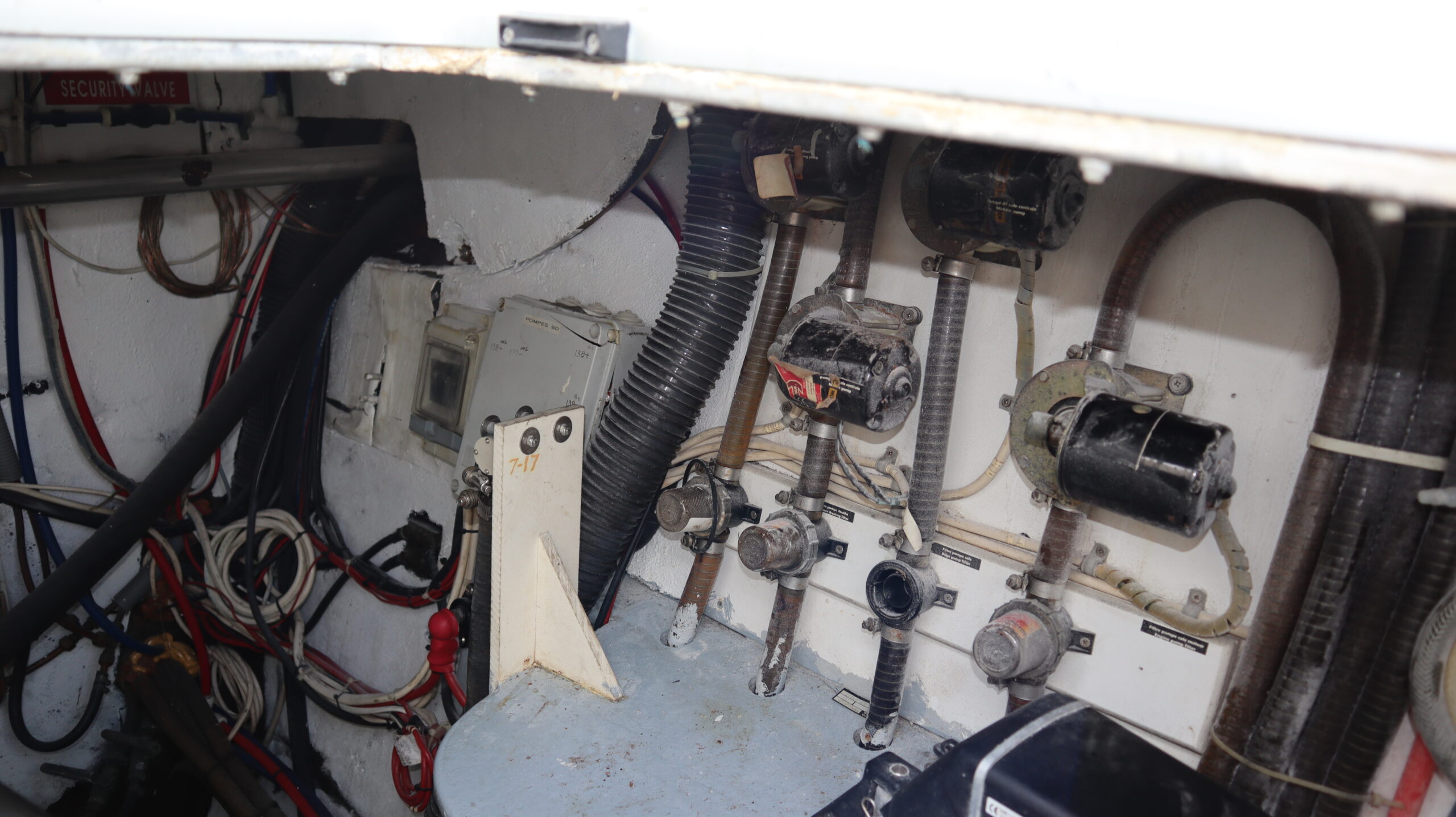

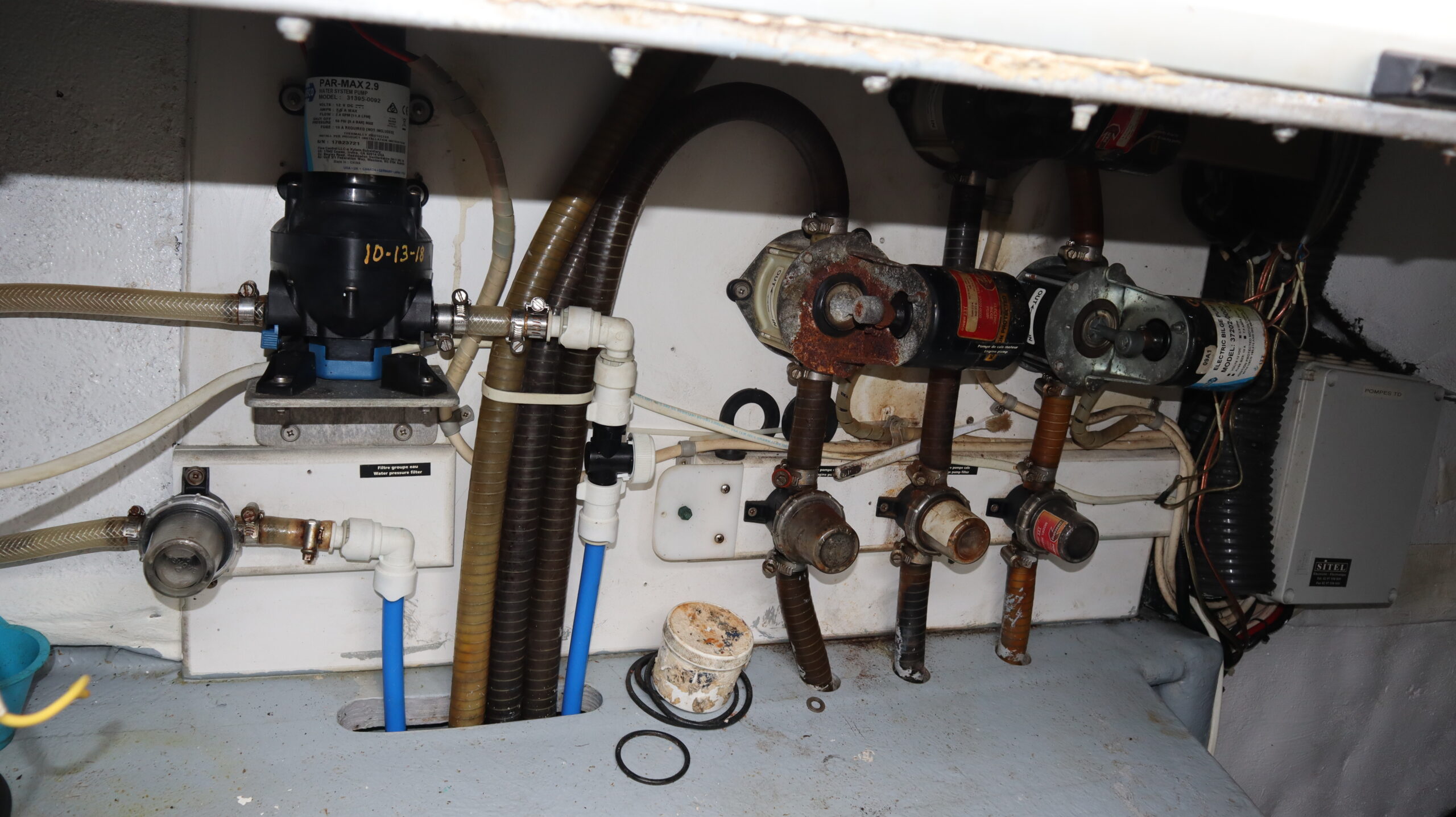

| PLUMBING: |

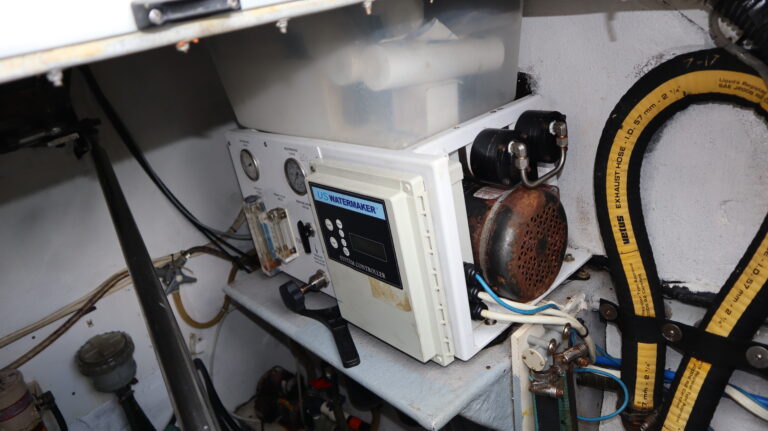

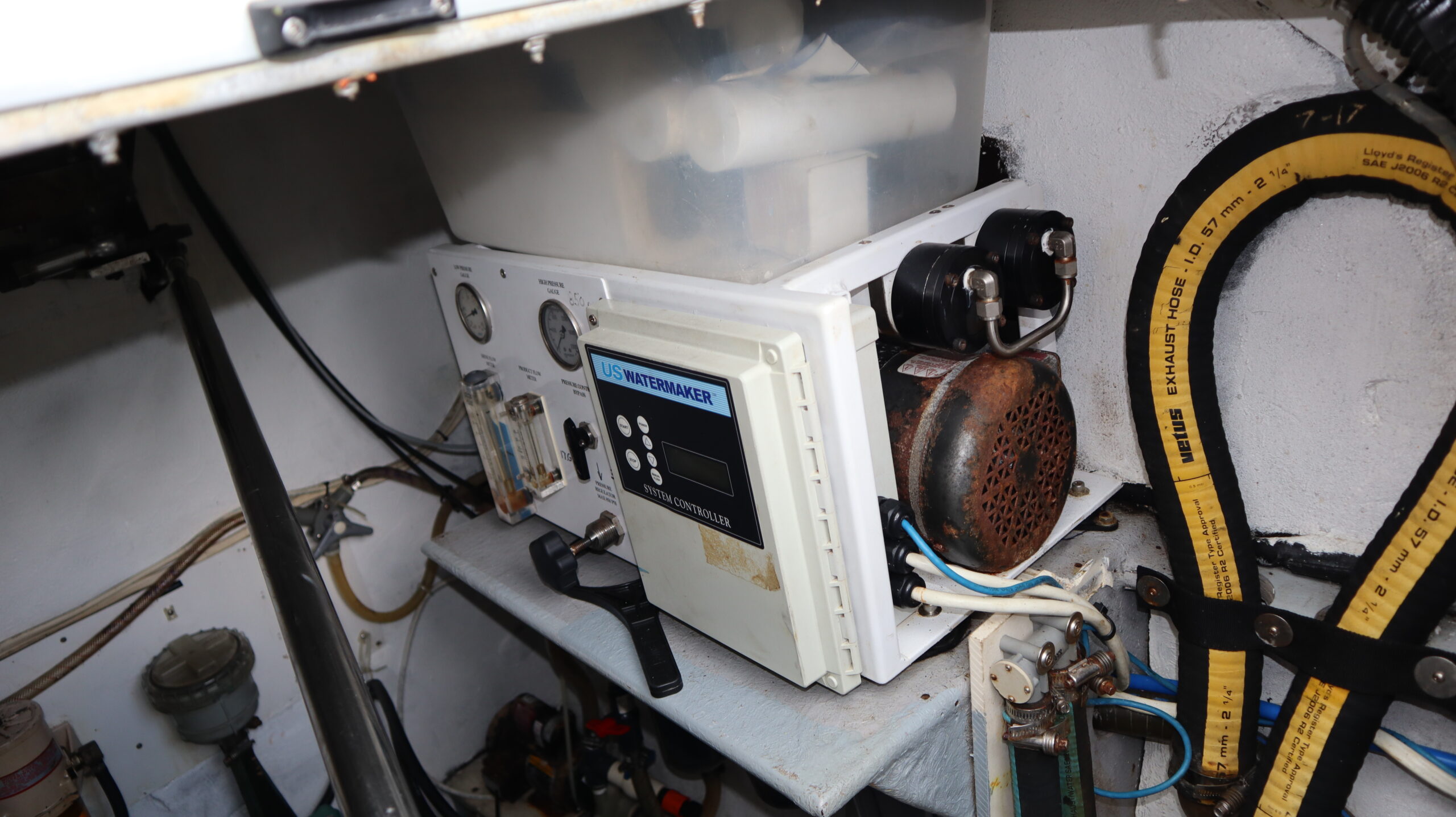

- US Watermaker 17 GPH Watermaker Plumbed To Both Water Tanks (new 2017)
- 2x GRP Water Tanks (1 per hull) w/2x Fresh Water Pumps
- 4x Jabsco Bilge Pumps w/Float Switches (2 per hull)
- 2x Jabsco Shower Sump Pumps (1 per hull)
- 1x Quick Water Heater (engine/110VAC)
- 2x Nauta 25 gal Flexible Black Water Tanks
- 12V Fresh Water Deck Washdown
| STANDING & RUNNING RIGGING: |
- Sparcraft White Lacquered Aluminum Triple Spreader Mast w/Fredericksen Battcar Sail Track (sand blasted & repainted 2018)

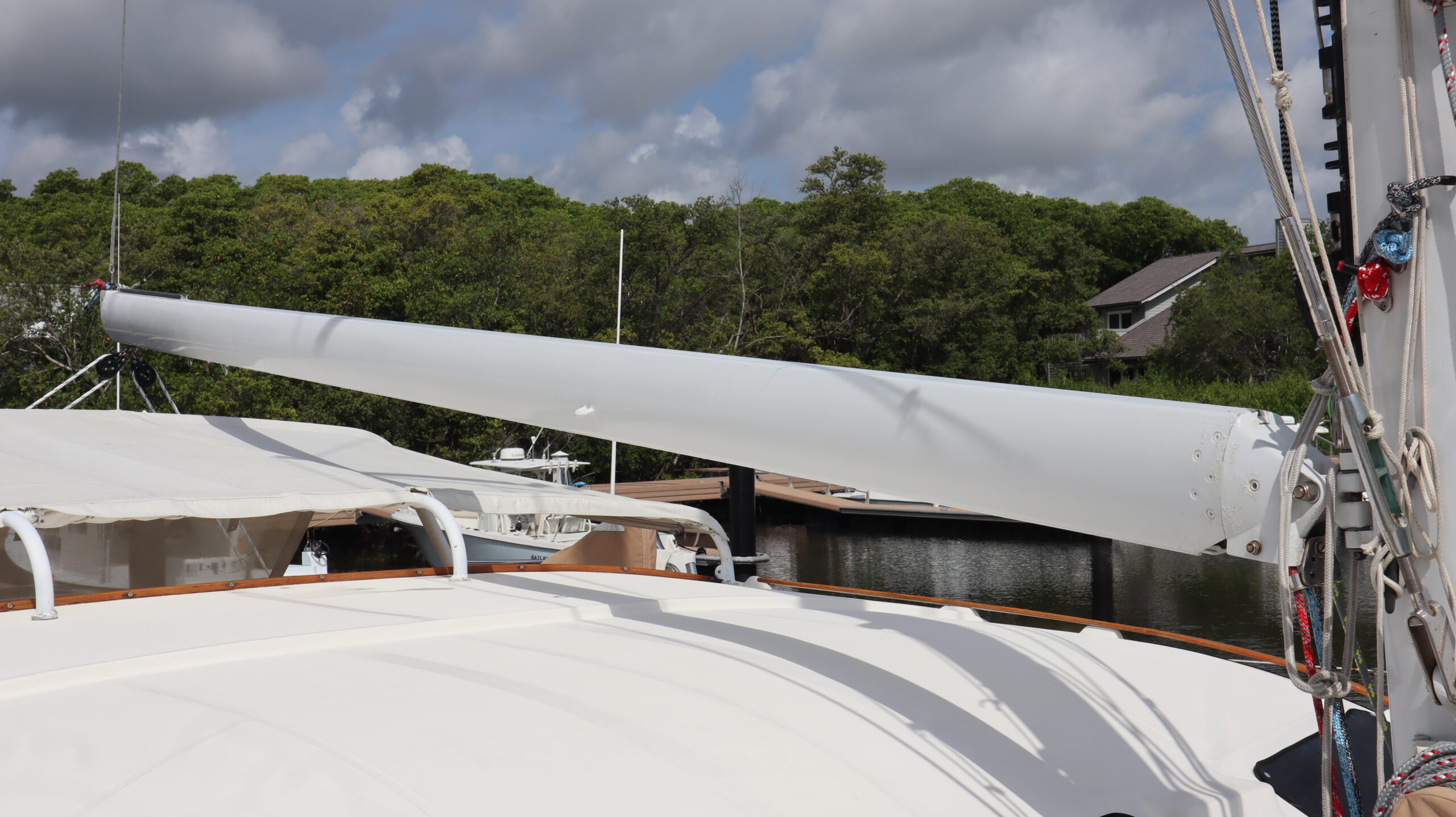

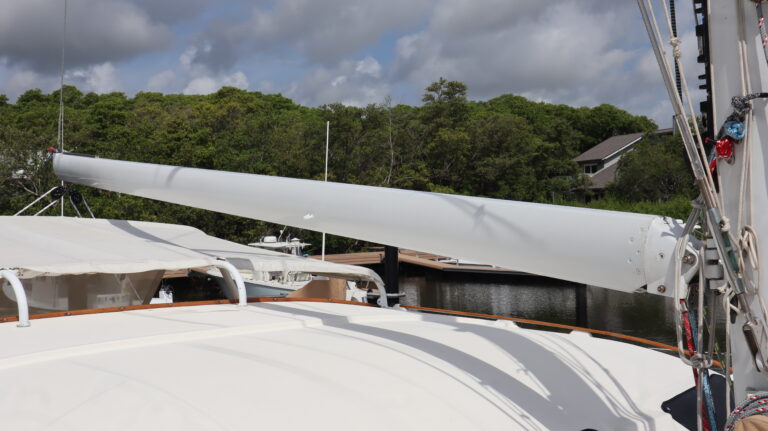

- Sparcraft White Lacquered Aluminum Boom
- Maréchal White Aluminum Forward Crossbeam
- Stainless Wire Upper/Lower Shrouds (new 2018)
- Stainless Rod Headstay (new 2018)
- Stainless Rod Diamonds (new 2018)
- Profurl 430 Genoa Roller Furler (new 2025)

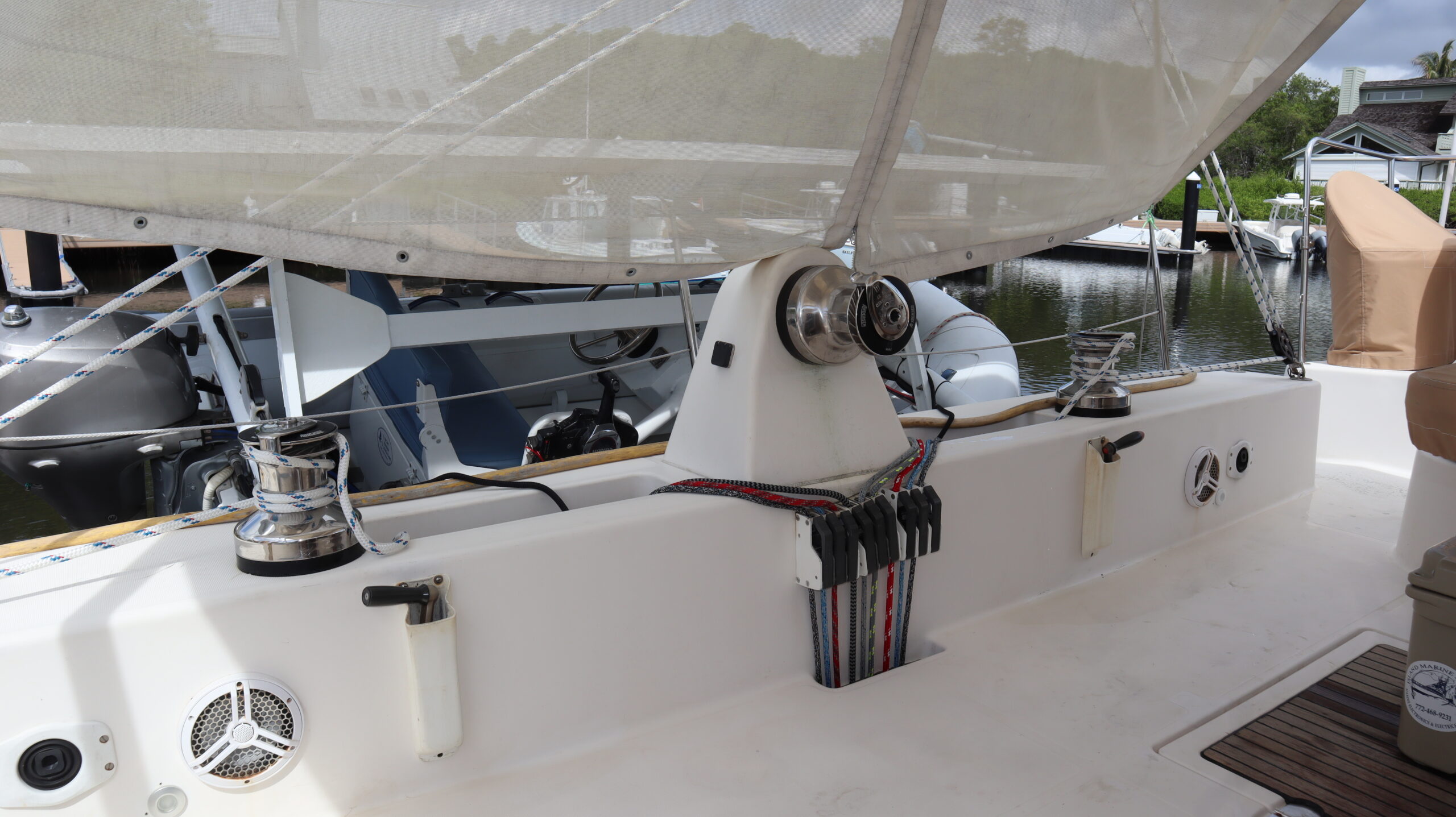

- 1x Andersen Stainless 52ST Electric Mainsail Utility Winch (halyard/topping lift/3x set of reefs)

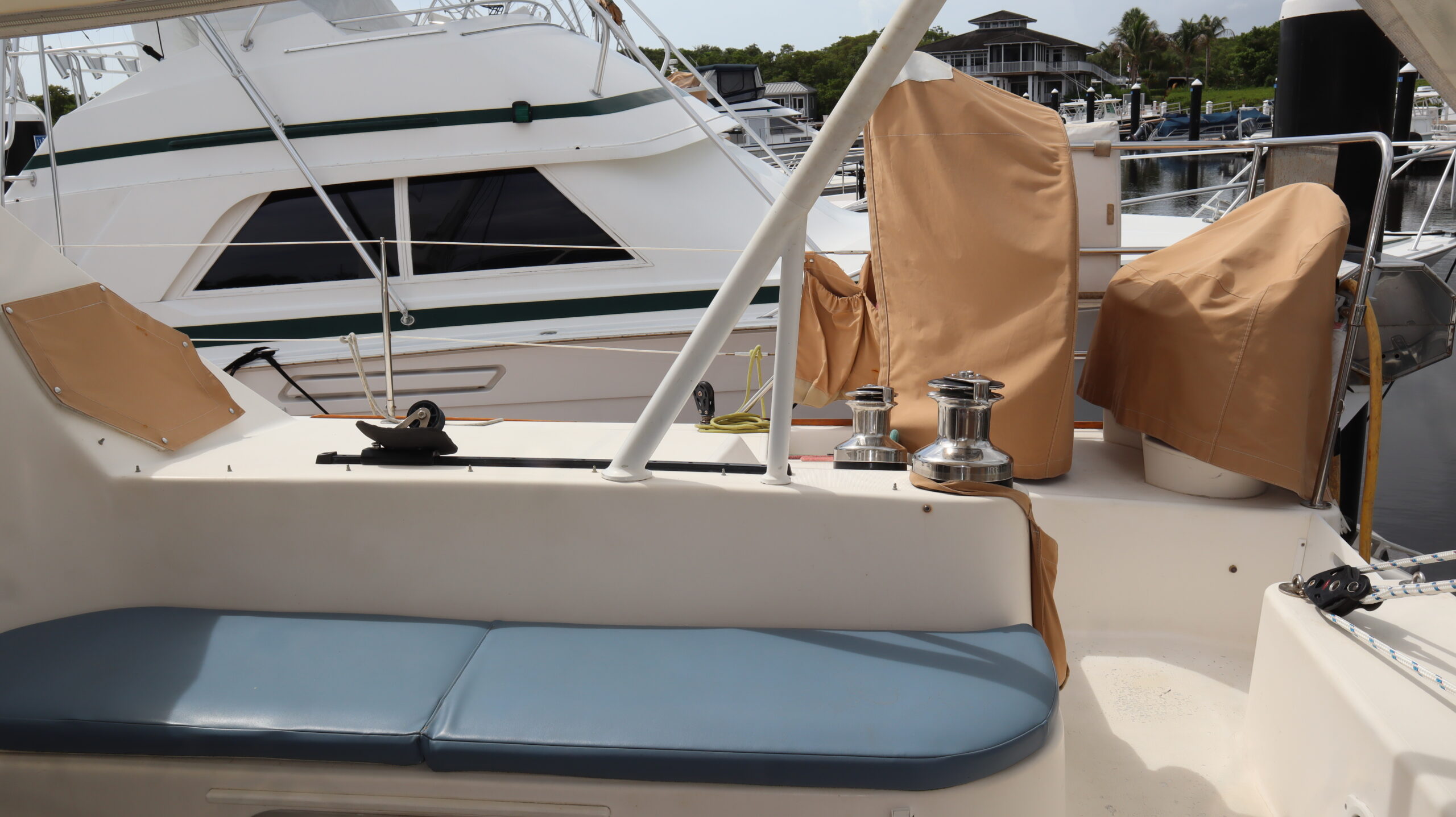

- 2x Andersen Stainless 52ST 2-Speed Primary Winches (headsails)
- 2x Andersen Stainless 46ST 2-Speed Secondary Winches (daggerboards/headsail furlers/spinnaker guys)
- 2x Andersen Stainless 53ST 2-Speed Mainsheet Winches (3:1 bridal sheeting system)
- 1x Andersen Stainless 46ST 2-Speed Headsail Halyard Winch @ Mast

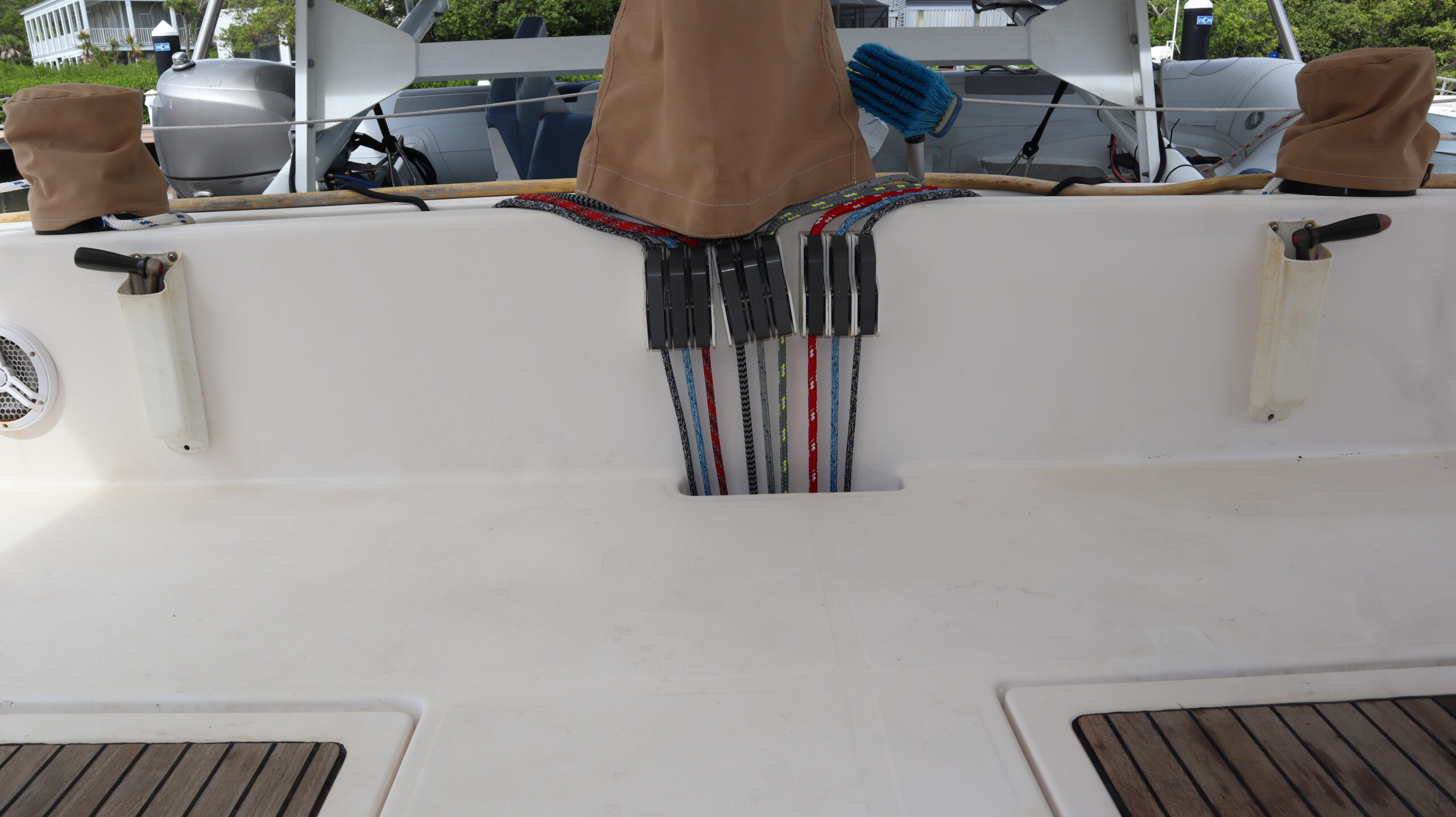

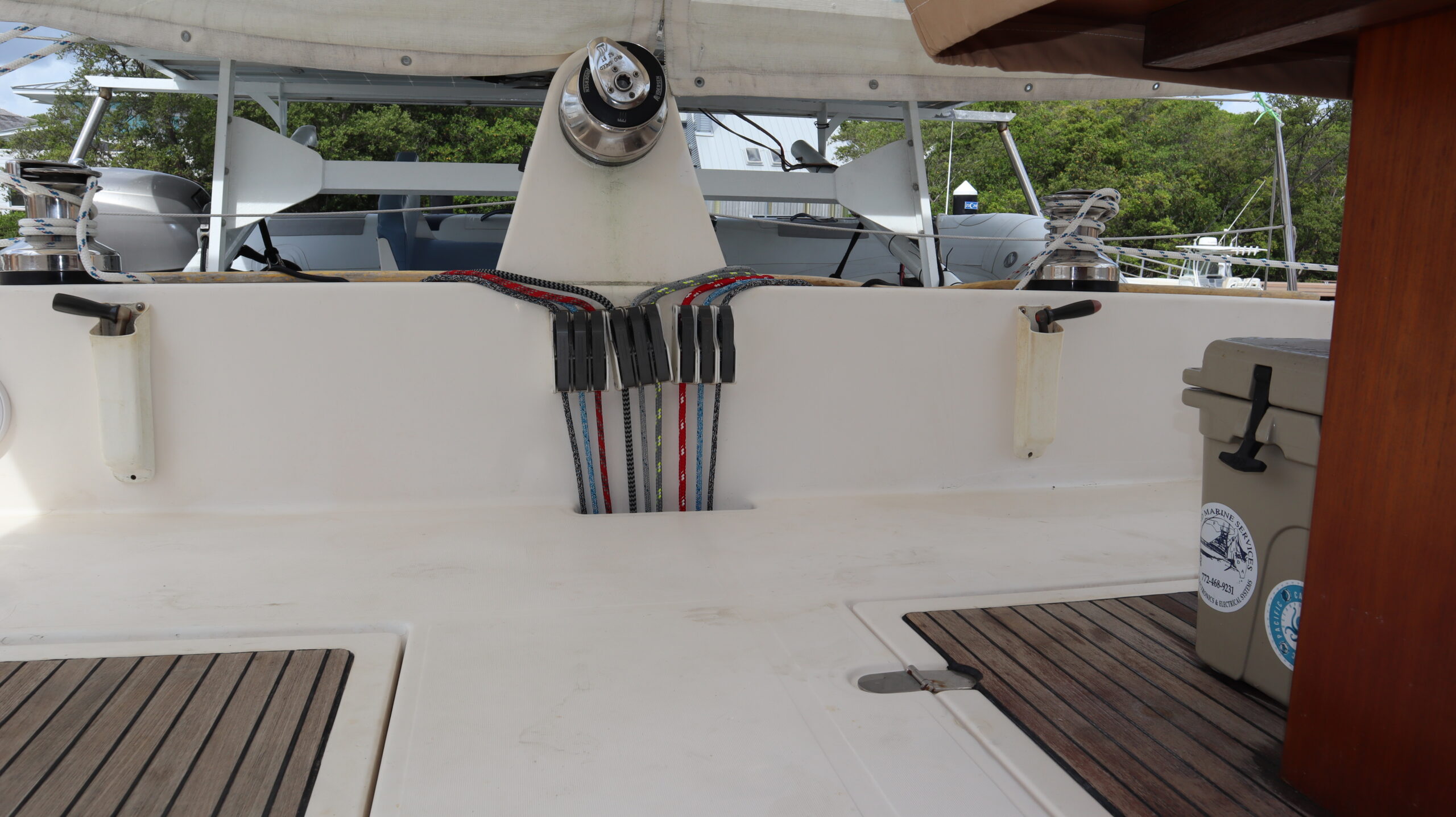

- Spinlock Rope Clutches

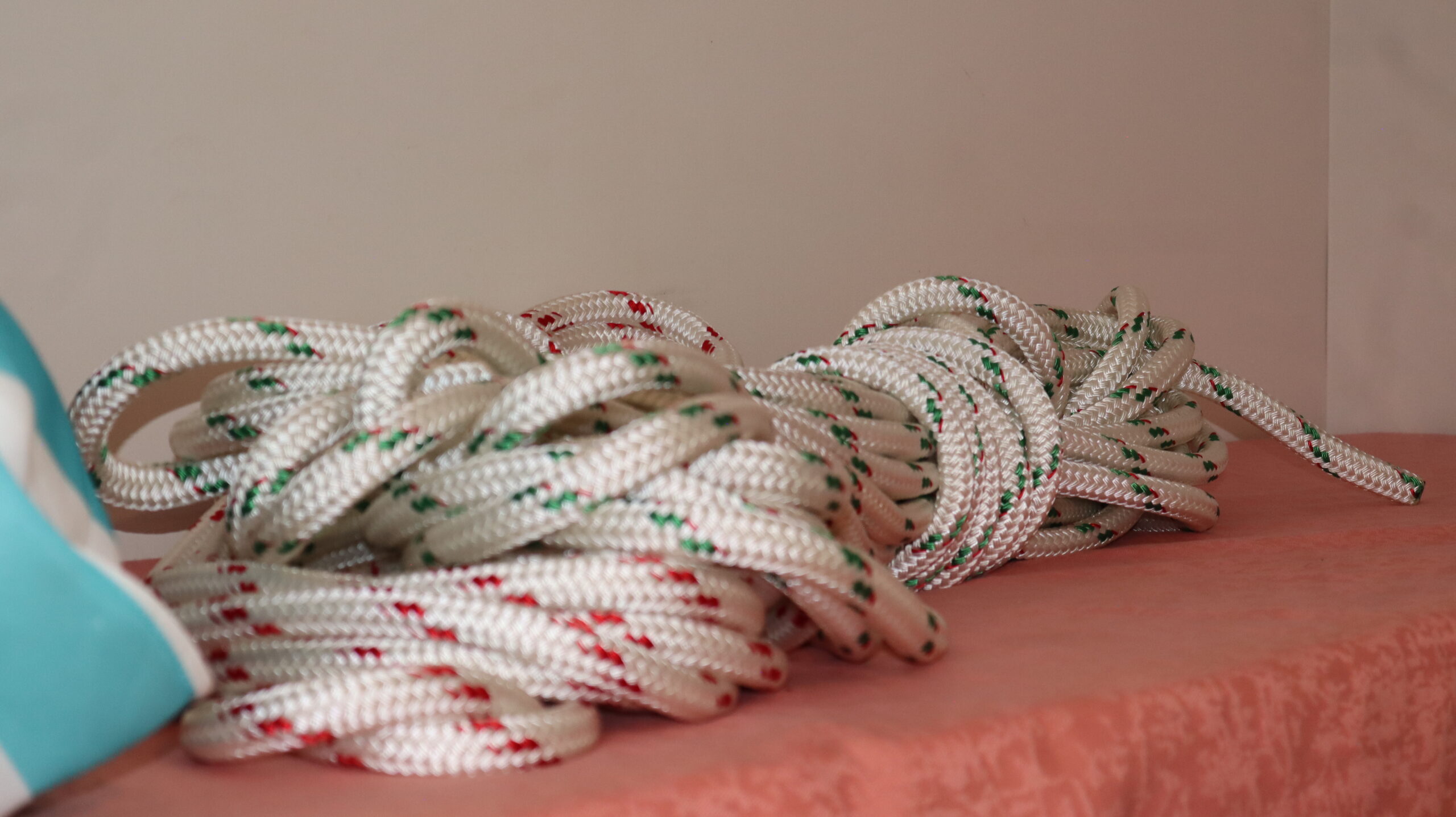

- Running Rigging (new 2026)
- Solo Mast Climbing Rig
| SAIL INVENTORY: |
- North High Roach NPL Tour Ultra X. North Lam NLU 350 (new 2020) w/ Fredericksen Battcars
- Tan Lazybag Mainsail Cover (replaced 2018)
- North Furling Genao NPL Tour Ultra X. North Lam NLU 350 (new 2020) w/Tan UV Protection
- Precision Sails Asymmetrical Spinnaker w/Sock & Turtle Bag (new 2019)
| DECK EQUIPMENT: |
- White Canvas Bimini (new 2023) w/White Lacquered Aluminum Frame & Carbon Catwalk (88” x 24”)
Under Bimini to Access End of Boom - Phifertex Mesh Salon Window Covers
- Cockpit Canvas Enclosure (new 2018)
- Cockpit Vinyl Covered Cushions (new 2026)
- Full Deck Canvas Awning
- White Lacquered Aluminum Davits

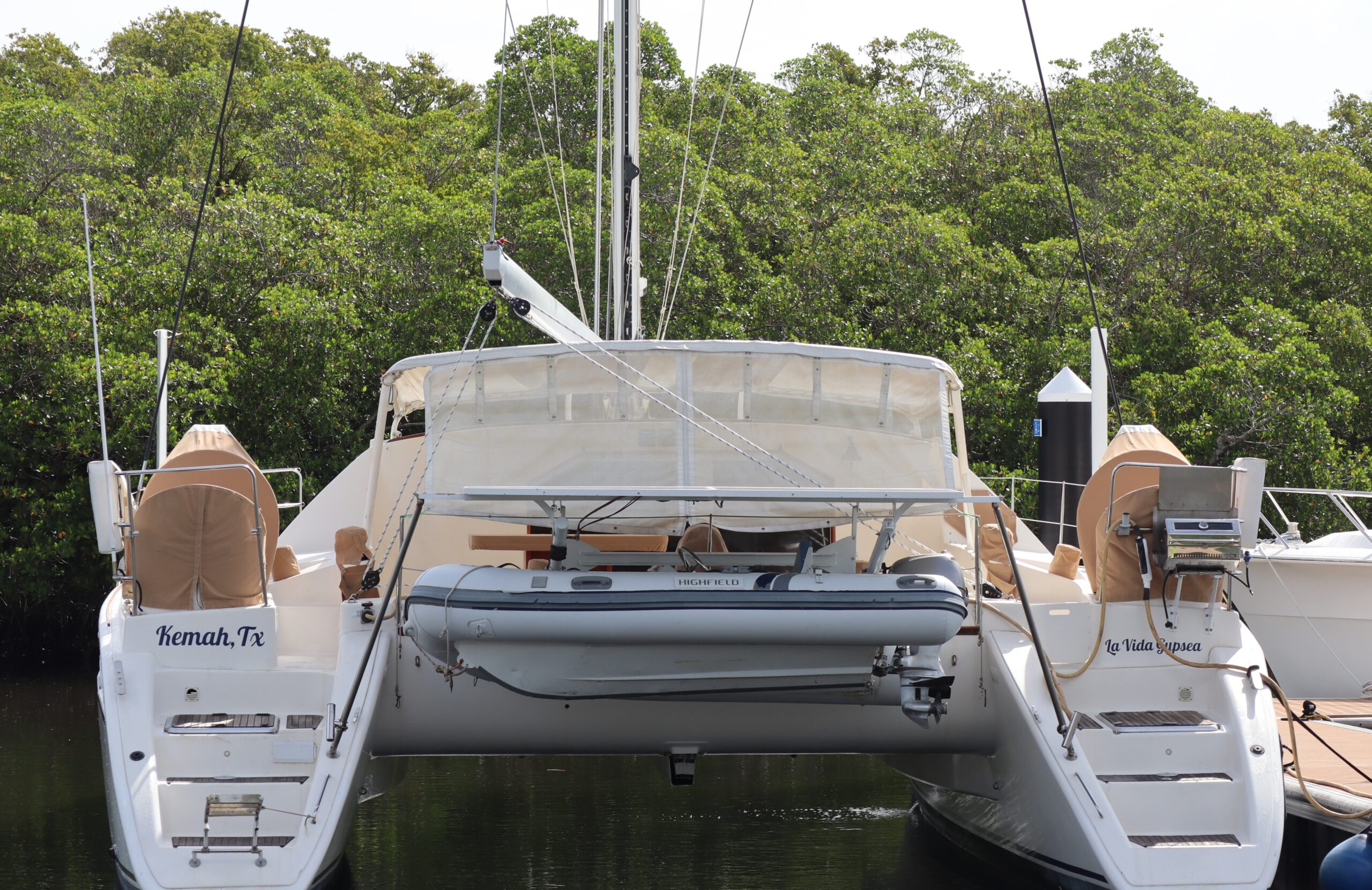

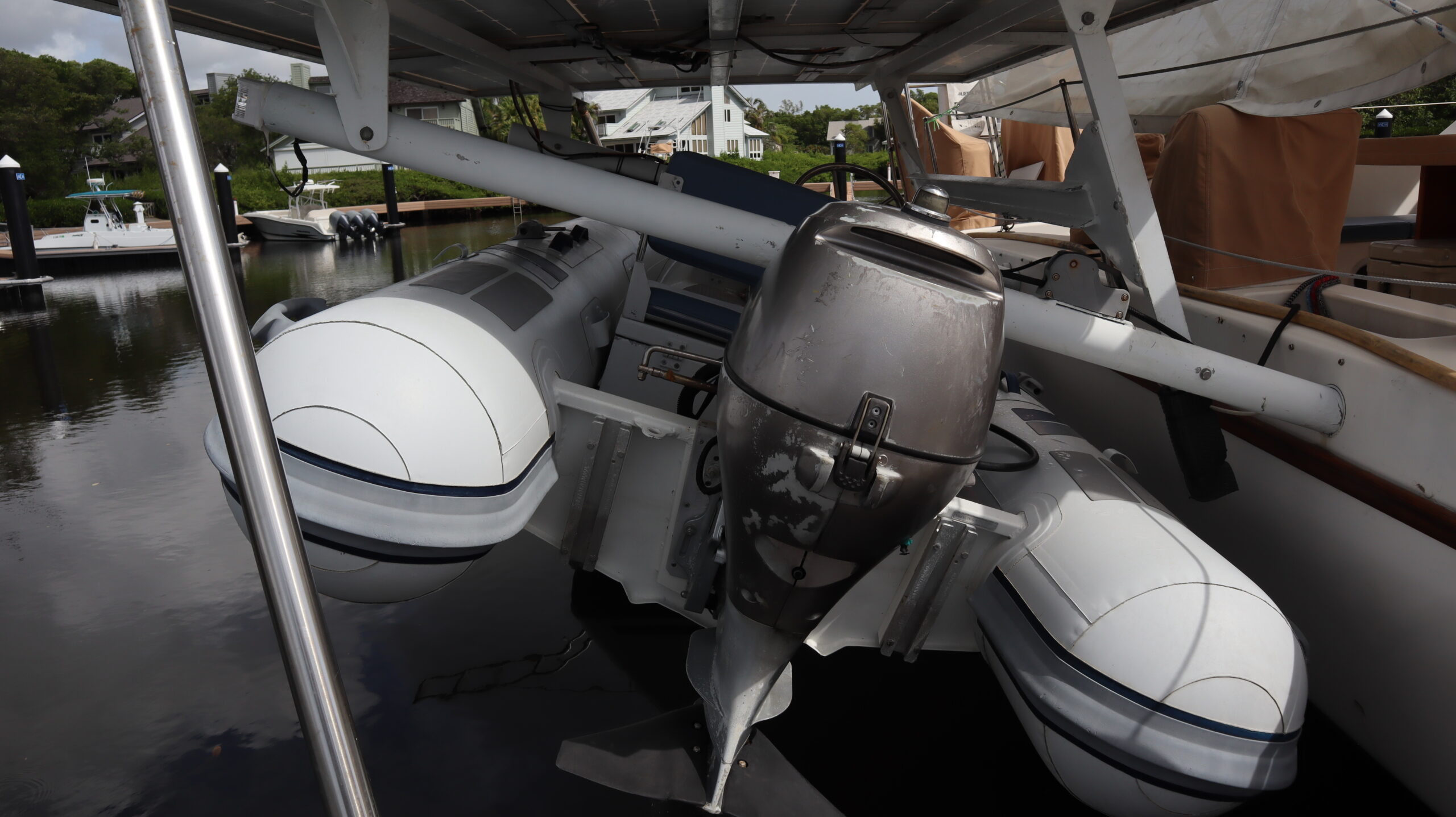

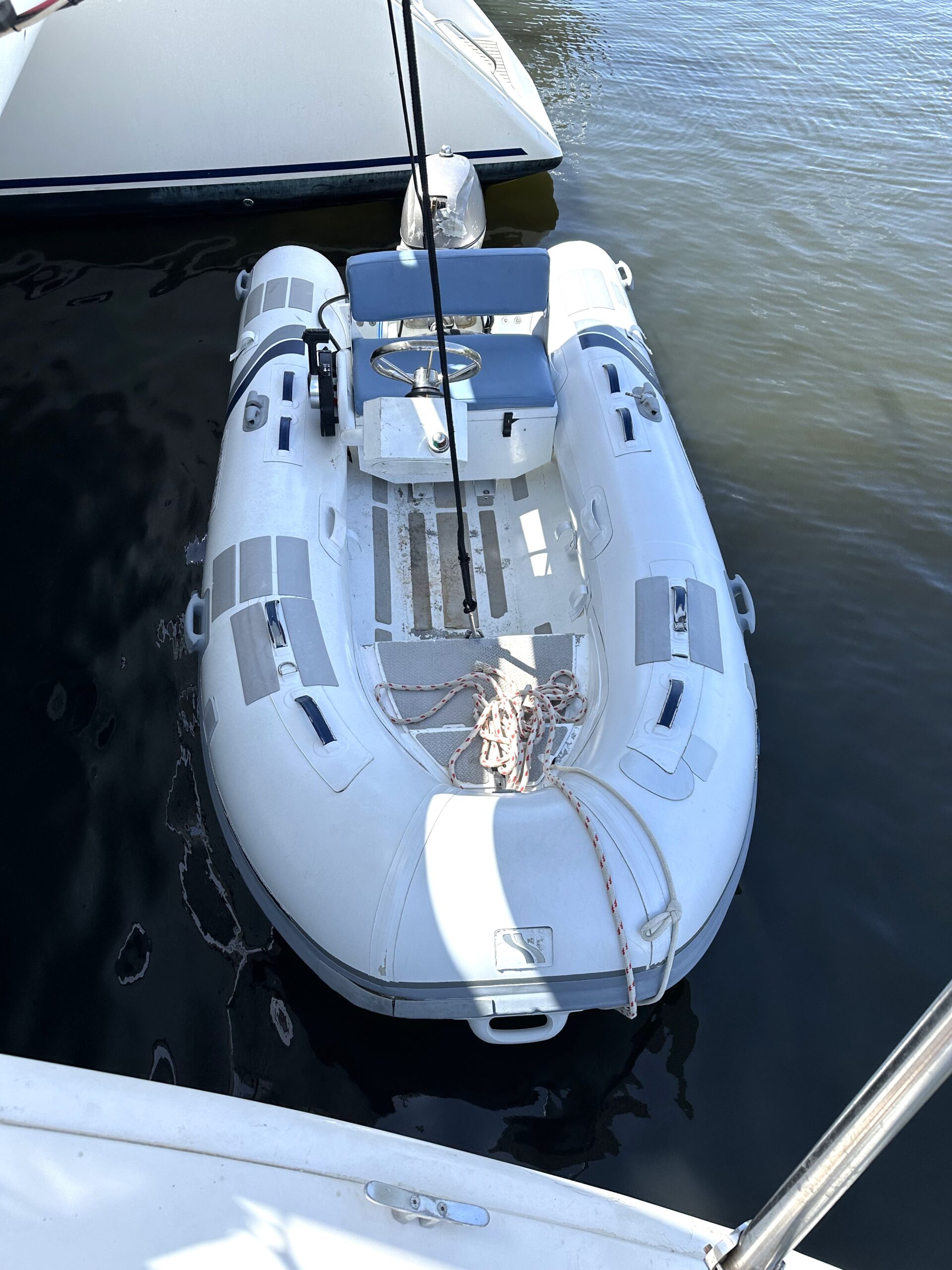

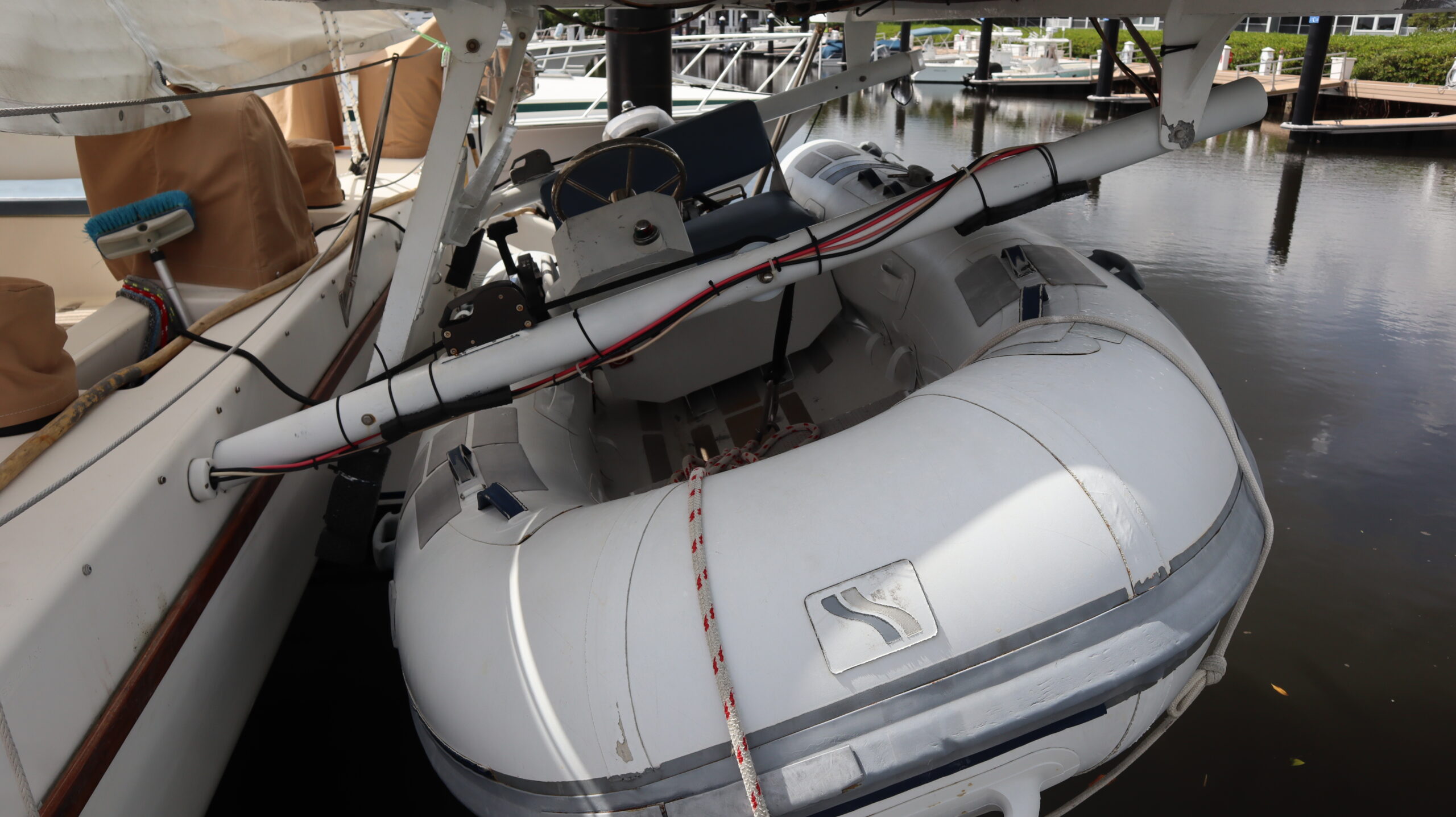

- Highfield Aluminum 340 BLT RIB Tender w/Center Console (new 2017)
- Dingy Wheels
- Honda 20hp 4-Stroke Outboard w/Electric Start & Tilt (new 2017)

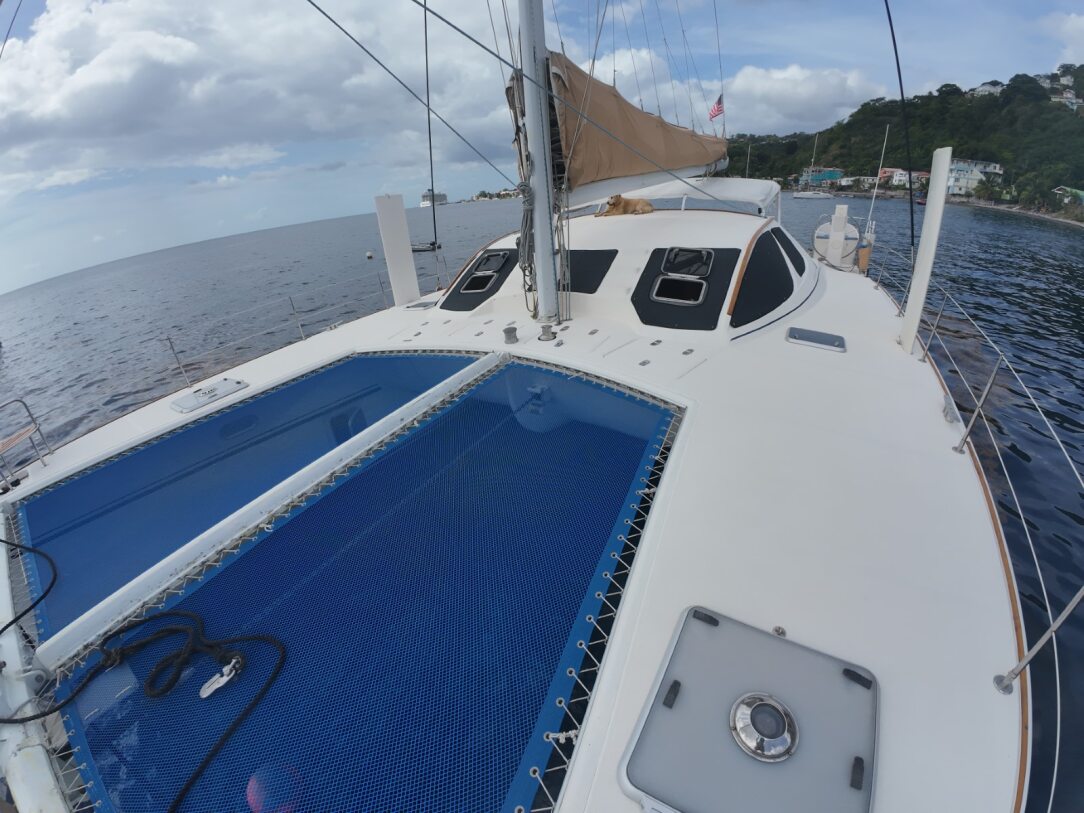

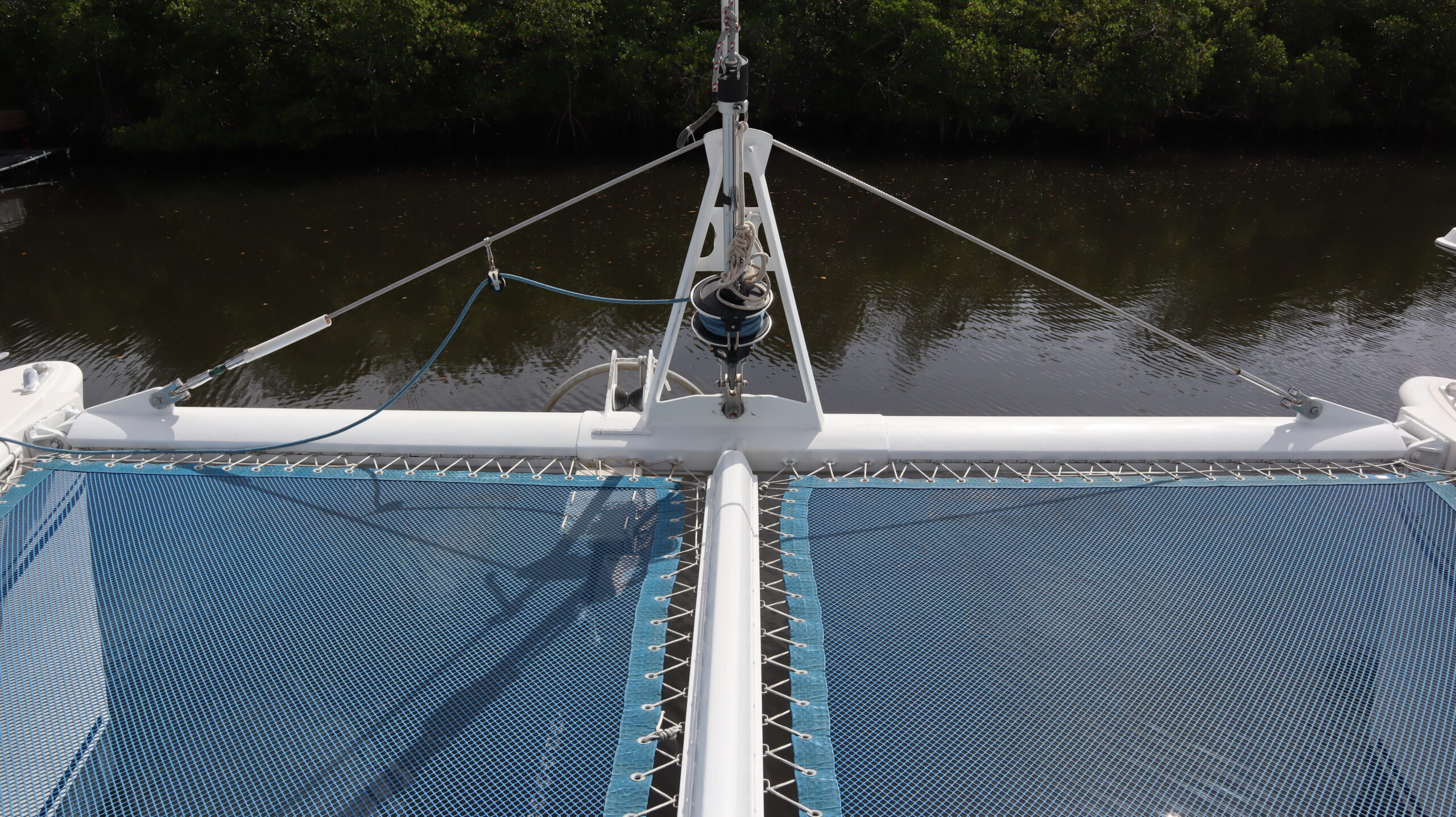

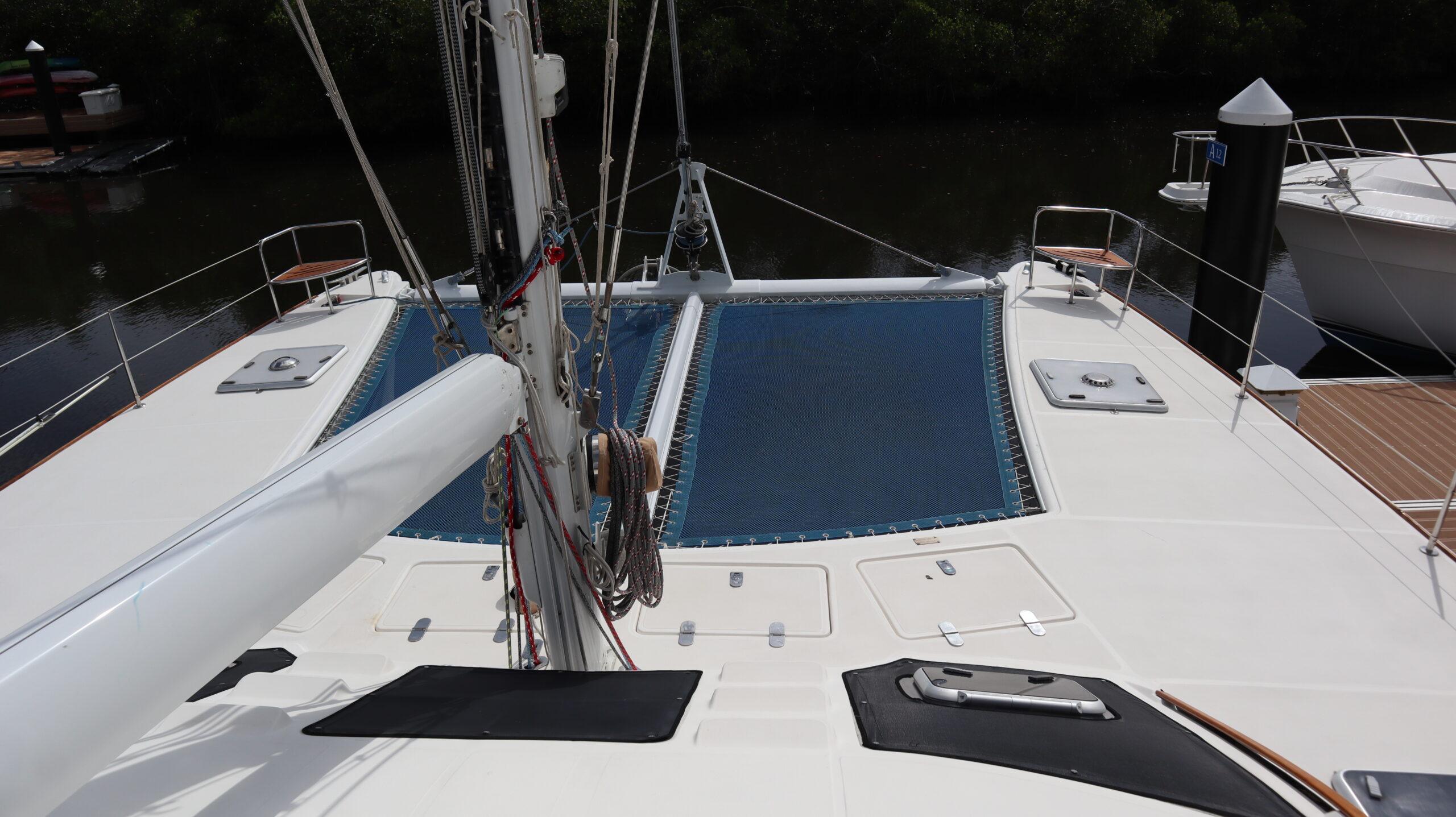

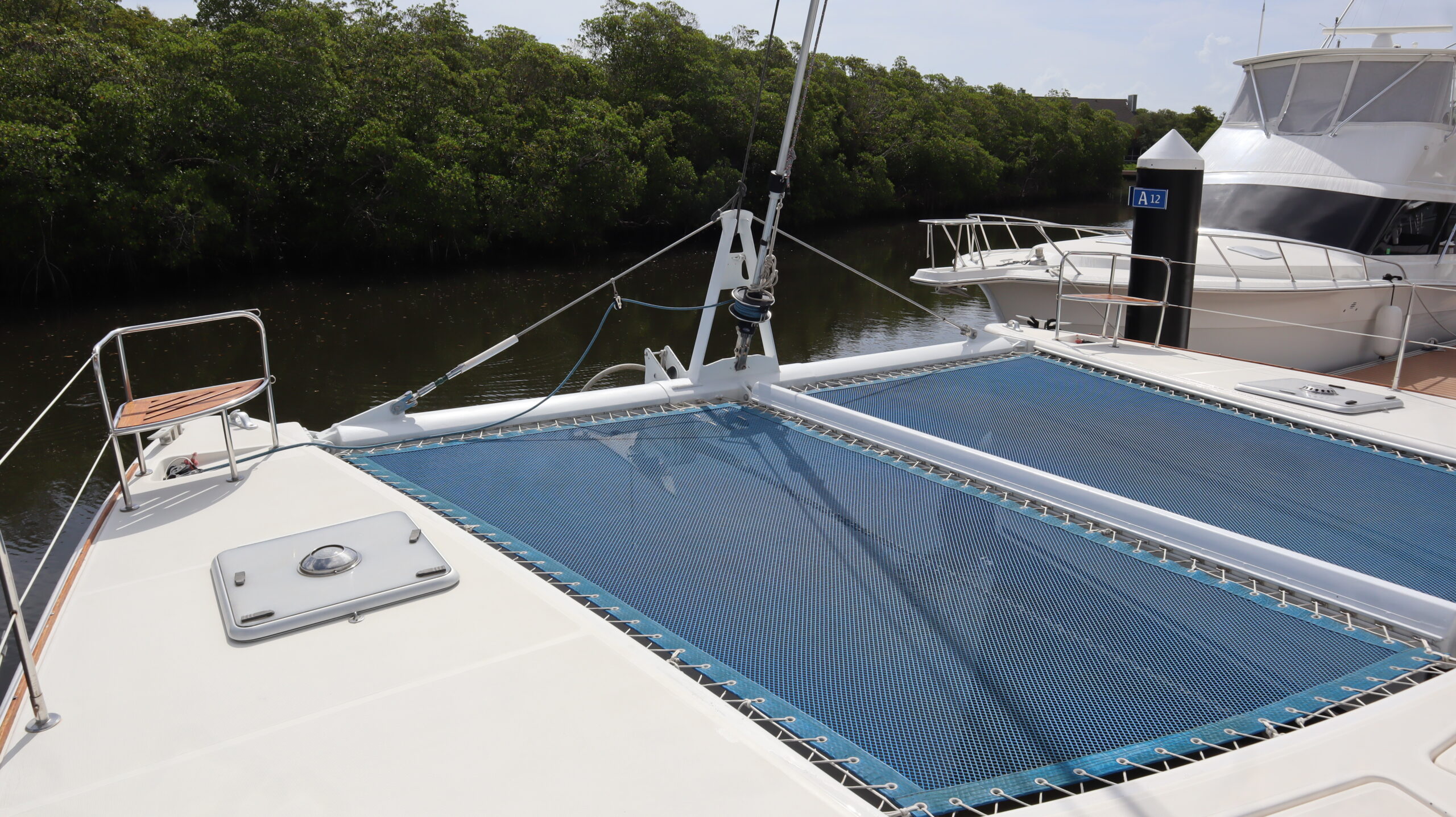

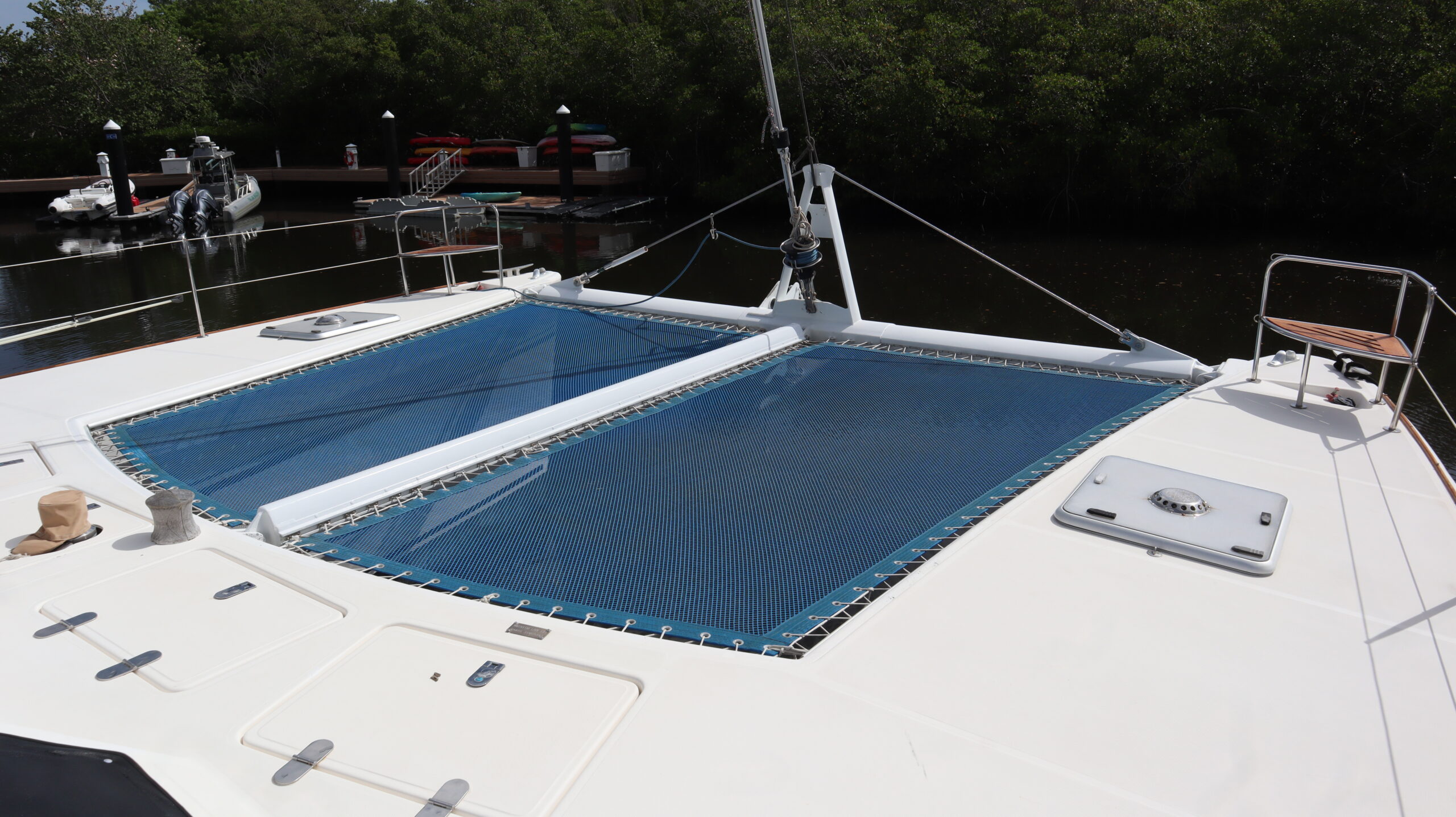

- Blue Sunrise Yacht Products Trampoline (new 2019)
- Port & Starboard Teak Pulpit Seats
- Port & Starboard Forepeak Lockers w/Access via Goiot Opaque Deck Hatches
- Vinyl Covered Lifelines Port & Starboard
- Dyneema Lifeline Aft Crossbeam
- Port & Starboard Transom Gates
- Stainless & Teak Port Transom Swim Ladder
- Hot & Cold Pressure Water On Port Transom
- Magma Propane BBQ Grill
- Natural Teak Toerail
- Port/Starboard Transom Teak Steps
- Deck Level Running Lights / Masthead Anchor Light
- Steaming Light / Forward Deck Projector
- Inflatable SUP w/Paddle
- Harken Bosun’s Chair
- Boat Hook
- Dock Lines & Fenders
| MOORING: |
- Anchor Locker & Chain Locker @ Mast Base
- Lewmar V4 Vertical Windlass w/Hand-Held Controls
- Primary Anchor Roller Below Forward Crossbeam
- Secondary Anchor Roller Above Forward Crossbeam
- Mantus 50kg (110 lbs) Primary Anchor (new 2018) w/300′ 10mm Chain Rode (re-galvanized 2023)
- Mantus Anchor Bridle
- Mantus 15 lb Tender Anchor
| ELECTRONICS: |

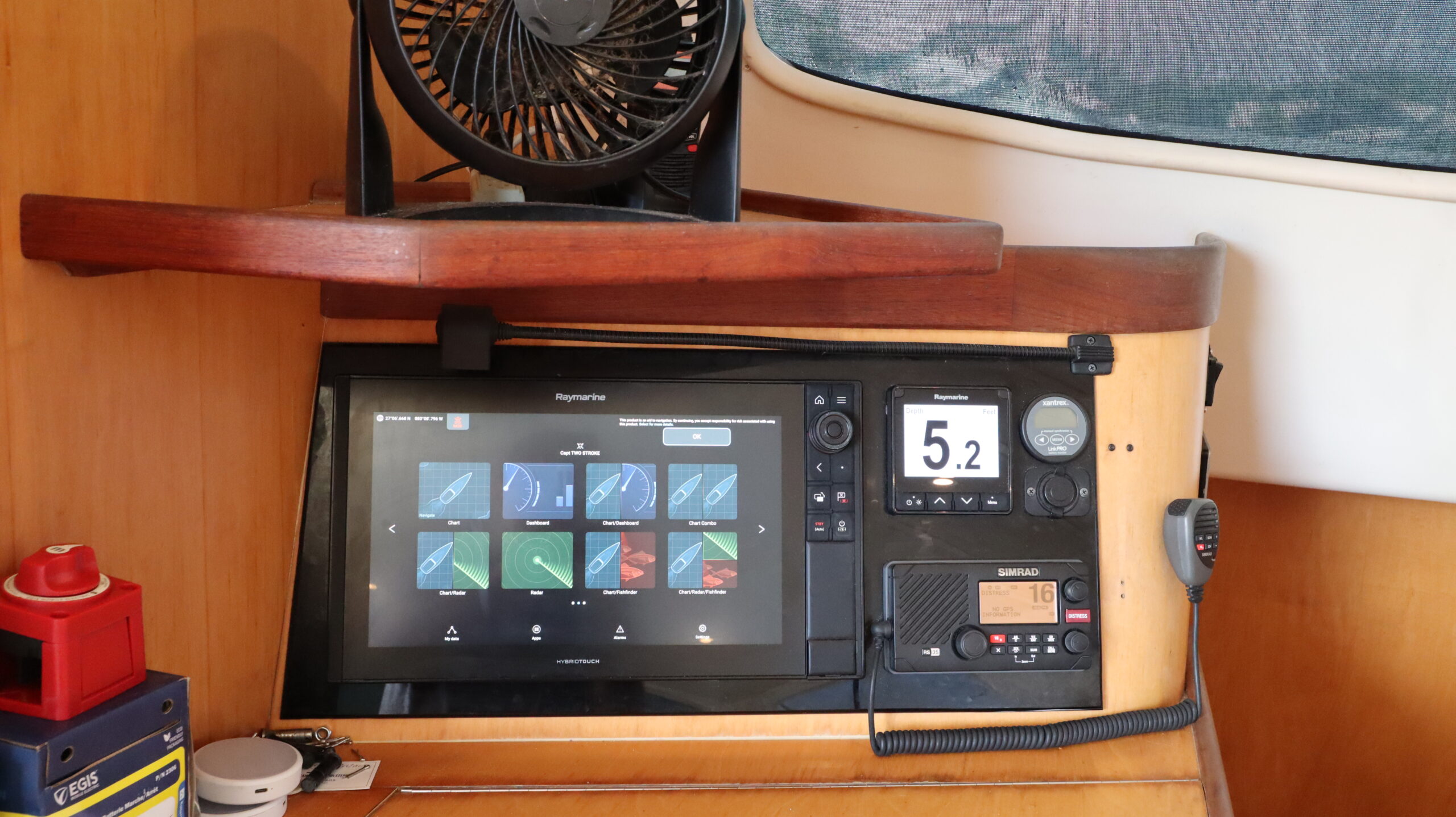

NAV STATION
- Raymarine AXIOM Pro 16” RVX Multifunction Display (new 2018)
- Raymarine 4Kw 24” HD Color Doppler Radome Mast Mounted (new2018)
- Simrad RS35 VHF Radio
- Raymarine AIS (new 2018)
- Raymarine iTC-5 Transducer Converter (new 2018)
- Raymarine EV-1 Course Computer (new 2018)
- Raymarine ACU 400 Actuator (new 2018)
- Raymarine I70 MFD (new 2018)
- Raymarine Fishfinder
- Standard Horizon HX210 Handheld Portable VHF Radio
- Navionics Cards: Western Caribbean, Eastern Caribbean, Pacific Mexico, Eastern US

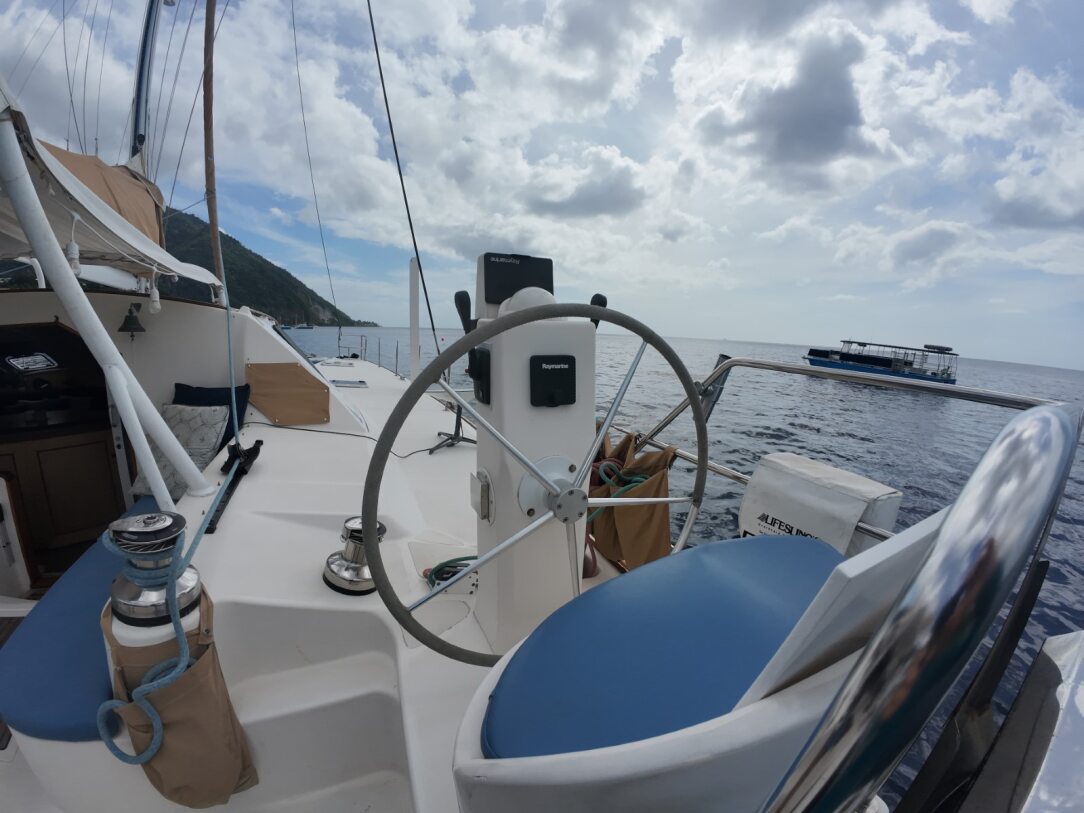

STARBOARD HELM STATION - Raymarine AXIOM 7” MFD (new 2018)
- Raymarine P70 Autopilot Control Head
- Plastimo 135 Compass
PORT HELM STATION - Raymarine AXIOM 7” MFD (new 2018)
- Raymarine P70 Autopilot Control Head
- Plastimo 135 Compass

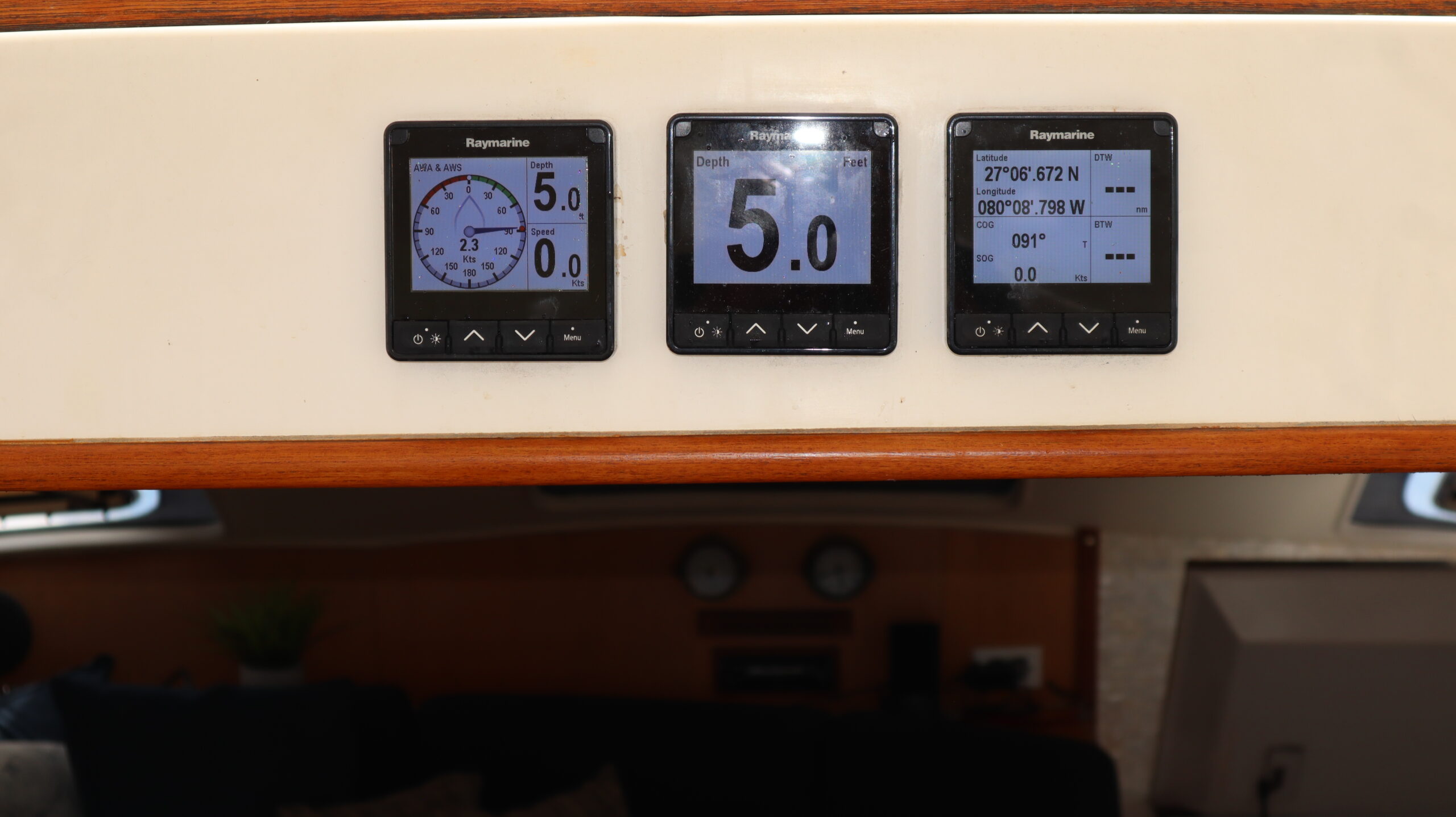

COCKPIT BULKHEAD - 3x Raymarine I70 MFD (new 2018)
ENTERTAINMENT - Sony Bluetooth Stereo w/2x Salon & 2x Cockpit Speakers
- VIZIO 32” LED TV
| INTERIOR: |
PORT HULL ACCOMMODATIONS:
- FOREPEAK access via Goiot deck hatch

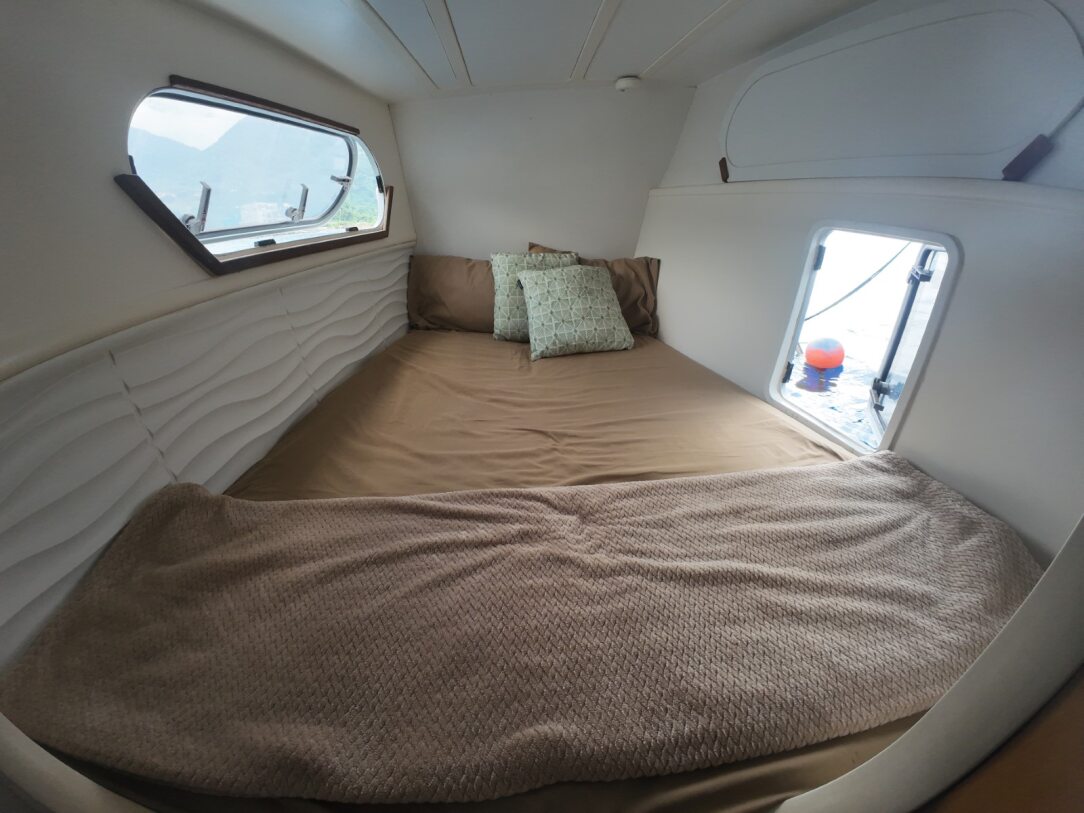

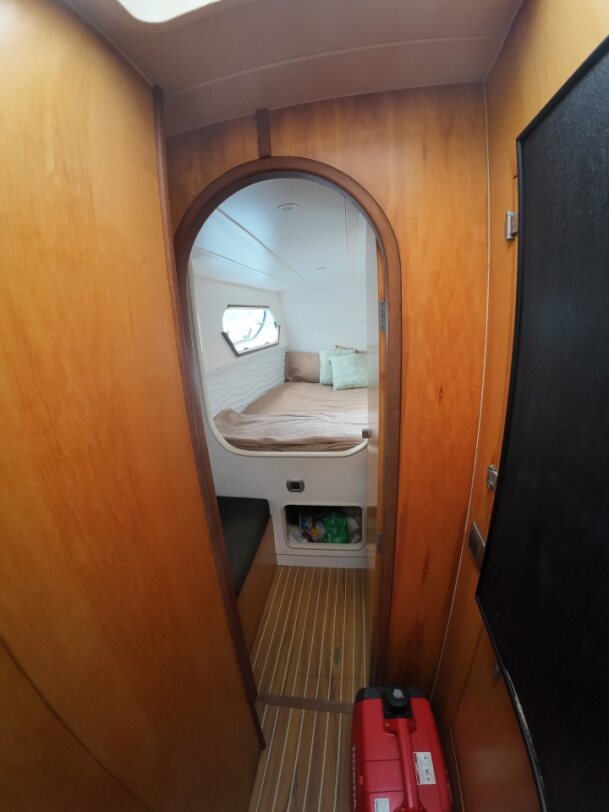

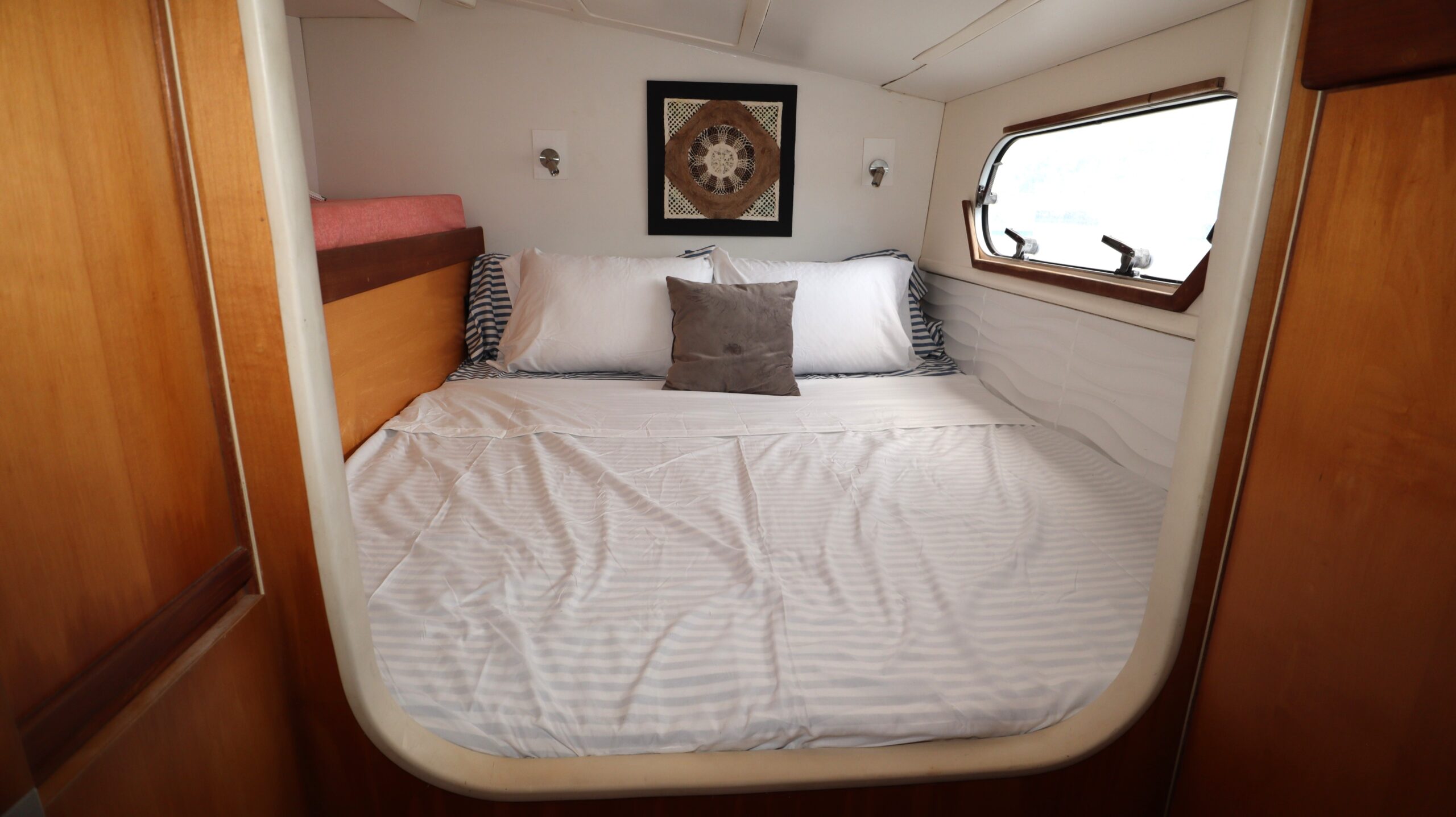

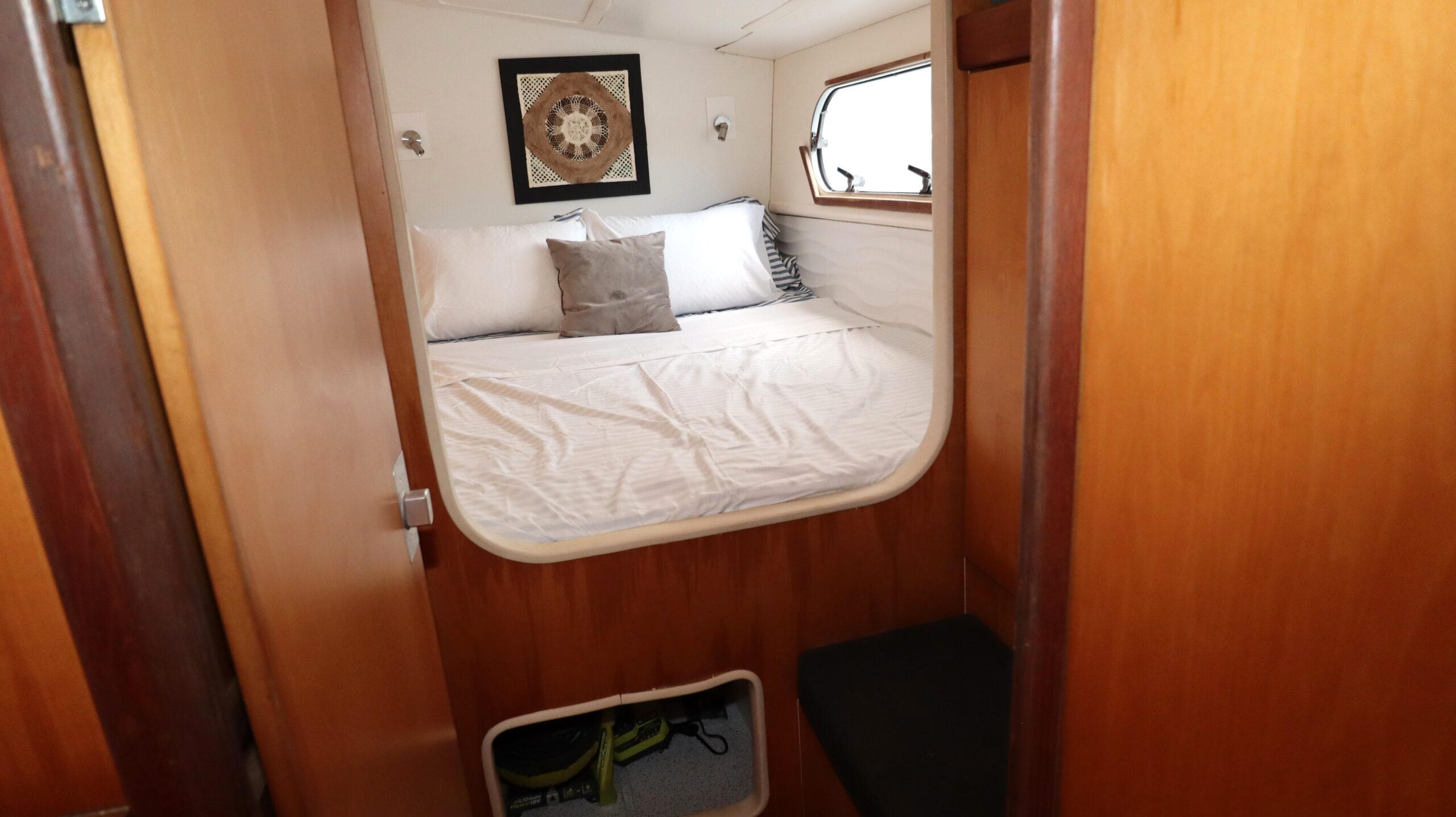

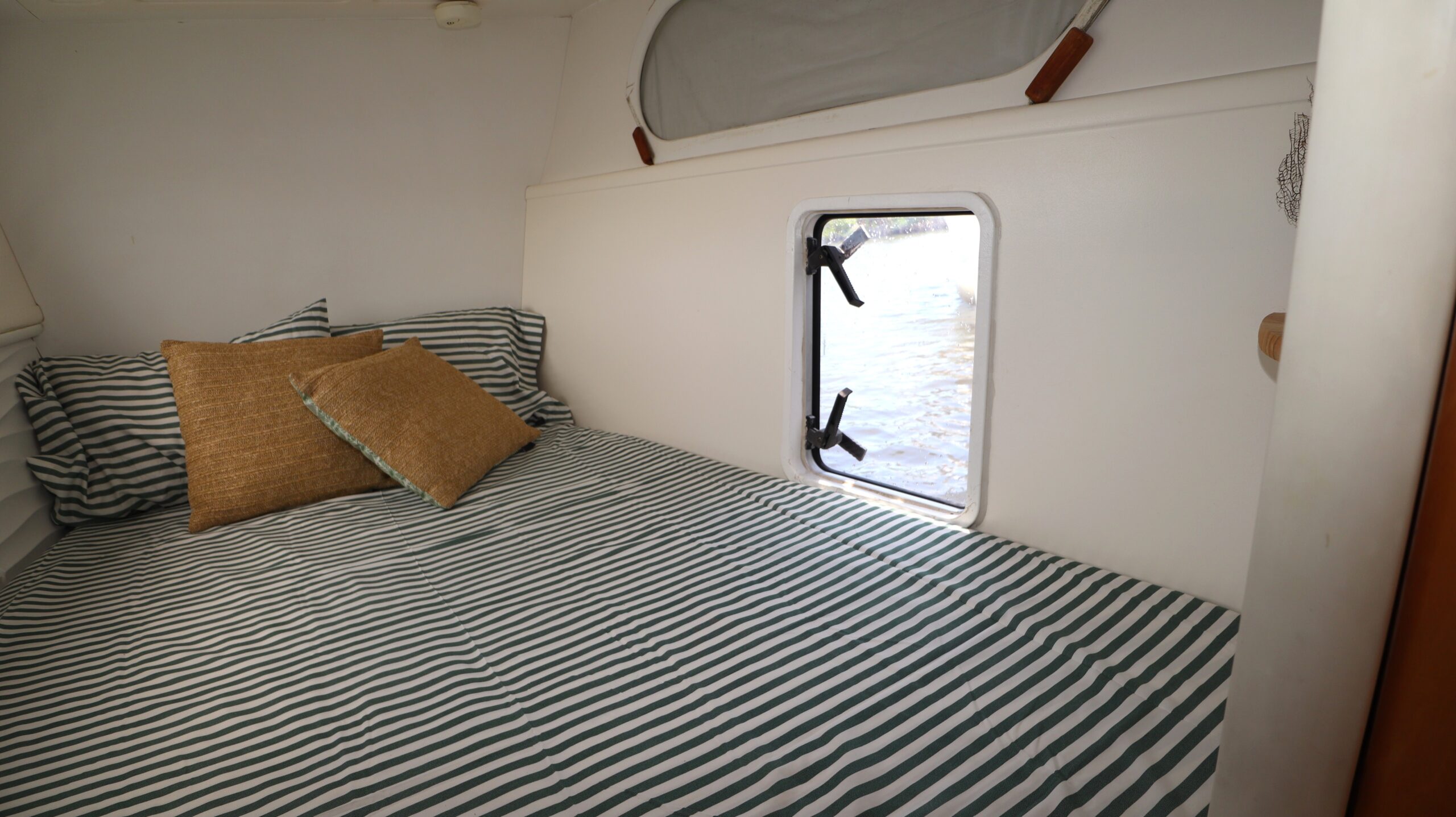

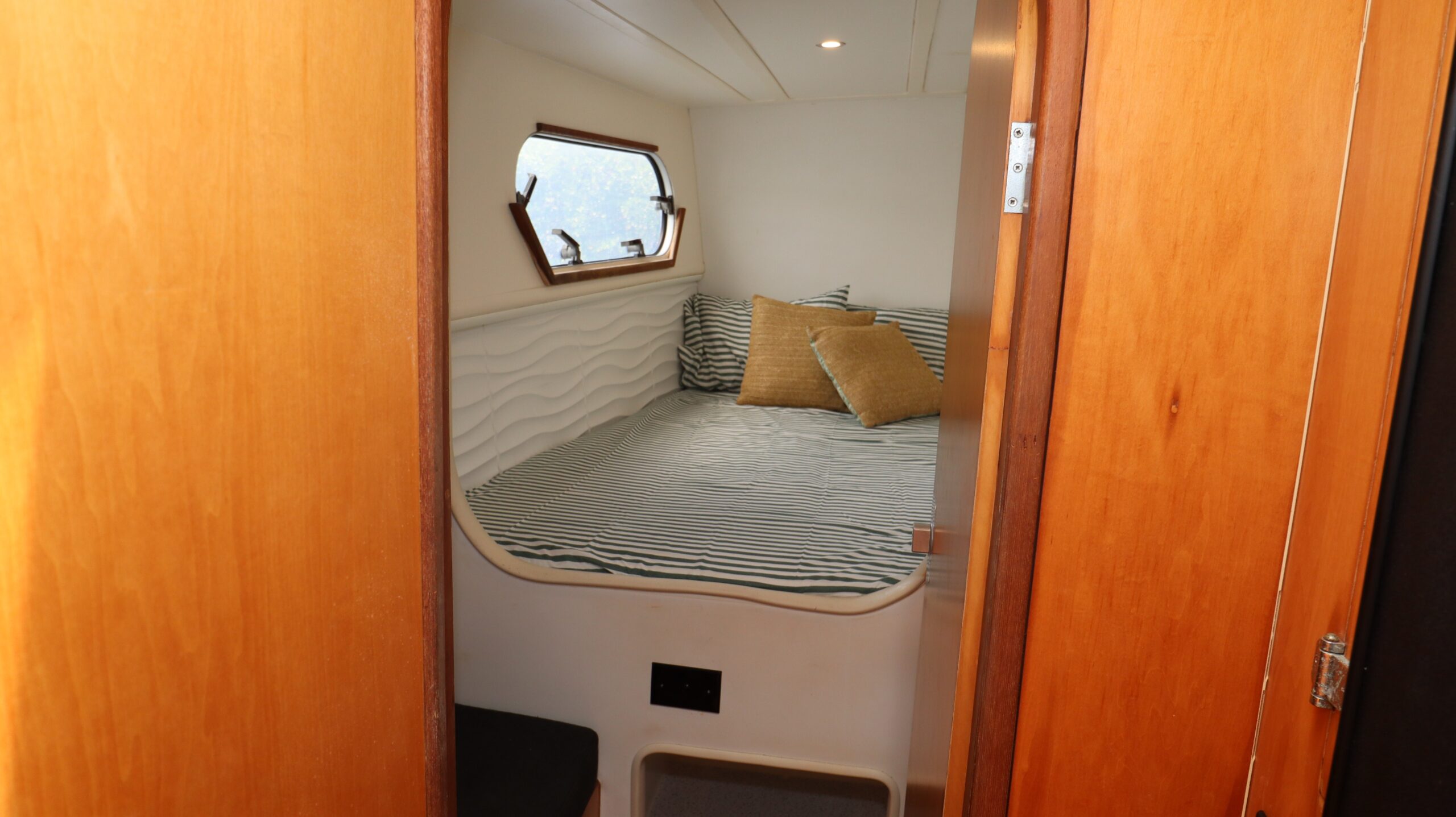

- FORWARD STATEROOM has a double berth (6’6” x 4’6”) with large storage area below. Outboard is a dressing seat with storage below and inboard are two wardrobe lockers. There is 1x Moonlight “sea view”
port light outboard and 1x Moonlight escape hatch inboard for ventilation. - MID-SHIP PASSAGEWAY has a large head compartment for guest outboard. Inboard is a Nova Kool 3 cubic foot frontloading 12V freezer (new 2020), two storage lockers, and companionway steps to the bridgedeck. 1x Moonlight deck hatch ventilation.

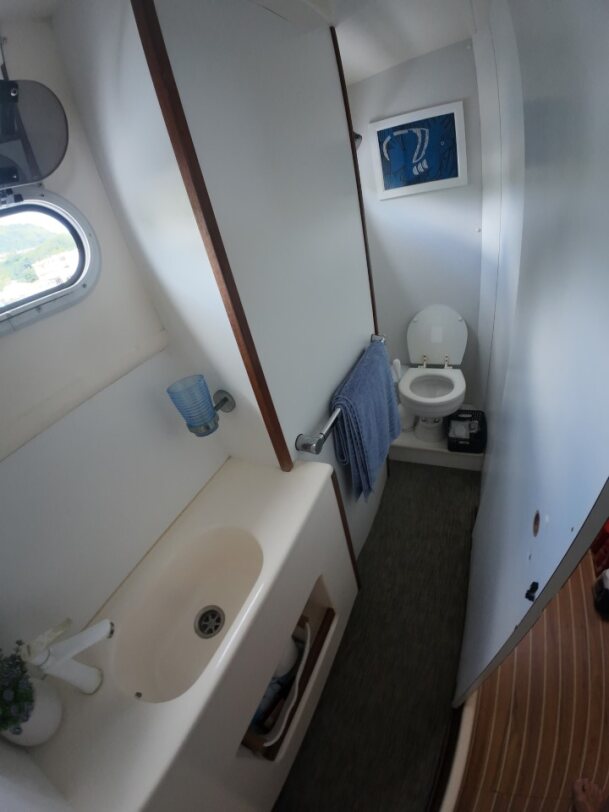

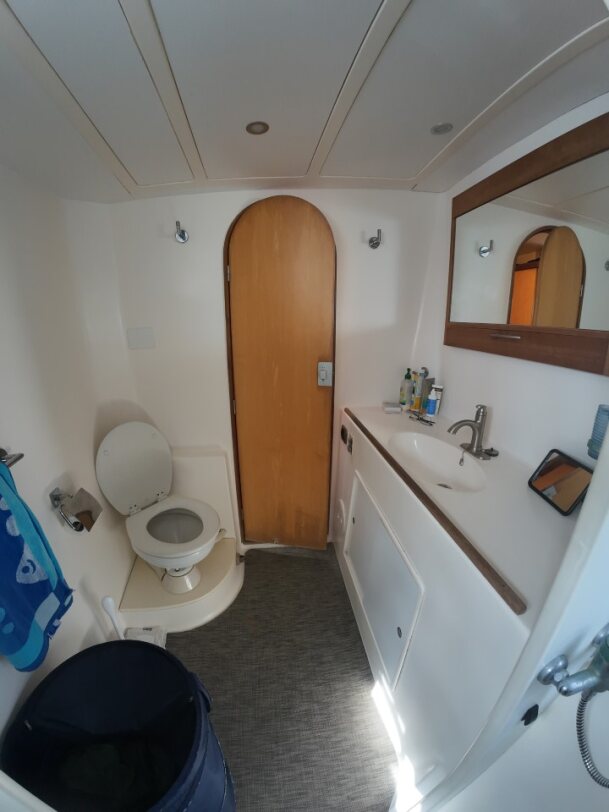

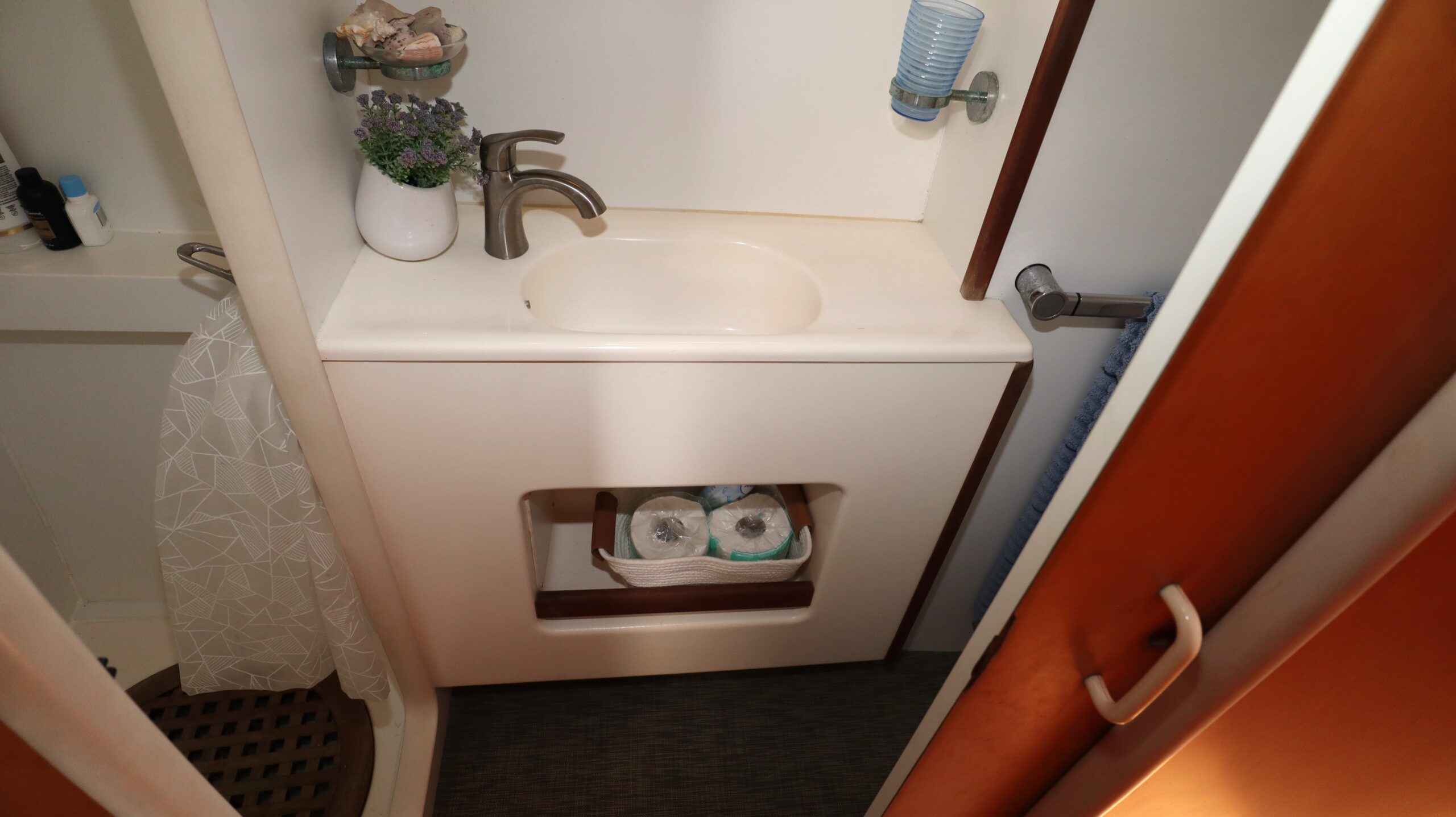

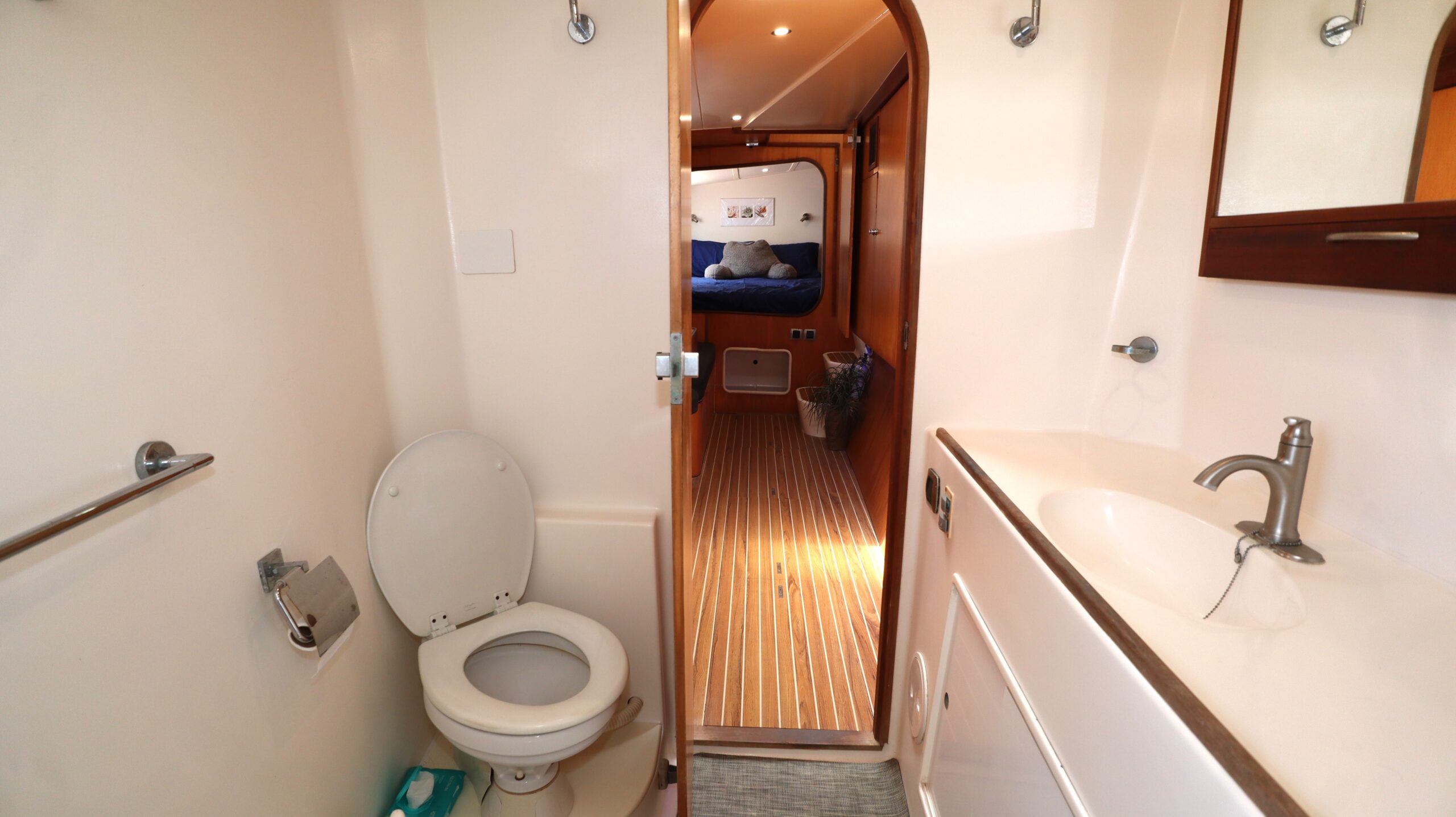

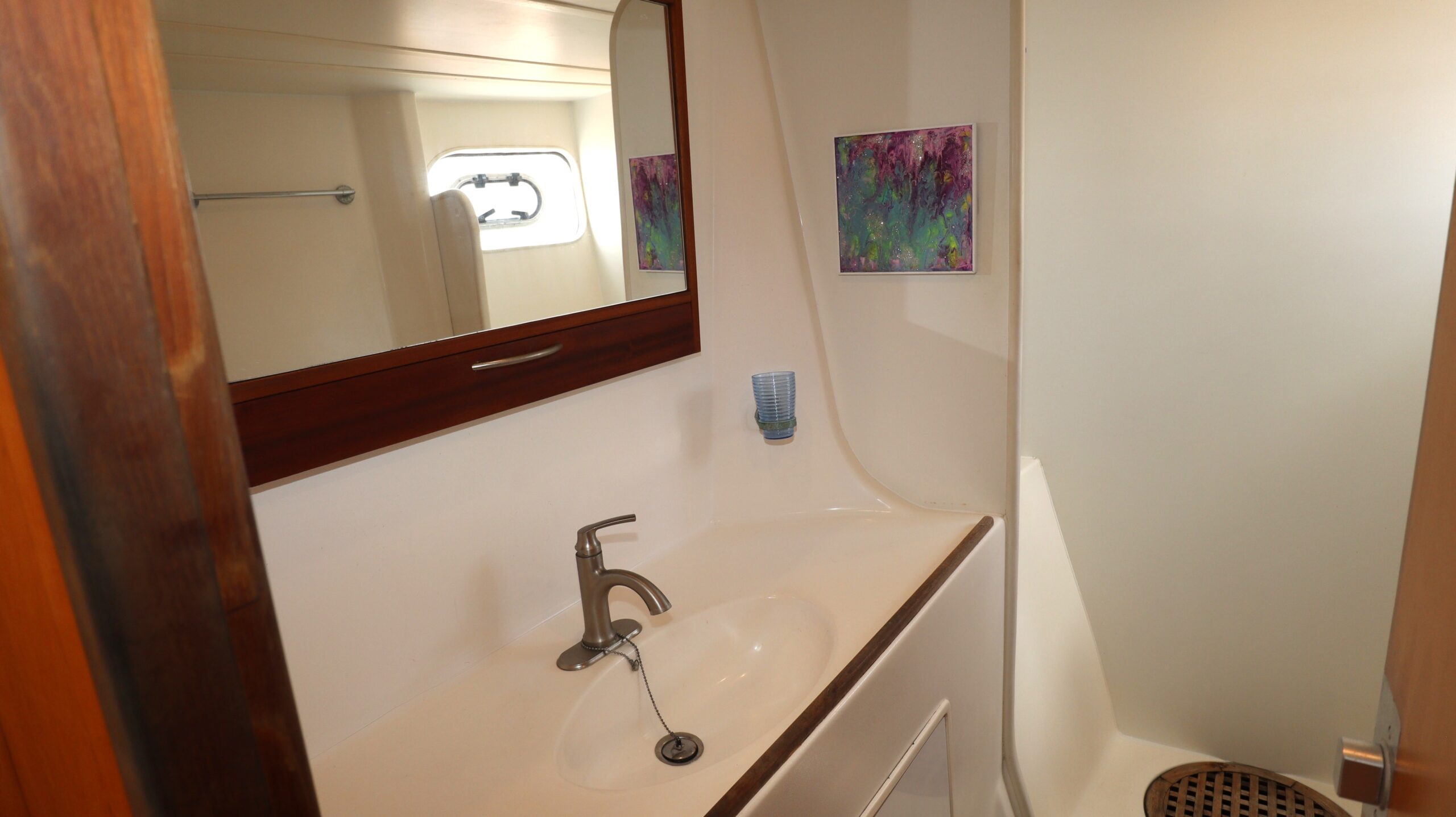

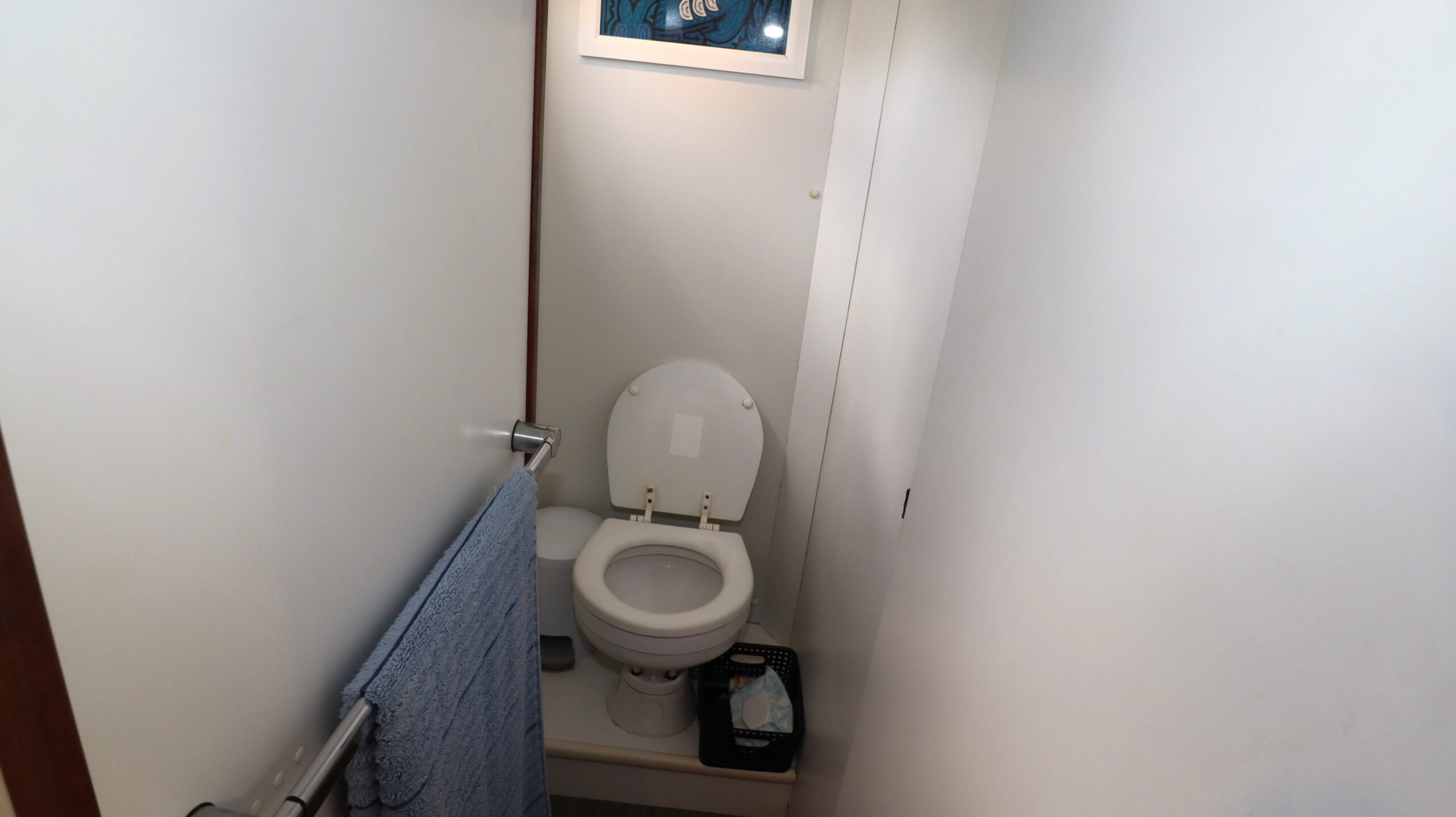

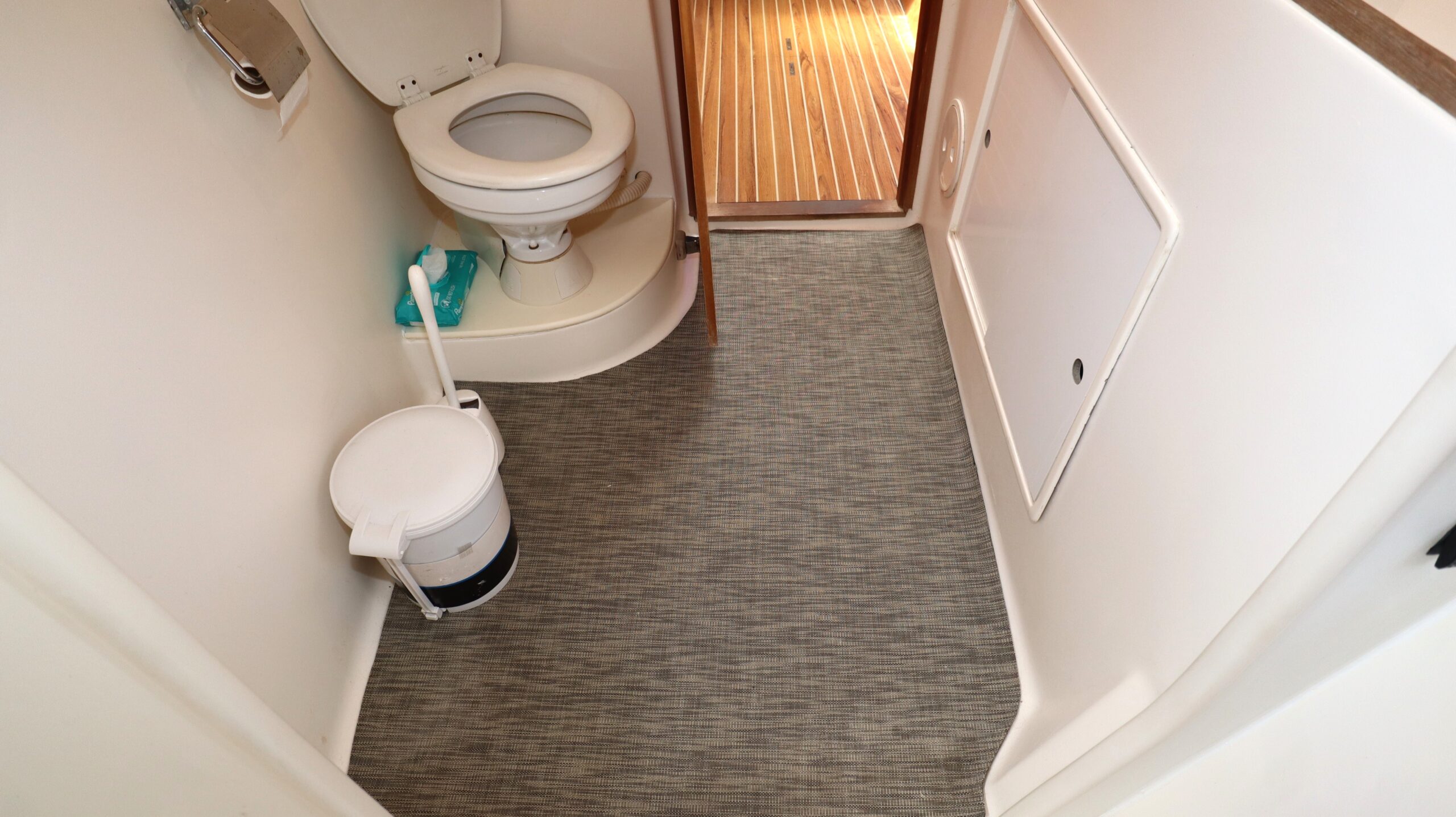

- HEAD COMPARTMENT has a Jabsco freshwater electric toilet forward, separate shower stall with hot/cold pressure, teak grate, and sump pump aft. Separating the toilet area and shower stall is a molded vanity with hot/cold pressure and medicine cabinet. There are 3x Moonlight port lights for ventilation.

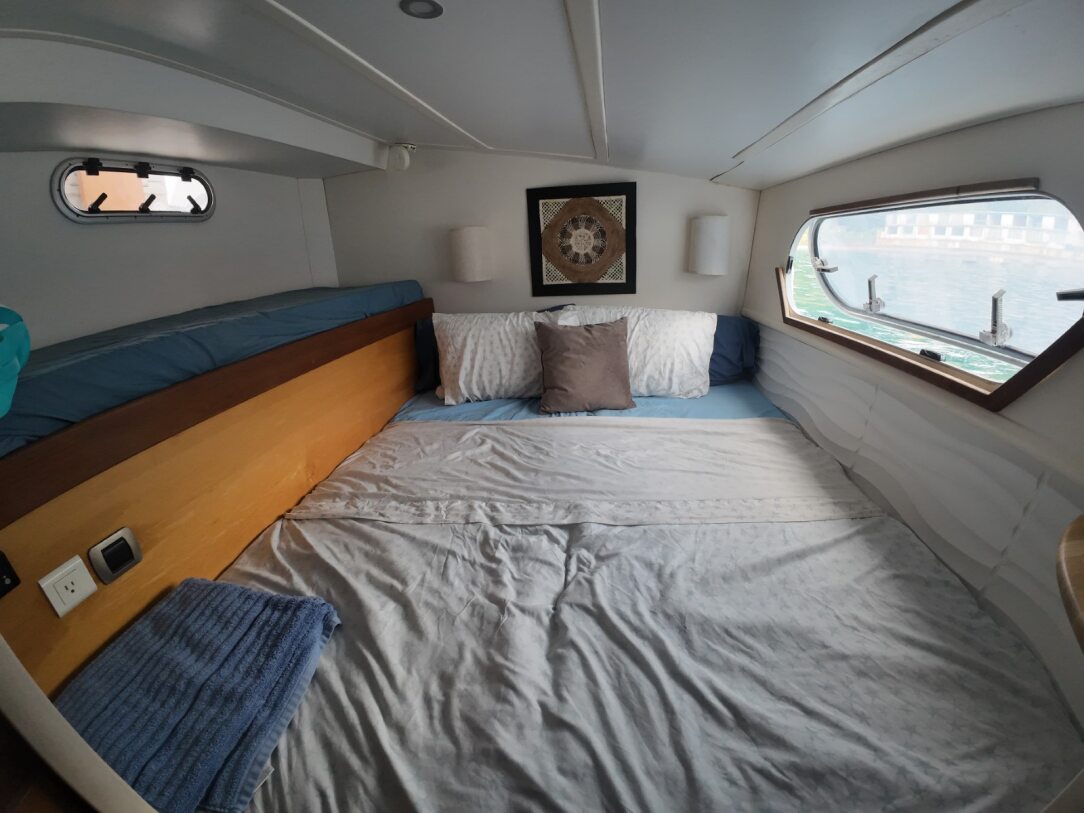

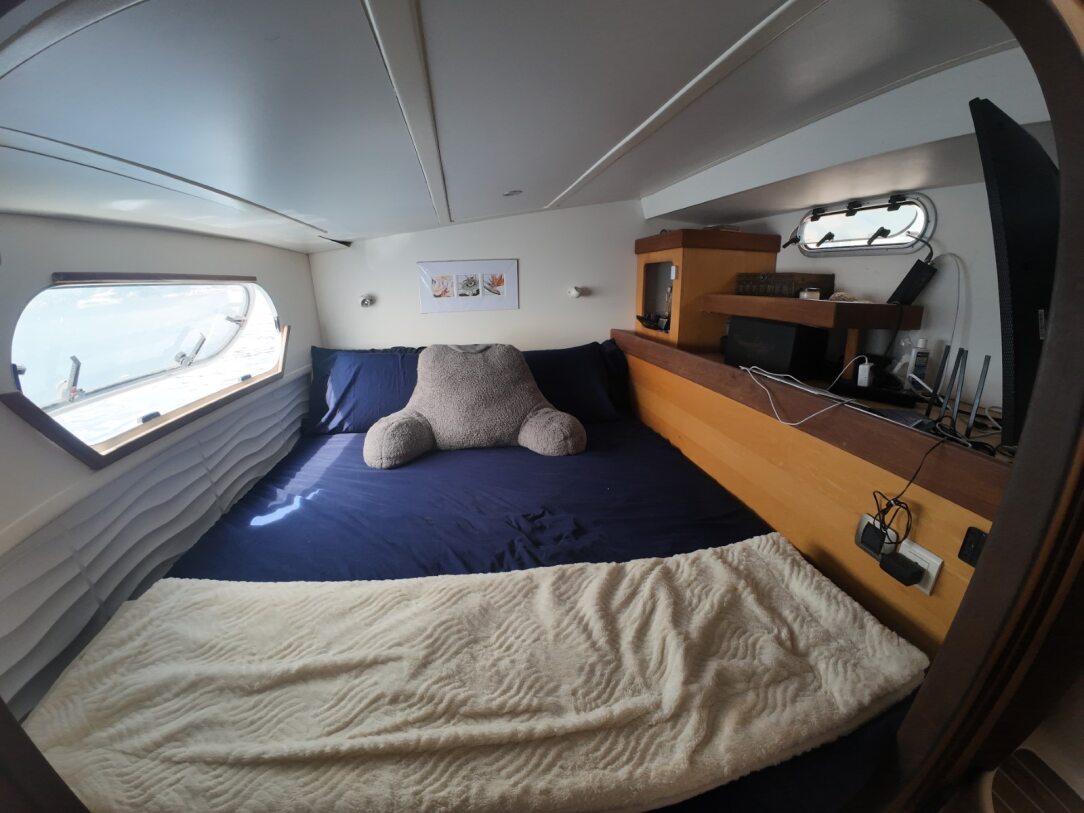

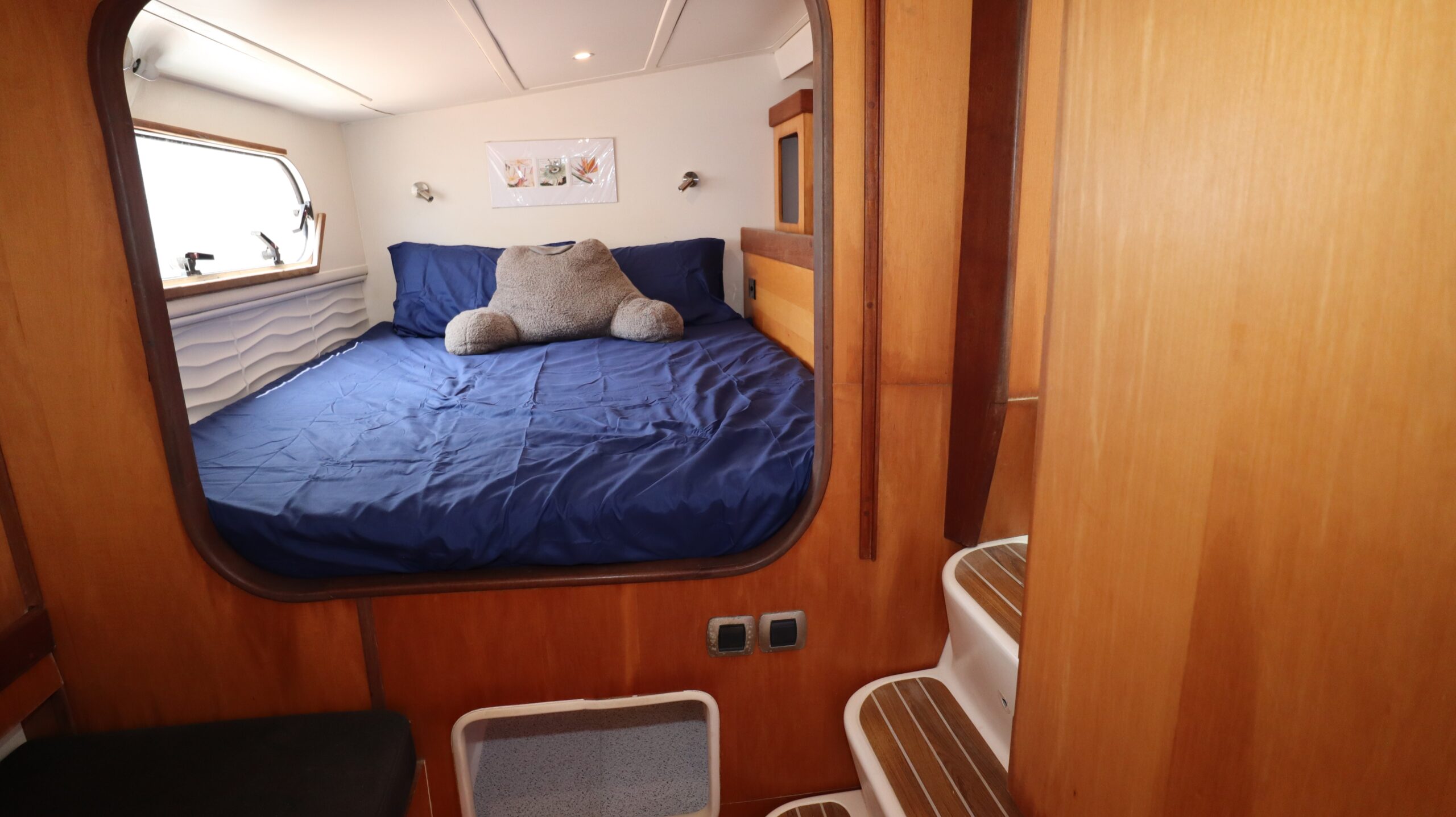

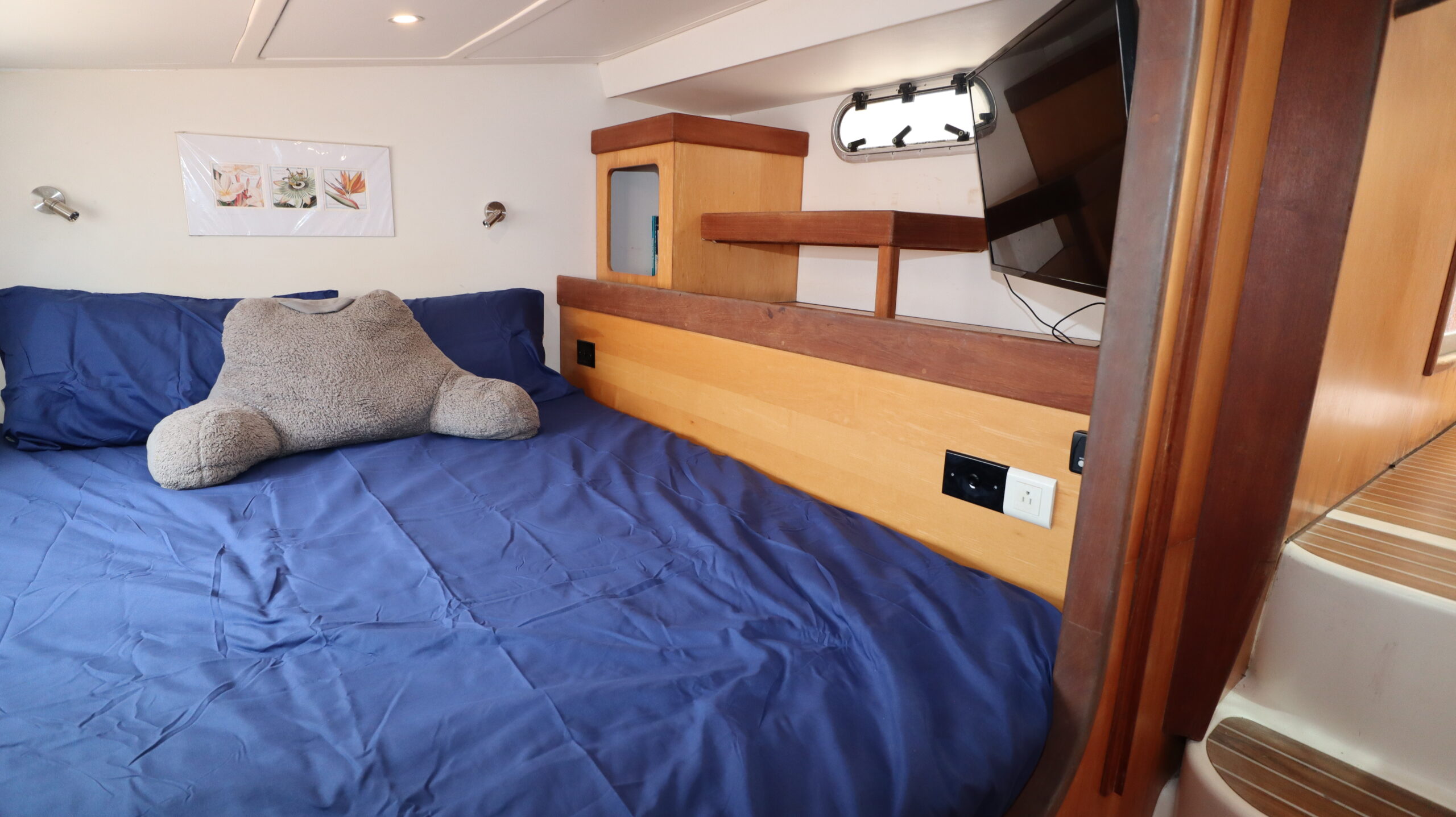

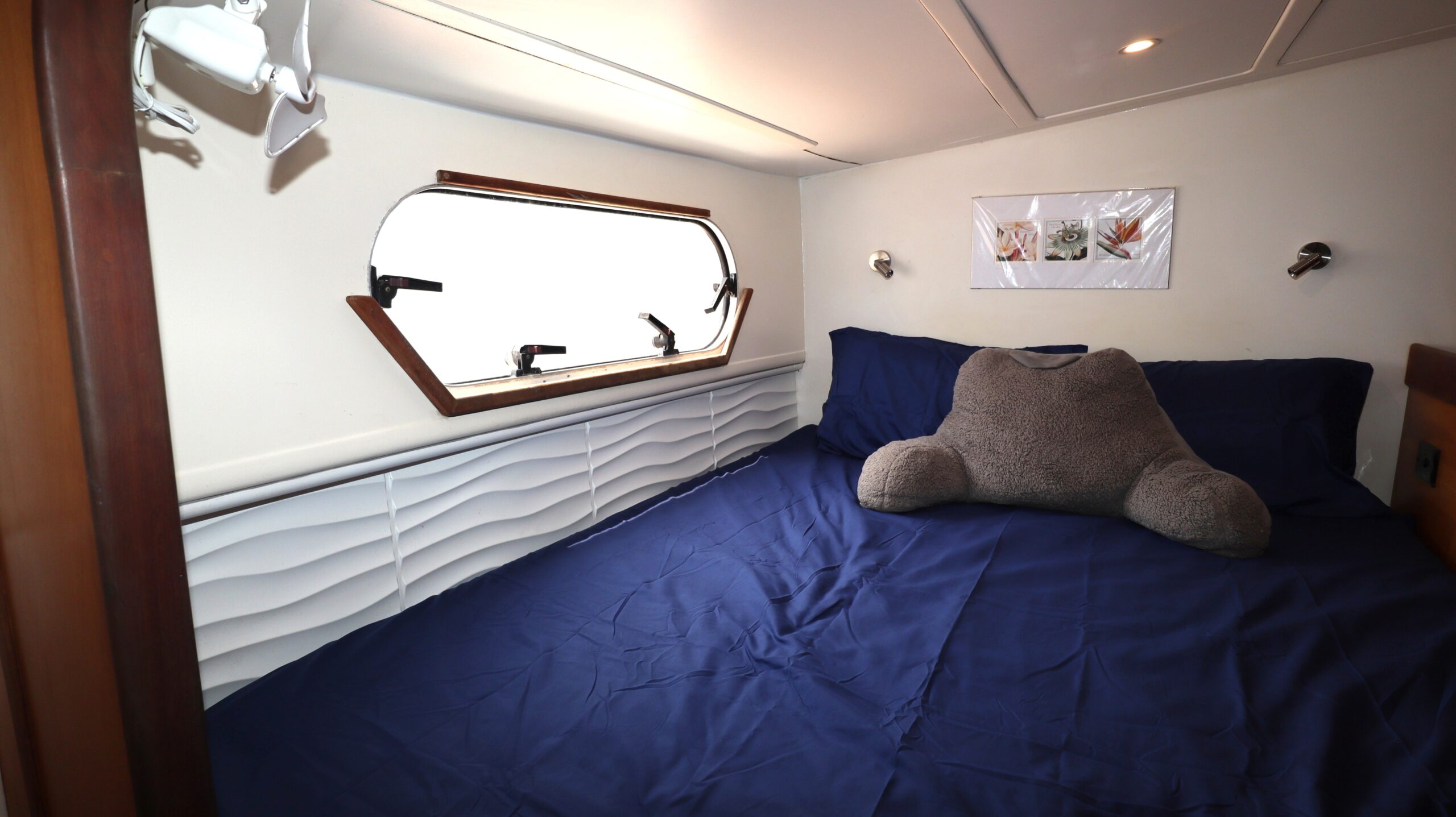

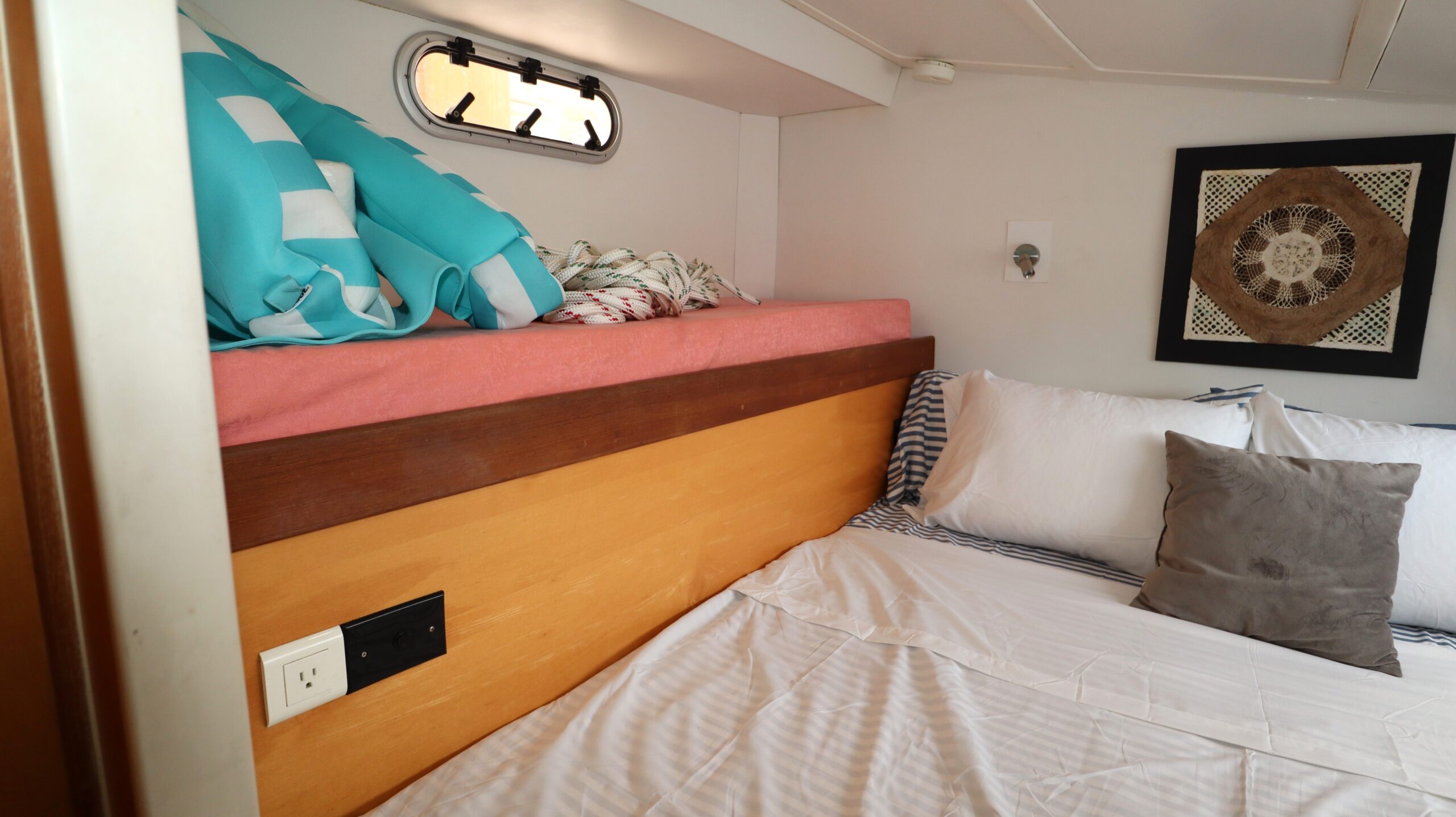

- AFT STATEROOM has a queen berth (6’6” x 6’6”) with a large storage area below, and above a single berth inboard. Outboard at the foot of the berth is a dressing seat and one wardrobe locker. There is 1x Moonlight “sea view” port light outboard and 1x Moonlight port light inboard for ventilation.
- STARBOARD HULL ACCOMMODATIONS:
- FOREPEAK has sail storage and two folding upper/lower single crew berths, with access via a Goiot deck

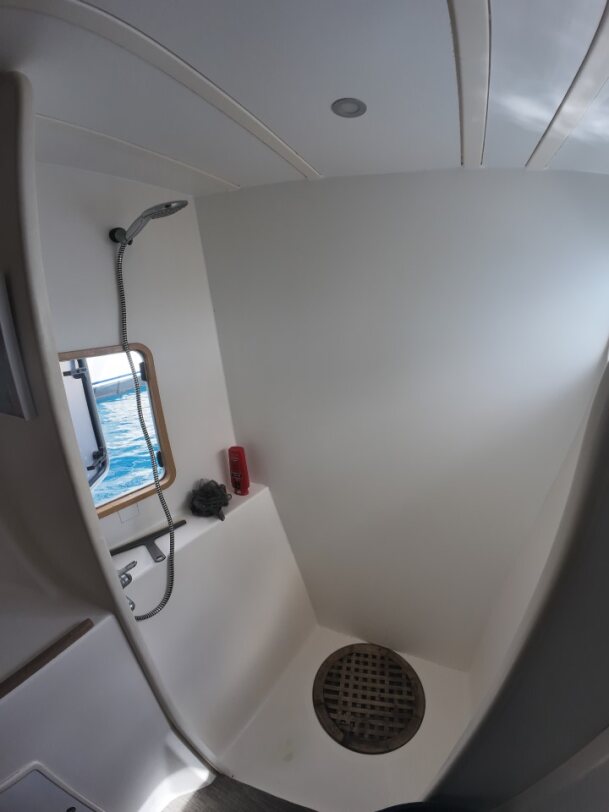

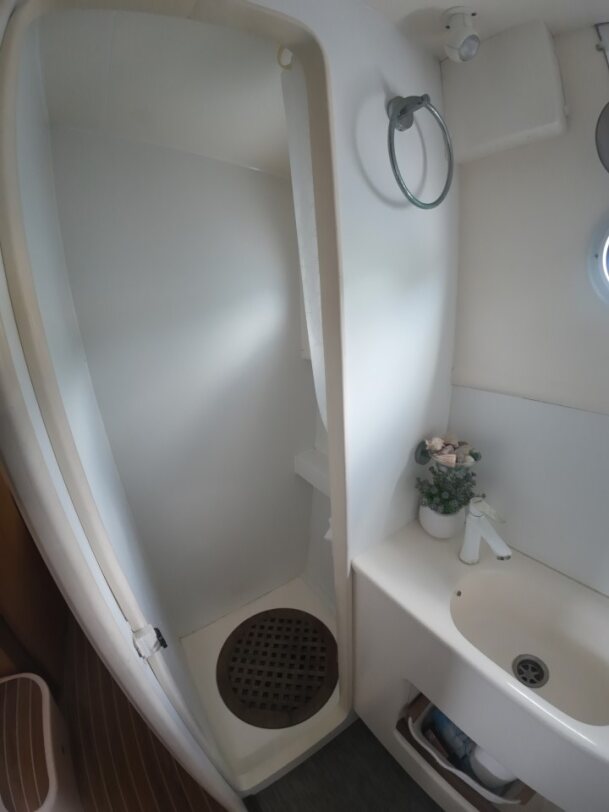

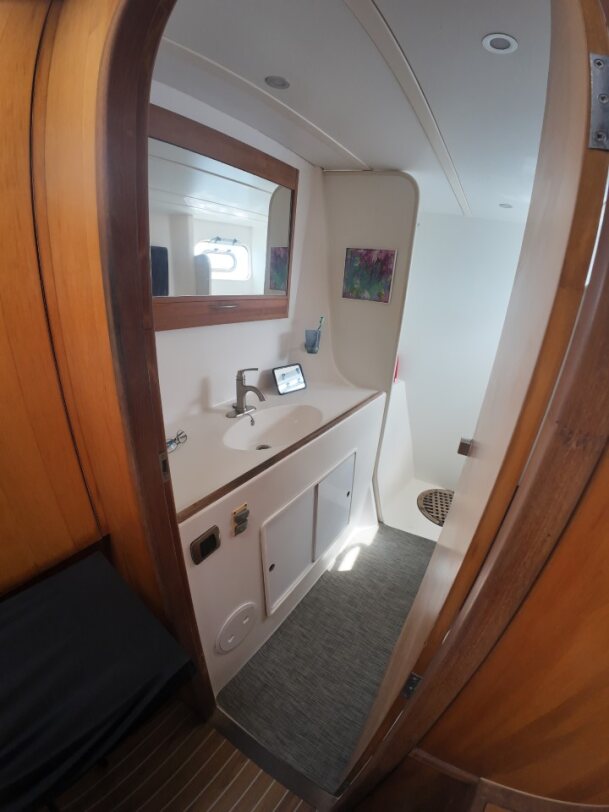

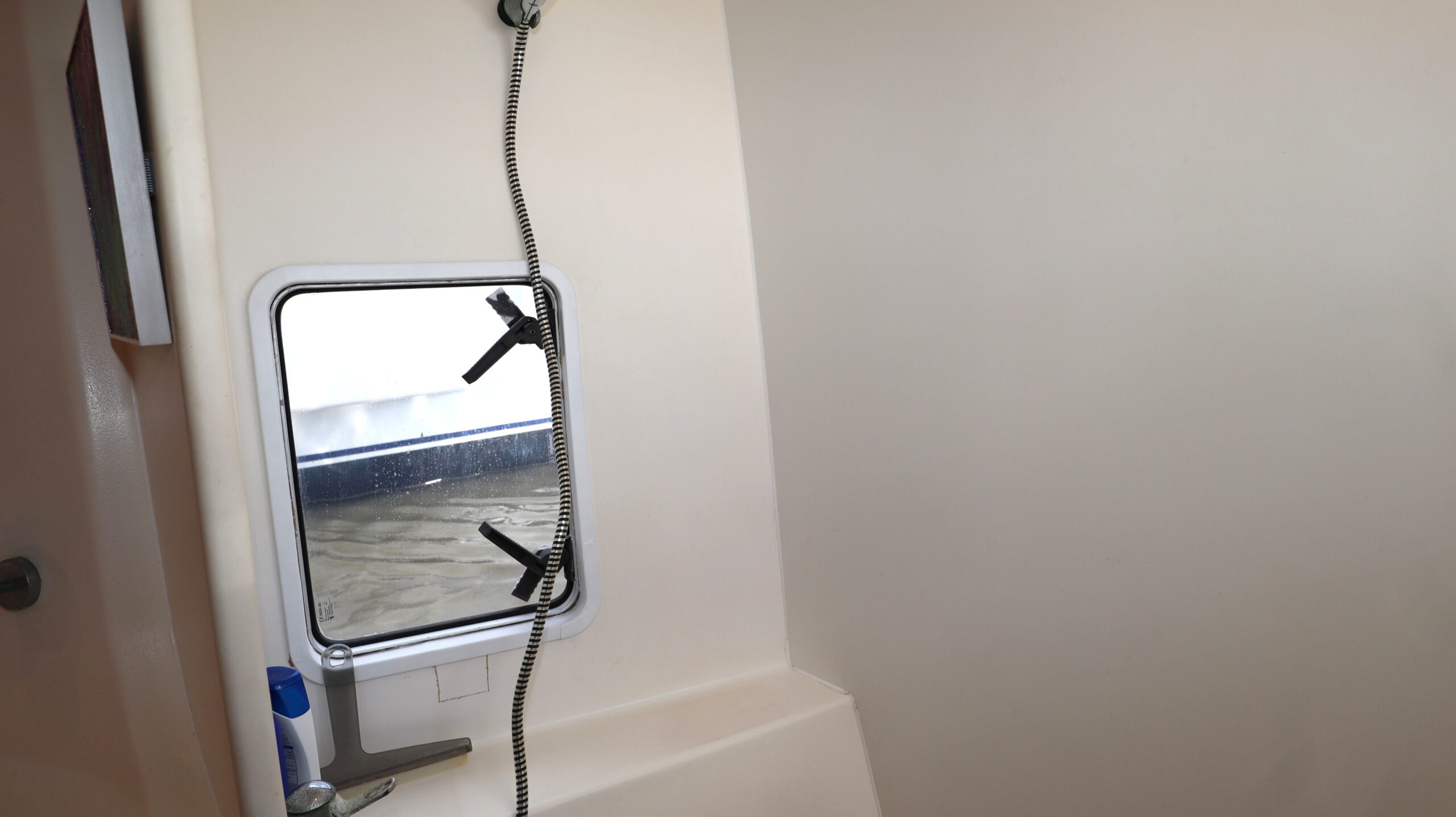

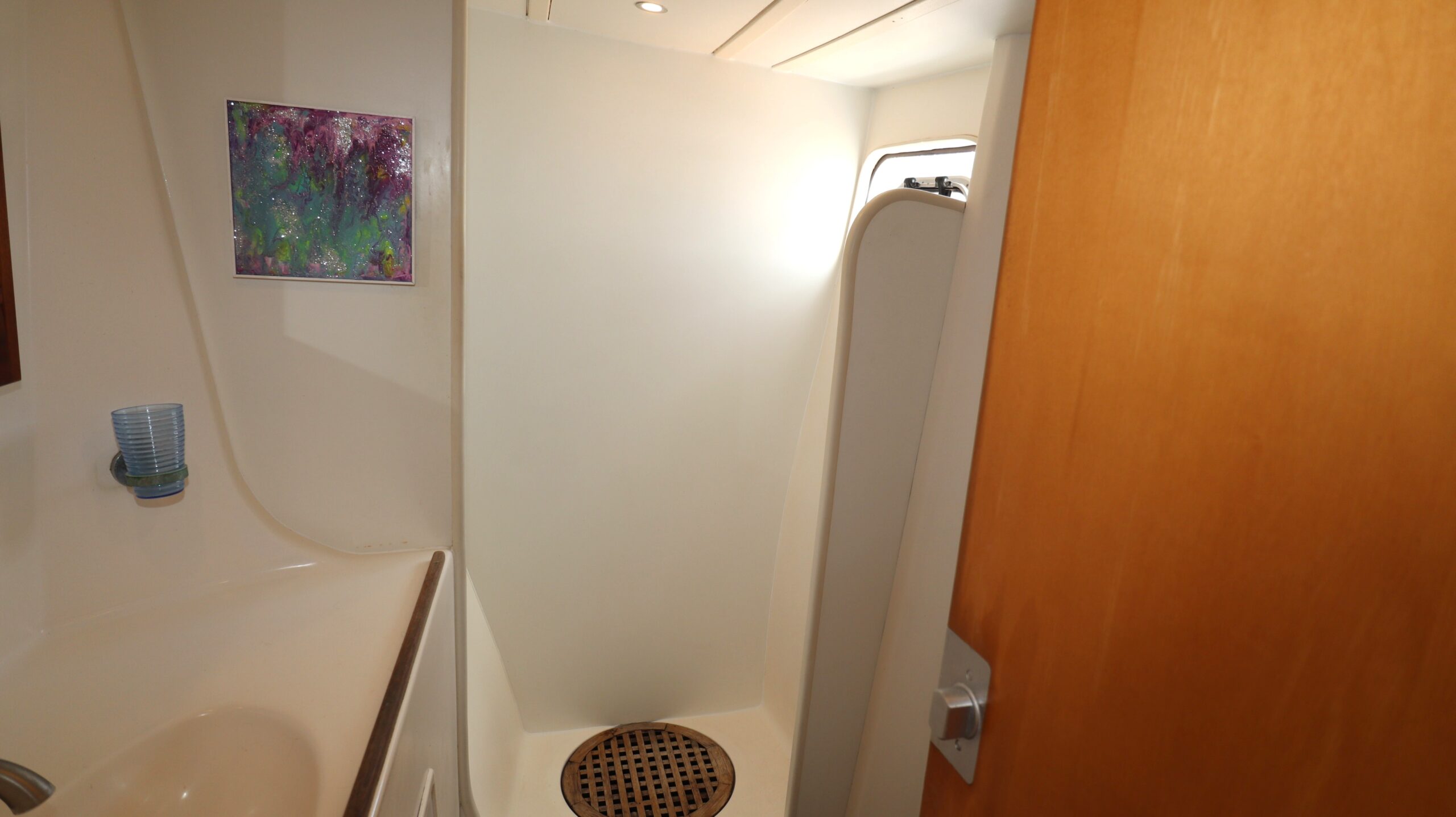

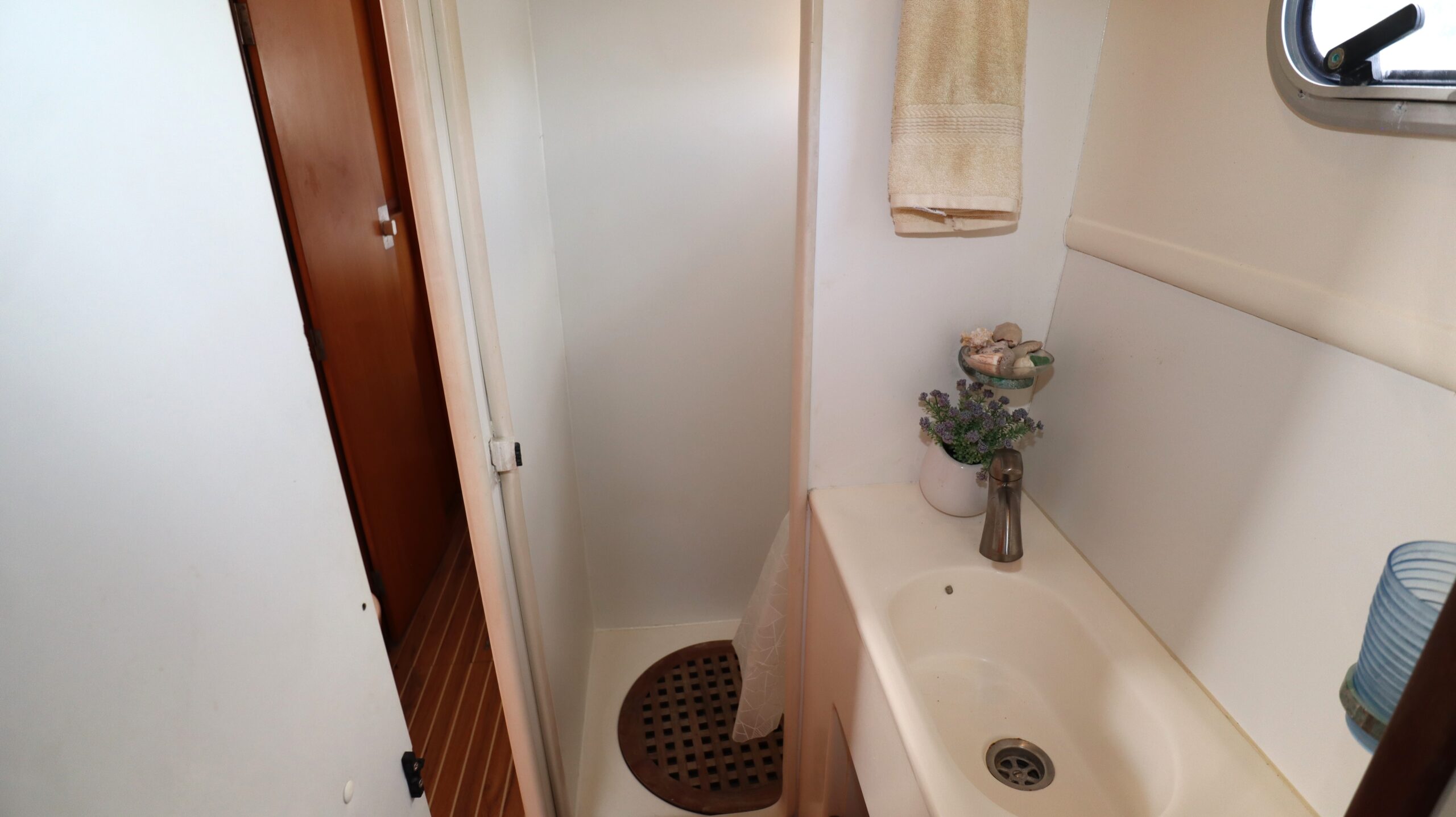

hatch. - FORWARD HEAD COMPARTMENT has a large molded shower stall with hot/cold pressure shower, sump pump and teak grate. Aft is a Jabsco freshwater electric toilet, molded vanity with hot/cold pressure
water, and a medicine cabinet. There is 1x Moonlight “sea view” port light outboard and 1x Moonlight escape

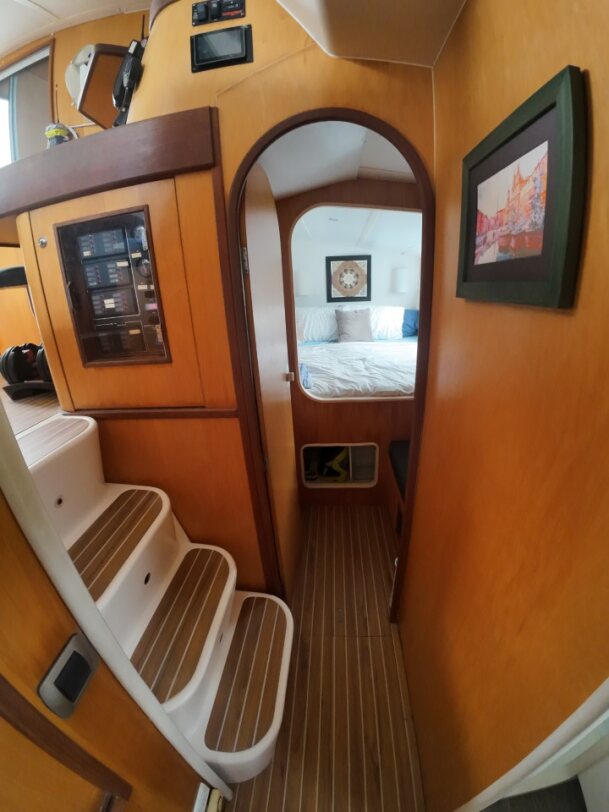

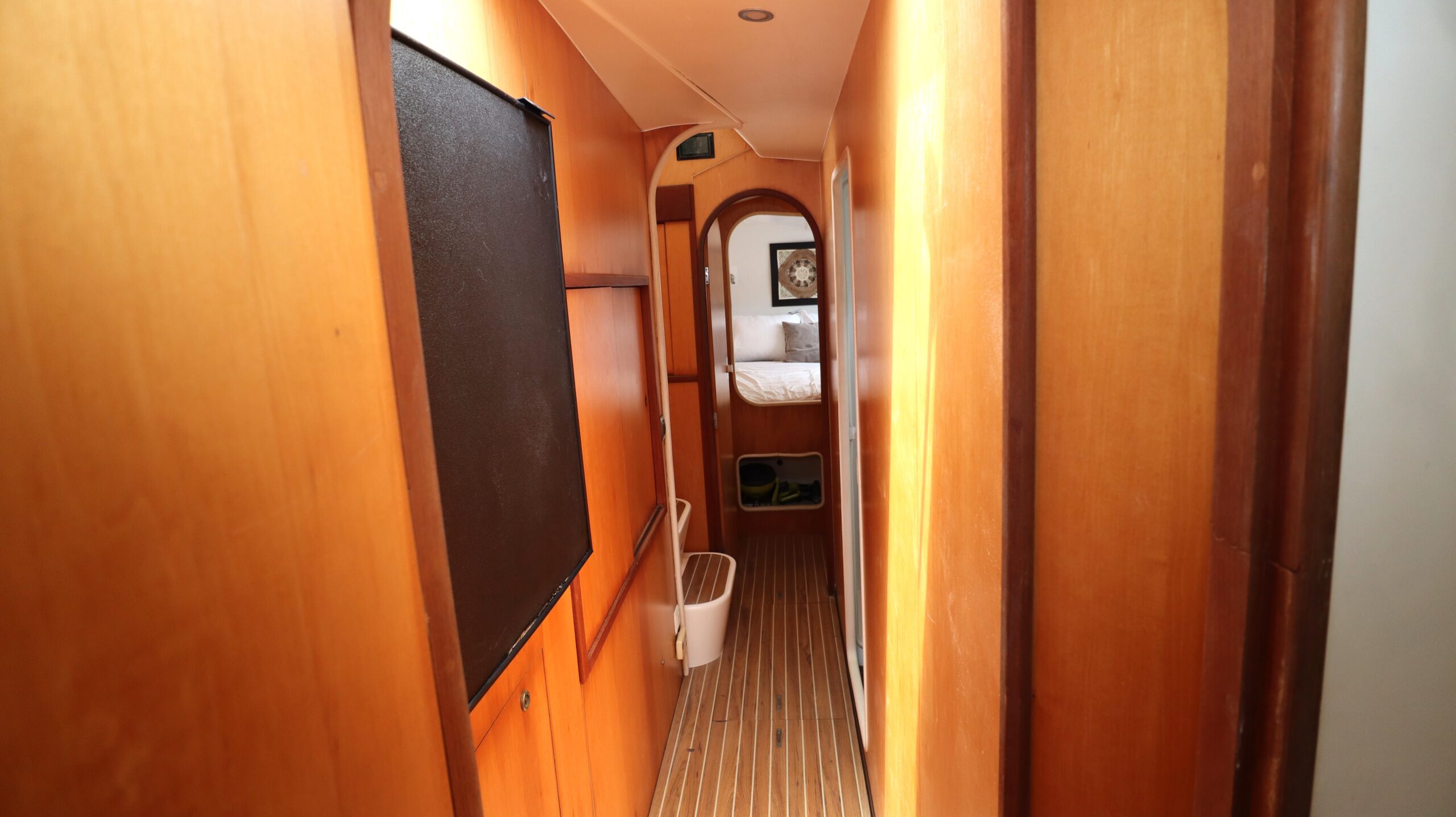

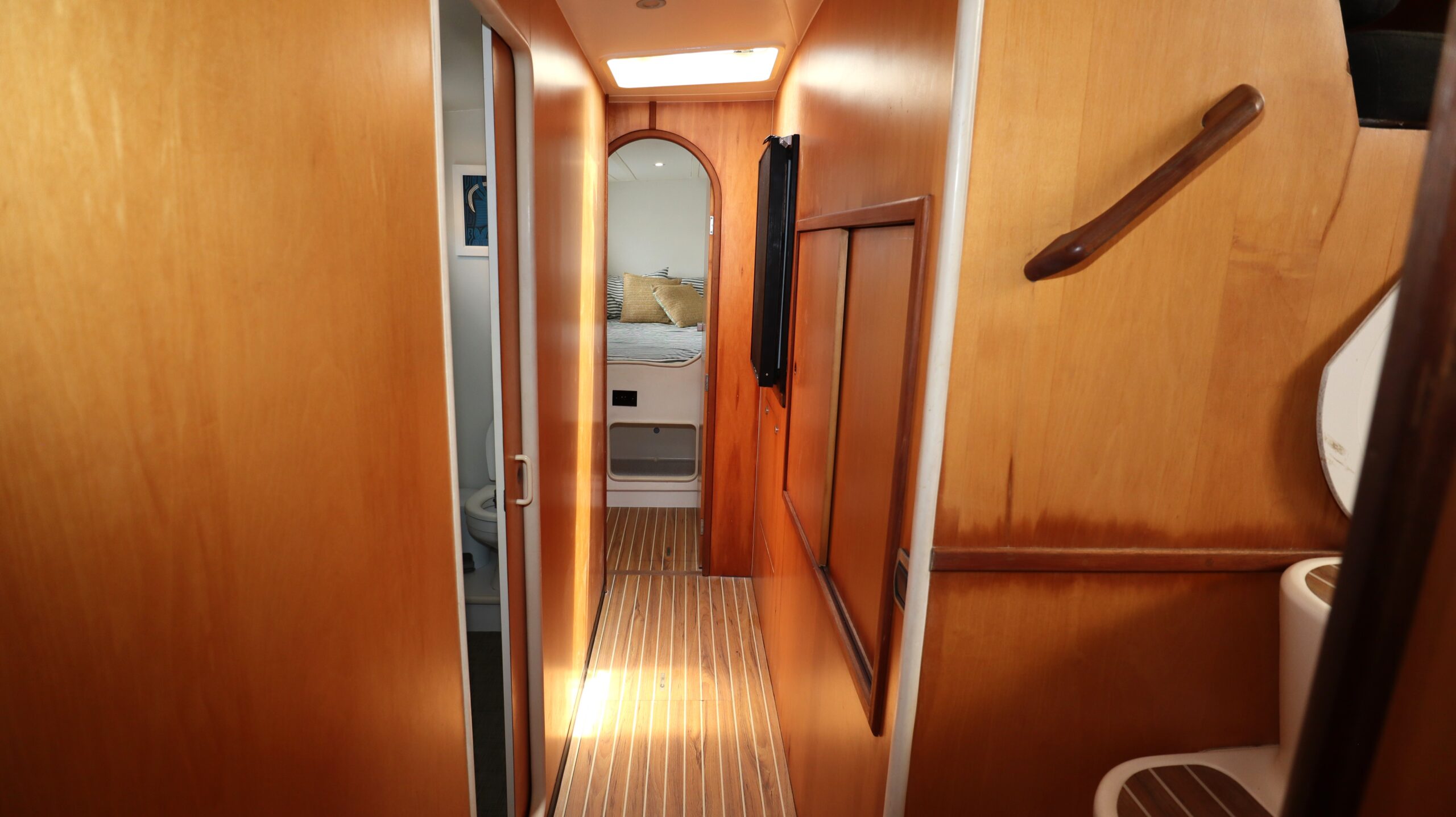

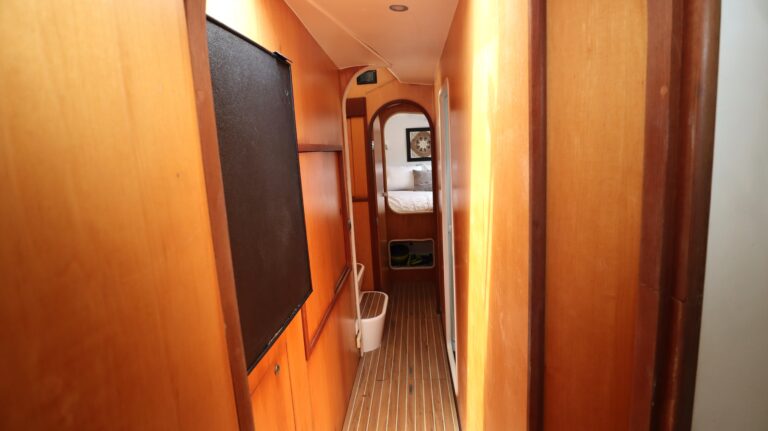

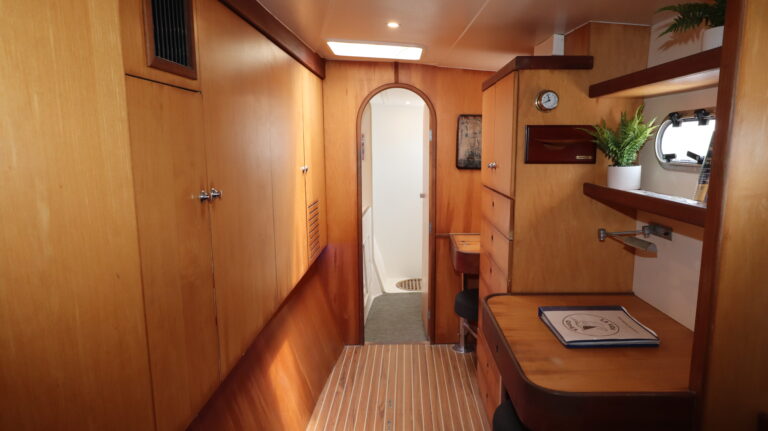

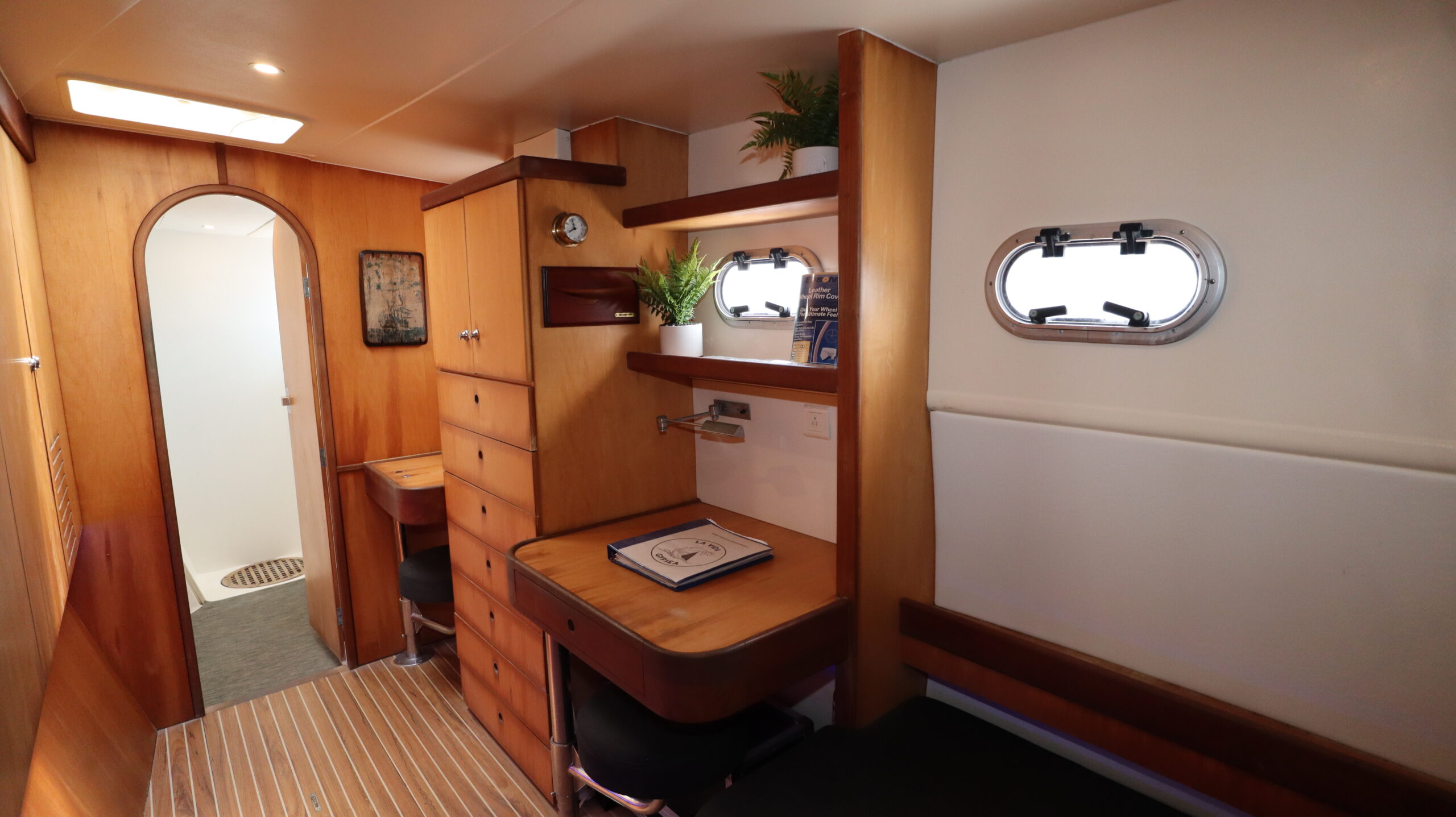

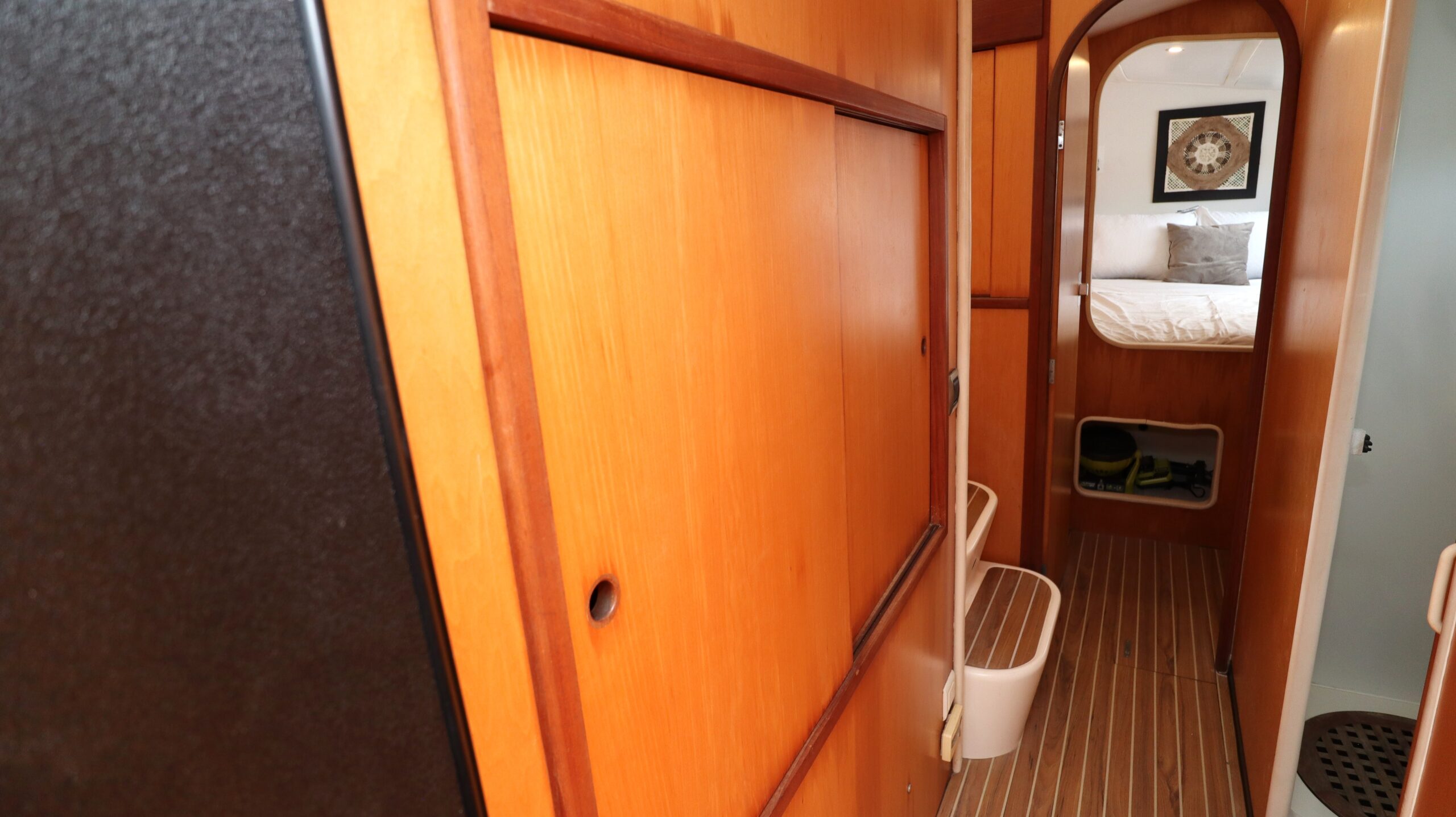

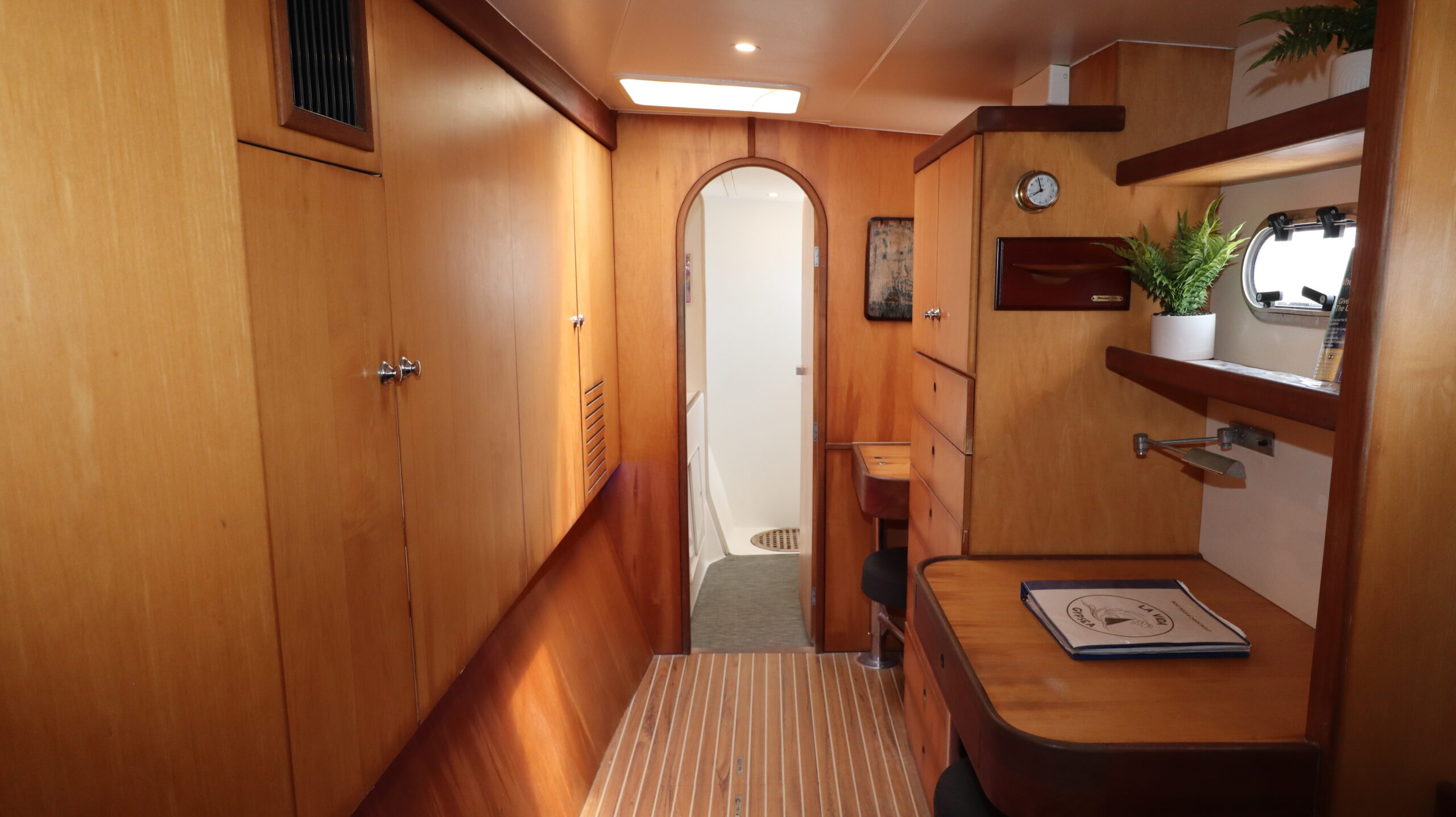

hatch inboard for ventilation. - MID-SHIP PASSAGEWAY has a vanity table w/stool, a vertical row of drawers, and a computer desk w/stool outboard. Inboard are four large wardrobe lockers and companionway steps to the bridgedeck with a privacy door. 1x Moonlight deck hatch and 3x Moonlight port lights for ventilation.

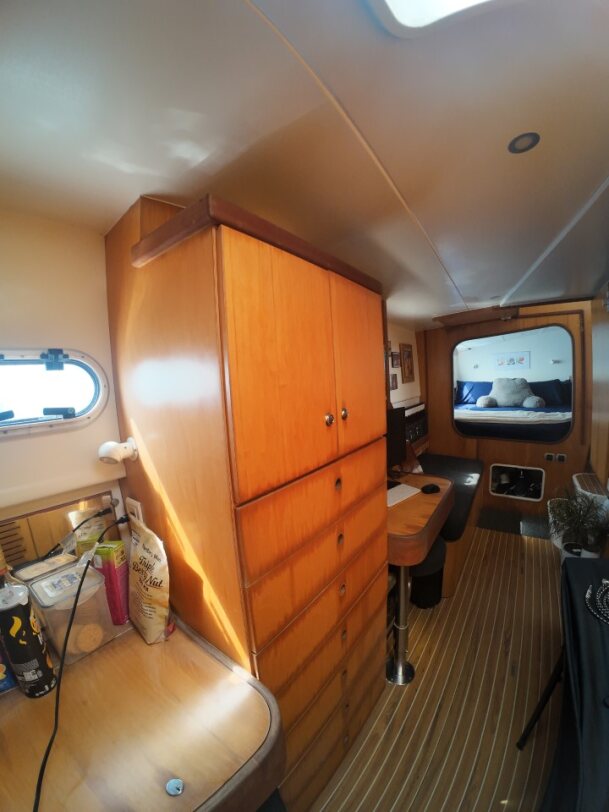

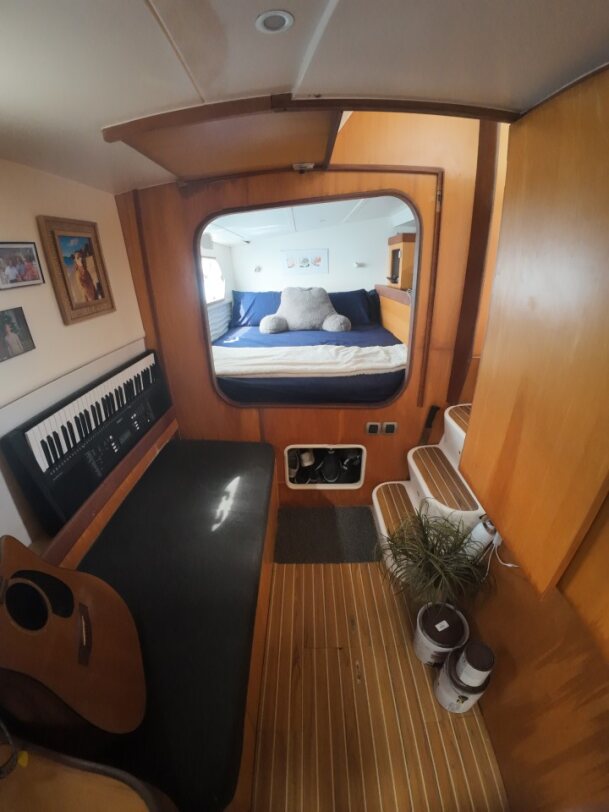

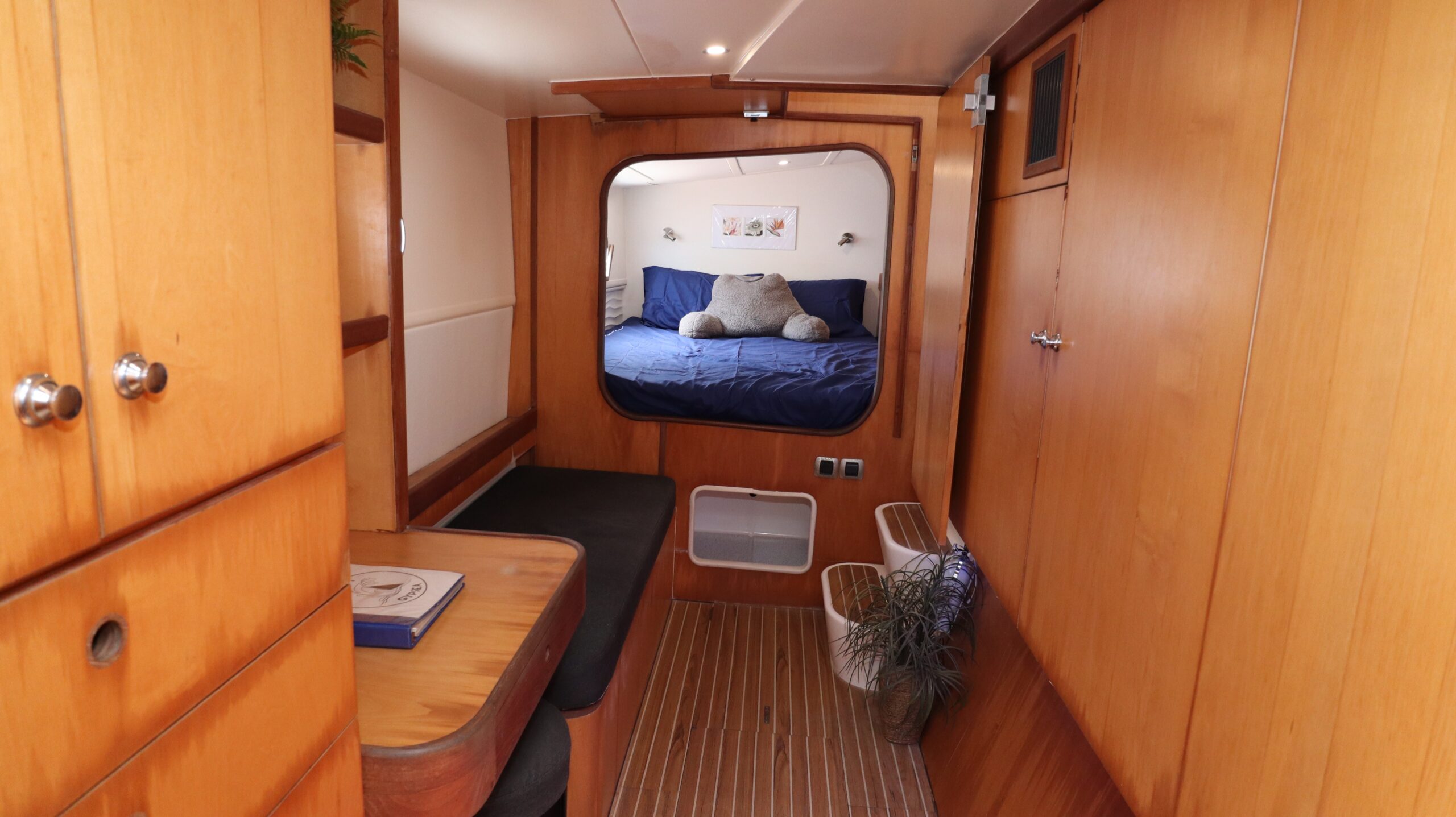

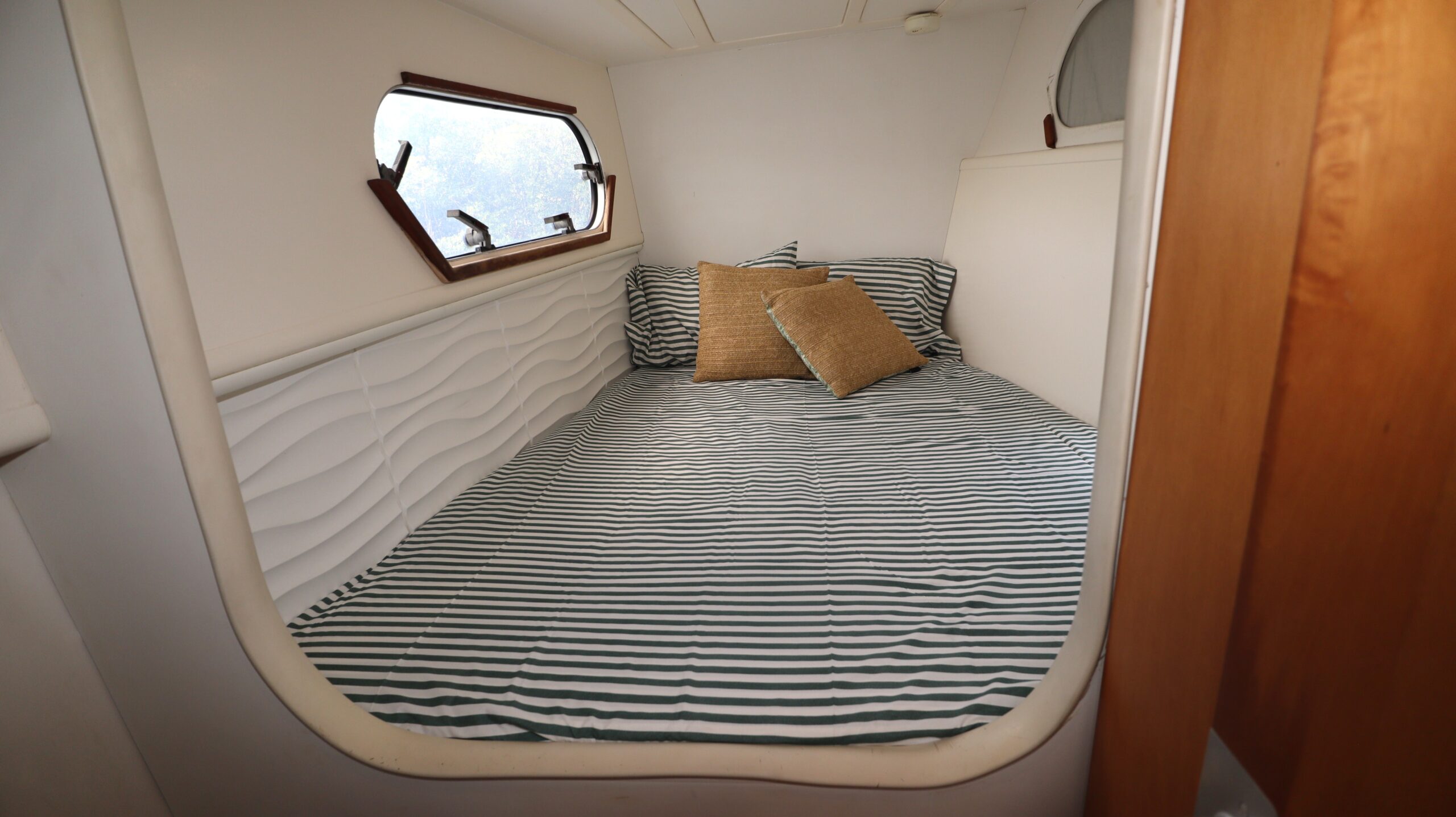

- AFT STATEROOM has a queen berth (6’6” x 6”6”) inboard with a large storage area below, and a long

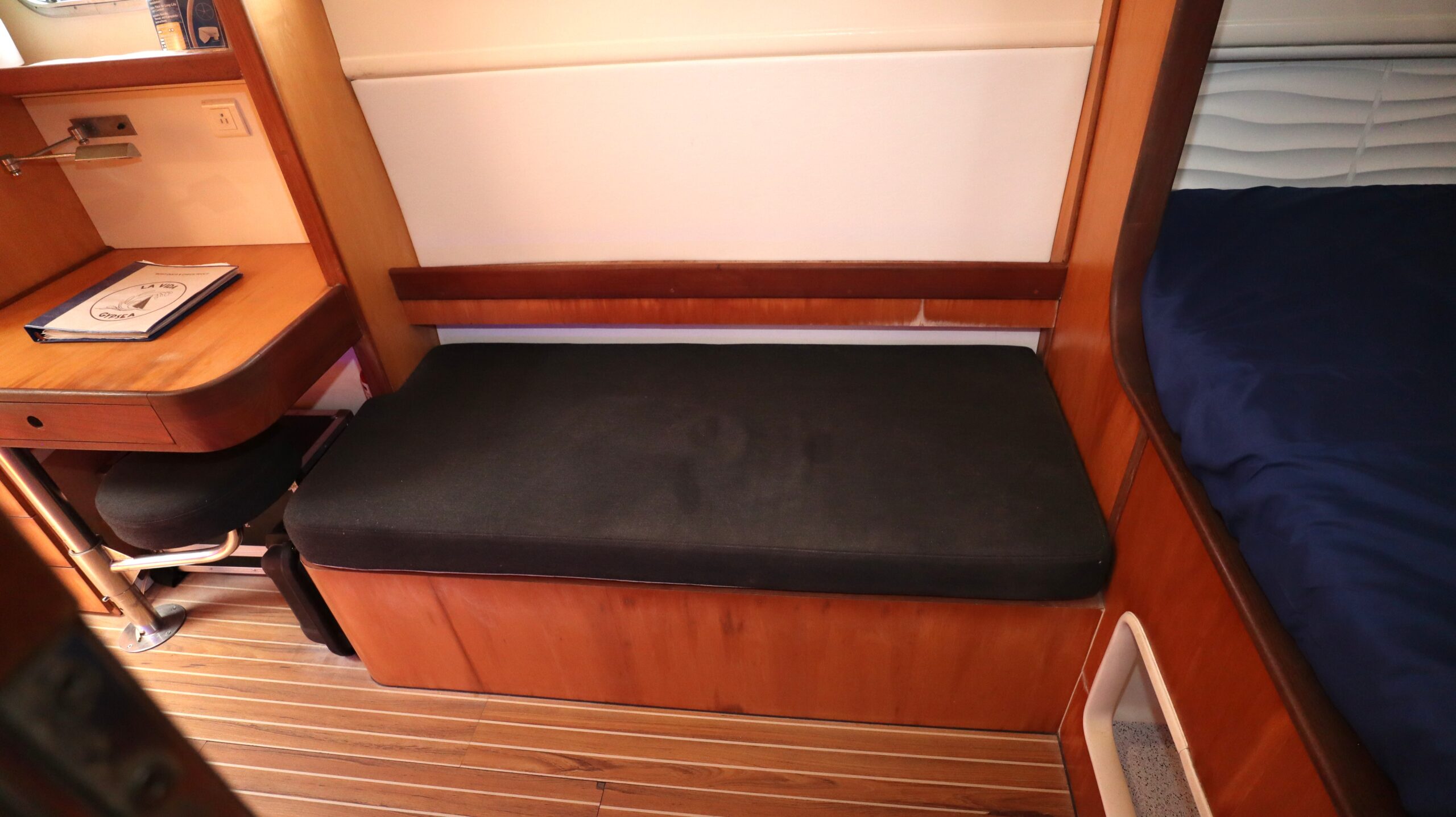

shelf inboard. Outboard at the foot of the berth is a long settee with storage below. There is 1x Moonlight “sea view” port light outboard and 1x Moonlight port light inboard for ventilation.

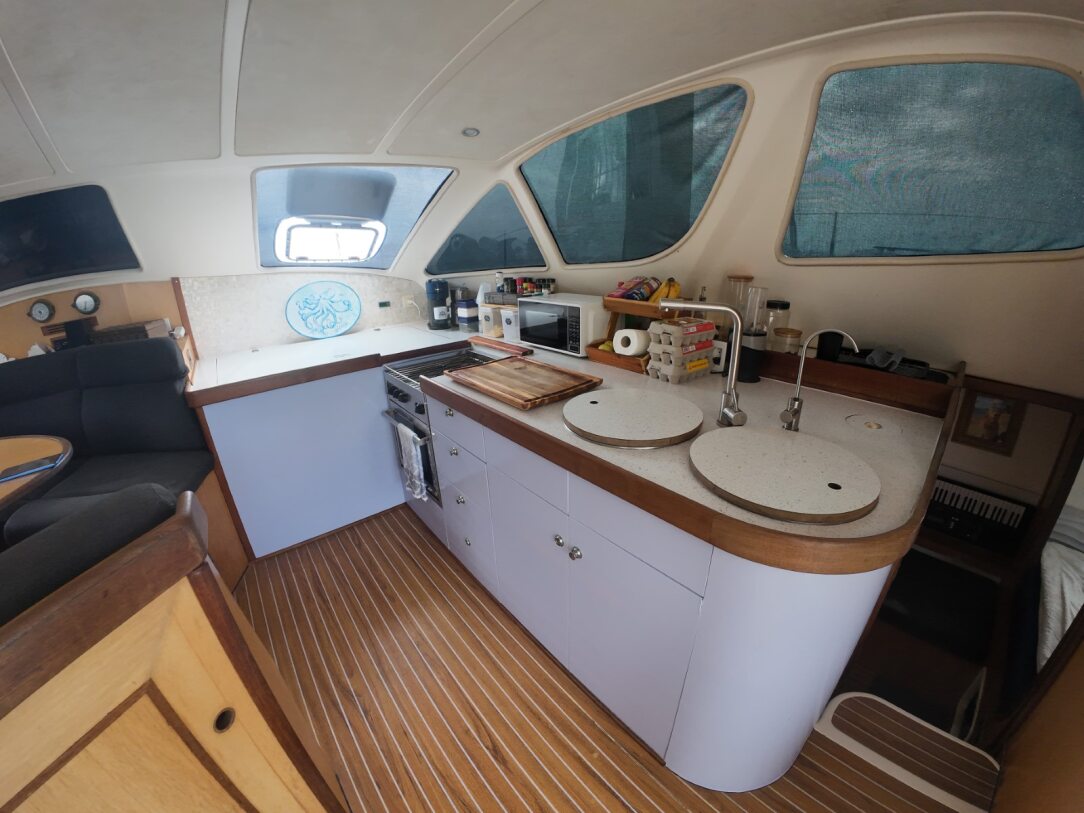

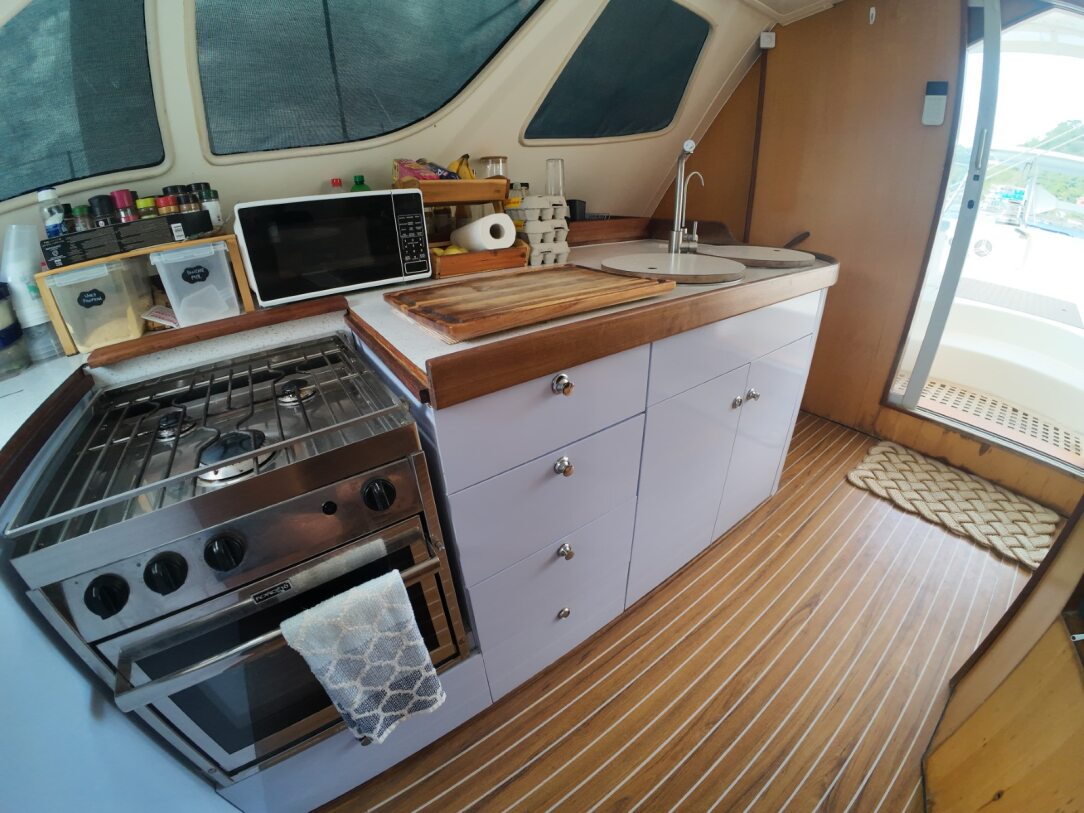

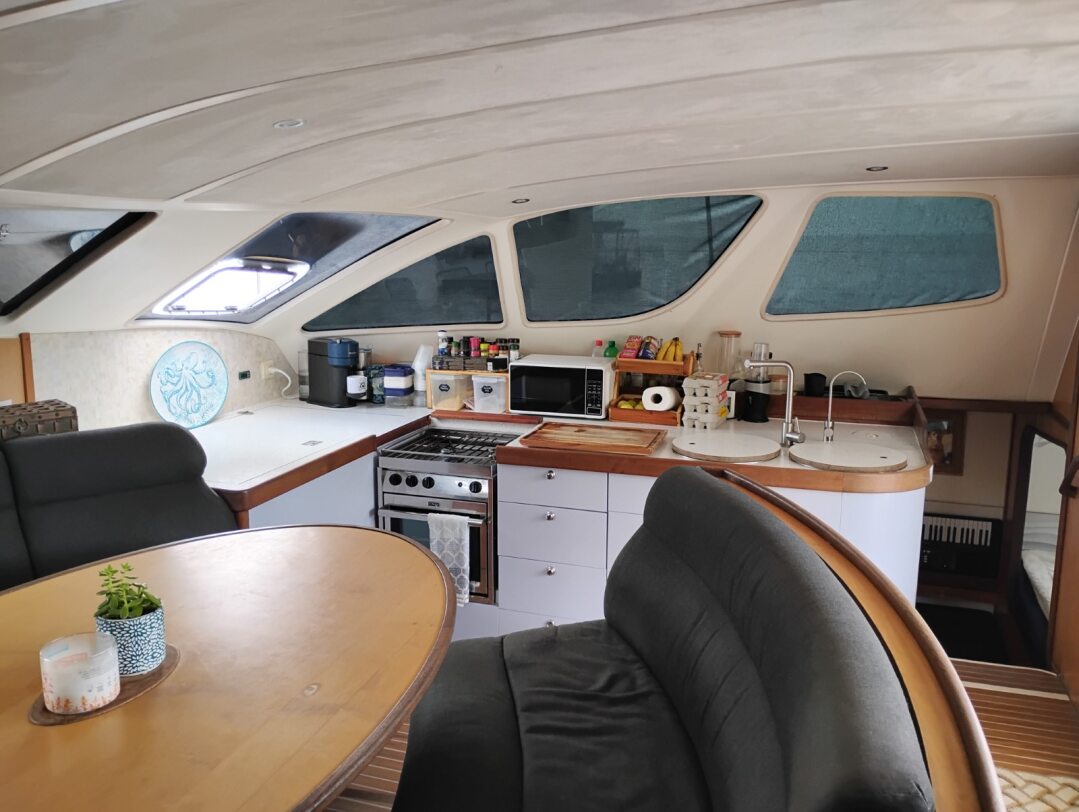

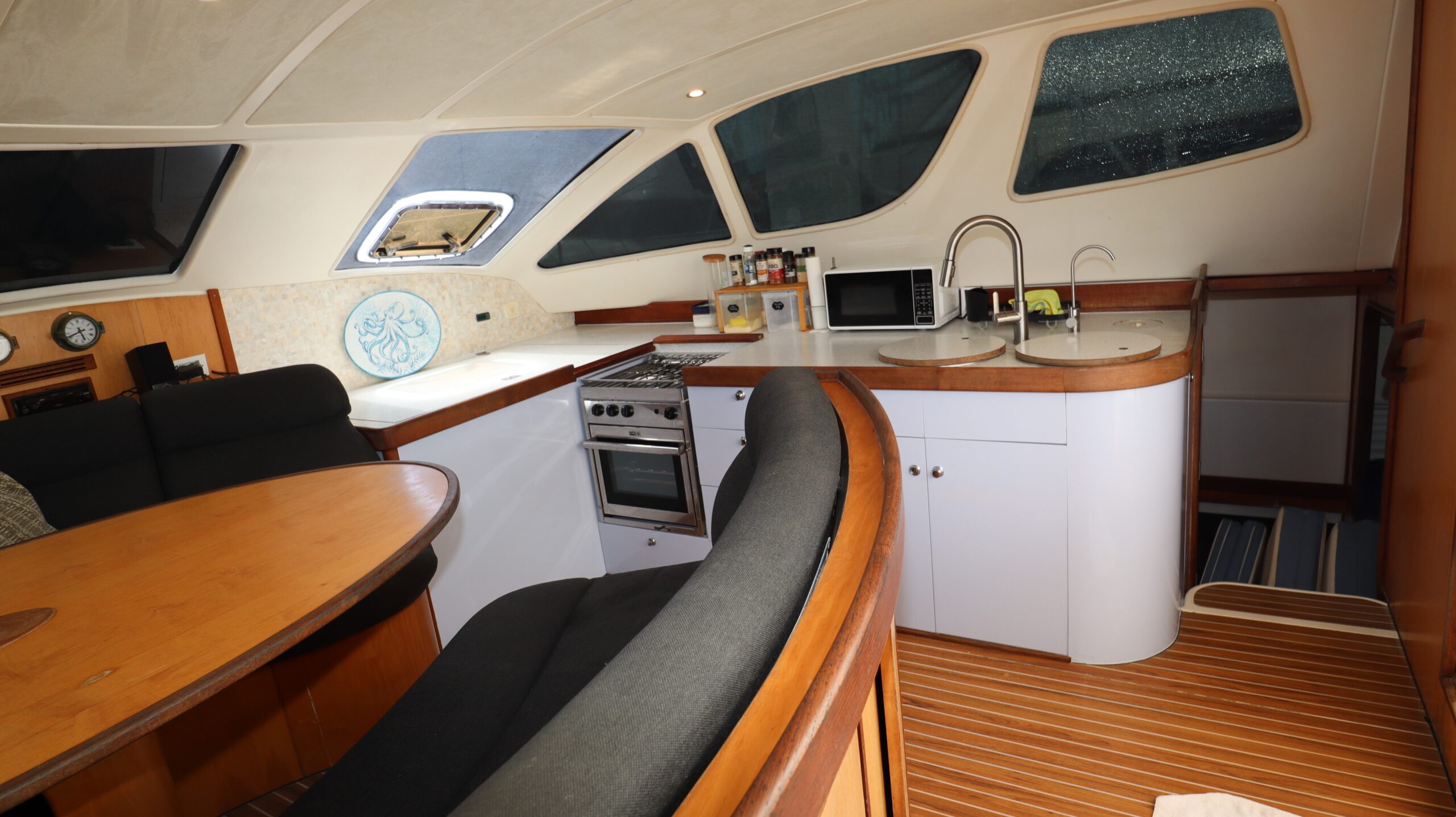

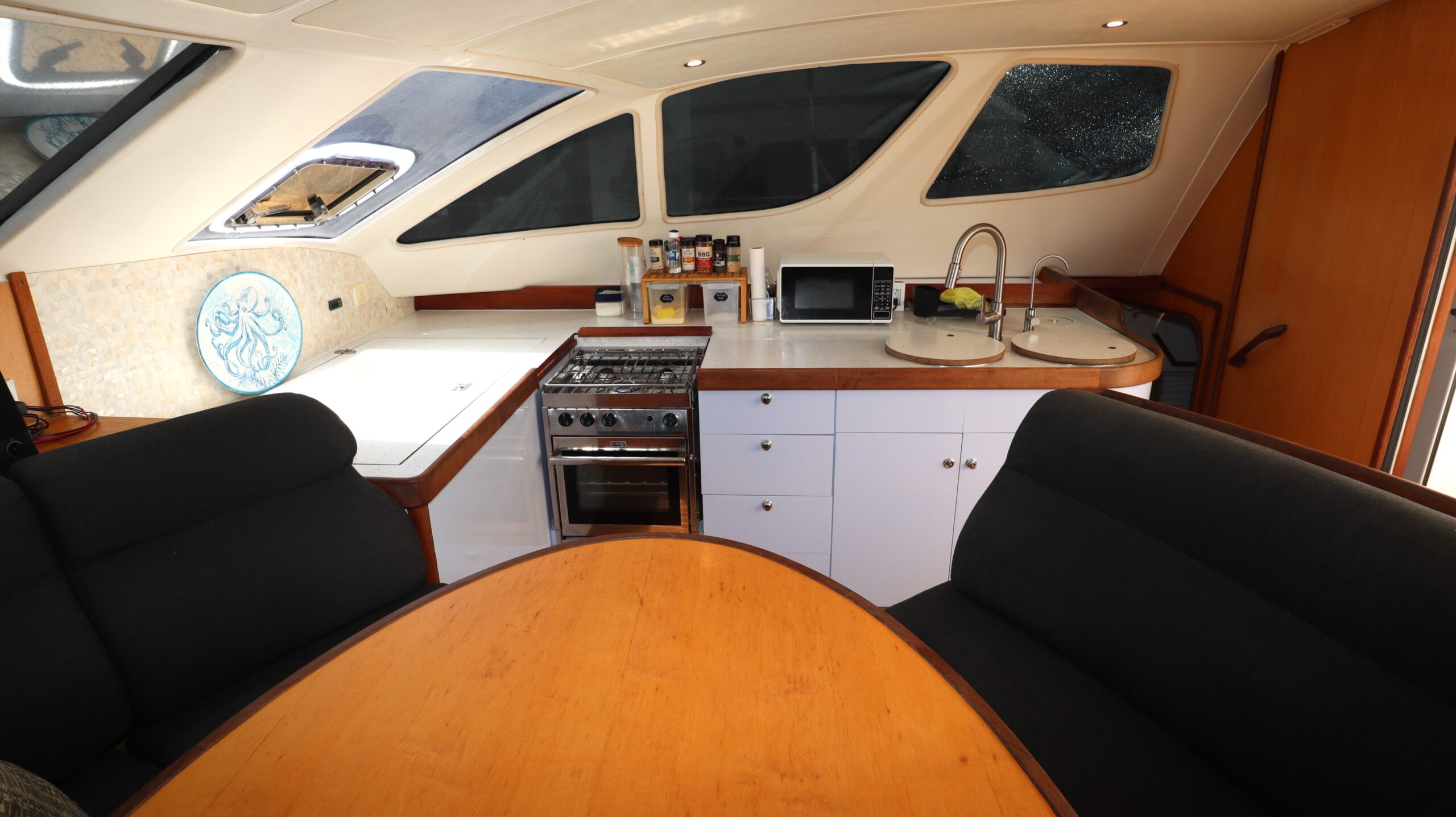

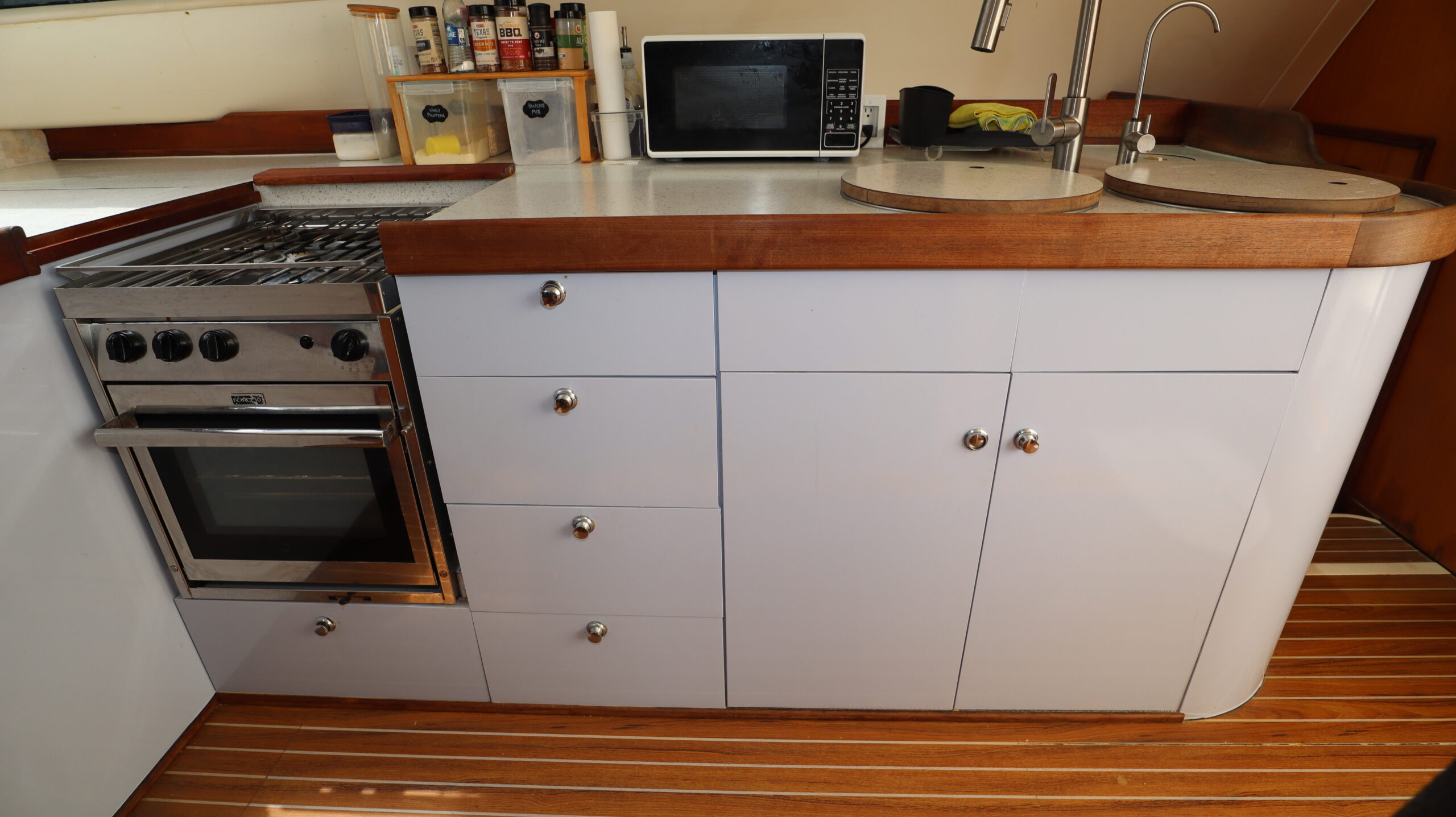

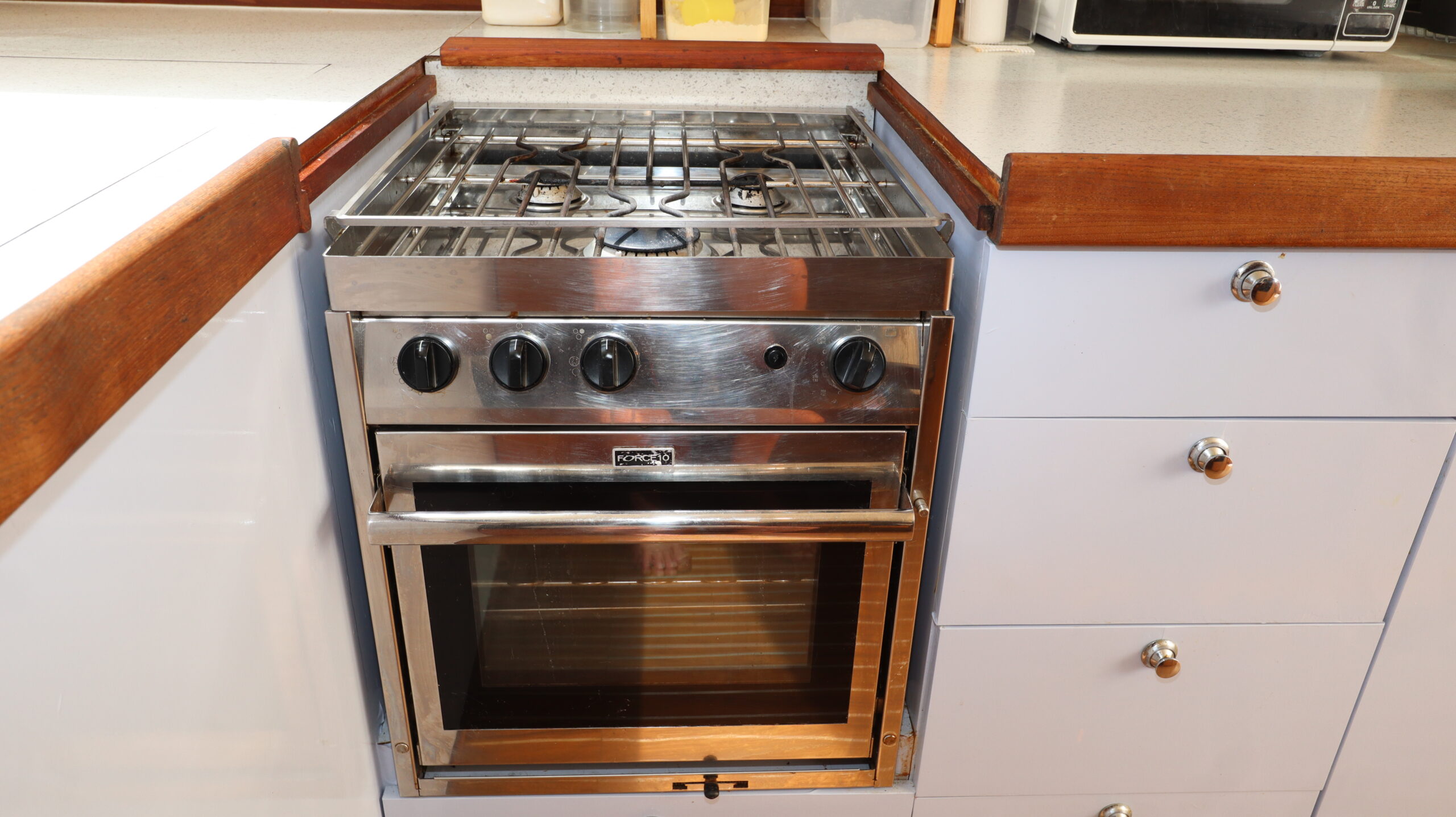

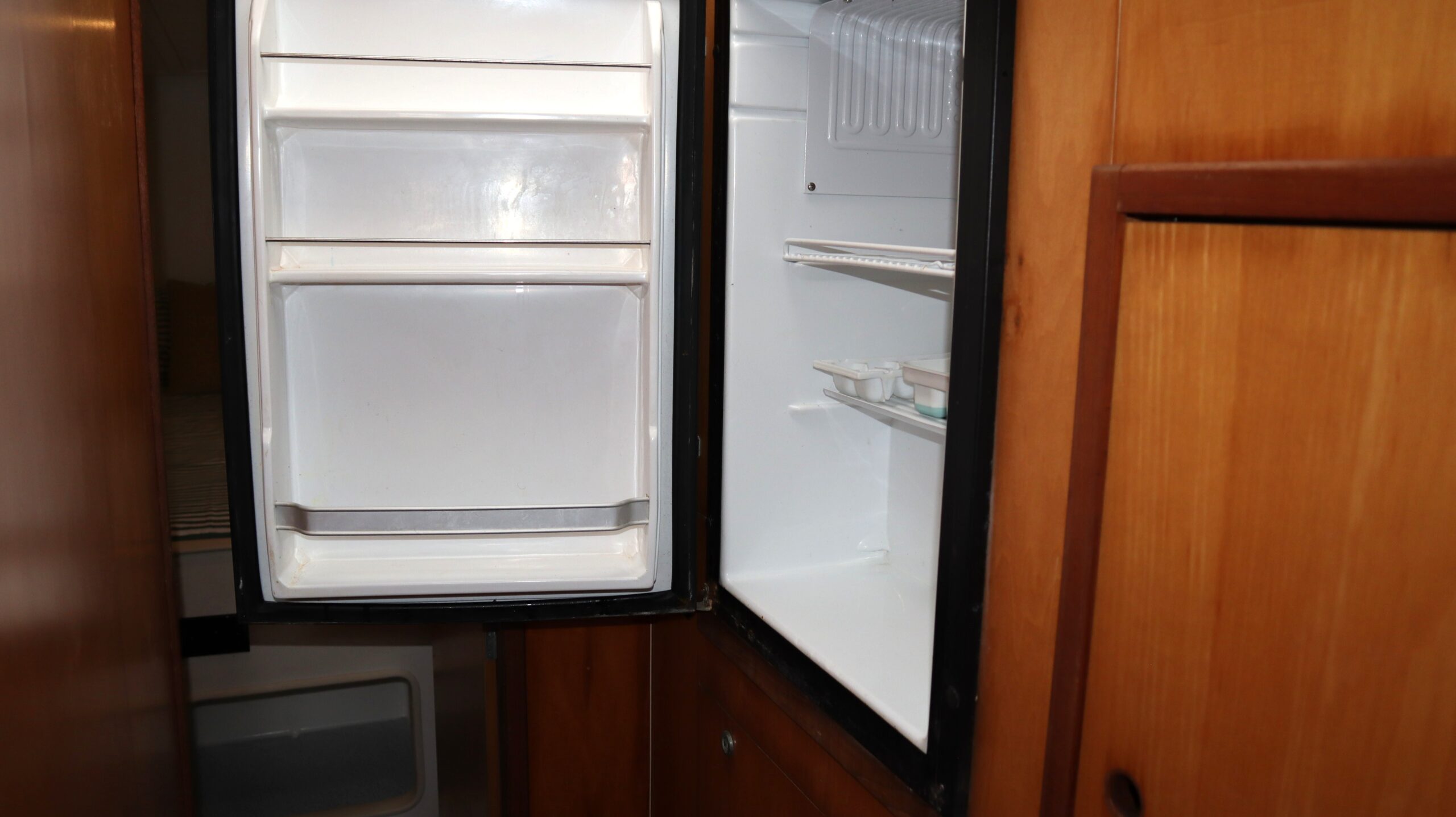

BRIDGEDECK ACCOMMODATIONS: - GALLEY is “L” shaped to starboard with two stainless sinks and hot/cold pressure water. There is a Force 10 stainless stove with three burners, oven, broiler and Bass remote solenoid connected to a 20 lb. fiberglass propane tank in vented locker w/pressure gauge. There is a top loading 5½ cubic feet 12V refrigerator and the galley has excellent counter space with storage below. There is 1x Moonlight hatch for ventilation.

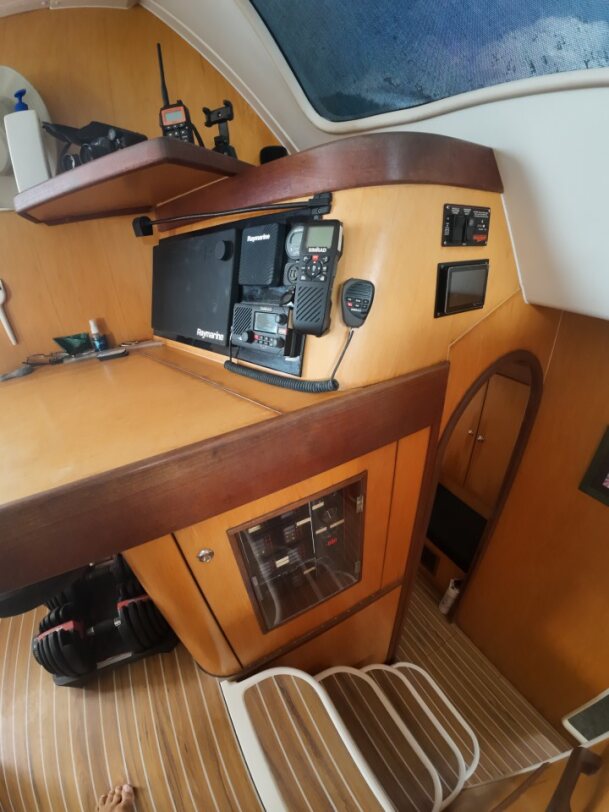

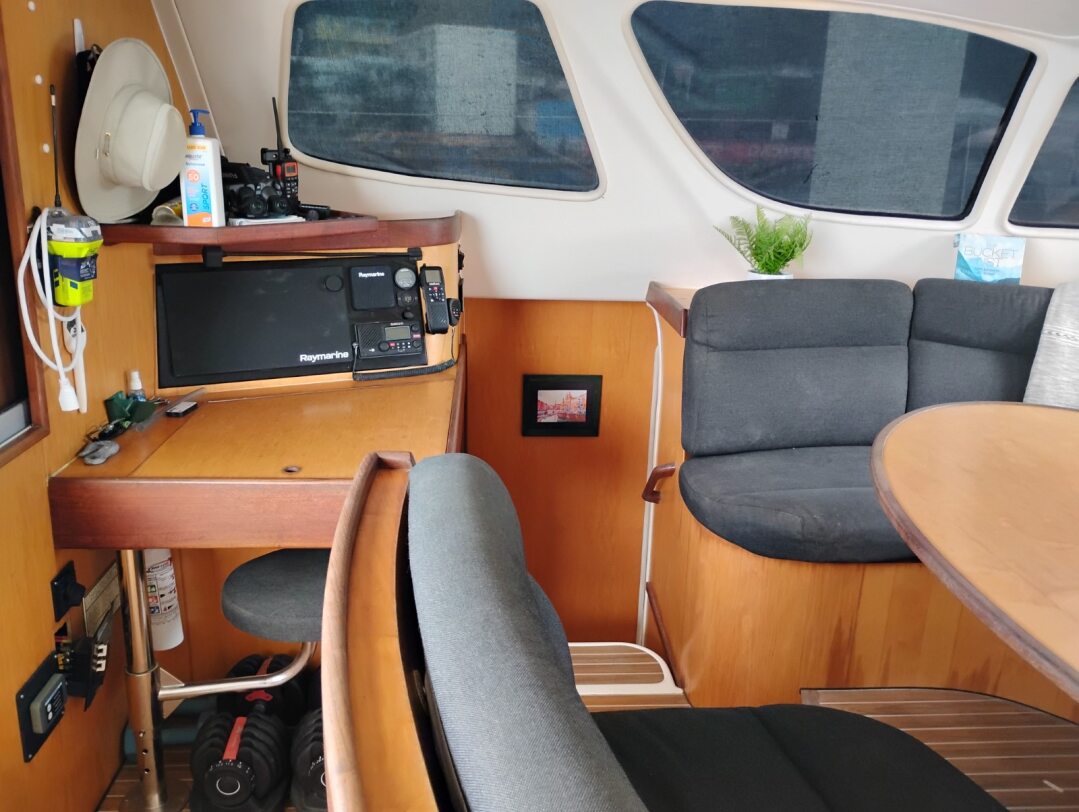

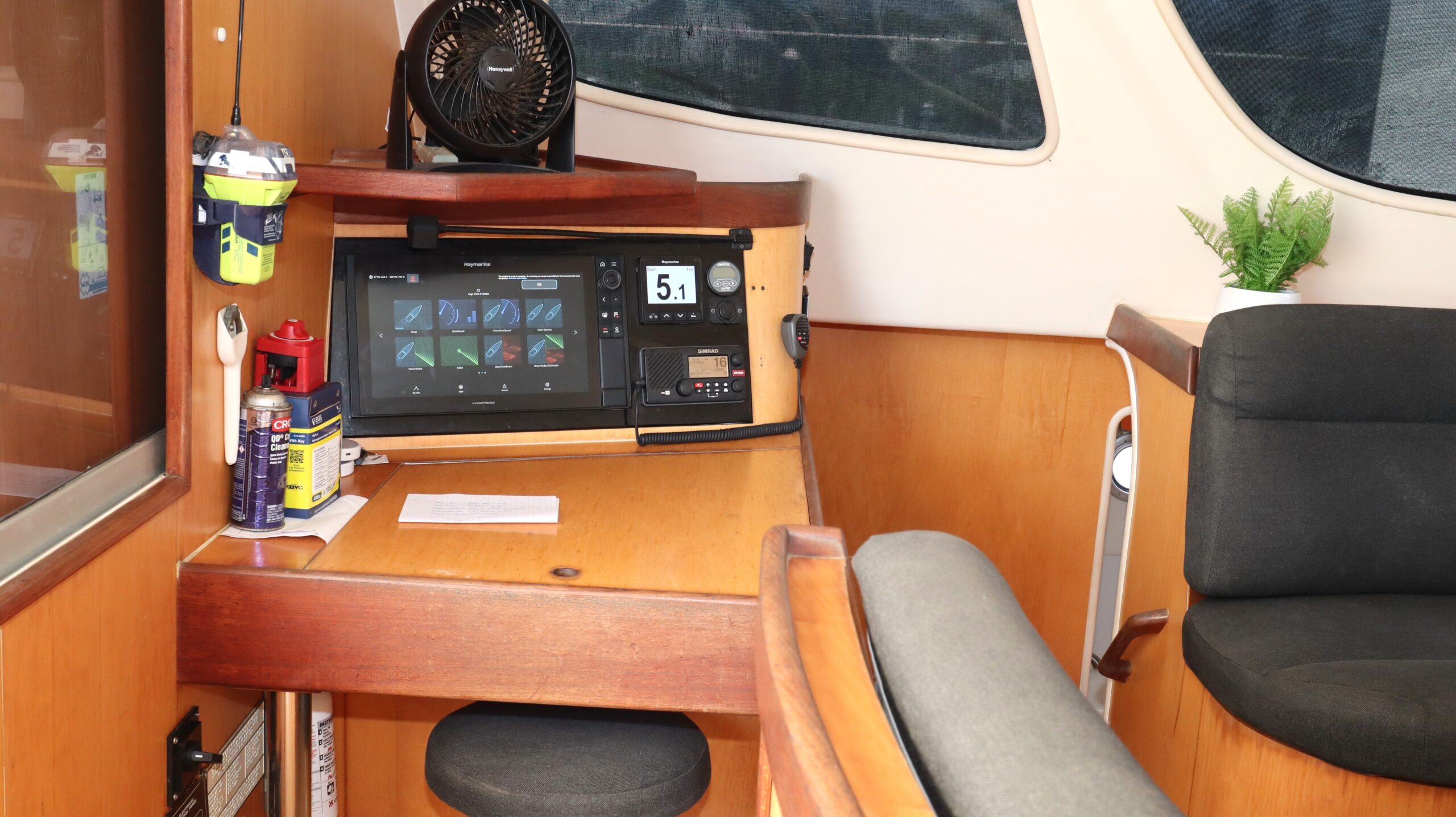

- NAV STATION is aft to port and faces outboard with electronic console, electrical distribution panel, chart table w/stool and storage below.

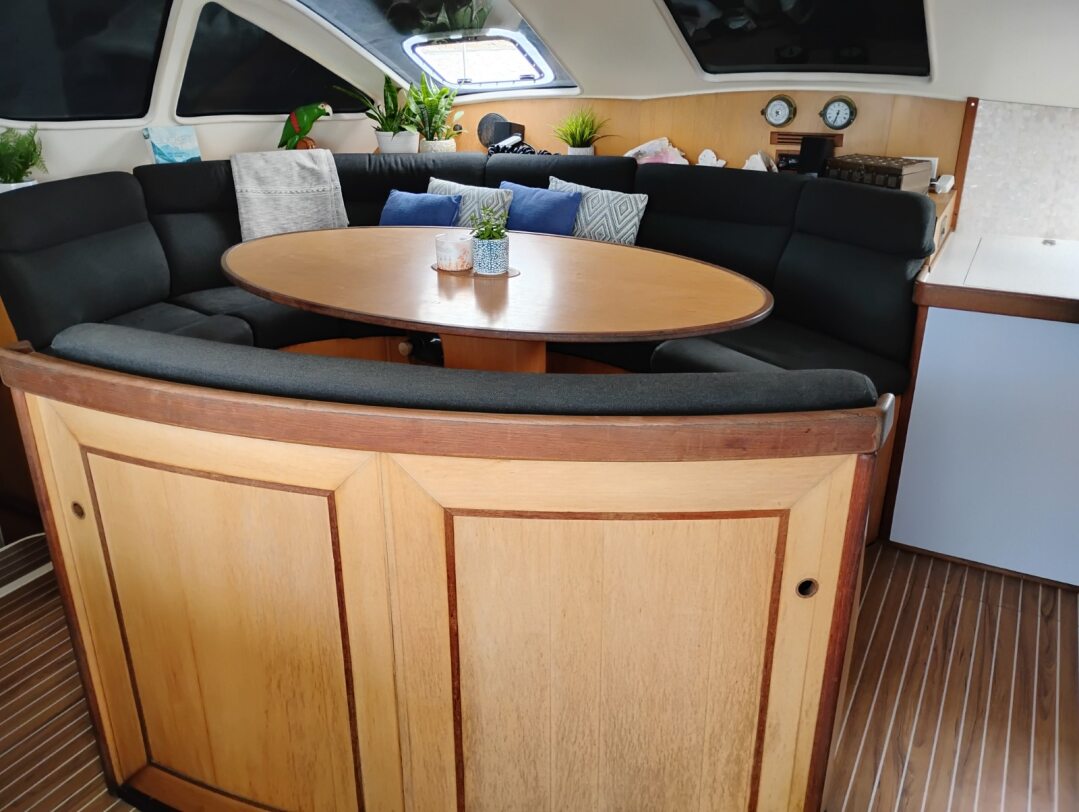

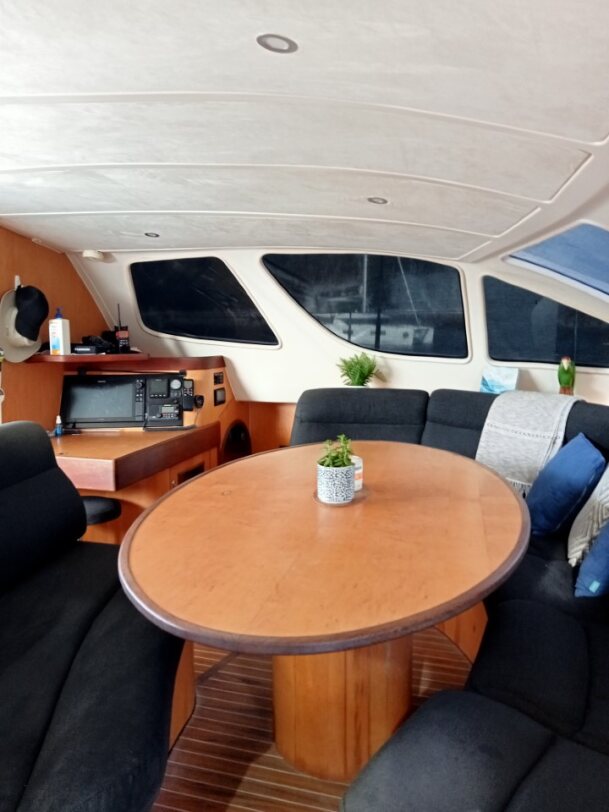

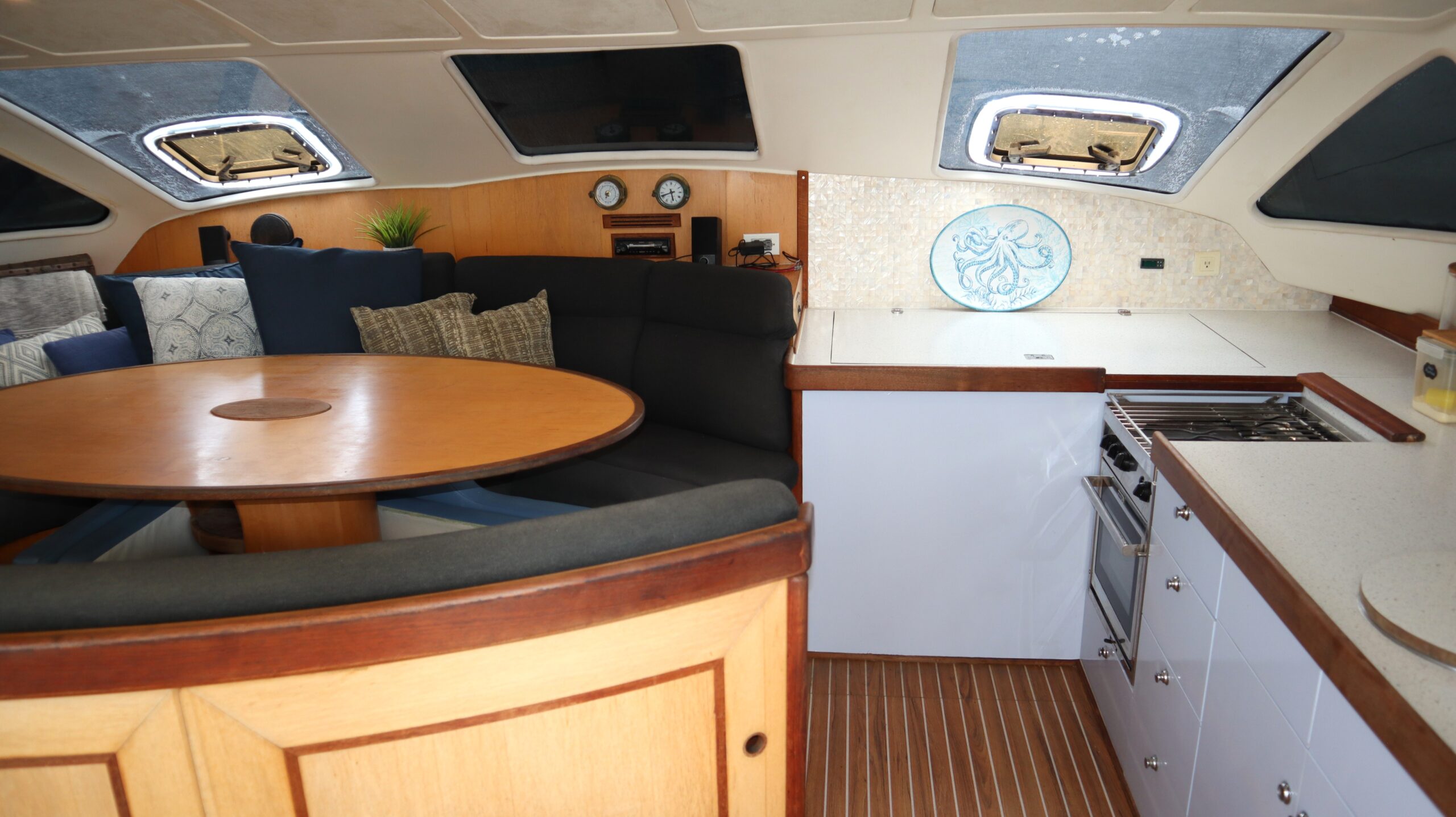

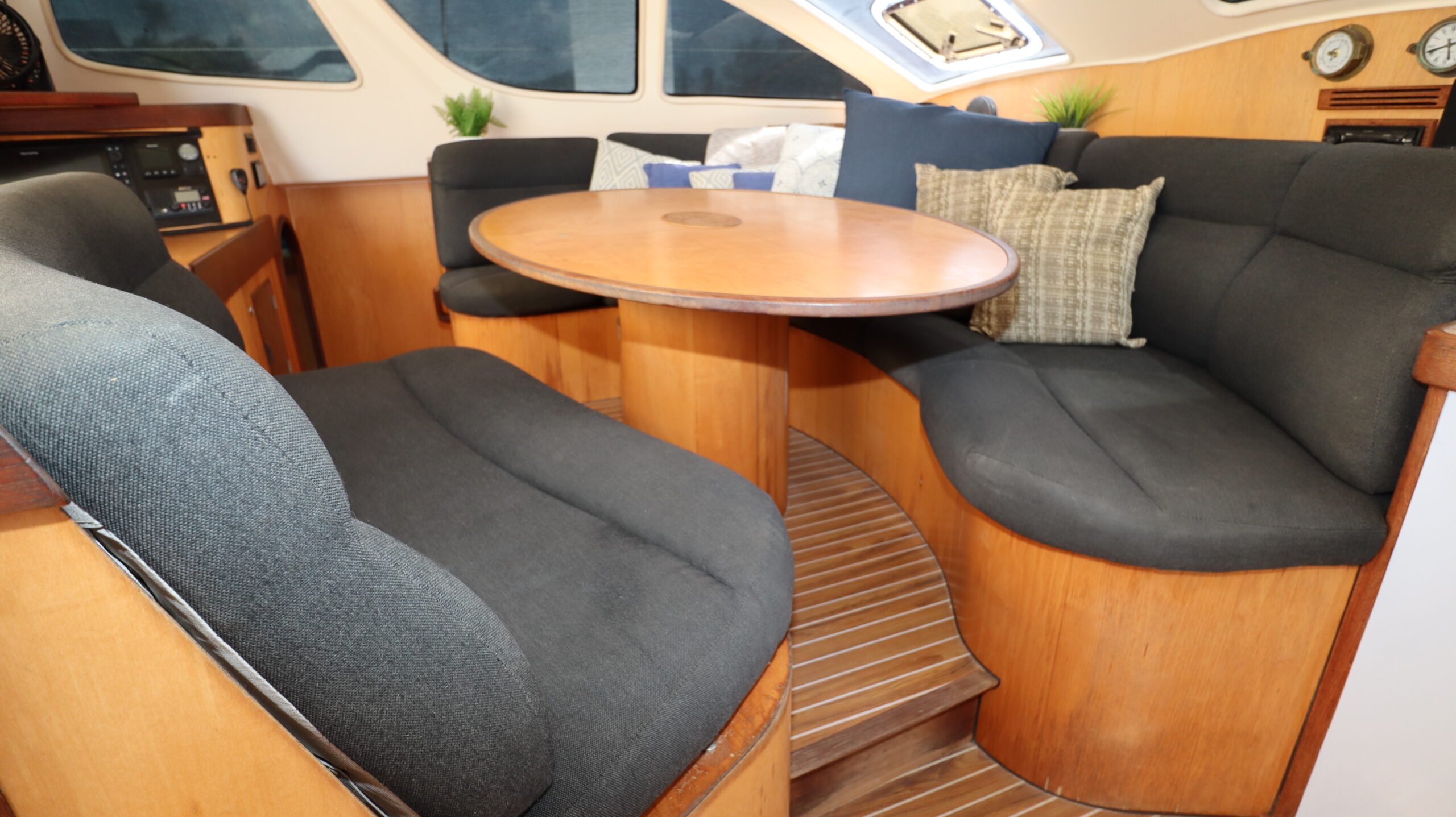

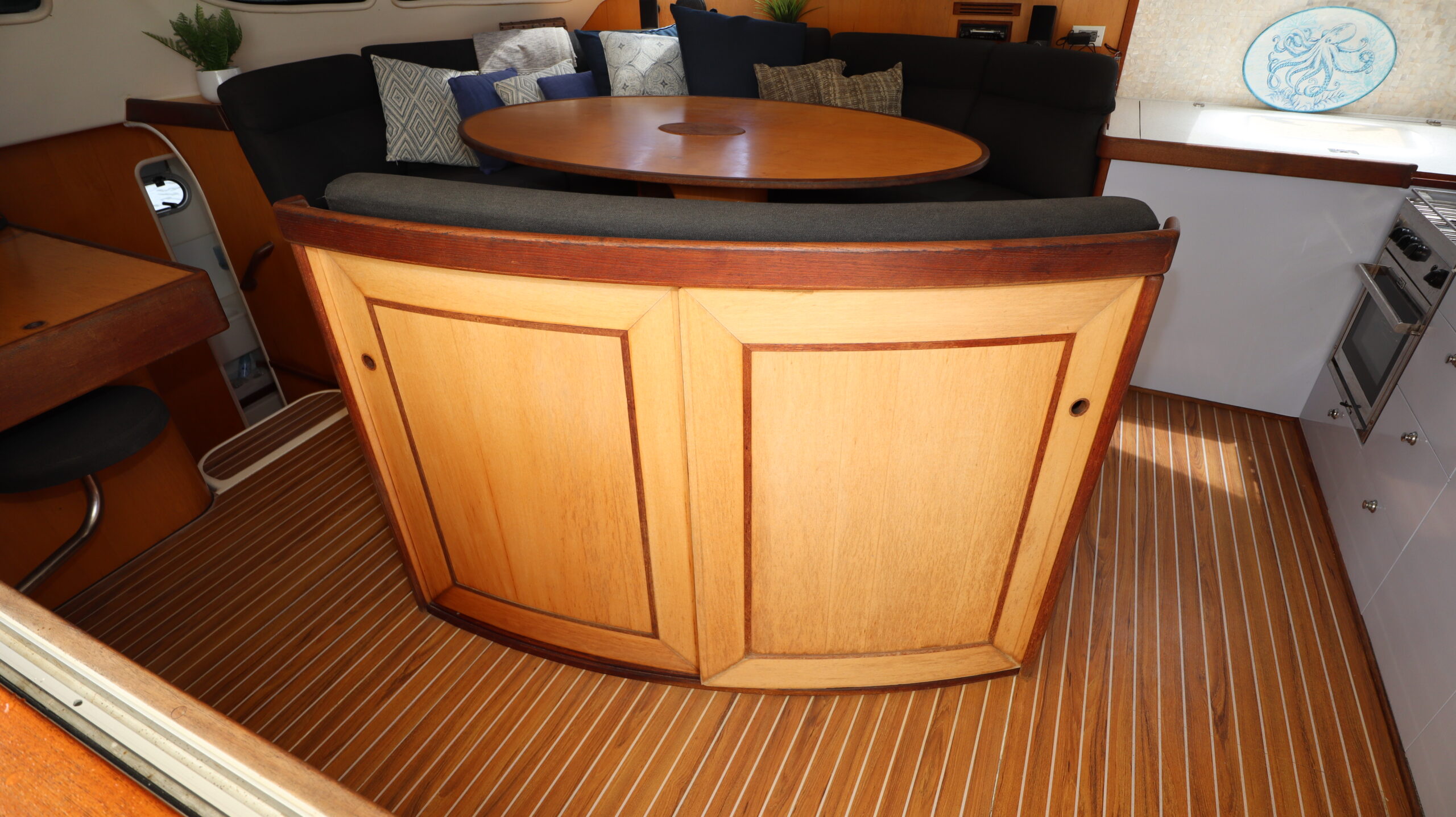

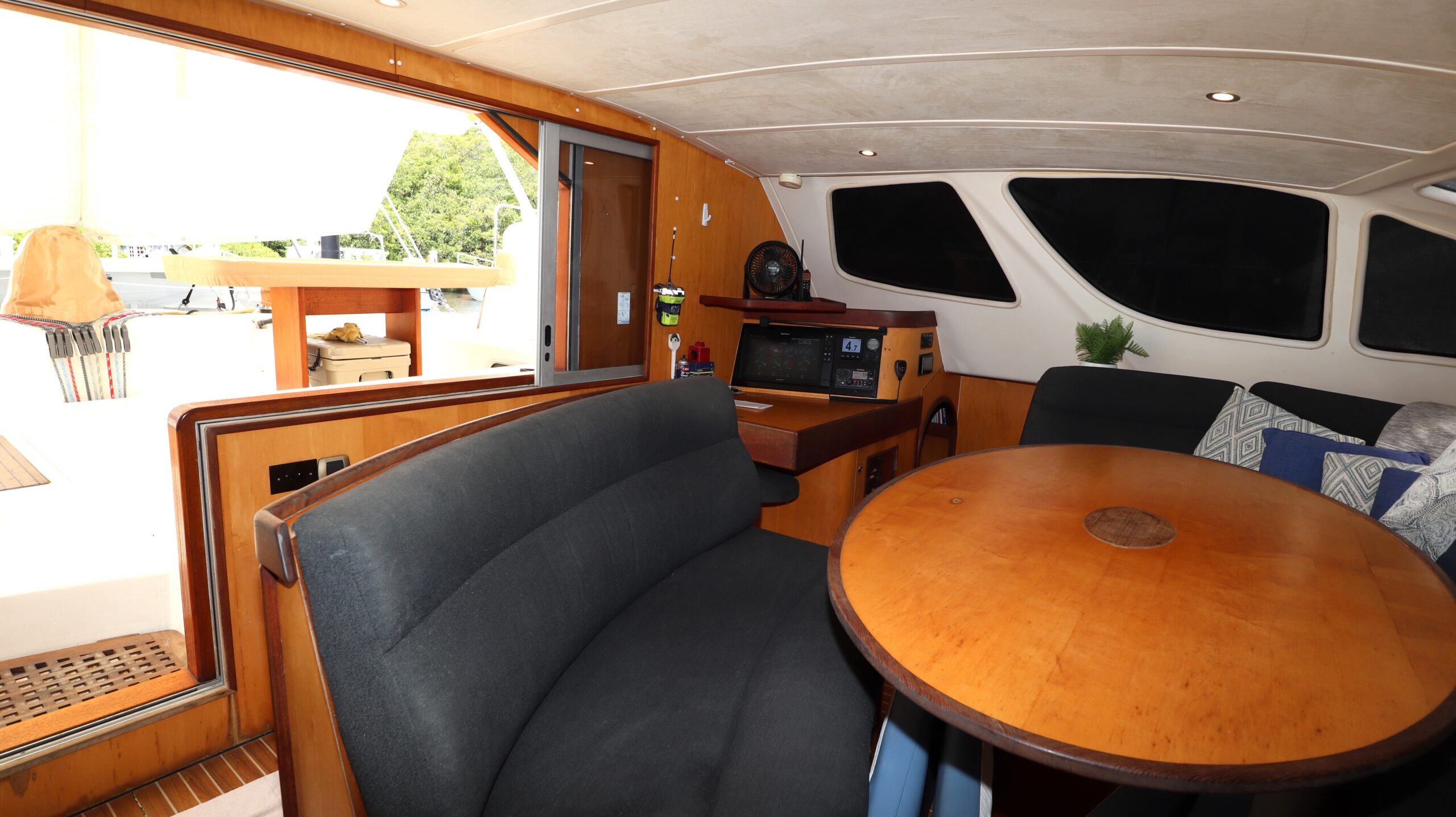

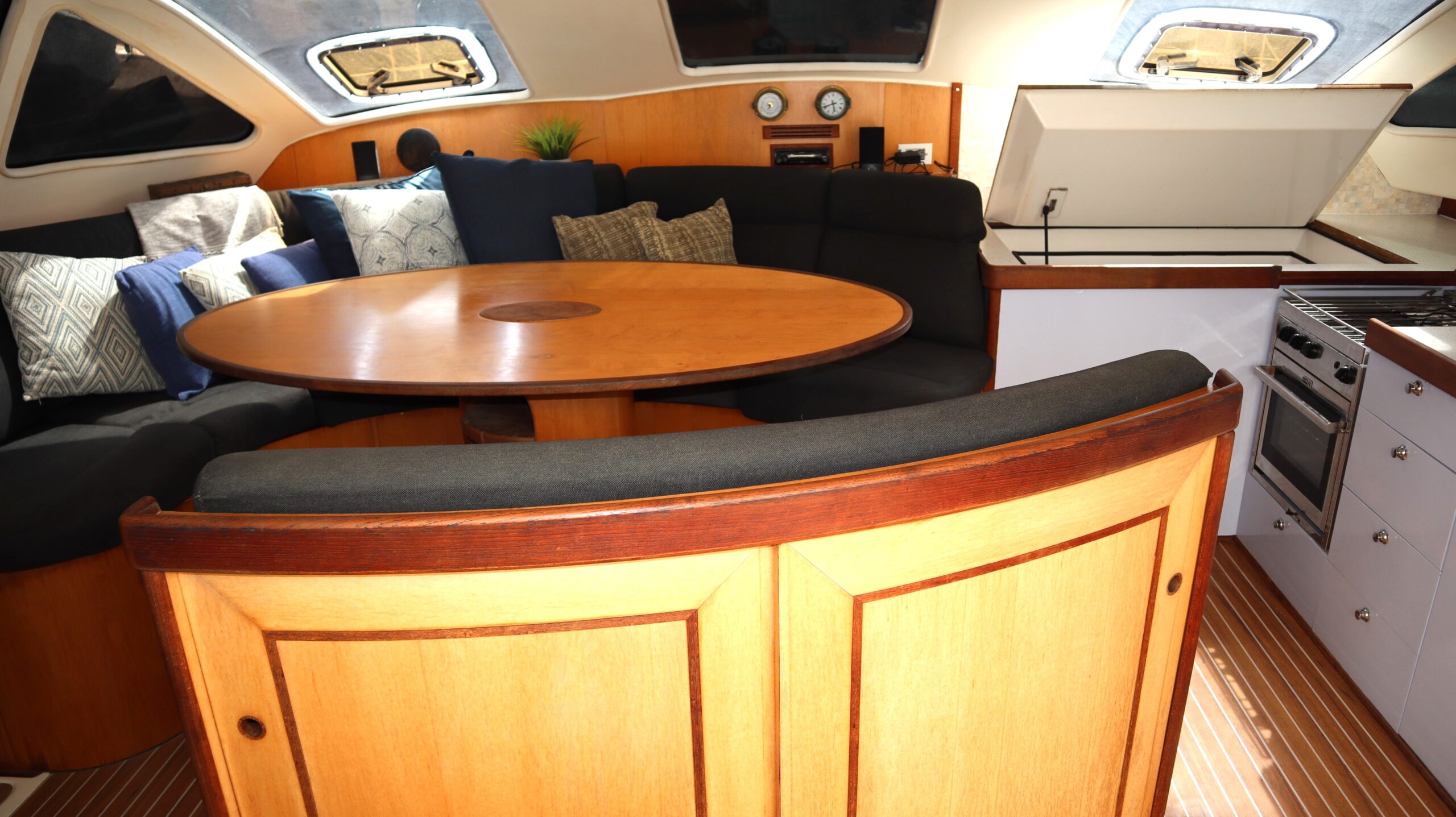

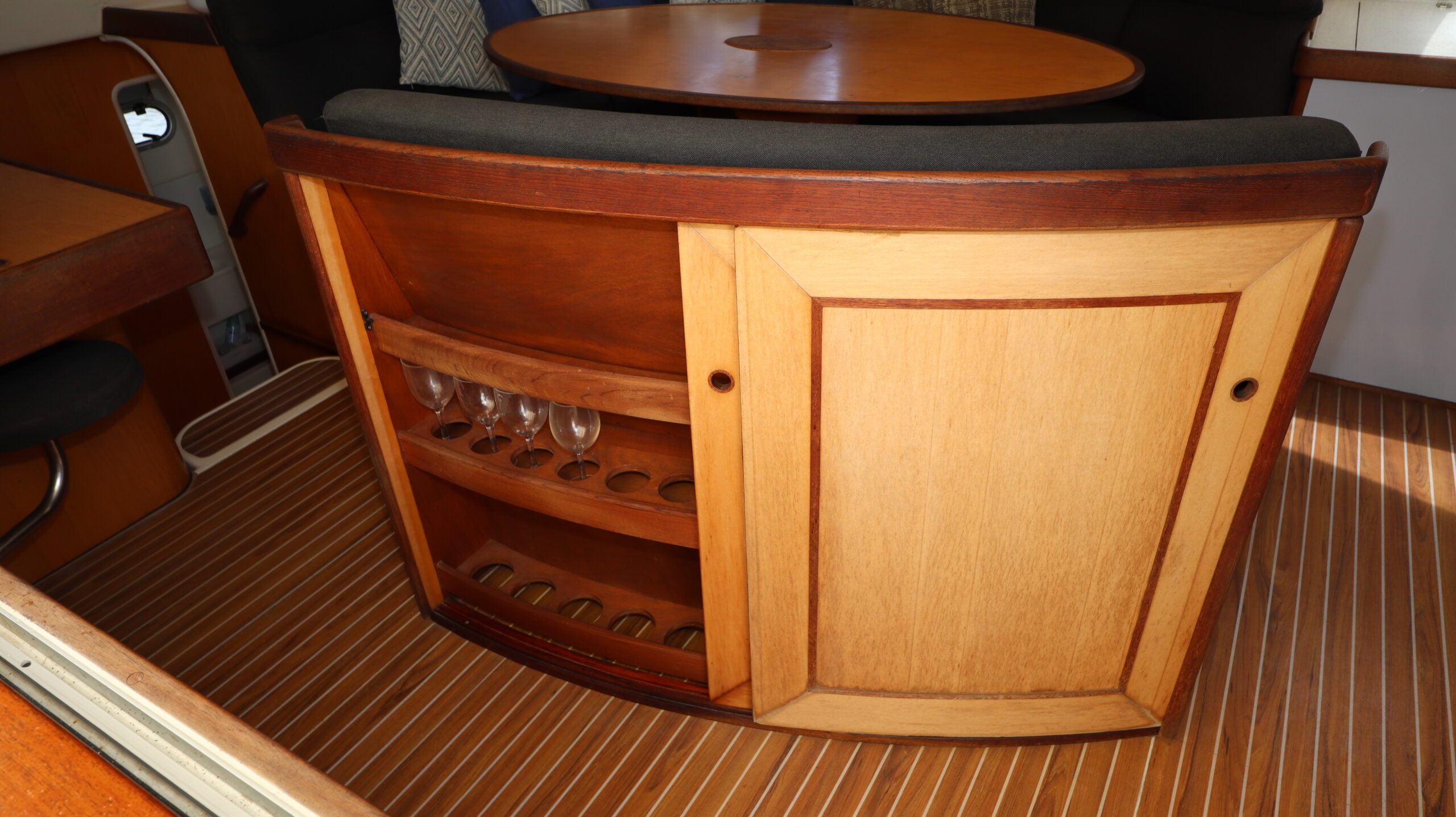

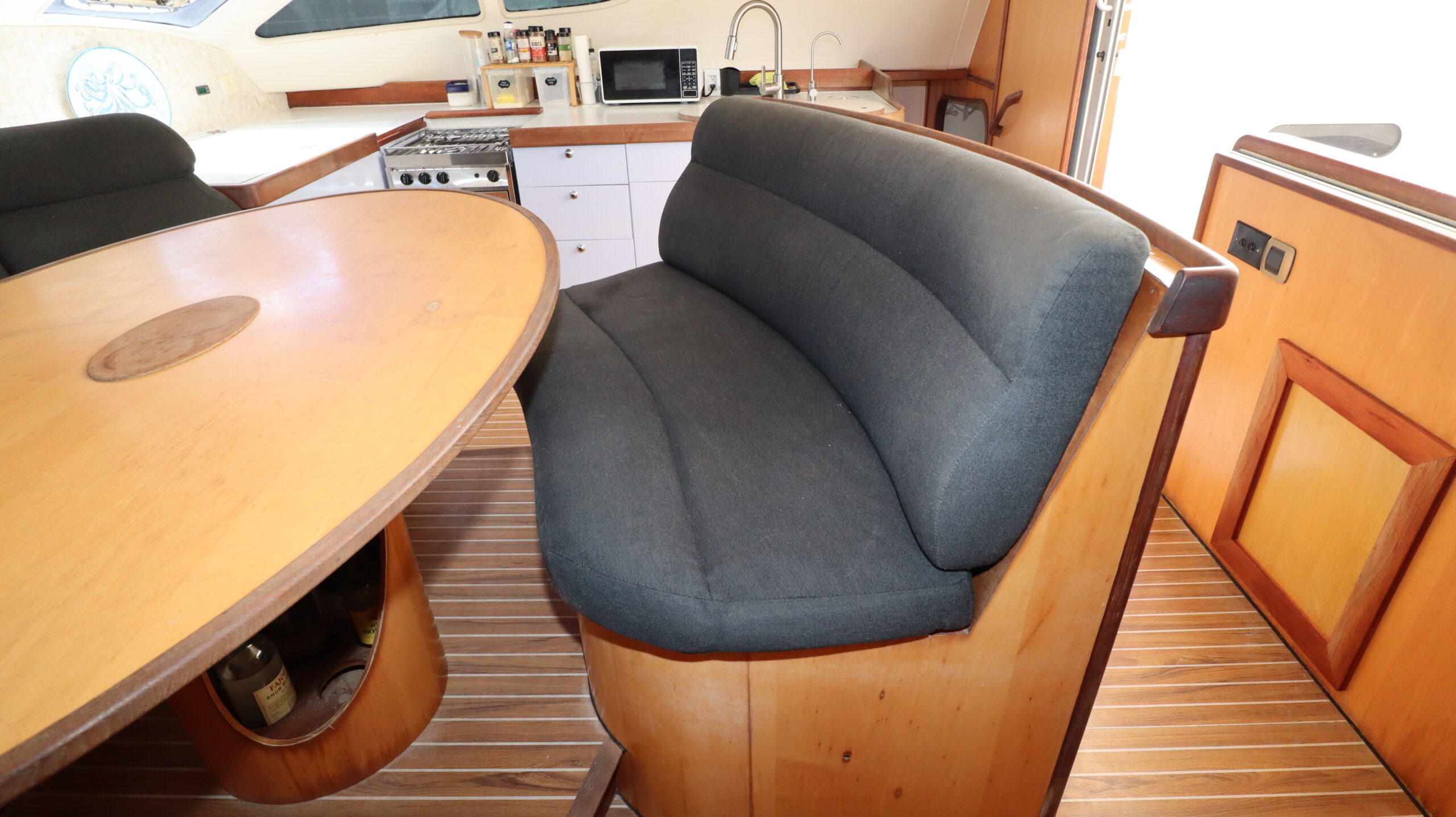

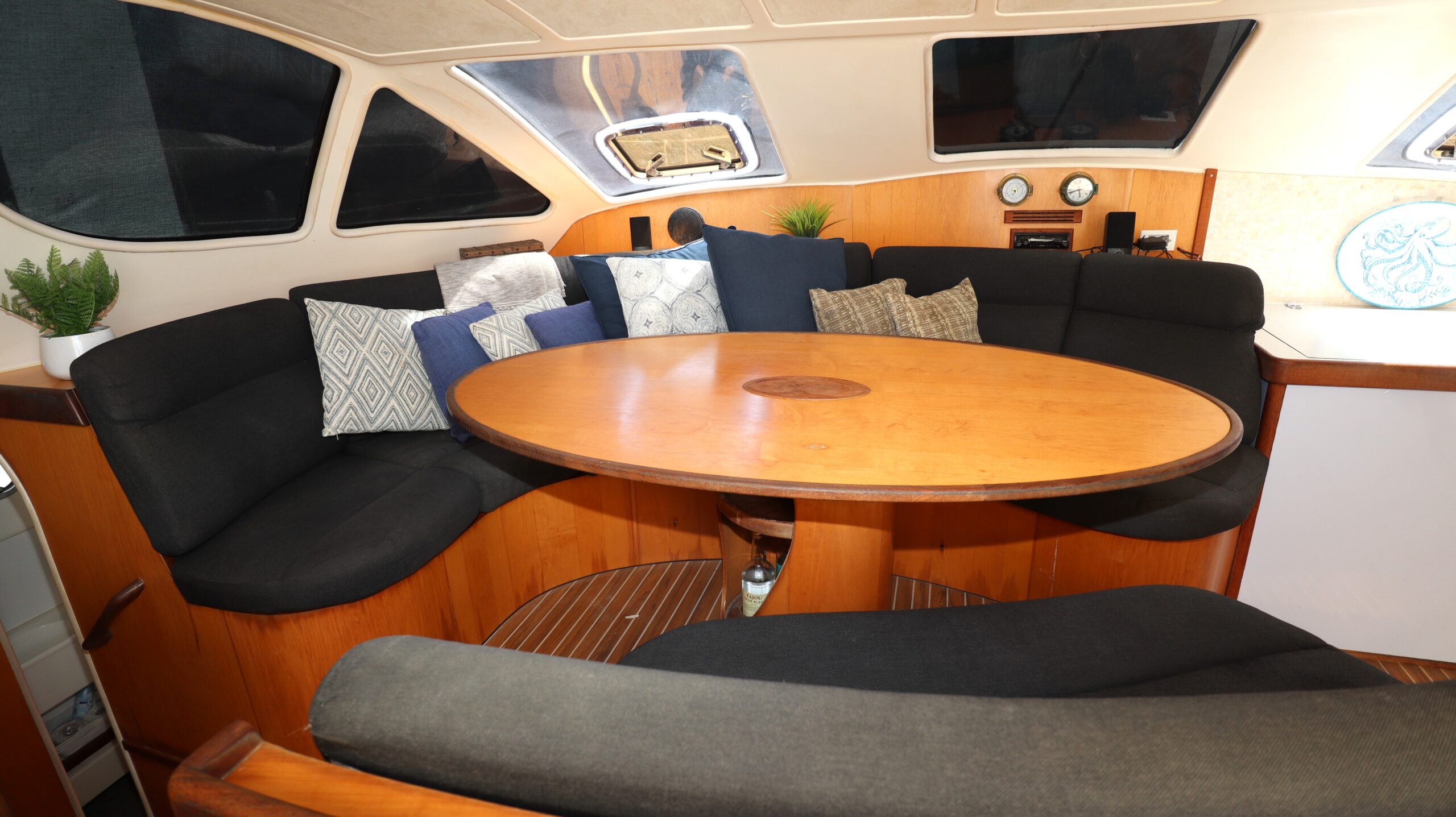

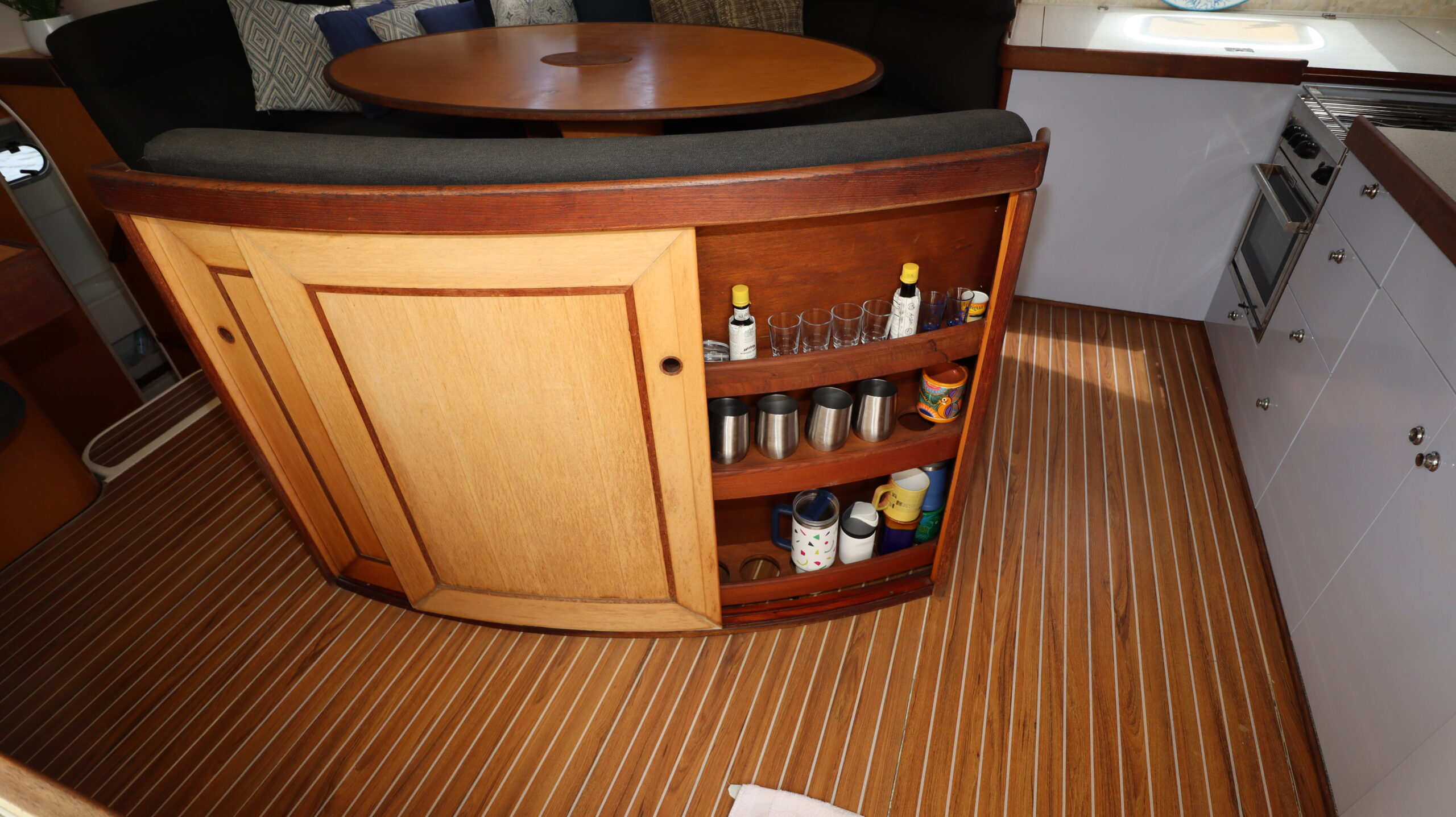

- SALOON has a large “C” shaped settee forward and facing aft with storage below, oval dining table, and forward facing settee with a bar built into the backrest. There is 1x Moonlight hatch for ventilation.

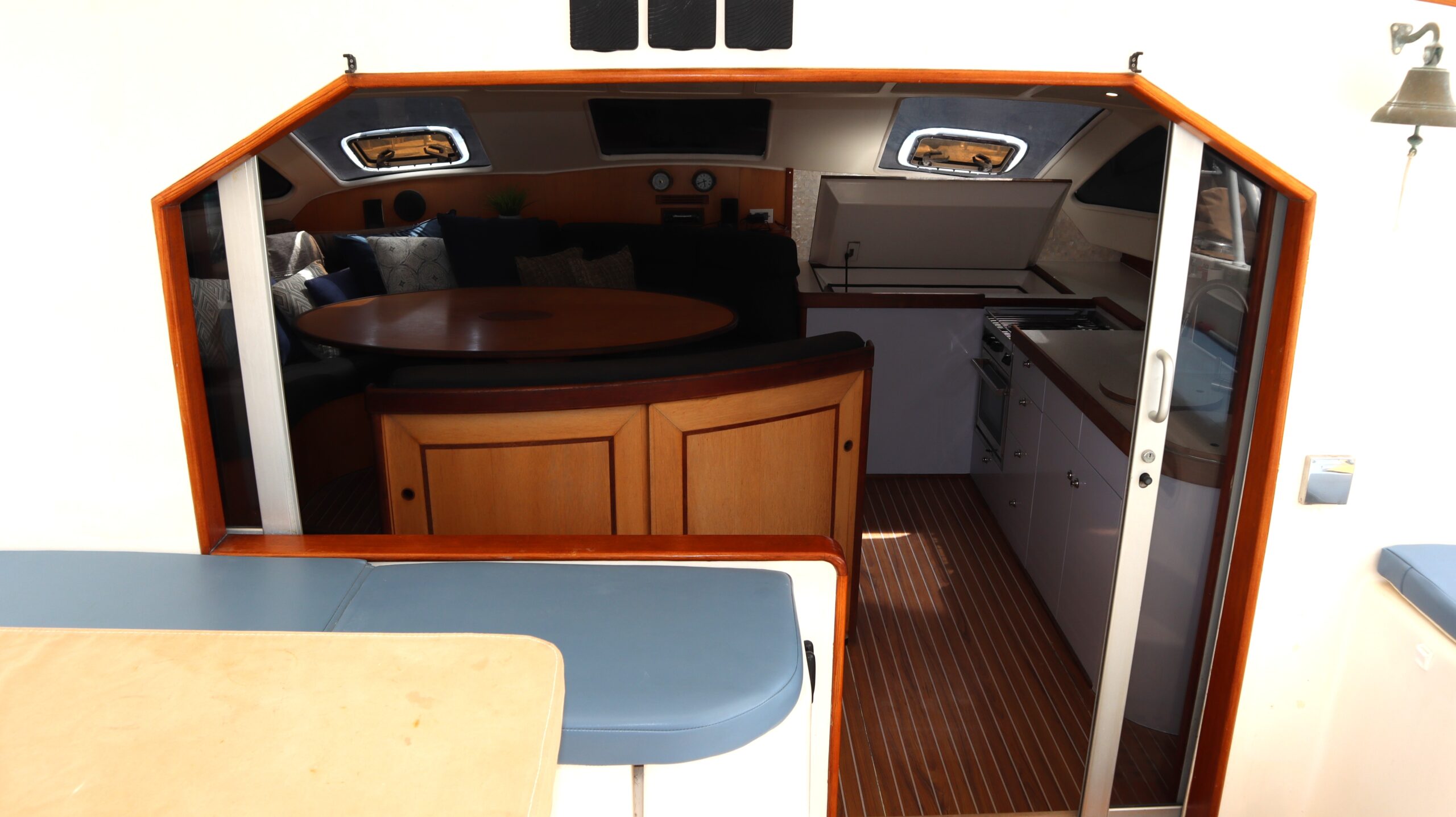

- The cockpit bulkhead opens completely via a brushed aluminum sliding door to starboard and window to port giving easy access to the cockpit with the feeling of the cockpit, galley, nav station, and saloon being one large area.

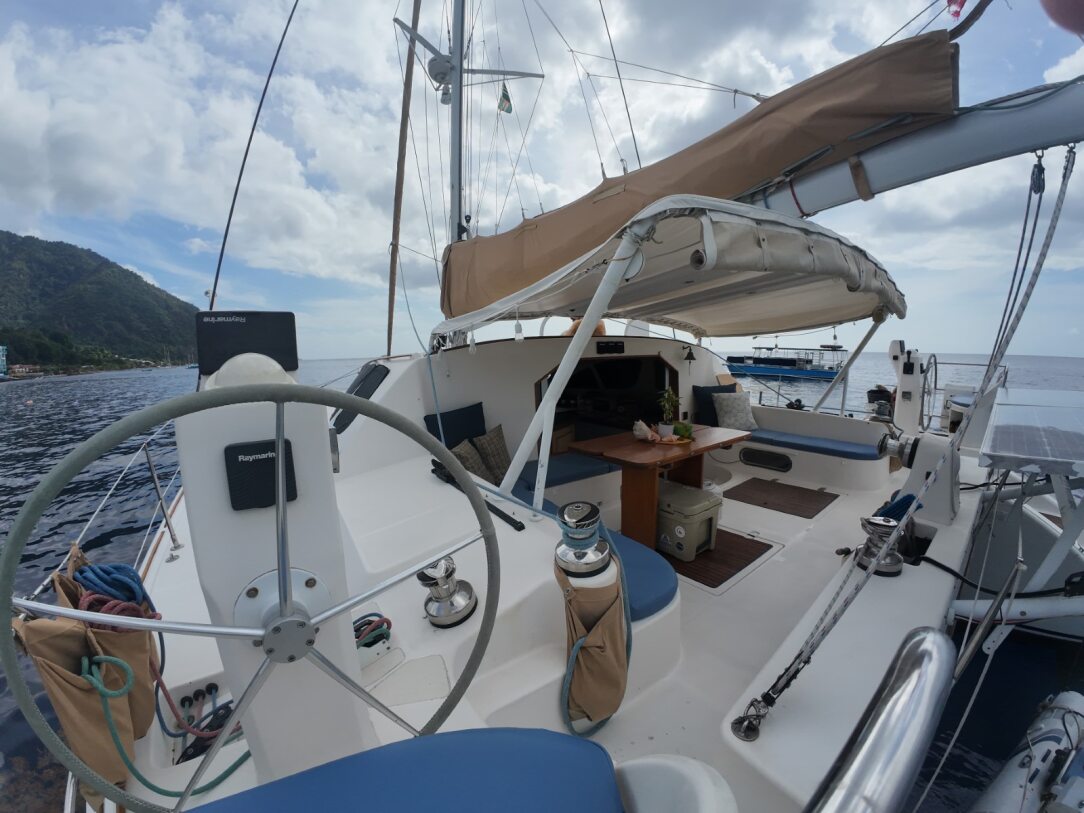

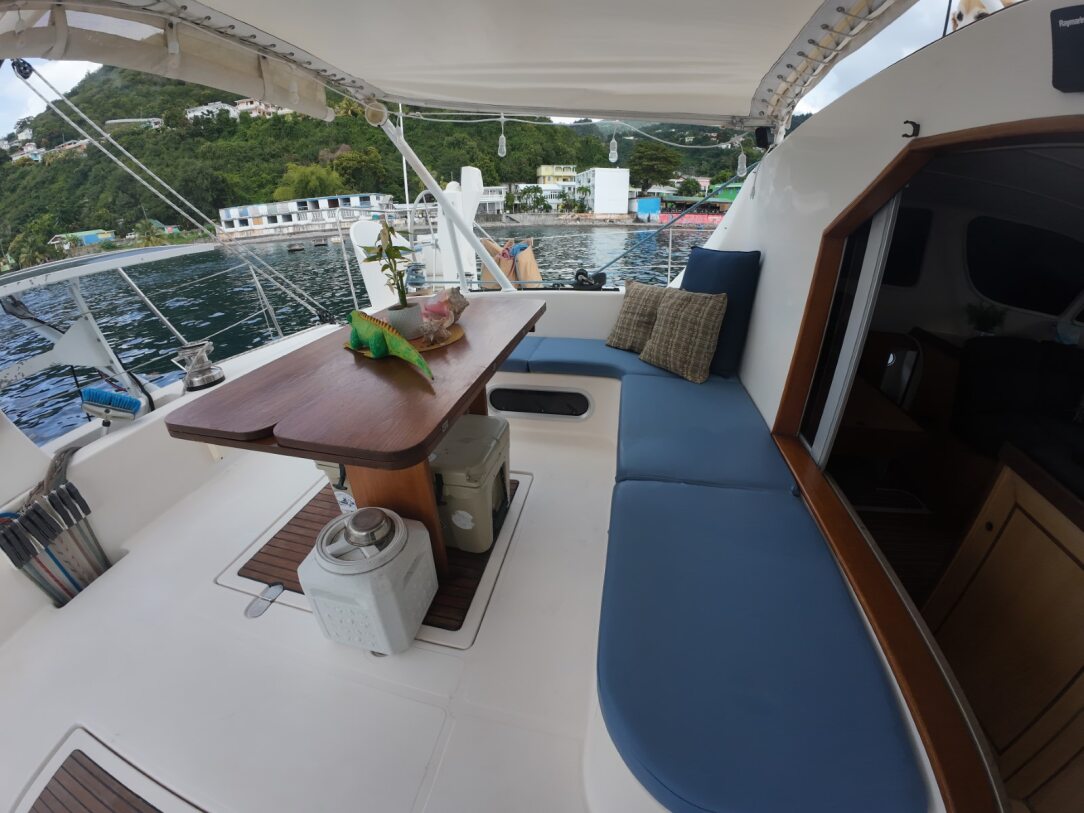

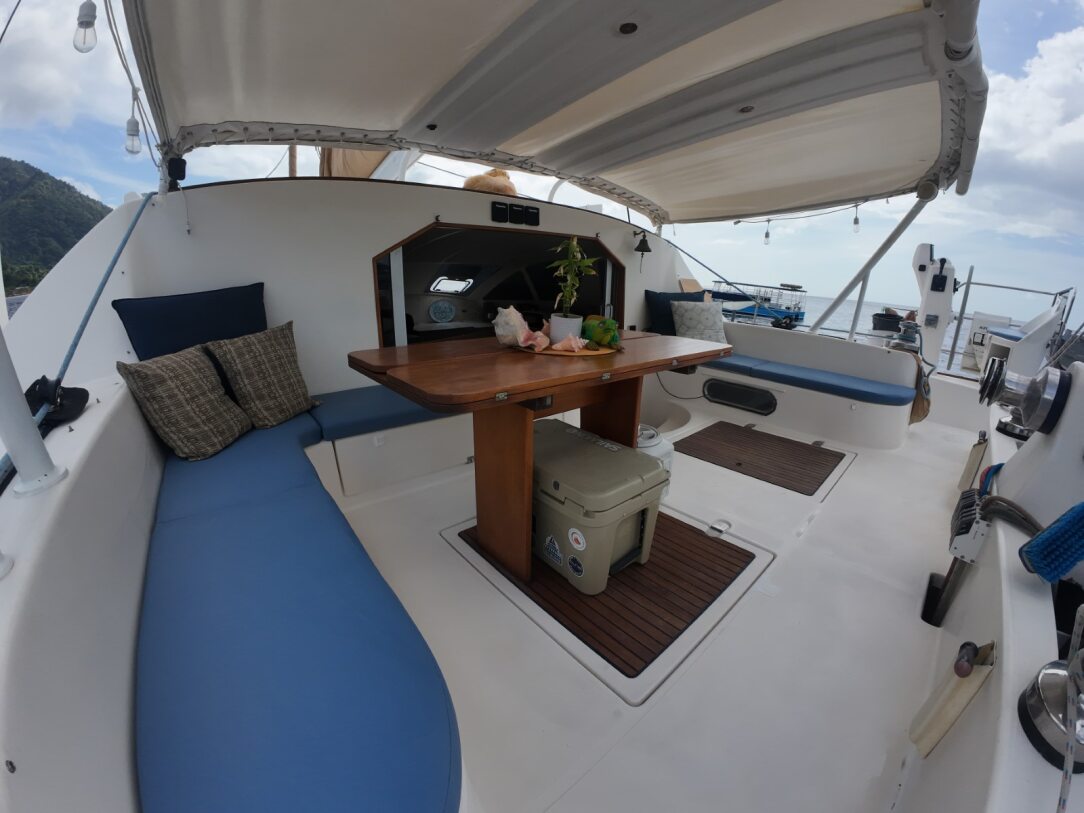

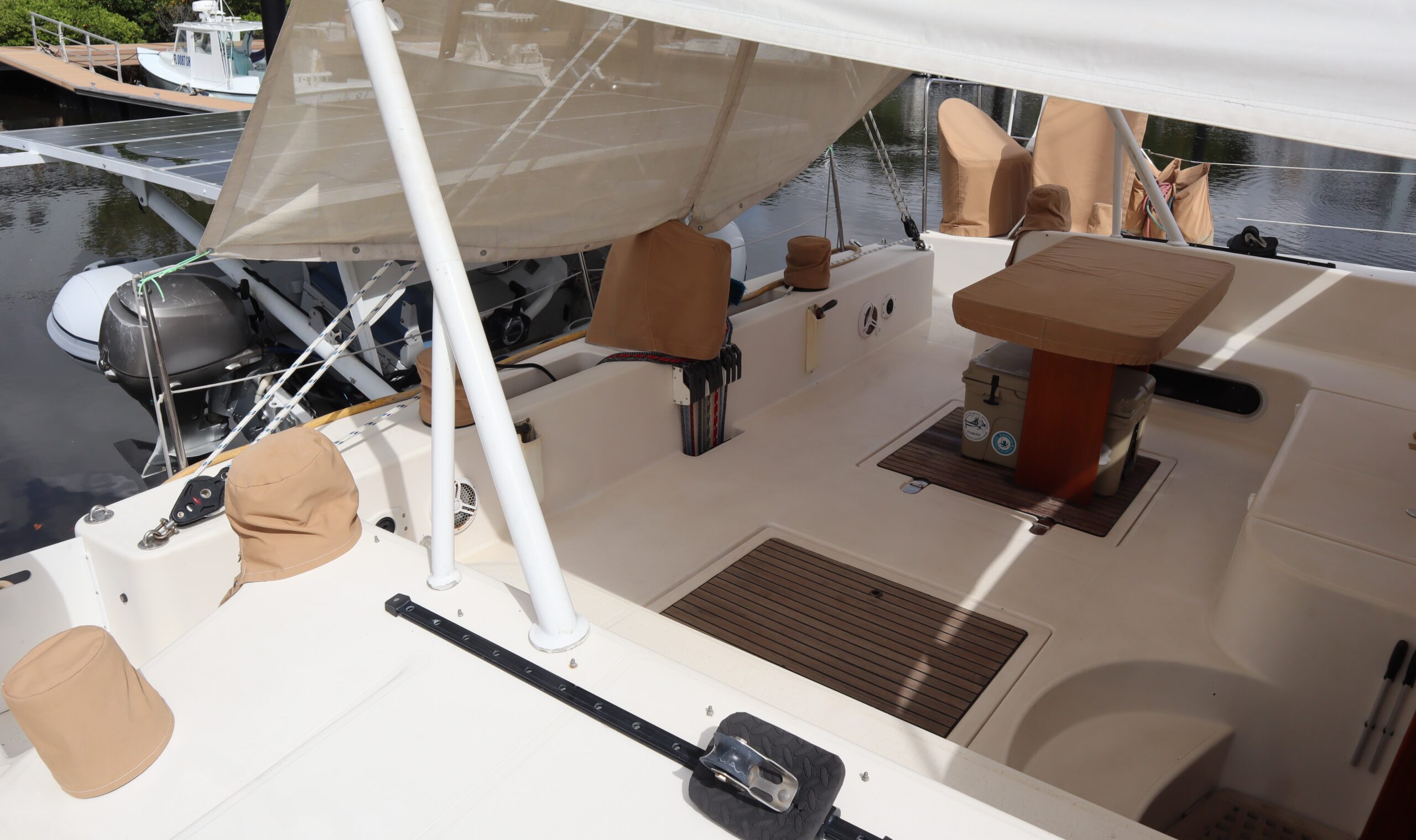

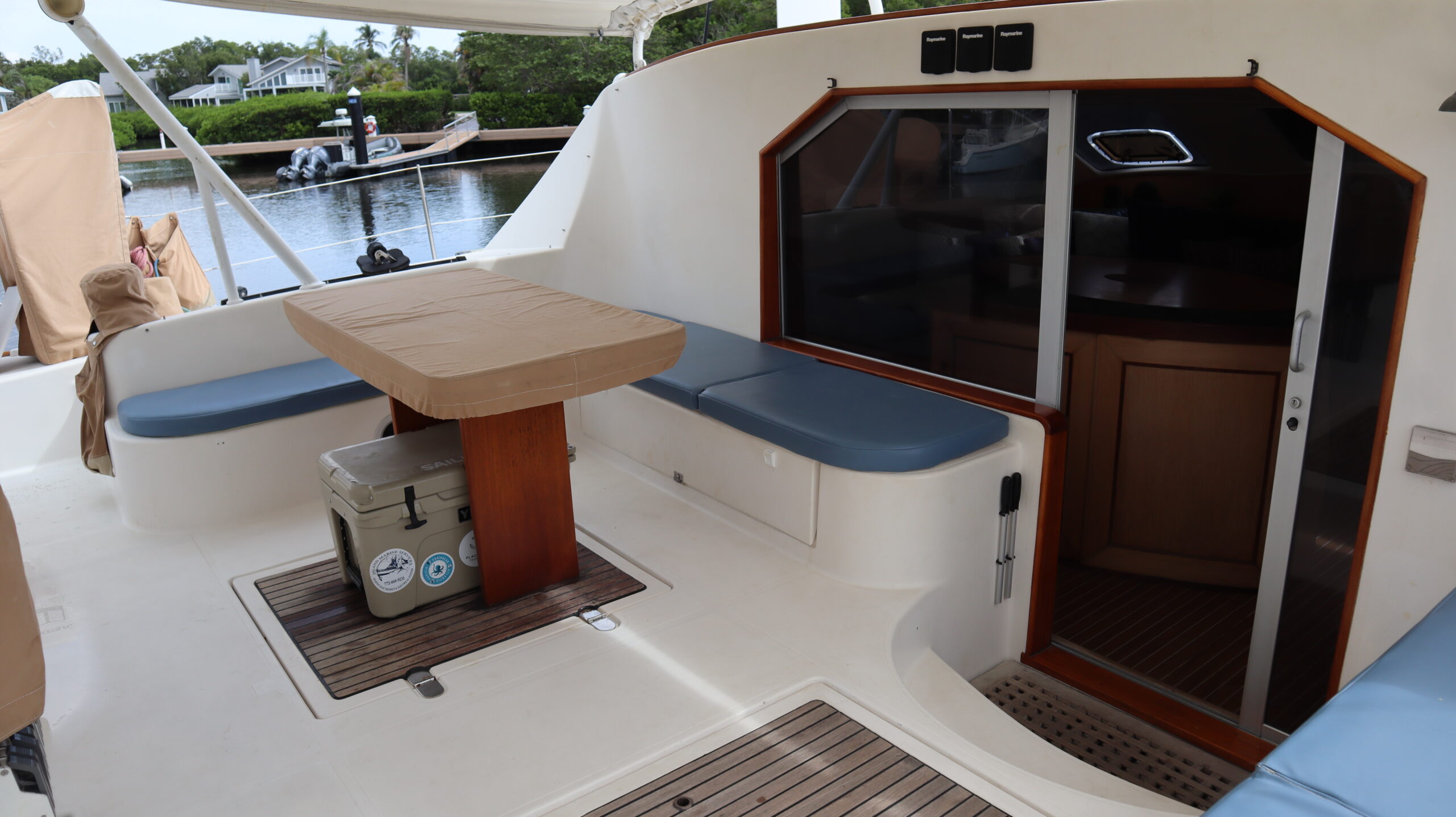

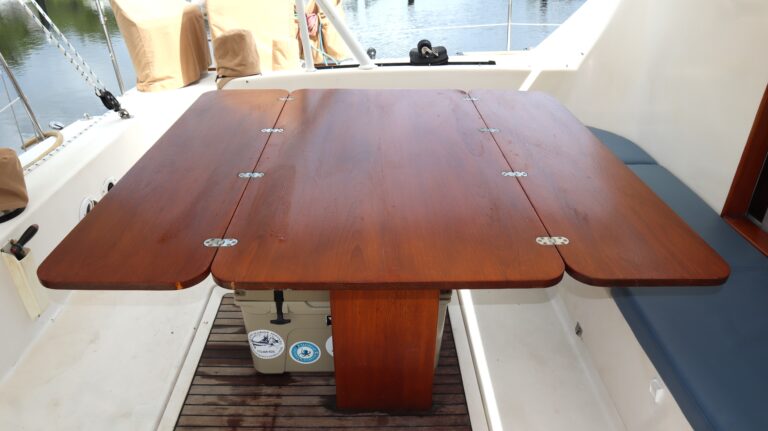

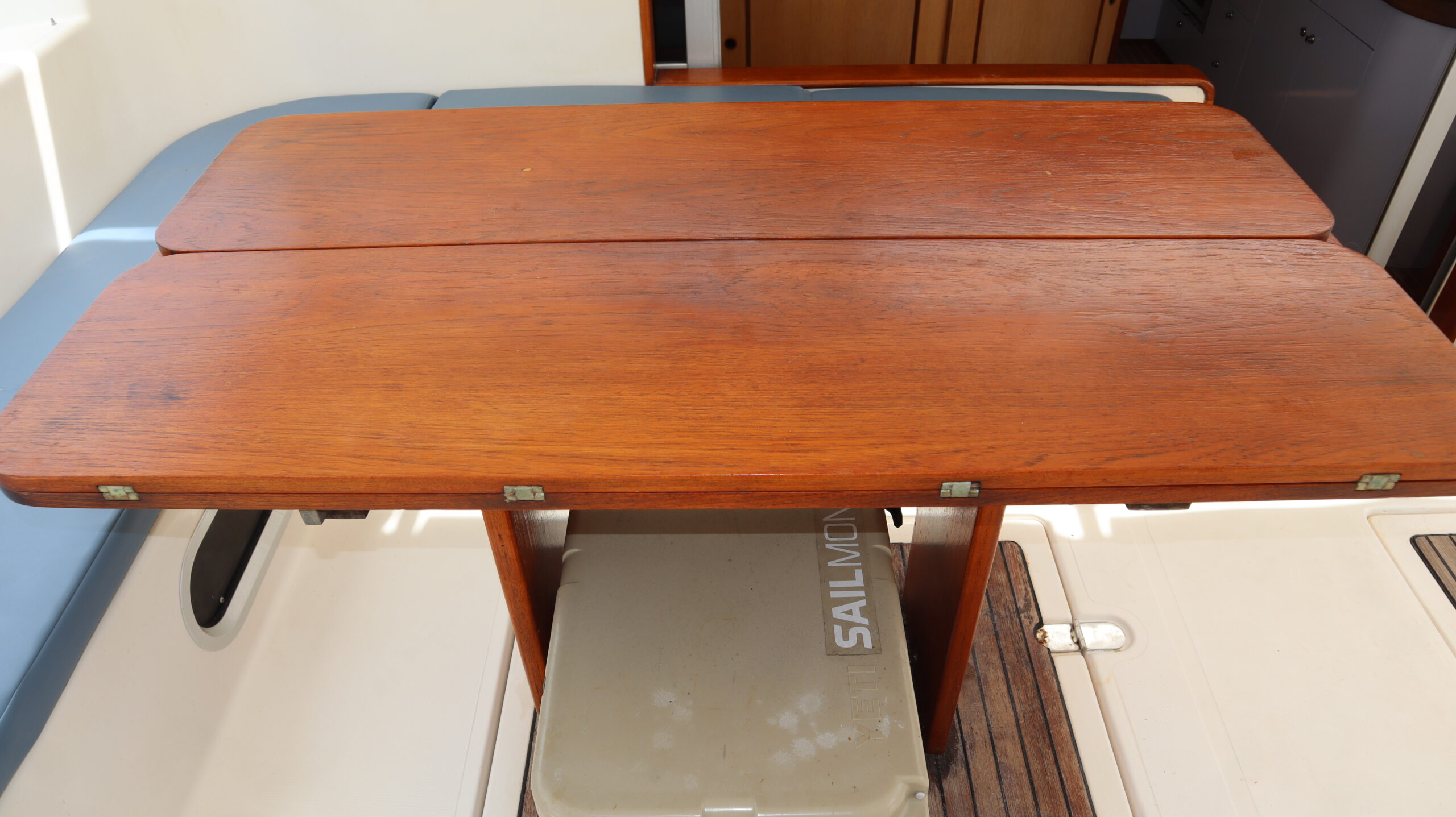

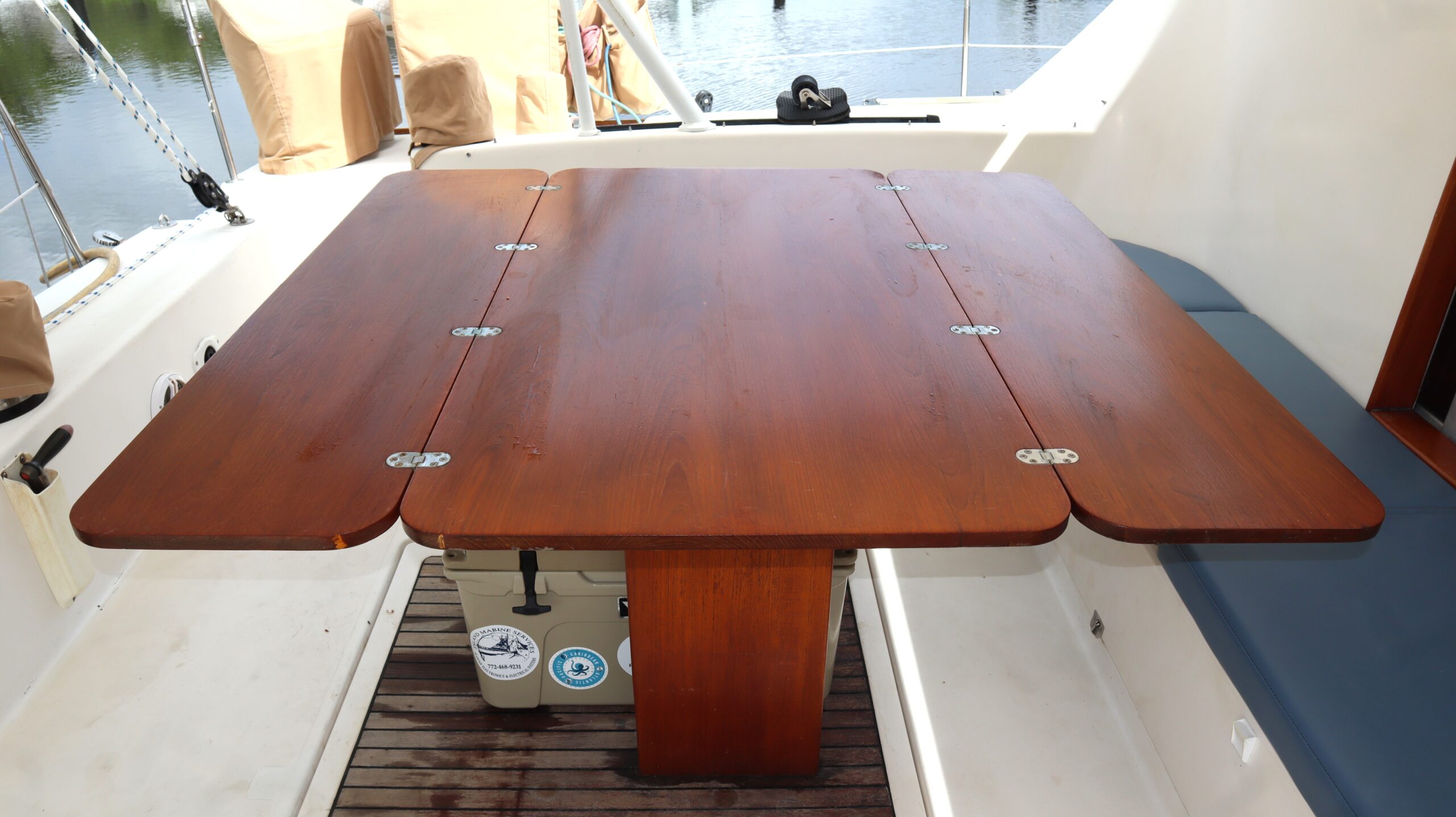

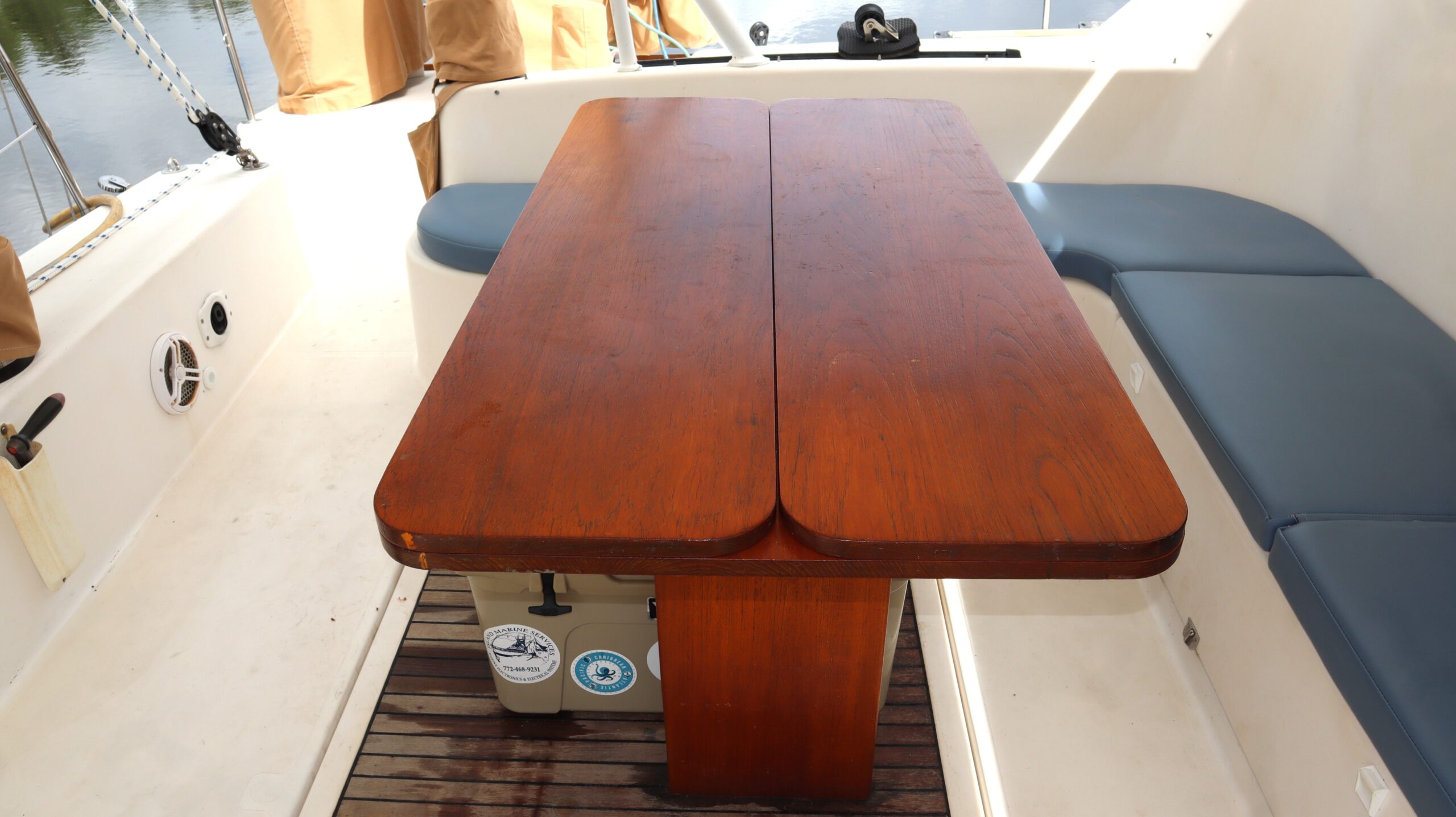

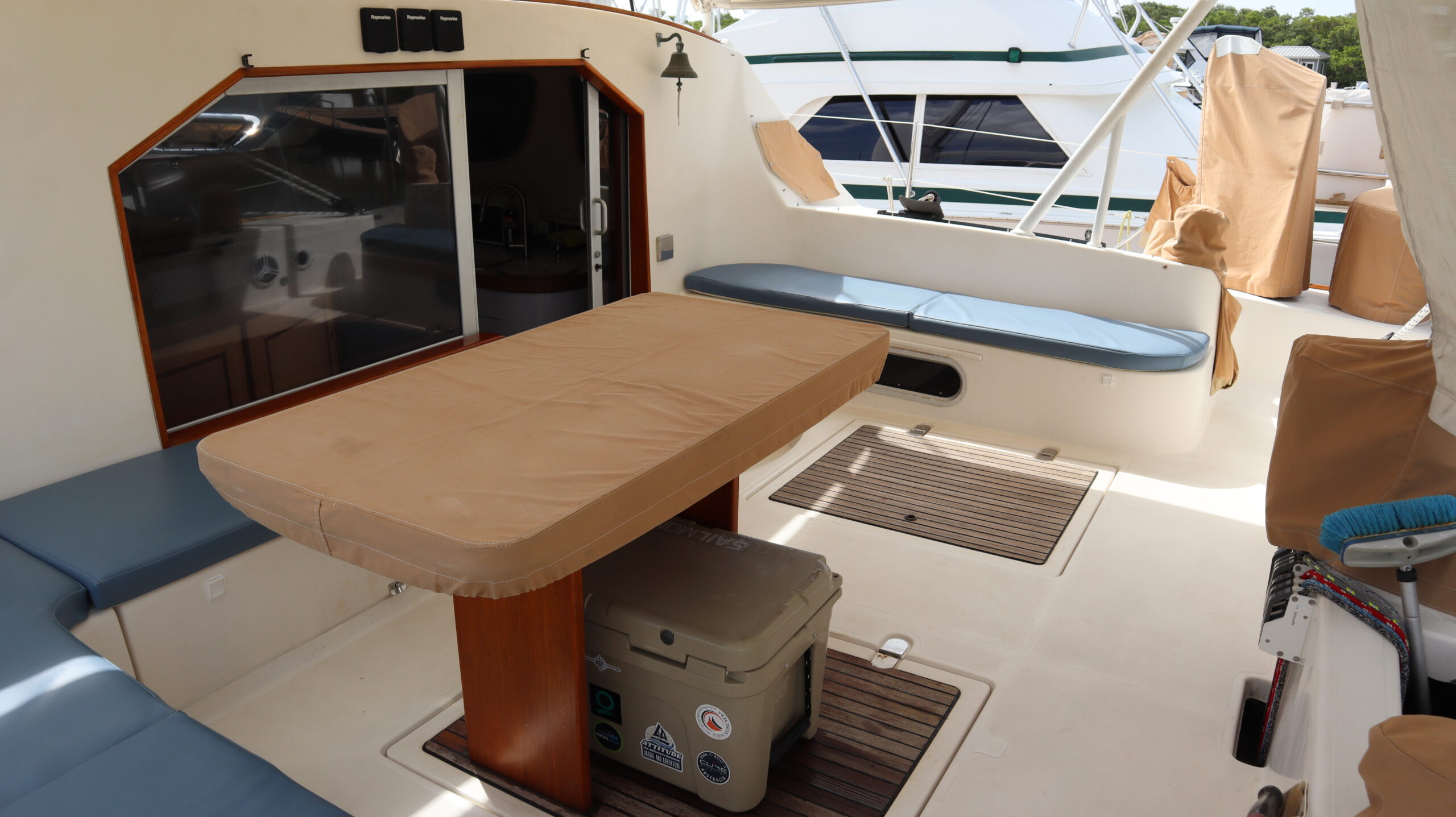

- COCKPIT has a “L” shaped seating area to port with a large folding teak table to easily accommodate 8, inboard facing bench seating area to starboard, and port/starboard steering stations aft and outboard. There are two large teak covered cockpit lockers (one is used as the generator compartment and the other is used partially for optional fuel tank plus storage), and one large cockpit seat locker. At the base of the mast are four lockers (1x fuel tank, 1x life raft storage, and 2x anchor/chain lockers).
| HVAC: |
- 1x Dometic DTG12 12,000 BTU air conditioner in owner’s starboard hull
- 1x Dometic DTG8 8,000 BTU air conditioner in guess port aft cabin
| SAFETY EQUIPMENT: |
- 6-Person Transoceanic ISO9650-1 Life Raft (buyer to recertify)
- 6x Life Jackets
- 6x Inflatable PFDs

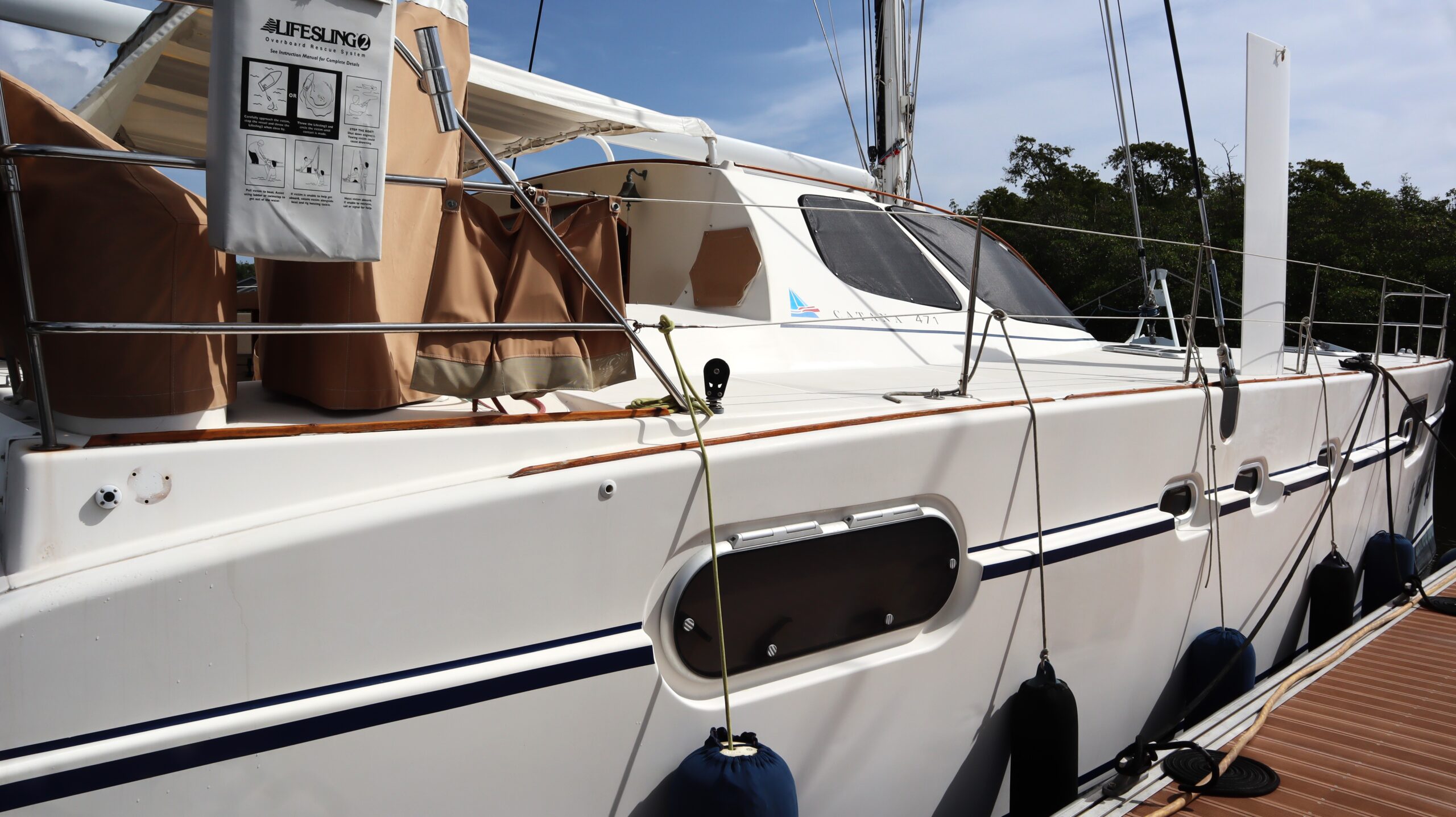

- 2x Lifesling MOBs
- 1x ACR Global Fix Pro 406 GPS EPIRB
- 1x ACR PLB-400
| MISCELLANEOUS: |
-
- Fujinon Techno-Stabi TS1440 Image Stabilizing Binoculars
- Sailrite Ultrafeed LSZ-1 Sewing Machine
- Makita Cordless Tool Set
- Dewalt Variable Speed Buffer/Polisher
- Various Hand Tools
- Green Works 1600 PSI Pressure Washer
- HP 250 Office Printer
- 2x Hands-Free Headsets
- Various Fishing Gear
- Various Snorkeling Gear
- Jerry Cans & Water Jugs
- 1x Additional 20 lb Fiberglass Propane Tank
- Yeti 45 Ice Chest
- Various Engine/Sail Drive/Generator Spare Parts
PRICE: $410,000 (not for sale to US residents while in US waters) LOCATION: Enroute to Florida
This document is property of Navigator Yacht Group; reproduction of any or all parts of its contents is prohibitive without written permission by Navigator Yacht Group.
Details on this vessel have been obtained from sources believed reliable but are not guaranteed. Buyer assumes responsibility of determining accuracy of the data. Offered subject to prior sale, price change, inventory change, or withdrawal without notice.
PRINCIPAL DIMENSIONS
| Metric | Imperial | |
| Length Overall w/Bow Sprit | 19 m | 62.30 ft |
| Length on Deck | 17.70 m | 58.07 ft |
| Length on Water | 17.40 m | 57.01 ft |
| Beam Overall | 9.10 m | 29.09 ft |
| Draft w/Daggerboards Up | 1.10 m | 3.06 ft |
| Draft w/Daggerboards Down | 2.80 m | 7.06 ft |
| Light Displacement | 17,000 kg | 37,486 lbs |
| Mast Height @ Waterline | 25.20 m | 83.07 ft |
| Mast Length @ Deck | 23.00 m | 75.06 ft |
| Sail Area Upwind | 215 m² | 2,314 ft² |
| Sail Area Downwind | 335 m² | 3,605 ft² |
| Mainsail | 115 m² | 1,238 ft² |
| Self-Tacking Solent | 41m² | 441 ft² |
| Gennaker | 100 m² | 1,076 ft² |
| Symmetrical Spinnaker | 220 m² | 2,368 ft² |
| Water Capacity | 800 ltr | 210 gal |
| Fuel Capacity | 1,400 ltr | 369.8 gal |
| Certification | CE cat A | |
| Architect & Interior Designer | Barreau / Caligo | |
| Asking Price | €700,000 Euros | |
| Location | Hobe Sound, FL | |
| CONSTRUCTION: |
The two outer hull molds and one inner hull/bridgedeck mold are vacuum bagged using vinylester resin, cored
with PVC closed cell foam with unidirectional cloth for outer laminate & Twaron® aramid cloth for inner
laminate.
The separately molded daggerboard trunks are laminated to be seven times stronger than the daggerboards.
All 21 primary and secondary bulkheads are carbon reinforced unidirectional cloth cored with Airex® closed cell
foam. The spade rudders have self-adjusting JP3 bushings with Whitlock rack & pinion steering. Elliptical skegs
protect the rudders and props.
The deck/cockpit/coachroof is a one piece mold, vacuum-bagged using vinylester resin, cored with Nidacore®
honeycomb with unidirectional cloth for outer laminate & Twaron® aramid cloth for inner laminate, and molded
diamond pattern non-skid decks with teak laid cockpit and transom steps.
The deck to hull joint is bonded by fiberglass creating a seamless monocoque waterproof and rigid structure.
➢ Awlgrip Painted Hulls 2018
➢ Composite Hull Rub Rails w/Stainless Strikers
➢ Cooper Coat Anti-Fouling (new 2022)
| ENGINES: |
➢ Located aft in each hull, isolated from the living area with access via teak/aluminum transom hatches
➢ 2x Yanmar 4JH3-DTE 125hp Direct Injection Turbo (new injectors 2023) (1,754 original total hrs as of
5/2025)
➢ Stainless Straight Shafts w/GRP Skegs (new cutlas bearings 2024)
➢ 2x Gori 3-Blade Folding Props (new 2022)
➢ 3x Volvo EC Dual Lever Port / Starboard / Nav Station Electronic Throttles
➢ 2x 24V/110Ah Mastervolt Alternators
➢ 2x 12V/80Ah Alternators
➢ 1x Bosch 12V 95Ah AGM Starboard Engine Battery (new 2023)
➢ 1x Vantag 12V 100/740Ah Port Engine Battery (new 2023)
➢ 2x Racor Fuel/Water Separators (1 per engine)
➢ 2x Yanmar Fuel Filters
➢ 2x Engine Room Exhaust Blowers
| STEERING SYSTEM: |
➢ 2x Composite Caligo Helm Seats
➢ 2x Composite Caligo Helm Consoles for Compass, Electronics, Engine Controls
➢ 2x Carbon Wheels w/Mahagony Rims
➢ Chain/Dyneema Steering System
➢ Upper/Lower Rudder Bearings Replaced 2018
| ELECTRICAL SYSTEM: |
➢ 12VDC/24VDC/230VAC 50Hz/60Hz Designed for Global Dockside Charging
➢ Northern Lights M843NK 12kW Generator (1,985 original total hrs as of 5/2025)
➢ Mastervolt IVET 6 Isolation Transformer (original)
➢ 16x 110W Solara S Series Glass Solar Panels Mounted on Hardtop Bimini (new 2019)
➢ 2x Mastervolt Chargemaster MPPT 12/24/48 60A/h Solar Controllers (new 2019)
➢ 5x 24V 109Ah EPT LV LiNMC Lithium Service Batteries w/2x Racks (new 2019)
➢ 1x Spare 109Ah EPT LV LiNMC Lithium Service Battery (new 2019)
➢ 2x Mastervolt Chargemaster Plus 24/100-3 Service Battery Chargers (new 2019)
➢ 2x Mastervolt Chargemaster Plus 12/35-3 Engine Battery Chargers (new 2019)
➢ 2x Mastervolt EasyView 5 Touch Screen Remote Monitors (new 2019)
➢ PowerPlex DC024 12V/24V DC Digital Switching System (new 2019)
➢ PowerPlex Touch Screen Controller (new 2019)
➢ LED Interior/Exterior Dimmable Lights (new 2019)
➢ AC Euro Interior Outlets (new 2019)
➢ Shore Power Cord
| PLUMBING: |
➢ Sea Recovery 220VAC 32 gal/h Watermaker w/Diverter Valves to Water Tanks (rebuilt 2019 including
new membranes)
➢ 2x 105 gal (2x 400 ltr) Polyethylene Inter Connected Fresh Water Tanks
➢ 2x Independent Jabsco Par-Max 82600 Fresh Water Pumps w/Accumulator Tanks
➢ Ceramic Mixer Faucets
➢ 2x 10 gal (2x 40ltr) Hot Water Heaters
➢ 3x Sealand Vacuflush Toilets
➢ 2x 28 gal (2x 106 ltr) Polyethylene Black Water Tanks
➢ 2x 156 gal (2x 600 ltr) Stainless Engine Diesel Tanks
➢ 1x 53 gal (1x 200 ltr) Stainless Generator Diesel Tank
➢ 3x Jabsco 24VDC Starboard Bilge Pumps & 1x Jabsco 24VDC Shower Sump Pump
➢ 3x Jabsco 24DC Port Bilge Pumps & 2x Jabsco 24VDC Shower Sump Pumps
| STANDING RIGGING: |
➢ Espace Composite M40J Carbon Fiber Mast (no spreaders) (inspected/repainted 2019)
➢ 2x Kevlar Cap Shrouds & 2x Kevlar Lower Shrouds (new 2019)
➢ Espace Composite Carbon Fiber “Park Avenue” Boom
➢ Harken Mainsail Custom Battcar B System
➢ Harken Recessed Crossbow Self-Tacking Solent (Jib) Track
➢ Harken Solent (Jib) Discontinuous Roller Furler on Stainless Rod Headstay (serviced 2024)
➢ Harken Headsail Discontinuous Roller Furler on Stainless Rod Headstay (serviced 2024)
| RUNNING RIGGING: |
➢ All Sail Maneuvers Easily managed From the Safety of the Cockpit by One Person w/All Sail Control
Lines Run In Conduits Below Deck For Clear Deck Surfaces
➢ 1x Harken 66-3 STAH Mainsail Utility Winch (serviced 2024)
➢ 2x Harken 55-2 STAH Mainsail Sheet Winches (serviced 2024)
➢ 2x Harken 66-3 STAH Primary Winches (serviced 2023)
➢ 2x Harken 53-2 STAH Secondary Winches (serviced 2023)
➢ 2x Harken 66-3 STAH Flying Headsail Winches (serviced 2023)
➢ 1x Harken 53STA Headsail Winch @ Mast
➢ 19x Spinlock Rope Clutches
➢ 3:1 Dual Bridal Mainsail Sheets (built-in preventer & vang)
➢ 1x Gennaker & 1x Spinnaker Halyards
➢ All Halyards / Sheets / Lines (new 2019)
➢ Hydraulic Pump Rebuilt & Hydraulic Hoses Replaced (2019)
➢ All Harken Winches Serviced 2023/2024
| SAIL INVENTORY: |
➢ North Dacron 1,238 ft² (115 m²) Mainsail (new 2019) Currently w/North Sails for Service & Cleaning
➢ North Burgundy Sunbrella Mainsail Cover (new 2019)
➢ North Dacron 441 ft² (41 m²) Self-Tacking Solent w/Burgundy UV Protection (new 2019) Currently
w/North Sails for Service & Cleaning
➢ North Dacron 1,076 ft² (100 m²) Gennaker w/Burgundy Protection (new 2019) Currently w/North Sails
for Service & Cleaning
➢ North Symmetrical 2,368 ft² (220 m²) Spinnaker (new 2019)
➢ Incidence Symmetrical Spinnaker (2001)

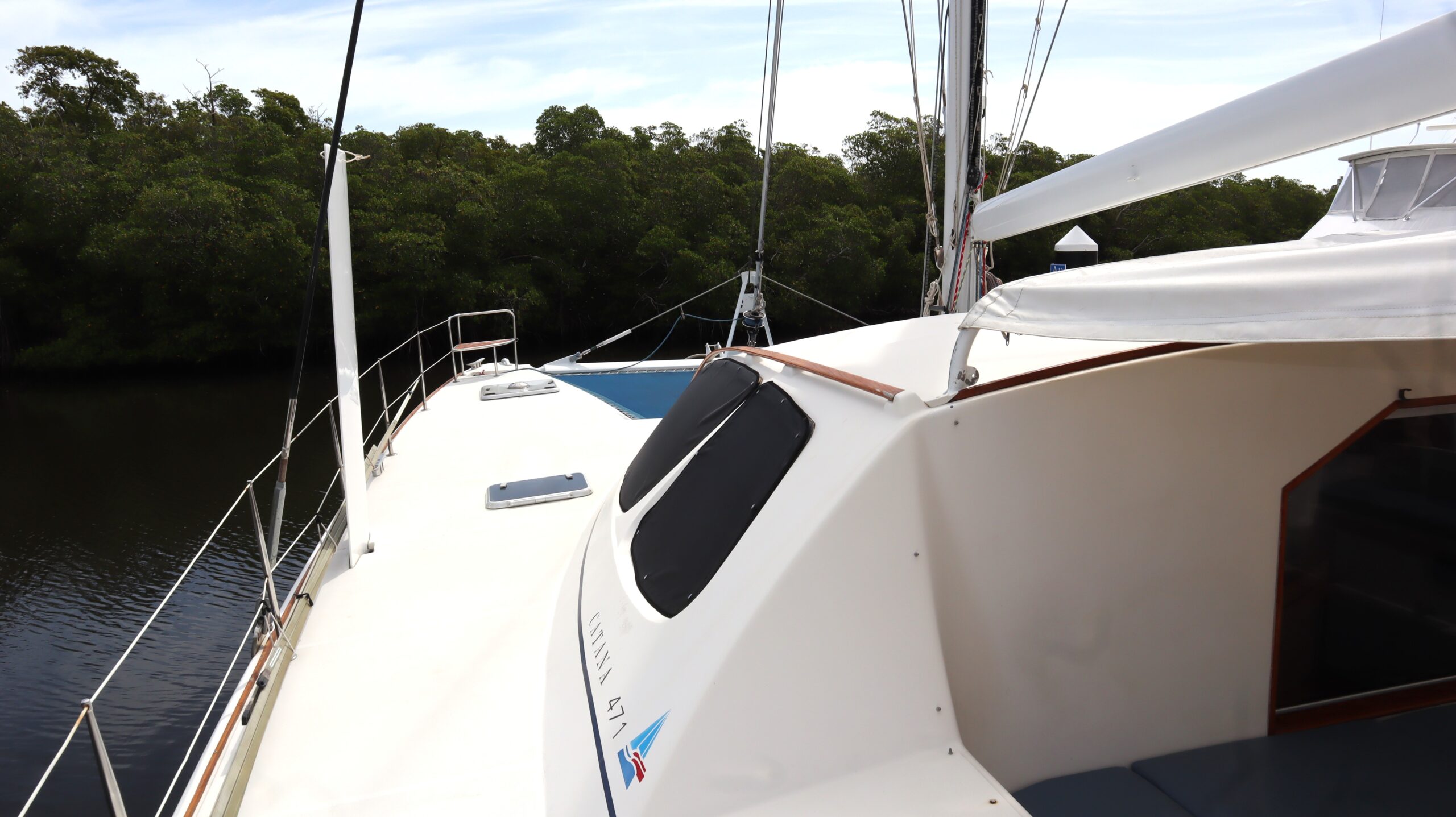

| DECK EQUIPMENT: |
➢ Carbon Fiber Forward Crossbeam & A-Spreader w/Kevlar Bobstays & 2x Anchor Rollers
➢ Carbon Fiber Longeron/Bow Sprit

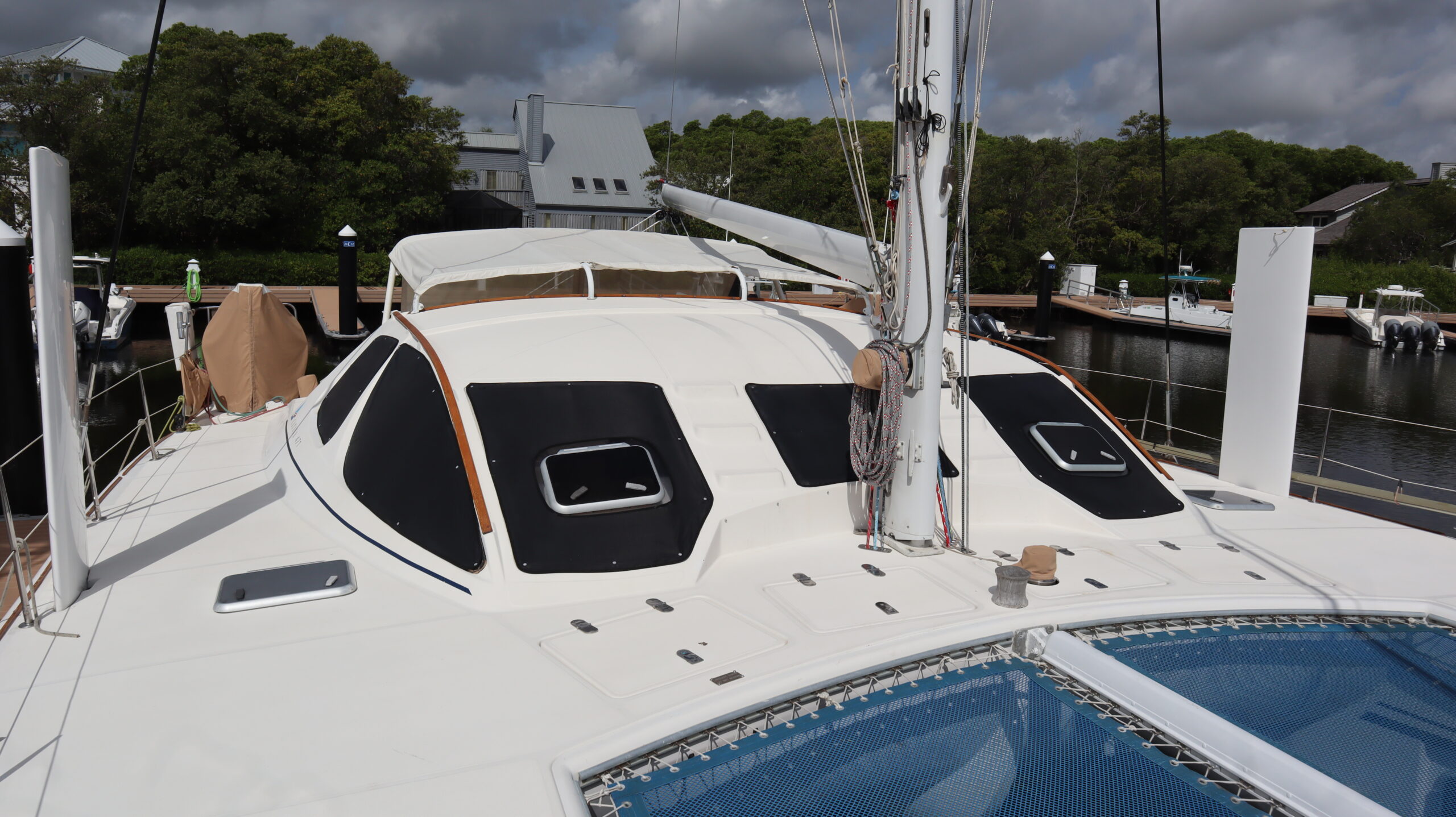

➢ 2x Moonlight Opaque Forepeak Hatches (24.4” x 24.4”)
➢ 1x Moonlight Opaque Workshop Hatch (24.4” x 24.4”)
➢ 2x Moonlight Engine Room Hatches (31.5” x 24.4”)
➢ 2x Moonlight Escape Hatches (19.7” x 14.6”)
➢ 8x Stainless 23.6 inches (60 cm) High Stanchions
➢ Vinyl Covered Stainless Life Lines
➢ Port/Starboard Boarding Gates
➢ Stainless Rigid Aft Life Rail w/Boarding Gates
➢ Stainless Swedish Pulpit w/Teak Seats
➢ 12x Goiot 18” Deck Cleats
➢ Teak Toe Rail & Handrails
➢ Deck Level Running Lights / Steaming Light / Foredeck Flood Lights / Antenna Arch Flood Lights
➢ 2x Trampolines (new 2016 / 1 new spare 2019)
➢ Textaline Exterior Salon Window Covers (new 2019)
➢ Canvas Storage Exterior Salon Window Covers
➢ Sunbrella Burgundy Canvas Covers (winches / cockpit table / teak cockpit chairs / helm consoles /
steering wheels)
➢ Port Transom Retractable Swim Ladder w/Hot & Cold Pressure Shower
➢ Starboard Transom Retractable Passarella (gangway)
| MOORING: |
➢ Leroy Sommer 2200W Dual Gypsy Horizontal 24VDC Windlass w/Controls @ Mast Base & Both
Helm Stations (rebuilt 2019)
➢ 45kg (99lb) Stainless Ultra Primary Anchor (new 2024) w/30m 12mm Stainless + 50m 12mm
Galvanized Chain (80m total)
➢ 35kg (77lb) CQR Secondar Anchor (new 2019) w/30m 12mm Stainless + 50m 12mm Galvanized Chain
(80m total)
➢ Braided Nylon Anchor Bridle
| COCKPIT: |
➢ Large Aluminum Framed Sliding Door & Window w/Built-in Sliding Screens
➢ Composite Hard Top Bimini w/White Aluminum Frame
➢ Recess Bimini Ceiling Lights (dimmable)
➢ “L” Bench Seating to Starboard w/Folding Chaise Lounge
➢ “L” Bench Seating to Port w/Folding Chaise Lounge
➢ Mahagany Hi/Lo Cockpit Table
➢ 2x Folding Teak Deck Chairs w/Cushions
➢ White Aluminum Antenna Arch Aft
➢ Full Sunbrella Cockpit Enclosure & Sun Shades (new 2019)
➢ Clear Windscreen (new 2024)

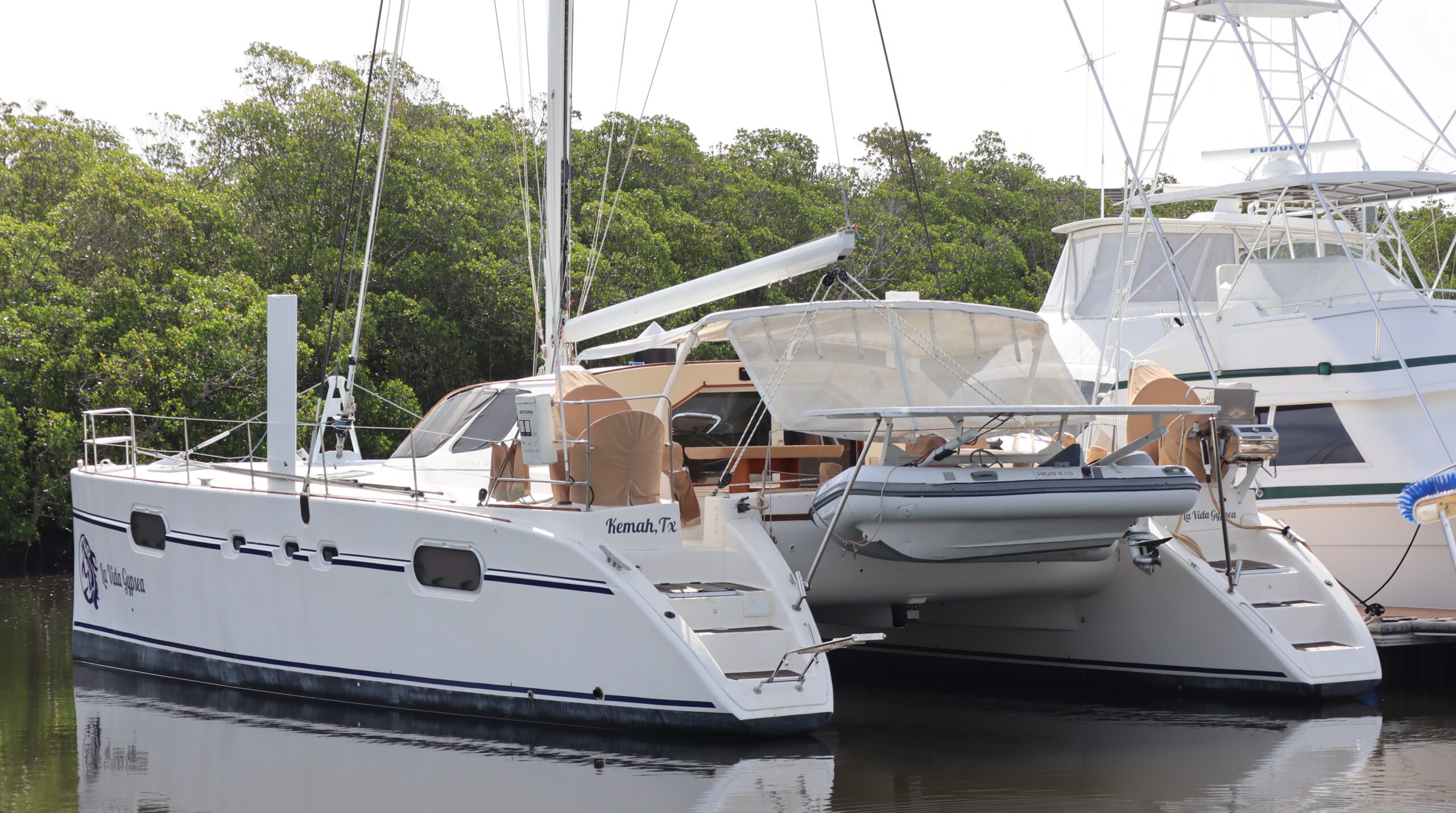

➢ Hydraulic Tenderlift Platform (new hydraulic pump & hoses 2019)
➢ Zodiac Yachtline 420DL (new 2018) w/Chaps (new 2022)
➢ Evinrude 2-Stroke 50 hp Outboard Motor (new 2018)
➢ Teak Cockpit Sole & Transom Steps (new 2019)
➢ 3x Large Cockpit Sole lockers
➢ Vitrifrigo Stainless Ice Maker (new 2019)
➢ Vitrifrigo Stainless Beverage Fridge (new 2019)
➢ Bauer Poseidon Dive Compressor (new 2019)
➢ Reolink 180° Camera (new 2019)
➢ Reolink Wireless Security Camera
| ELECTRONICS: All Electronics New 2019 |
NAV STATION
➢ Dell 14” Built-In Monitor w/Dell OptiPlex Micro Hard Drive & Wireless Keyboard
➢ B&G Zeus³ 12” MFD w/Wi-Fi
➢ B&G Broadband 4G Radar w/Mast Mounted Radome
➢ B&G NAC-3 Autopilot Computer
➢ Raymarine 2S Mechanical Linear Drive + 1 Spare
➢ Raymarine Joystick
➢ B&G Autopilot Keypad
➢ B&G WR10 Wireless Remote Autopilot Controller
➢ 2x B&G Triton² MFD
➢ B&G V50 VHF Radio
➢ B&G Class B Transponder
➢ B&G NSPL-500 Antenna Splitter
➢ B&G H50 Handheld Remote VHF Radio
➢ B&G Forward Scan Sonar
➢ KVH TracVision TV5 (new 2018)
➢ Starlink Marine (new 2024)
➢ Panasonic 40” Salon LED TV
➢ Sony LED TV Aft Port Stateroom
➢ Fusion Apollo RA770 Audio System w/3 Zones
➢ 2x Hertz Cockpit Speakers & 2x Hertz Foredeck Speakers
| PORT HELM STATION: |
➢ B&G Zeus³ 9” MFD
➢ B&G Triton² 5” MFD
➢ B&G Triton² Keypad Autopilot Controller
| STARBOARD HELM STATION: |
➢ B&G Zeus² 9″ MFD
➢ B&G Triton² MFD
➢ B&G Triton² Keypad Autopilot Controller
| COCKPIT BULKHEAD: |
➢ 2X B&G H5000 MFD
| MASTER STATEROOM: |
➢ B&G Vulcan 7 MFD
| ACCOMMODATIONS: See Attached Interior Layout |
SALON
➢ Large “C-Shaped Settee w/Oval Dining Table & 2x Folding Teak Chairs w/Cushions
➢ Storage Console Outboard to Starboard
➢ Nav Station Outboard to Port
➢ 3x Large Moonlight Hatches in Forward Salon/Nav Station Windows
NAV STATION
➢ Facing Forward to Port w/Chart Table, electronic Console, Upholstered Swivel Chair
➢ 1x Large Moonlight Hatch in Forward Window
GALLEY
➢ U-Shaped to Port Along Cockpit Bulkhead w/Blue Corian Counter Tops and Abundant Cabinets Above
& below
➢ Force 10 Stove w/Oven
➢ Built-In Top-Loading Freezer (new 2019)
➢ 2x Vitrifrigo Stainless Drawer Refrigerators (new 2019)
➢ Candy CDCP 6S Dishwasher (new 2019)
STARBOARD OWNER’S HULL:
AFT STATEROOM
➢ Access to Hull via Sliding Door for Total Privacy
➢ Queen Size Bed Inboard w/Access via Foot & Outboard
➢ Cabinet Inboard on Bulkhead
➢ Desk w/Seat Outboard
➢ Moonlight Ocean View Port Hole Outboard w/Built-In Shade & Screen
➢ Moonlight Port Hole Inboard w/Shade & Screen
MIDSHIP

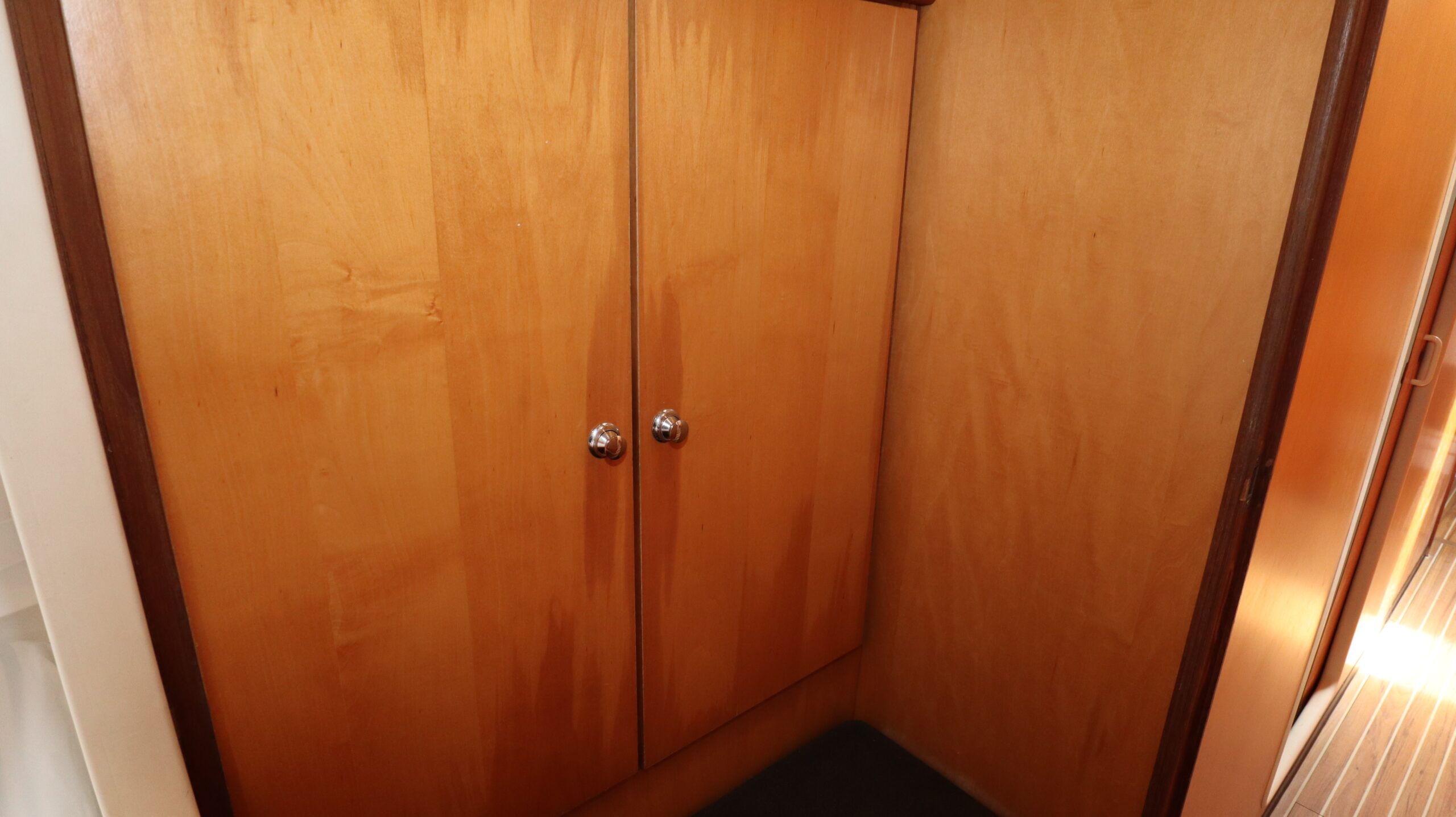

➢ Multiple Wardrobe Lockers Inboard & Outboard
➢ Water Closet w/Vacuflush Toilet
➢ Hoover 7kg Dynamic Next Washing Machine (new 2019)
➢ Moonlight Port Hole w/Shade & Screen
FORWARD BATHROOM
➢ Larger Than Normal Due to Deletion of Crew Cabin
➢ Inboard/Outboard Vanities w/Blue Corian Counter Tops & Mirrored Medicine Cabinet
➢ Separate Shower Stall w/Multiple Shower Heads & Teak Grate w/Sump Pump
➢ Moonlight Escape Hatch
➢ Moonlight Port Hole Outboard
FORWARD WORKSHIP
➢ Access via Moonlight Deck Hatch & Ladder
➢ Formica Work Bench
➢ Moonlight Escape Hatch
➢ Ocean View Moonlight Port Hole w/Built-In Shade & Screen
PORT GUEST HULL:

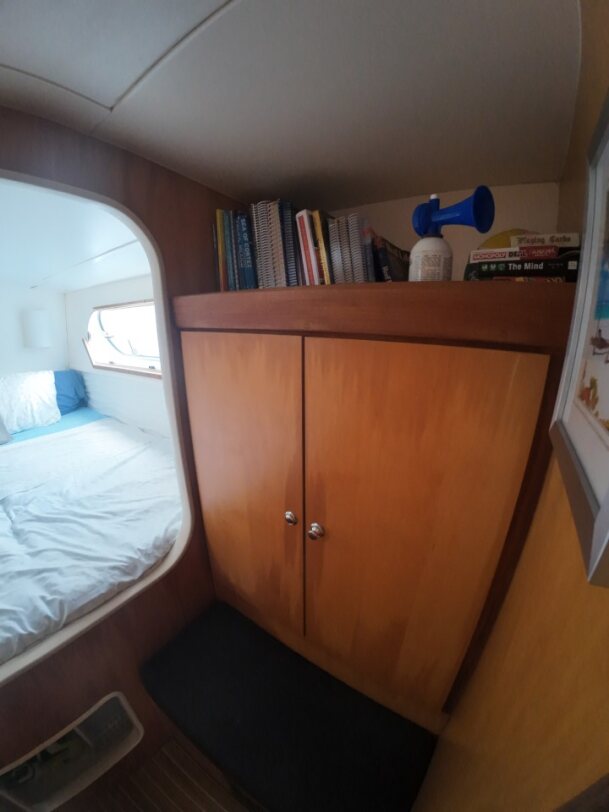

AFT STATEROOM
➢ King Size Bed Convertible to Two Single Beds w/Storage Below
➢ Wardrobe Locker Inboard / Dressing Seat Outboard
➢ Desk w/Swivel Seat Forward of Bed Outboard
➢ Moonlight Ocean View Port Hole Outboard w/Built-In Shade & Screen
➢ Moonlight Port Hole Inboard w/Shade & Screen
AFT ENSUITE BATHROOM
➢ Blue Corian Vanity w/Mirrored Medicine Cabinet & Sink
➢ Shower Wand w/Teak Grate & Sump Pump
➢ Vacuflush Toilet
➢ Moonlight Port Hole

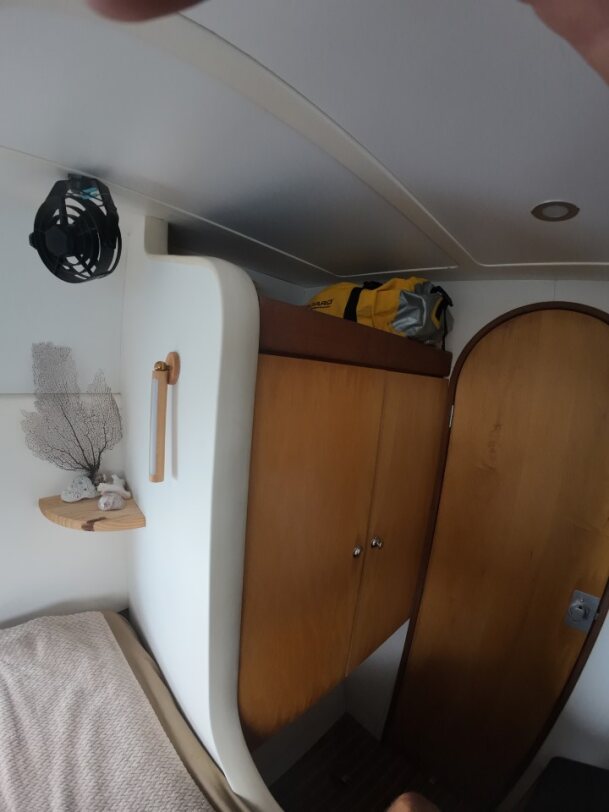

FORWARD STATEROOM
➢ Double Size Bed w/Storage Below
➢ Multiple Wardrobe Lockers
➢ Desk w/Swivel Seat Aft of Bed Outboard
➢ Moonlight Ocean View Port Hole Outboard w/Built-In Shade & Screen
➢ Moonlight Escape Hatch Inboard
FORWARD ENSUITE BATHROOM
➢ Blue Corian Vanity w/Mirrored Medicine Cabinet & Sink
➢ Shower Wand w/Teak Grate & Sump Pump
➢ Vacuflush Toilet
➢ Moonlight Port Hole
HVAC
➢ Cruisair 30,000 BTU Split Air Conditioning (new 2018) w/6x Evaporators (3 new 2018)
INTERIOR DÉCOR
➢ Synthetic Teak Sole
➢ High Gloss Mahogany Wood
➢ Sand Colored Alcantara Ceilings
➢ Burgundy Colored Alcantara Upholstery (2019)
| SAFETY EQUIPMENT: |
➢ Arimar Seaworld B 6-Person Liferaft w/Canister (new 2022 / certified to 2027)
➢ Deck Padeyes & Jacklines
➢ 3x Escape Hatches
➢ Plastimo IOR Inflatable Danbuoy
➢ MOB Rescue System
➢ Ditch Bag w/Flares
➢ Horn
➢ Manual Bilge Pumps
➢ 2x Engine Room Automatic Fire Extinguishers
➢ 5x Hand-Held Fire Extinguishers
➢ 6x Inflatable Life Vests / 2x Standard Life Jackets
➢ 1x Emergency Tiller
Asking Price: €700,000 Euros Location: Hobe Sound, FL
NOT FOR SALE TO US CITIZENS WHILE IN US WATERS
This document is property of Navigator Yacht Group; reproduction of any or all parts of its contents is prohibitive without written permission by Navigator Yacht Group.
Details on this vessel have been obtained from sources believed reliable but are not guaranteed. Buyer assumes responsibility of determining accuracy of the data. Offered subject to prior sale, price change, inventory change, or withdrawal without notice.
