2024 Swiss CAT 55 S/V SAPPHIRA

INTRODUCTION

SPECIFICATIONS

INVENTORY

PICTURE GALLERY

VIDEOS

INTRODUCTION

The Swiss 55 Catamaran is a new semi-custom design from the acclaimed French naval architect Francois PERUS of Yacht Design Collective www.yachtdesigncollective.com and built by Italian builder Top Marine Construction. The hull design incorporates wave-piercing reverse sheer bows, semi-planning hulls, minimal hull rocker, and daggerboards. The Swiss 55 is exciting to sail, achieving great performance both up wind and down wind, often matching boat speed equal or better than true wind speed in light air conditions. It was also important the sail plan could be easily and safely managed by one.

As far as construction, the tooling of the molds was fabricated using a computerized 5-axis router for producing precision molds. Prior to construction Rivoyre Ingenierie produced a Finite Element Analysis (FEA) to calculate loads for the entire structure (hull / appendages / rig) . Construction consists of only 3 molds with ¹both hulls and bridgedeck laminated in one-shot; deck mold laminated in one-shot, and ³roof mold.

The hulls, deck, and roof are constructed using E-glass, Core Cell Sans foam core, and epoxy resin infusion post cured to include the three carbon primary bulkheads, carbon longitudinal stringers, chain plates, inner hull bottoms, and daggerboard junctions. The longeron is carbon composite and forward crossbeam consists of a laminated carbon I-beam encased in a composite shell. All thru hulls and deck fittings are in solid laminate to prevent moisture penetrating the foam core. For added safety there are several watertight bulkheads and crash boxes.

The Swiss 55 is offered as a semi-custom model which provides a buyer a great deal latitude for interior layout and décor, as well as sail plan and running rigging options. And having a 5t designed payload capacity ensures you can have your cake and eat too! See Specifications for principal measurements.

Custom yacht builder Top Marine Construction is located in Fano Italy, which is well known in the yacht world as the “Silicon Valley” of the Italian yacht industry. Here there is a deep pool of experienced craftsmen who are passionate about what they build. The managing director of Top Marine is a composite engineer with decades of composite experience in the aeronautical industry, commercial wind turbines, Wally Yachts, Formula 1 racing, and Ferretti Group.

don@navigatoryachtgroup.com

+1-561-301-8649

SPECIFICATIONS

Principal Dimensions

	Metric	Imperial
Length Overall (Extended Sprit)	18.0m	59’0”
Length On Deck	16.9m	55’4”
Length On Waterline	16.9m	55’4”
Beam Overall	8.32m	27’3”
Beam On Centerline	6.20m	20’3”
Hull Beam @ Waterline	1.76m	5’8”
Hull Depth (Rudders)	1.30m	4’3”
Draft Daggerboards Up	1.30m	4.3”
Draft Daggerboards Down	2.55m	8’4”
Hull Immersion	0.65m	2’3”
Light Displacement	14t	30,865 lbs
Full Displacement	19t	41,888 lbs
Bridgedeck Clearance	1.0m	3’3”
Headroom Salon	2.10m	6’9”
Headroom Hulls	2.0m	6’6”
Mast Length	22.50m	73’8”
Mast Height @ Waterline	25.55m	83’8”
Sail Area:
Square Top Mainsail	101m²	1,087ft²
Self-Tacking Solent (Jib)	58m²	624ft²
Genoa 110%	80m²	861ft²
Staysail	28m²	301ft²
Gennaker	185m²	1,991ft²
Spinnaker	250m²	2,691ft²
Fuel Capacity	390 lt – 780 lt opt	103 gal – 206 gal opt
Water Capacity	390 lt – 780 lt opt	103 gal – 206 gal opt
Black Water Capacity	2x 67 lt	2x 18 gal
Gray Water Capacity	2x 20 lt	2x 5.3 gal
Yanmar Engine w/Saildrives	57 hp – 80 hp opt	57 hp – 80 hp opt
Certification		CE cat A
Naval Architect		Francois Perus @ YDC
Designer		Marco Amadio/Christion Politsch
Builder		Top Marine Costruzione

INVENTORY

DESIGN:

Francois Perus YDC design consisting of planning hulls, minimal hull rocker, and wave piercing reverse sheer bows with daggerboards.

CONSTRUCTION:

E-glass inner/outer skins with Corecell M SAN polymer core
Carbon fiber hull bottom, chain plates, high load areas
Epoxy Infusion post cured including primary bulkheads, carbon longitudinal stringers
Both inner/outer hulls and bridgedeck laminated in one shot to eliminate junctions
Hulls painted in Metallic Blue Acrylic and off-white painted non-skid deck

ENGINES:

2x Yanmar 4JH80 80hp Direct Injection Turbo (approx. 525 hrs)
2x 390 ltr (2x 103 gal) Vetus Polypropylene Diesel Tanks w/24V Transfer Pump
2x Yanmar SD60 Saildrives
2x Dual Lever Yanmar V10 Electronic Throttles
2x Flexofold 3-Blade Folding Props
2x 24V/150Ah Alternators
2x 12V/60Ah Alternators
2x Racor Fuel/Water Separators (1 per engine)
2x Yanmar Fuel Filters
2x Engine Room Exhaust Blowers

STEERING SYSTEM:

2x Composite Bolsters
2x Composite Helm Consoles for Compass, Electronics, Engine Controls
2x 900mm Composite Steering Wheels
JEFA Mechanical Steering System
JEFA Electric Direct Drive Autopilot

ELECTRICAL SYSTEM:

24VDC/220VAC 50Hz Power +12V
Whisper M-GV 15kW Generator (approx. 100 hrs)

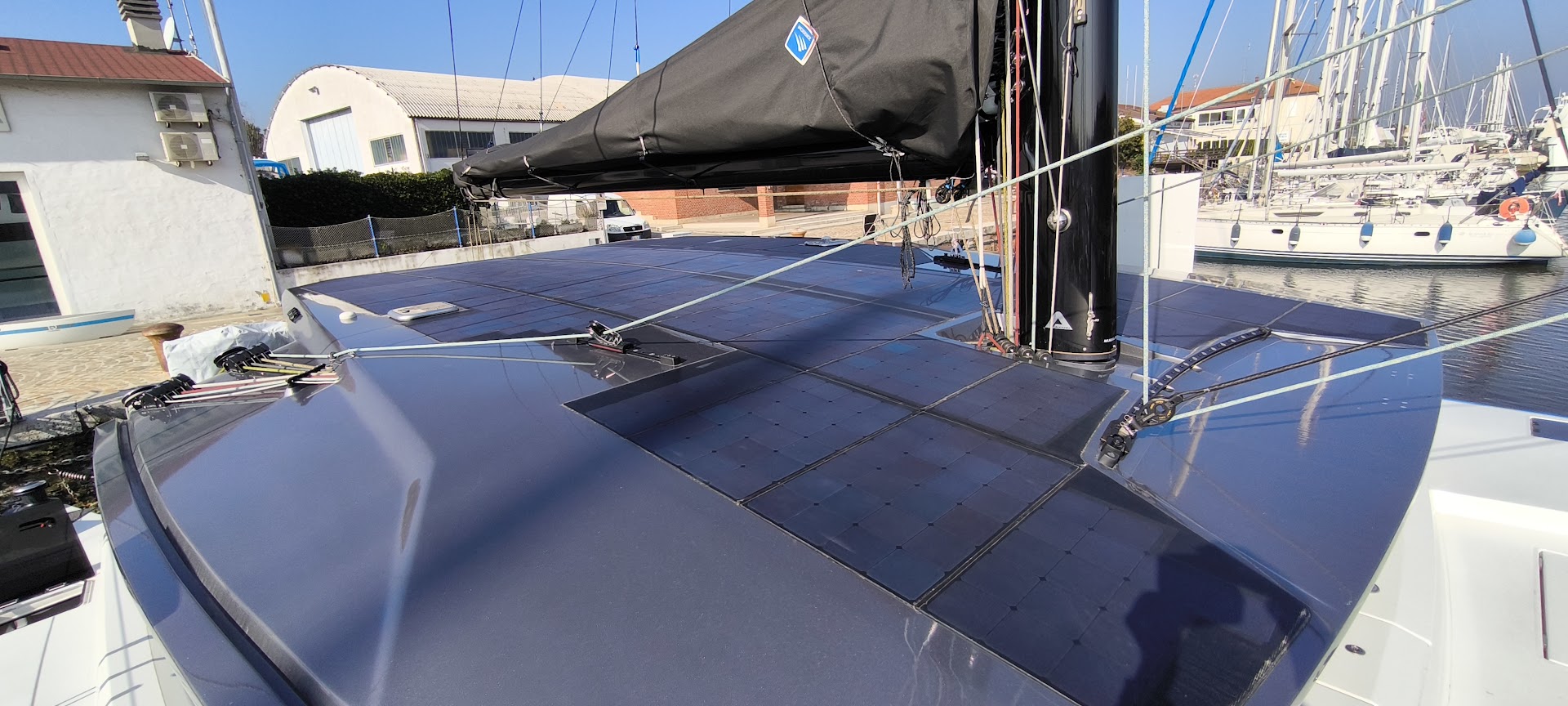

Custom Sun Power Solar Panels 4.2kW Total
4x MG-LFP LiFeP04 304 Lithium Batteries (1,216Ah @ 24V)
1x MG Master LV 24-600 BMS Controller
1x Victron VDI-64 Galvanic Isolator
1x Victron Multiplus 10kW Inverter/Charger
2x Victron Skylla-I 24/100 (1+1) Battery Chargers
2x Victron 12V/24V Battery Protect Charge/Discharge
7x Victron 150/35 MPPT Charge Controllers
1x Victron Cerbo CX Master Controller
1x Victron GX Touch 70 Control Screen
1x Victron Digital Multi Control (200/200A GX)
1x Victron Orion TR 24/12-20 DC-DC Converters
Dimmable Interior/Exterior LED Lights
12x 220VAC Interior Outlets (50Hz)
10x 12VDC Type-C Interior USB Outlets

PLUMBING:

Dessalator DUO (DC/AC)100 ltr/hr (26 gal/hr) Water Maker
1x 390 ltr (103 gal) Vetus Polypropylene Water Tank
2x 35 ltr (2x 9 gal) Quick Water Heaters
1x 67 ltr (18 gal) & 1x 801 ltr (21 gal) Polypropylene Black Water Tanks (gravity discharge)
2x 20 ltr (2x 5 gal) Polypropylene Gray Water Tanks

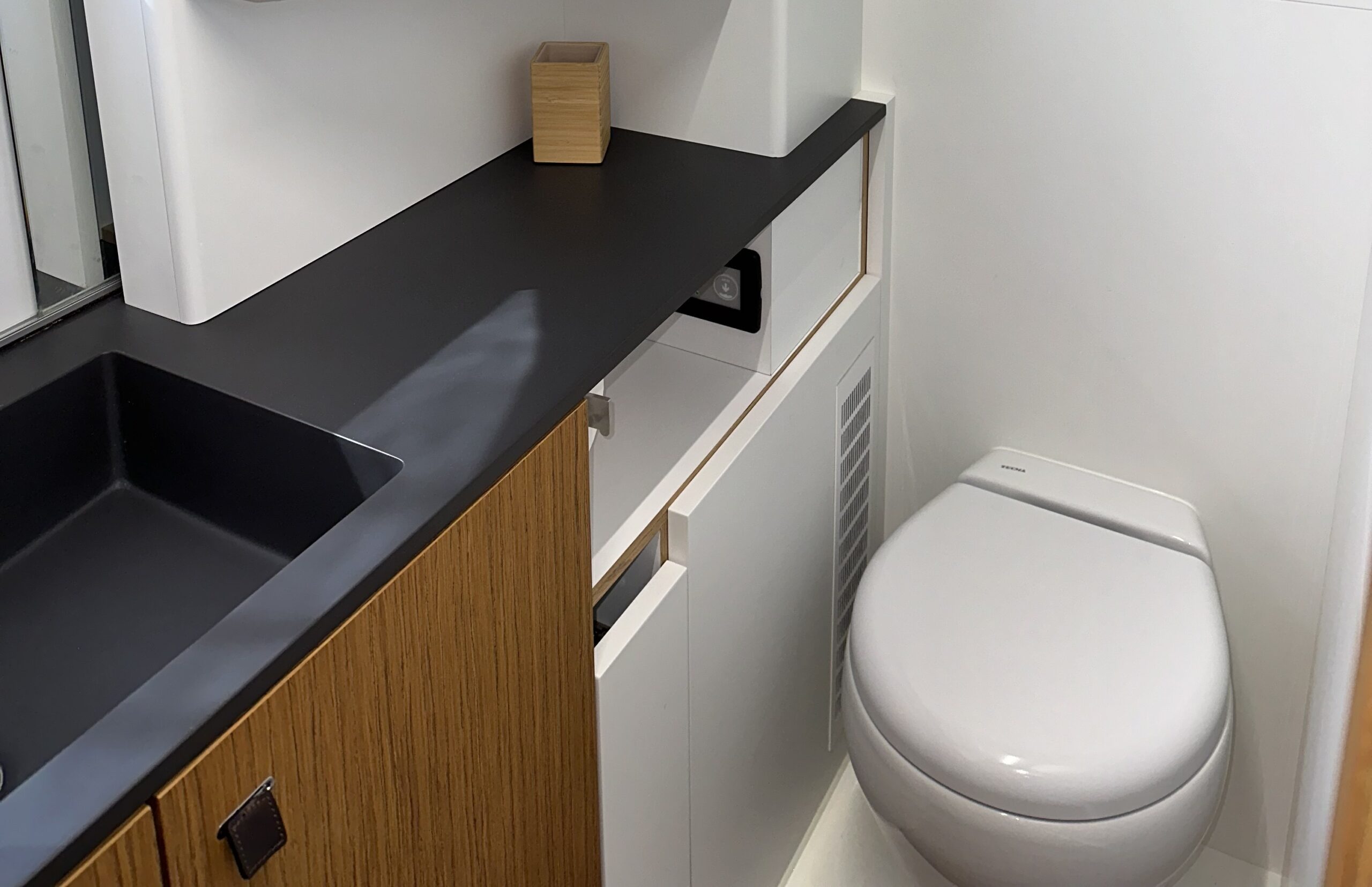

2x Tecma Electric FW Toilets
Hot & Cold Transom Shower
Saltwater Pump w/2 Outlets (chain locker & cockpit)

STANDING RIGGING:

Axxon High-Modulus Carbon Fiber Mast
Stainless Rod Forestay
2x PBO Cap Shrouds / 2x PBO Lower Shrouds / Martingale
Carbon Fiber Chain Plates
Aluminum Boom
Carbon Fiber Longeron/Bowsprit
Carbon Fiber Forward Crossbeam / Martingale Spreader
Harken Mainsail Custom Battcar B System
Harken Recessed Crossbow Self-Tacking Solent (Jib) Track

RUNNING RIGGING:

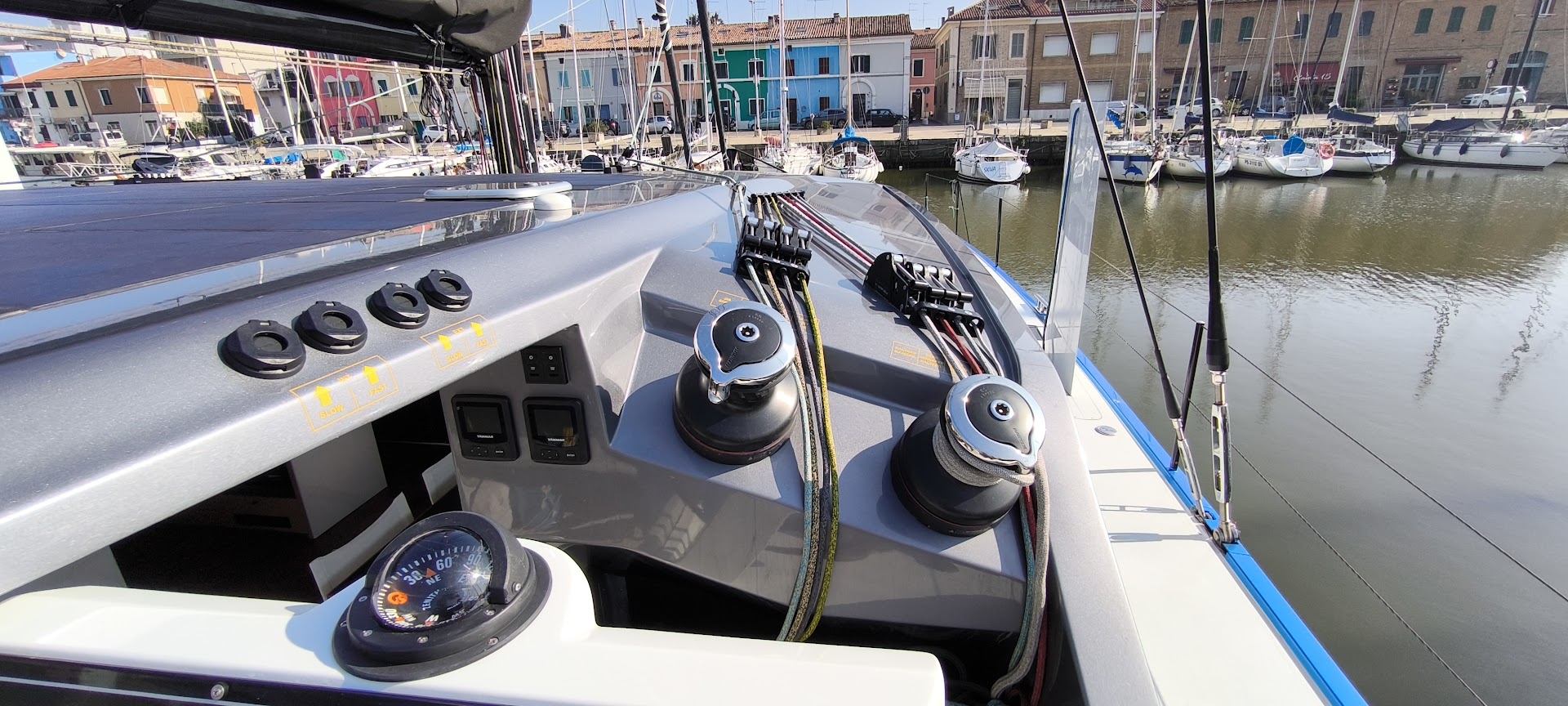

2x 24V Harken 60.2 STEH Radial Winches @ Port Helm Station (halyards / sheets / 1^st & 2nd single line reefs)
2x 24V Harken 60.2 STEH Radial Winches @ Starboard Helm Station (halyards / sheets / 3^rd reef)
2x 24V Harken 70.2 STEH Radial Winches (flying headsails)
1x 24V Antal 700 Mainsail Line Driver
1x 24V Facnor EF+550 SX47 Genoa Furler
1x 24V Facnor EF+550 SX47 Staysail Furler
1x Facnor FX7000 Gennaker Continuous Furler

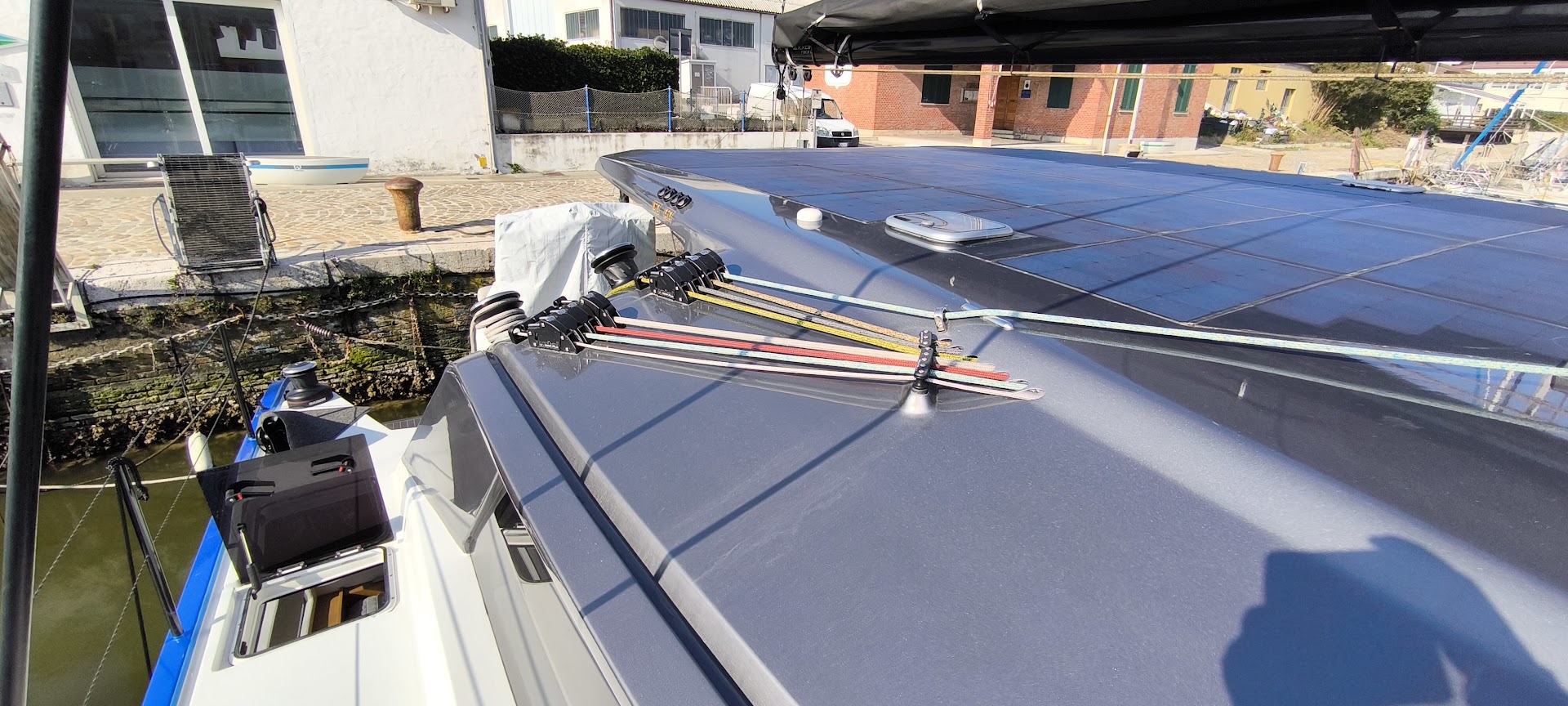

Antal Rope Clutches
Dyneema Mainsail & Headsail Halyards

SAIL INVENTORY:

Incidence DFI Membrane Offshore Mainsail 103m² (1,109ft²)
Incidence DFI Membrane Offshore Genoa 70m² (753ft²)
Incidence DFI Membrane Offshore Staysail 20.6m² (222ft²)
Incidence Stormlite Gennaker 224m² (2,411ft²)
Incidence CZ Aramide Code Zero 105m² (1,130ft²)

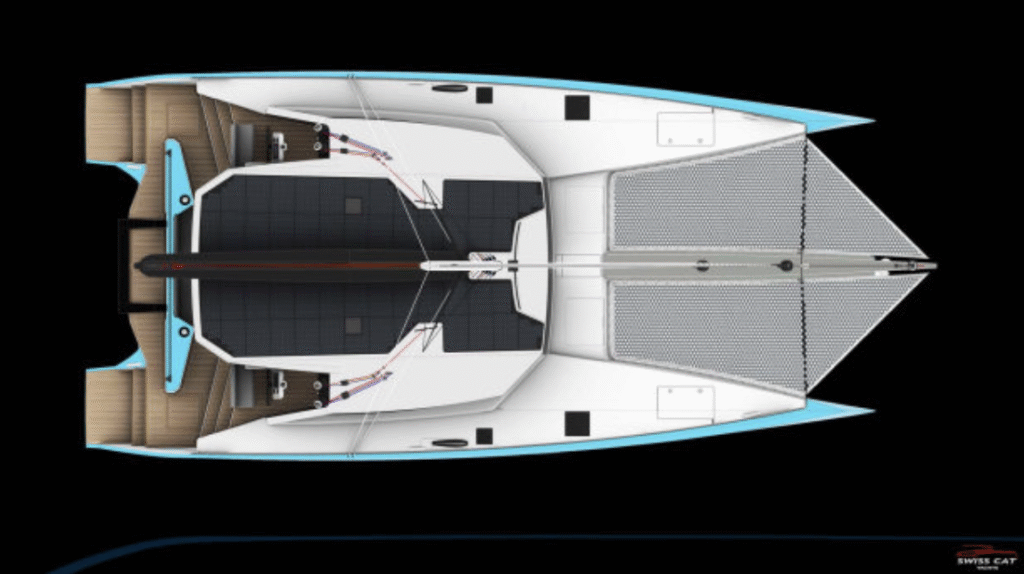

DECK EQUIPMENT:

Carbon Fiber Daggerboards w/24V Antal 700 Line Drivers
Swiss Cat Composite Cantilever Tender Lift
OC 3.5m (11.5ft) Tedner
Flexiteek Cockpit & Transom Steps
Transom Retractable Swim Ladder
Tempered Glass Hull Windows & Salon Windows / Cockpit Sliding Doors

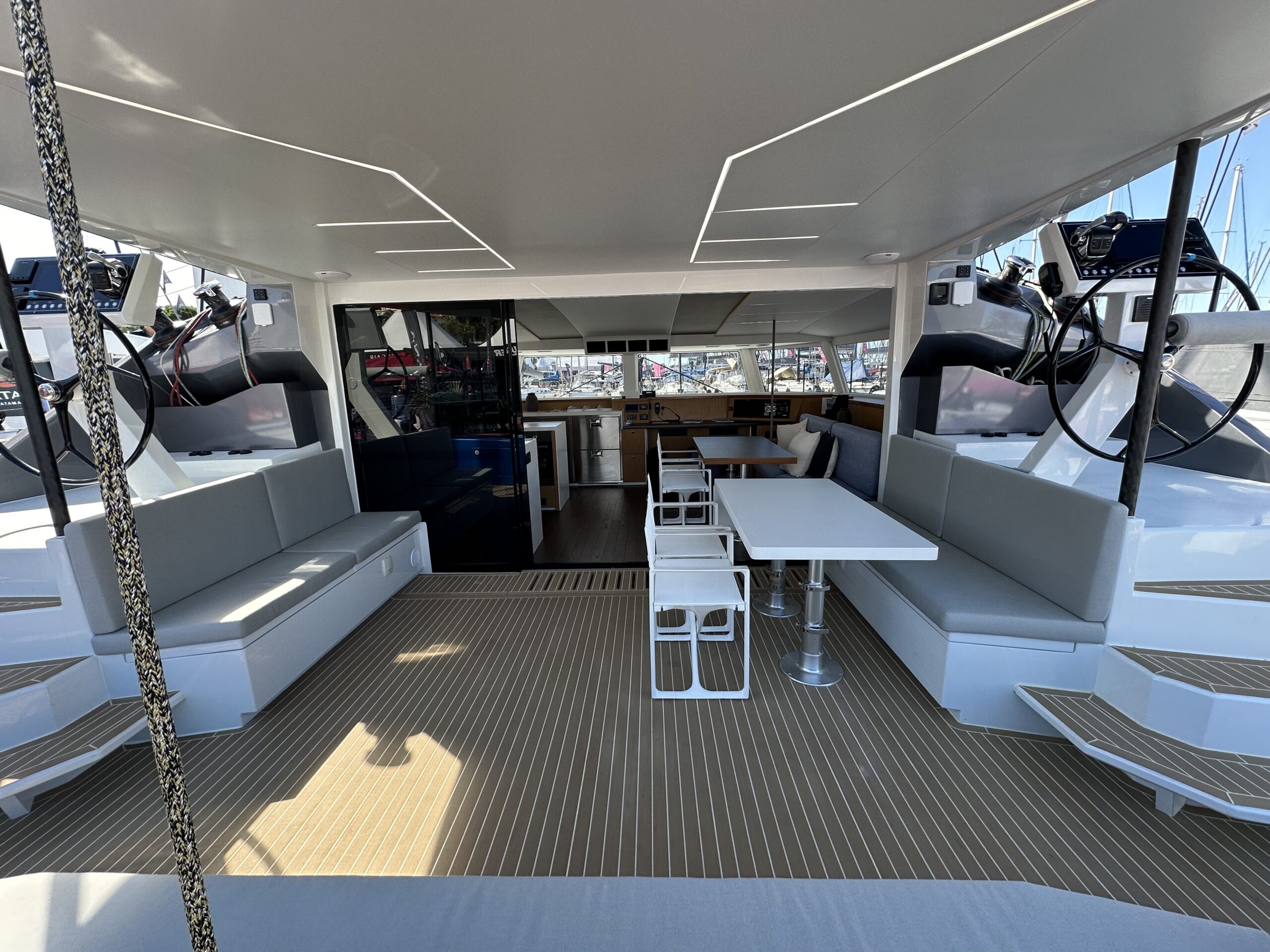

Composite Hi-Lo Cockpit Table
Port & Starboard Cockpit Bench Seating w/Storage Below
Forward Facing Cockpit Bench Seating Aft
Composite Helm Station Electronic Consoles
Carbon Fiber Stanchions w/Dyneema Lifelines
8x Vetus Taurus Stainless 360mm (12”) Cleats
Starboard Transom Retractable Passarella (gangway)

MOORING:

24V Maxwell RC12 Vertical Windlass w/Capstan
100m Stainless 10mm Primary Anchor Chain
1x Rocna 34kg Stainless Primary Anchor
1x Danfoss 20 kg Secondary Anchor
Braided Nylon Anchor Bridle
8x 760mm x 300mm (2.5’ x 10”) Fenders w/Socks
2x 460mm (1.5’) Ball Fenders

ELECTRONICS:

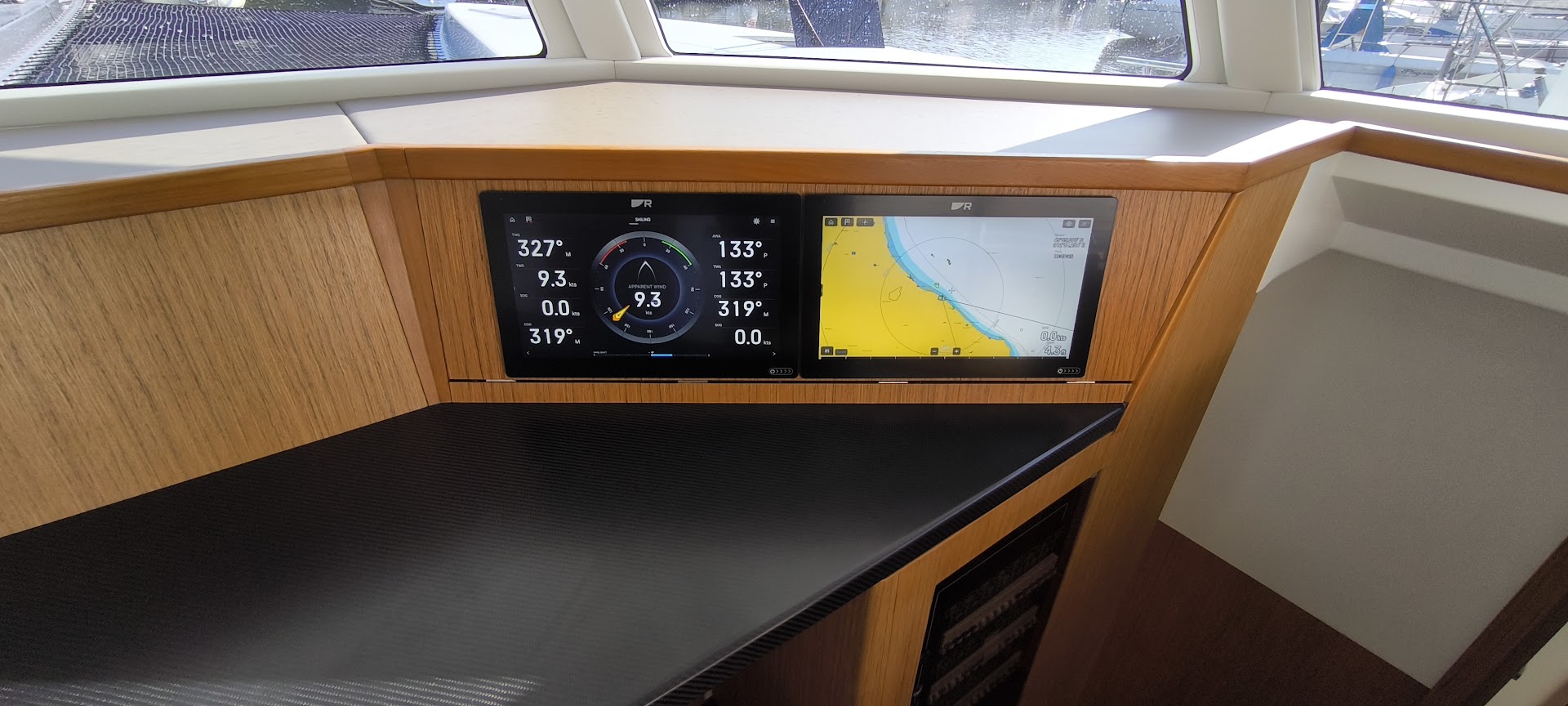

NAV STATION

- 2x Raymarine Axion 2 PRO S Flush Mounted 16” Chartplotters

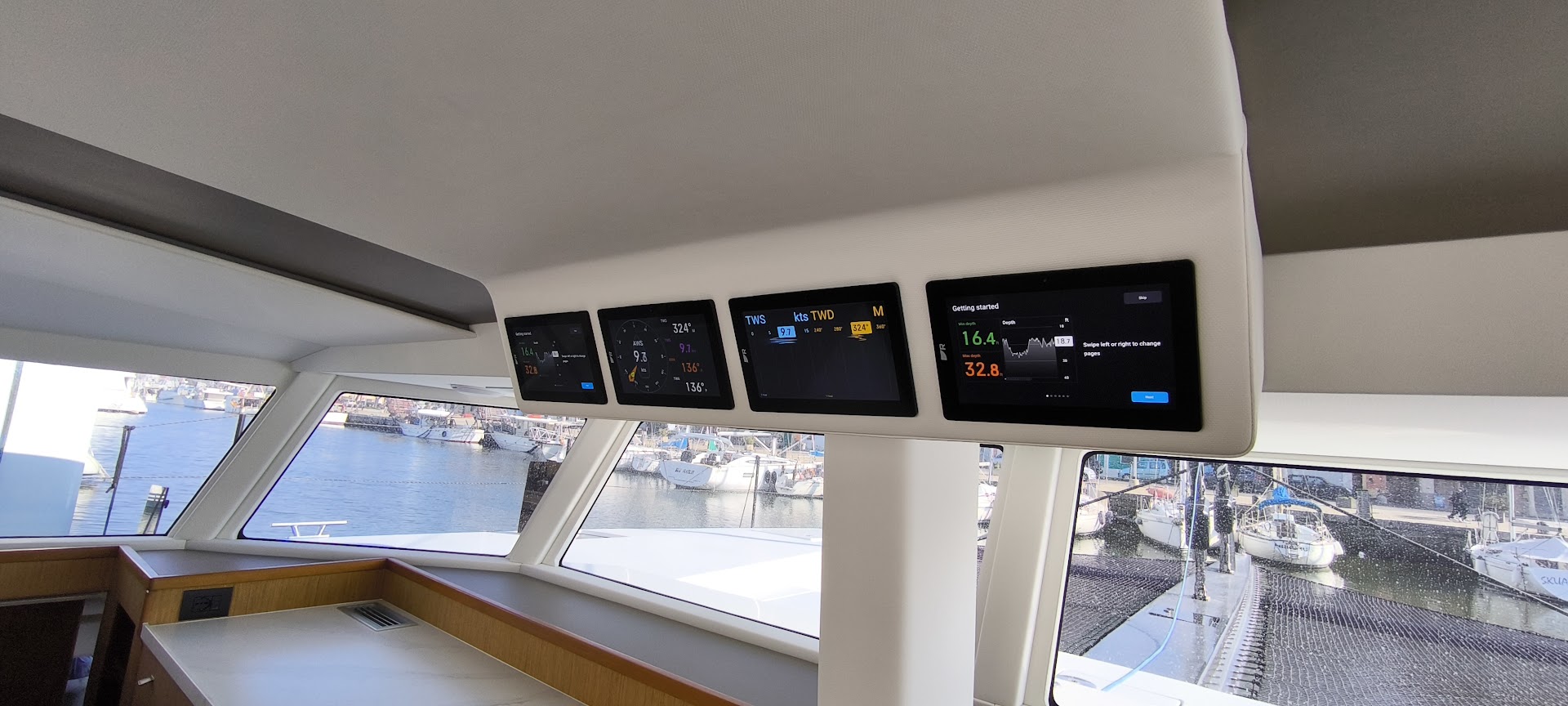

- 4x Raymarine Alpha 9 Displays
- 1x Raymarine RAY 91 VHF Radio
- 1x Raymarine EV-70 Autopilot Core Pack
- Fusion Stereo System

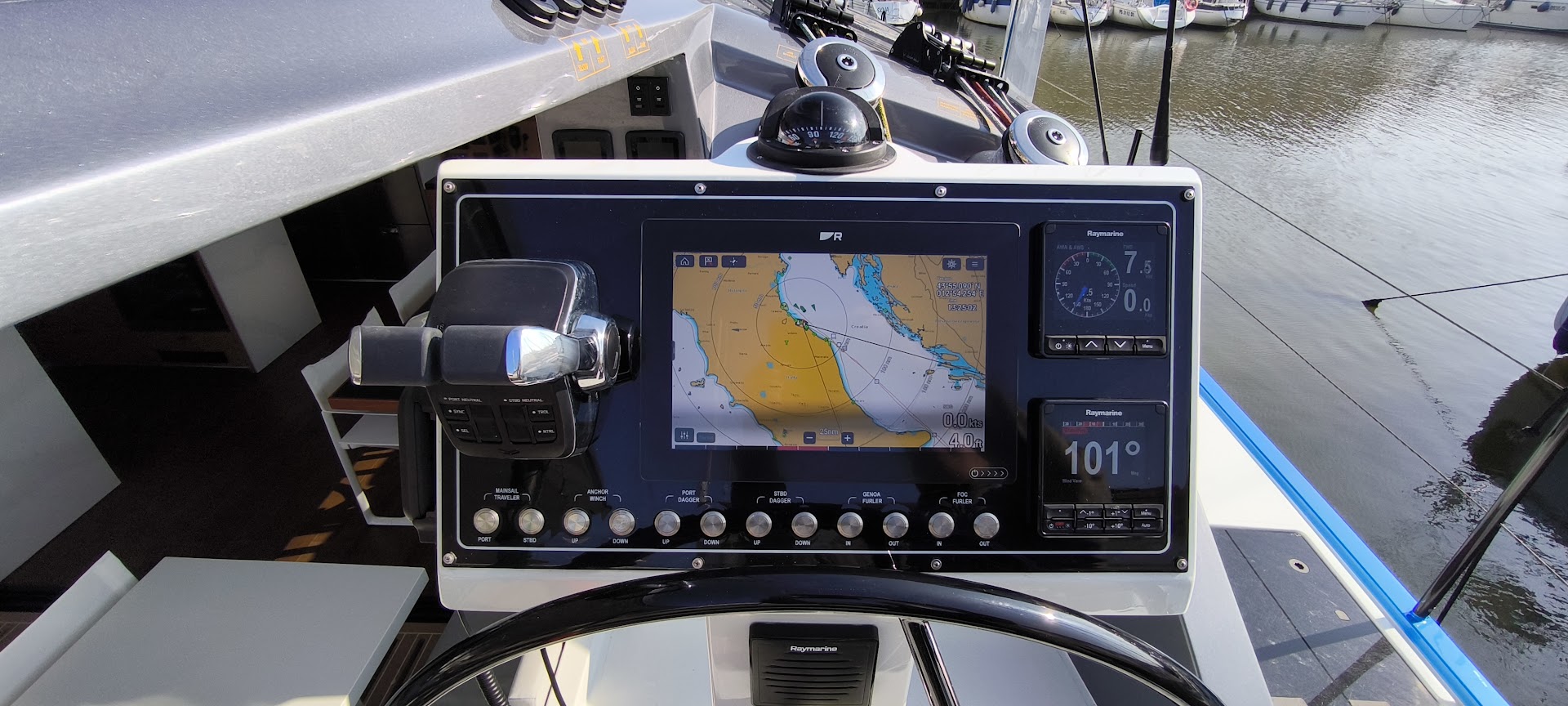

PORT HELM STATION

1x Raymarine Axion+ 9” Display
1x Raymarine e70 MFD
1x Raymarine P70 Autopilot Controller

STARBOARD HELM STATION

1x Raymarine Axion+ 9” Display
1x Raymarine e70 MFD
1x Raymarine P70 Autopilot Controller

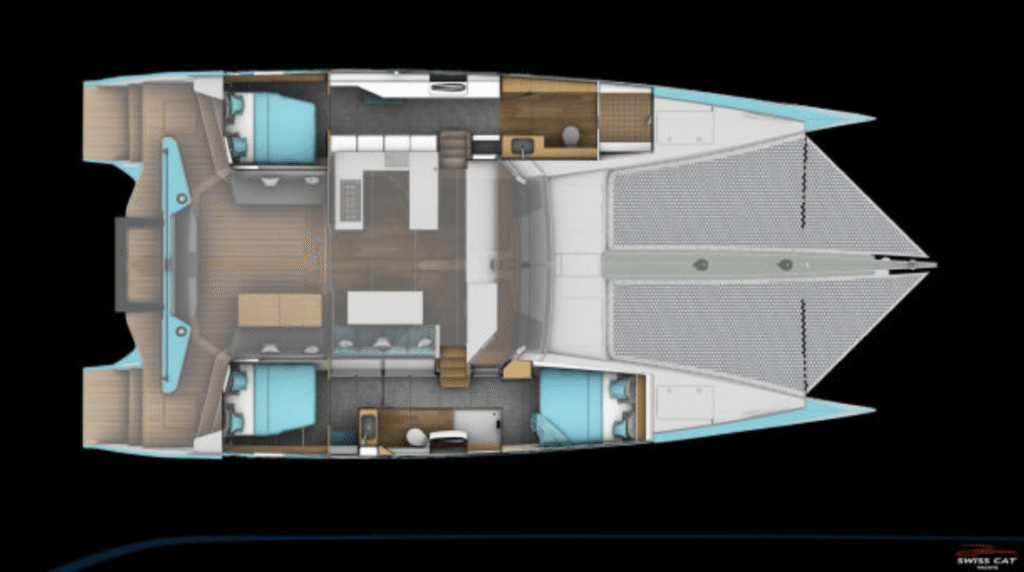

ACCOMMODATIONS:

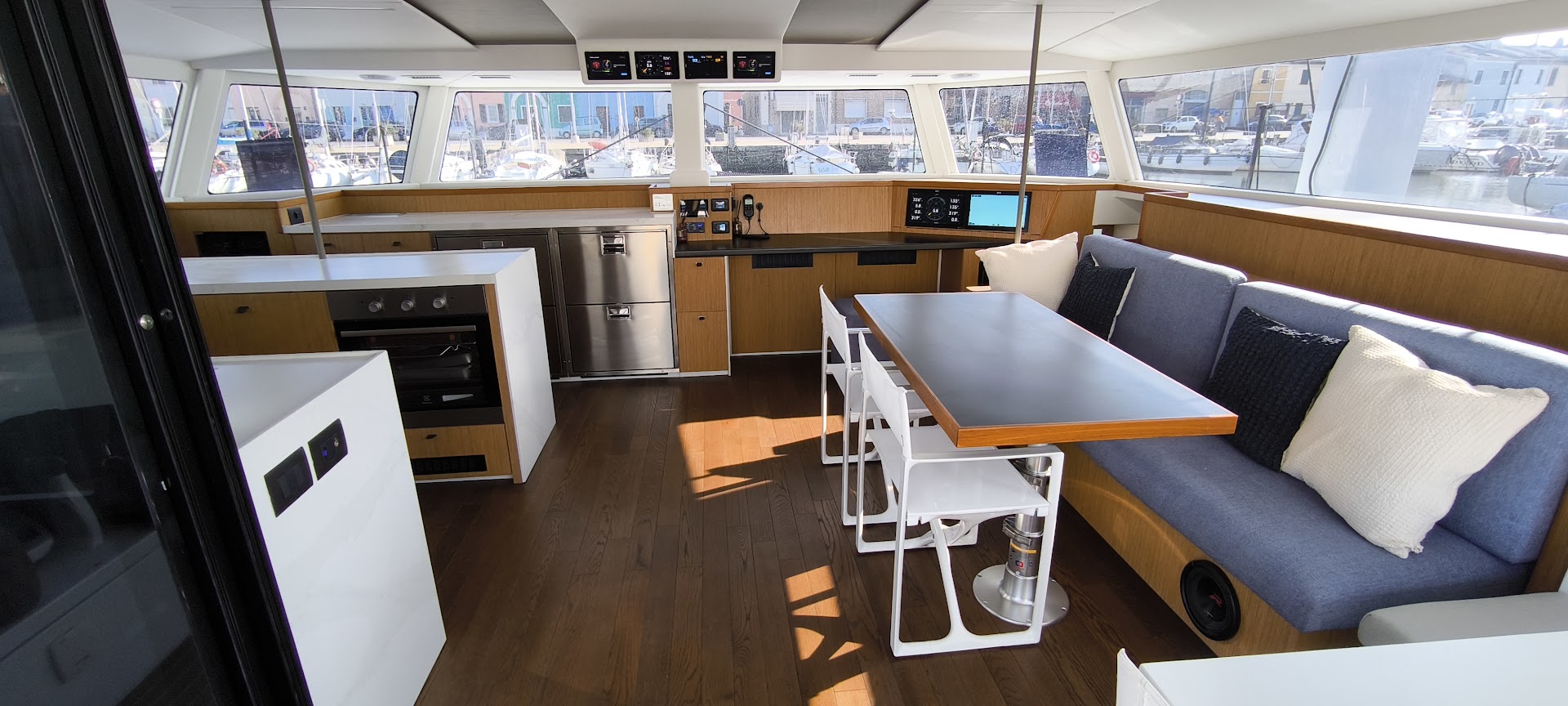

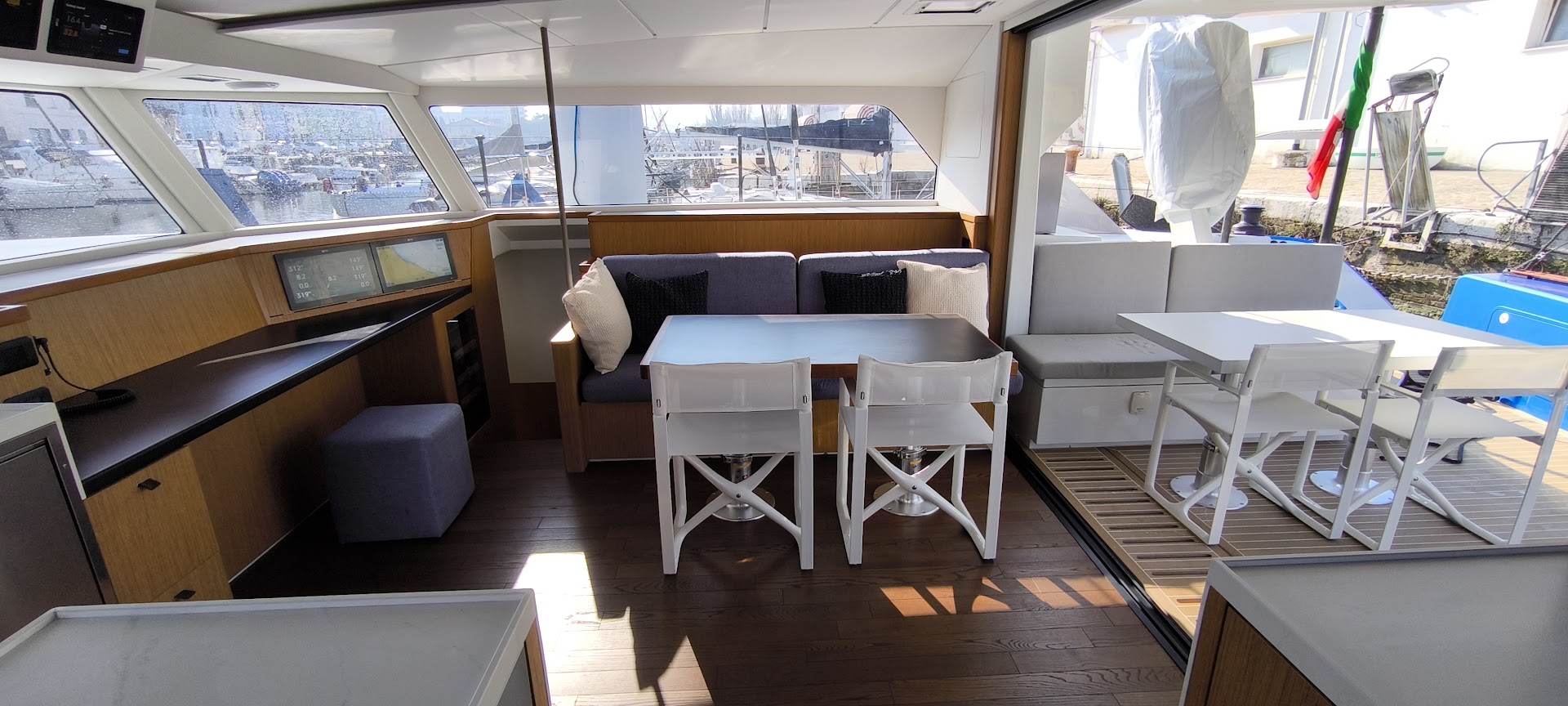

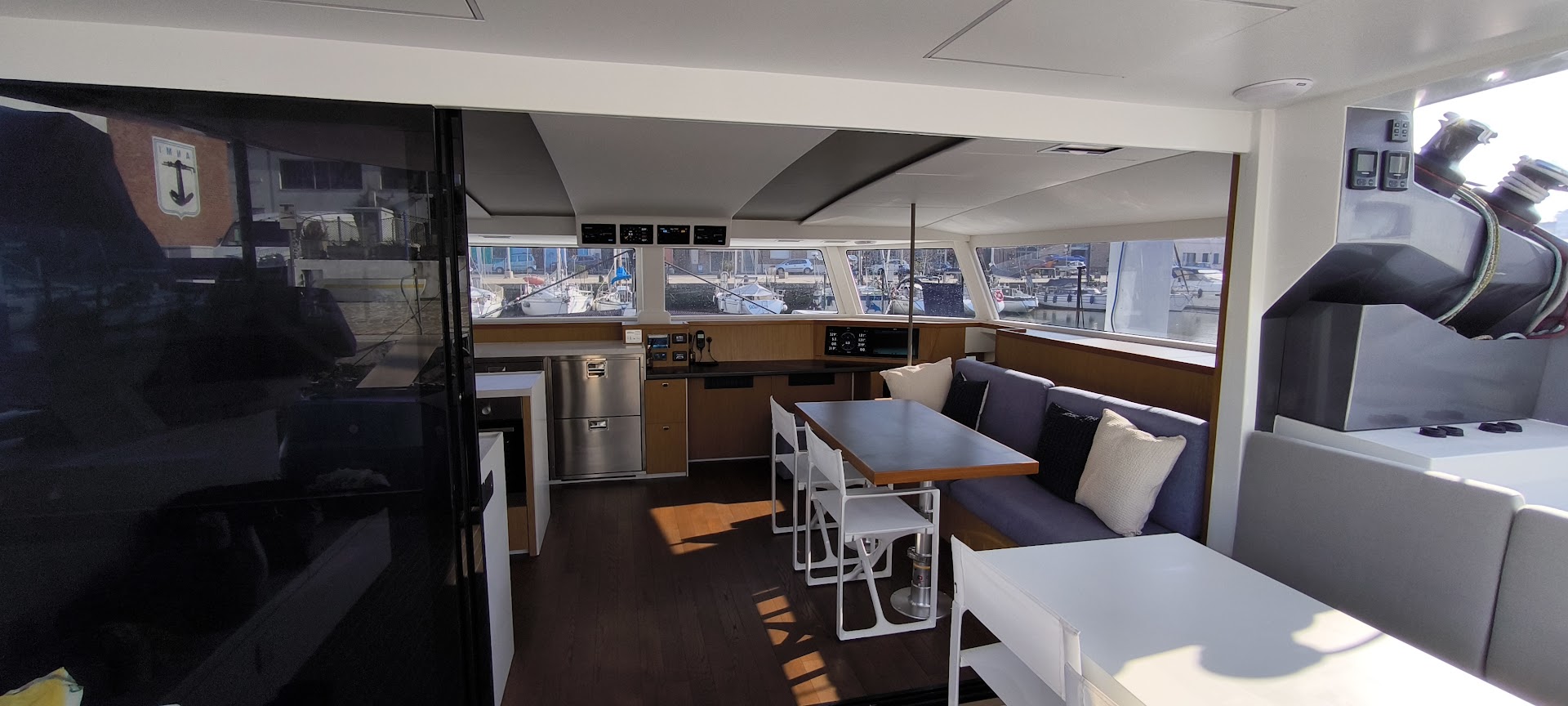

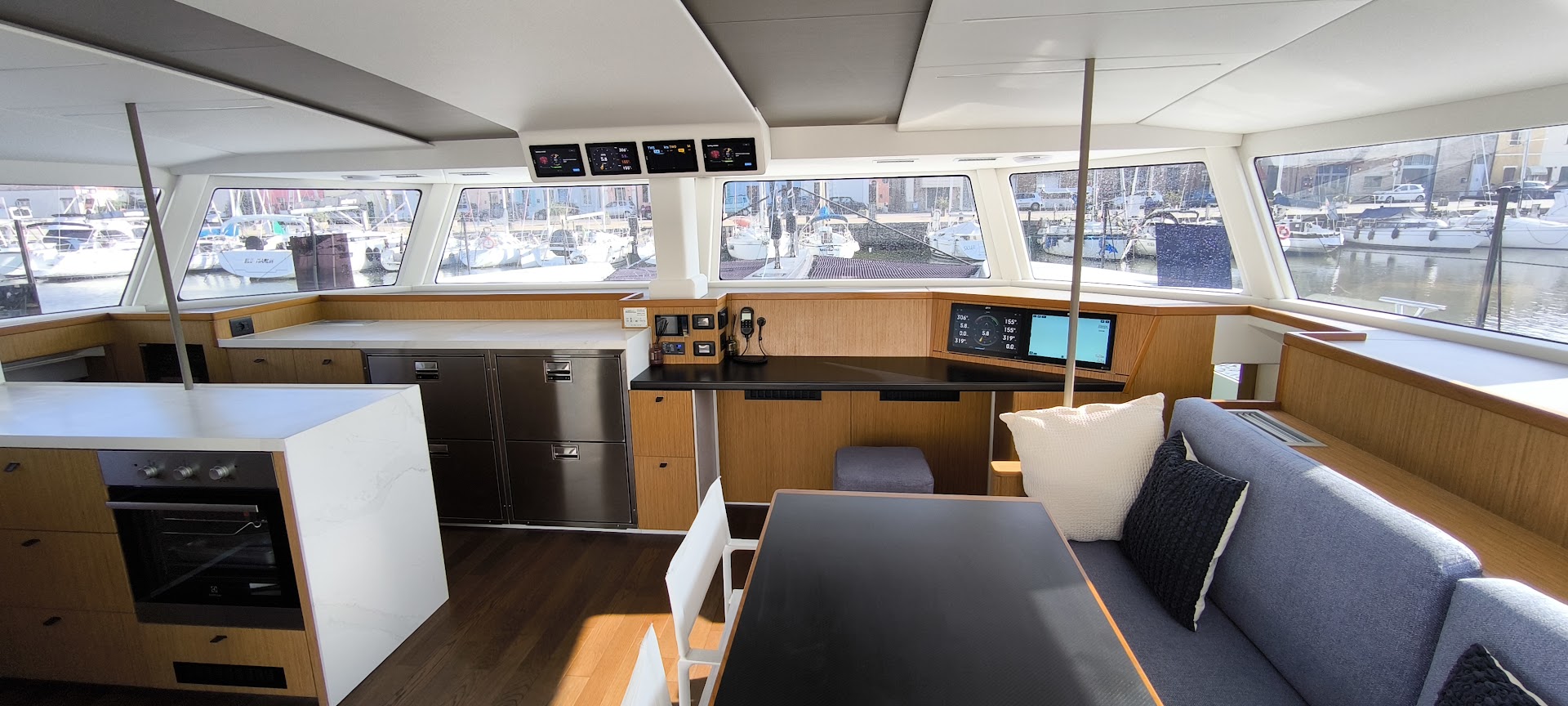

SALON

Straight Settee to Starboard

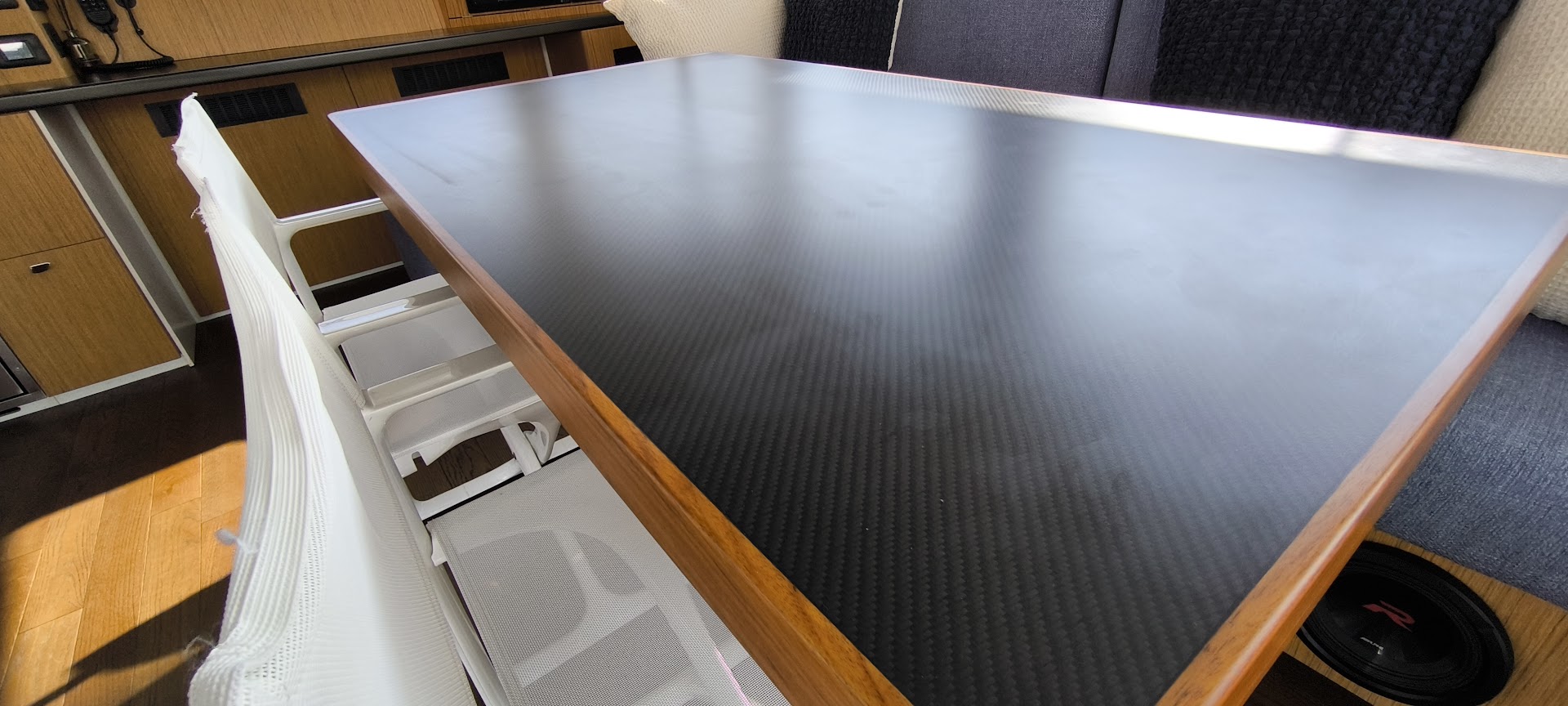

Hi-Lo Dining Table
4x Composite Folding Chairs

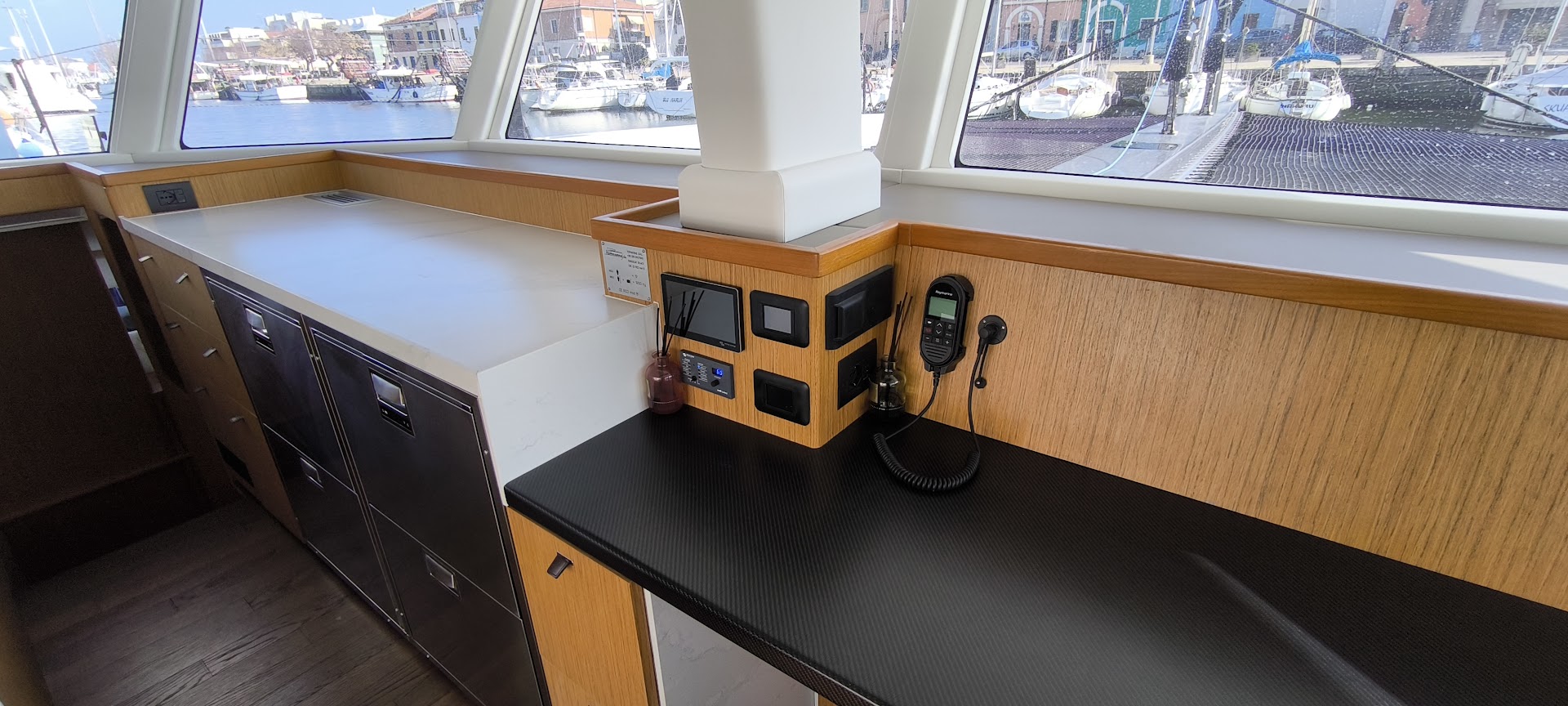

Nav Station Forward

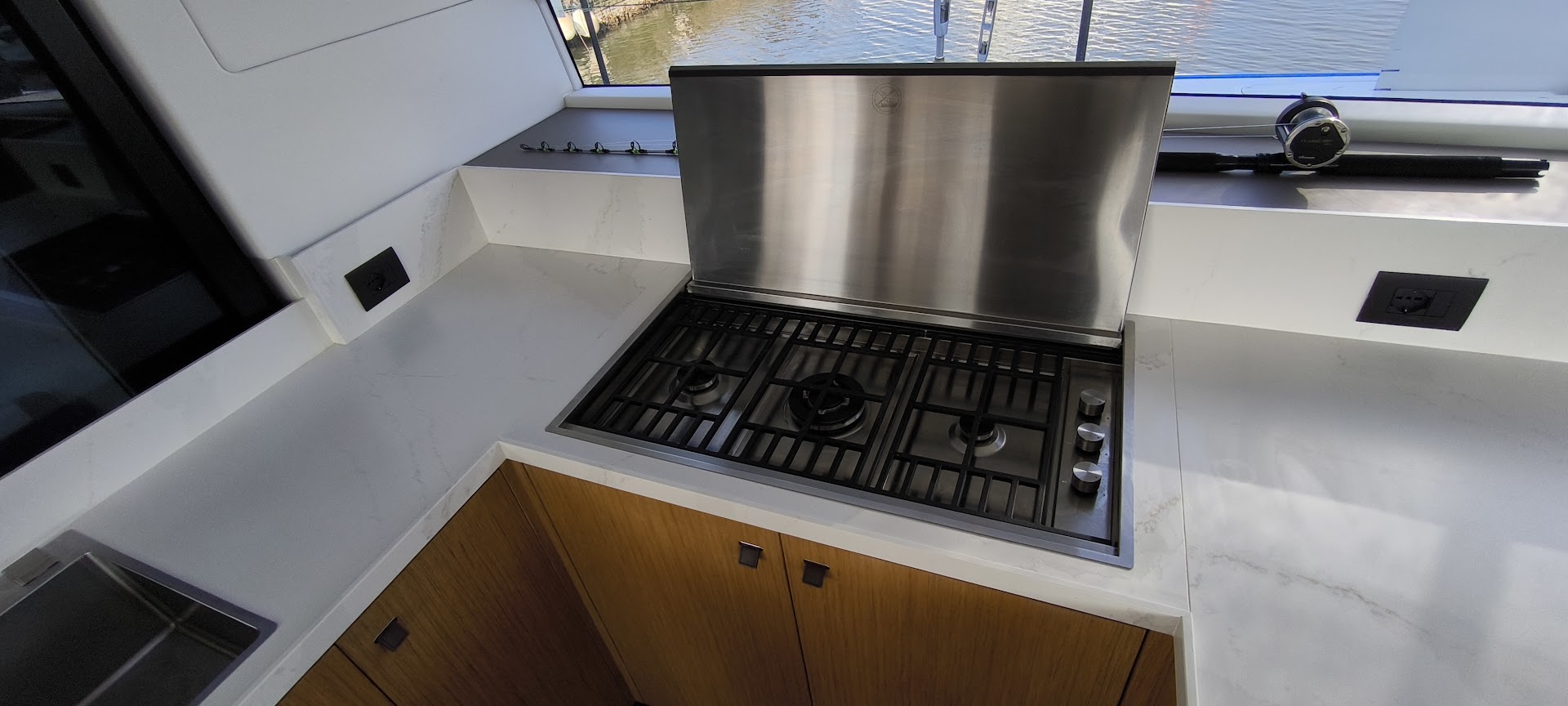

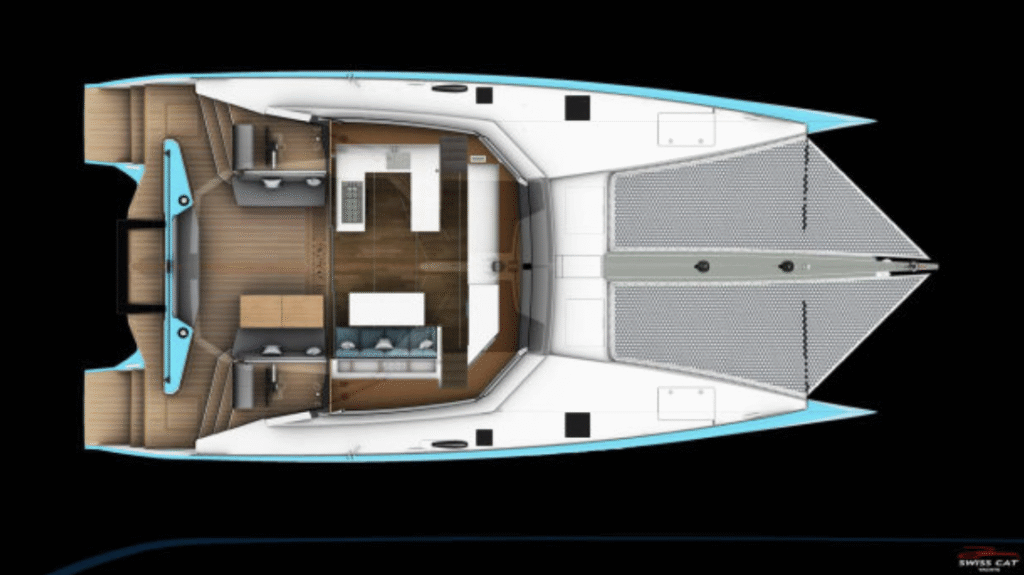

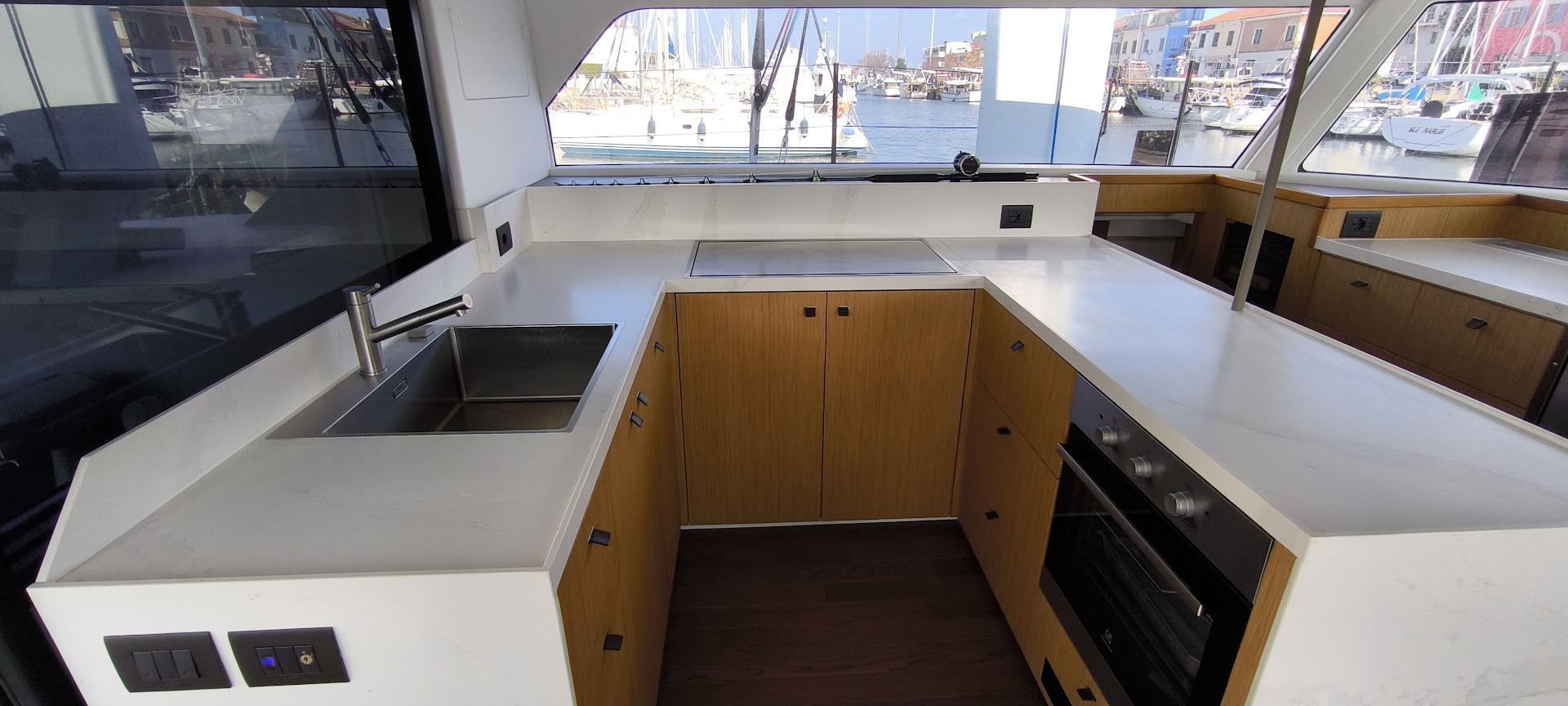

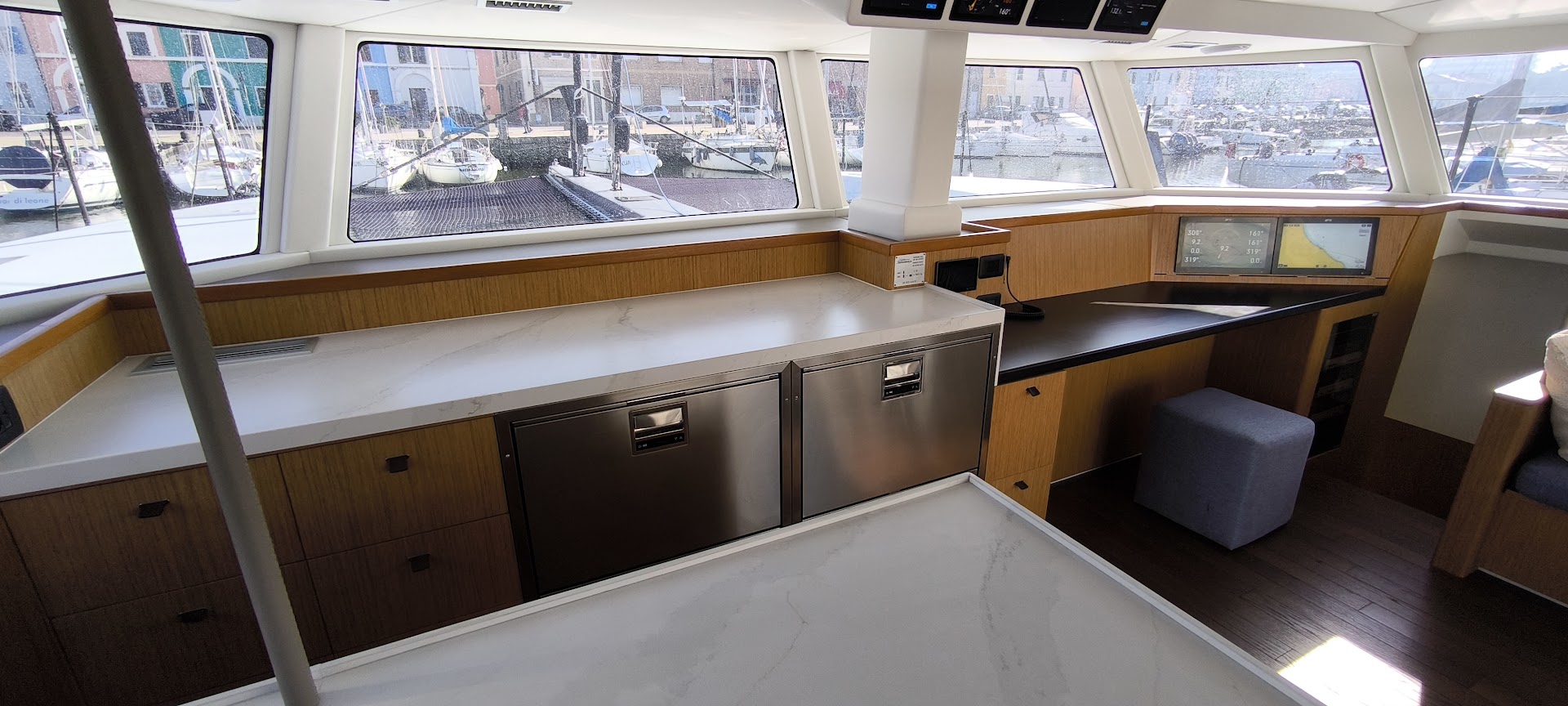

GALLEY

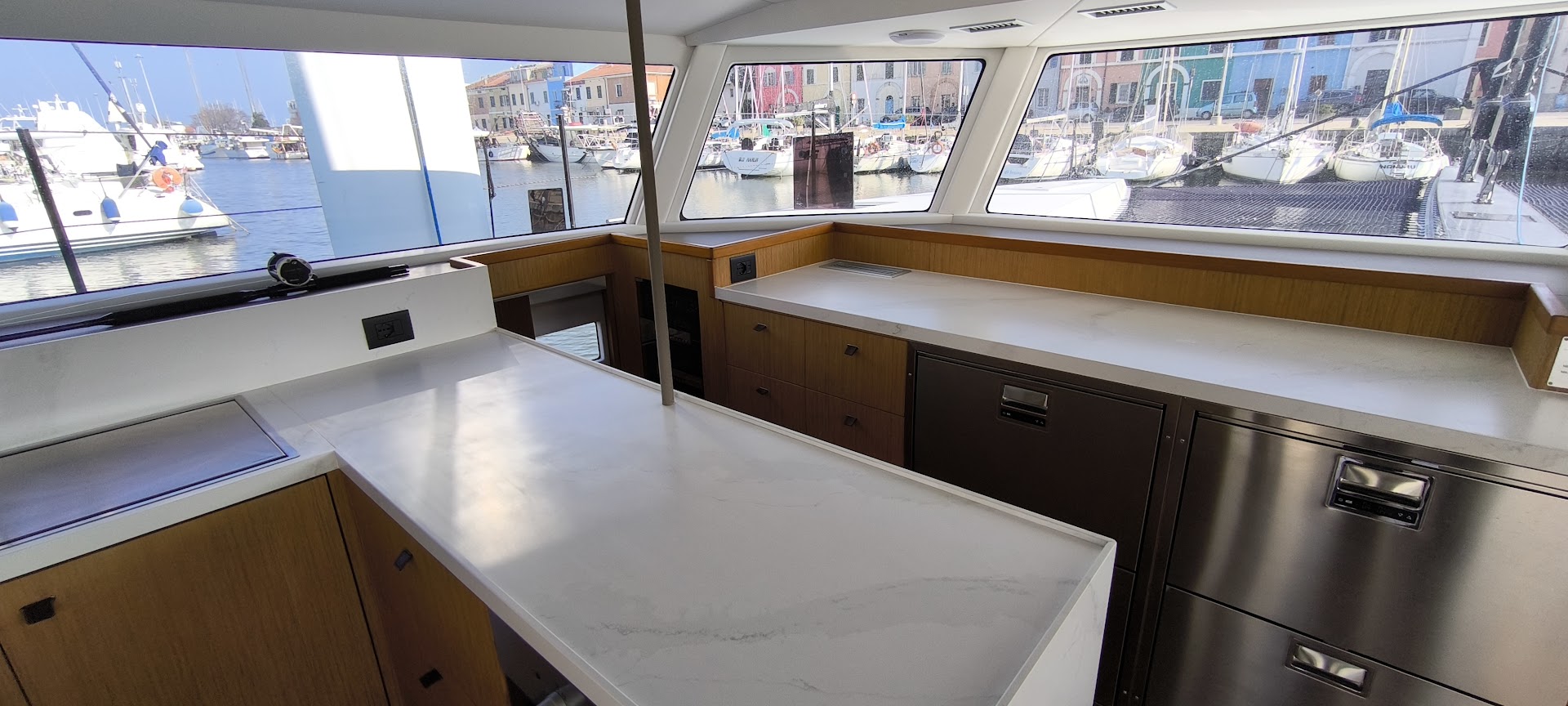

U-Shaped to port with large stainless sink, 4-burner gas stove, Vitrifrigo double drawer fridge & Vitrifrigo double drawer freezer. Composite counter top w/multiple cabinets below.

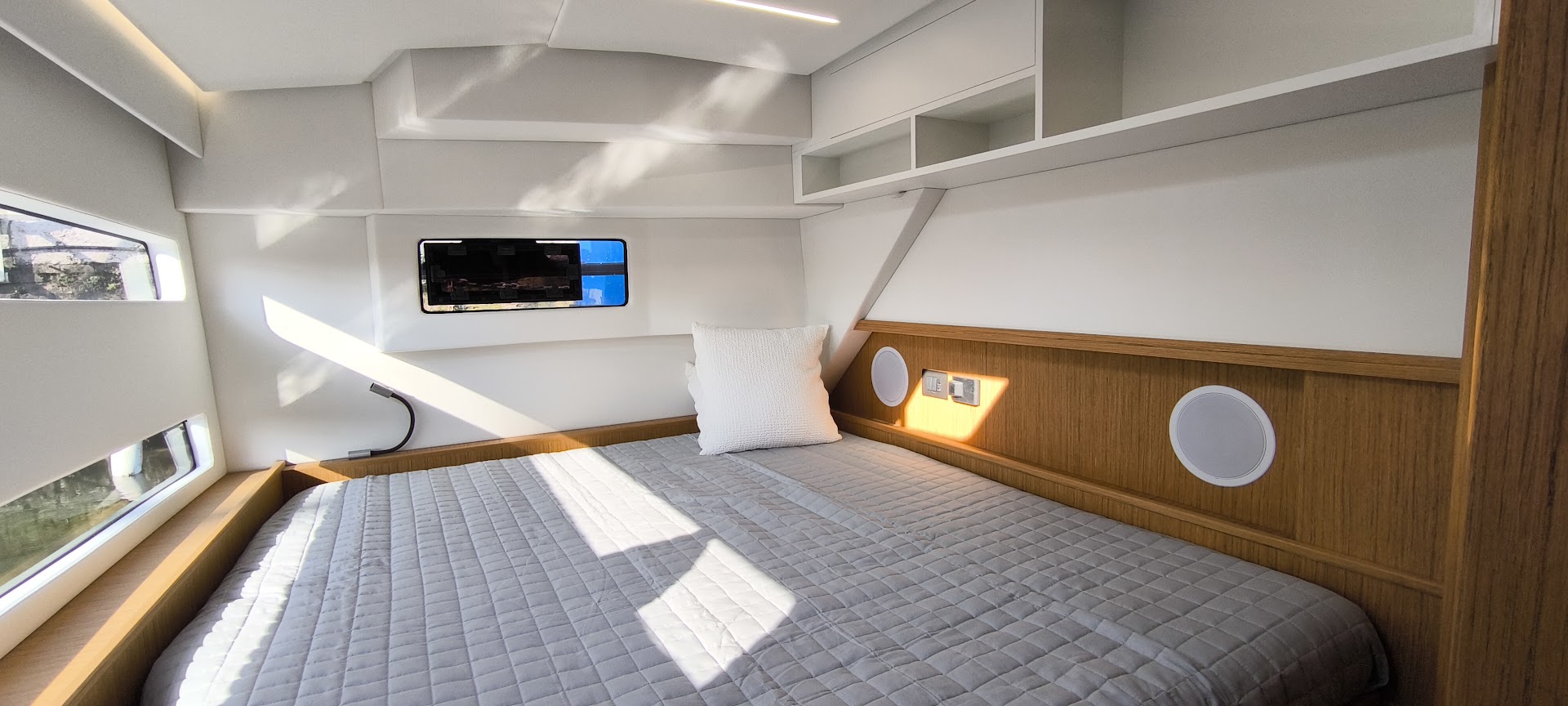

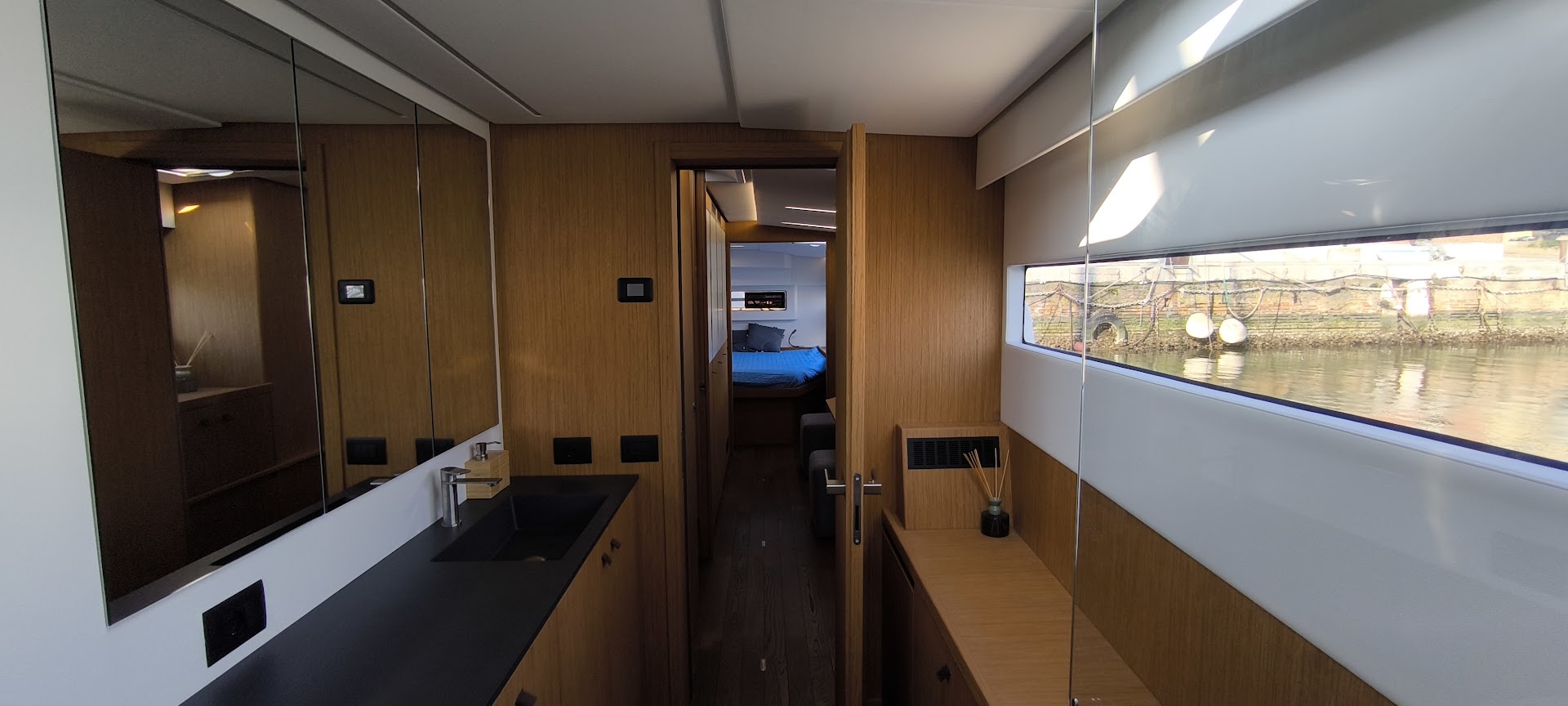

PORT HULL (Owner’s Suite)

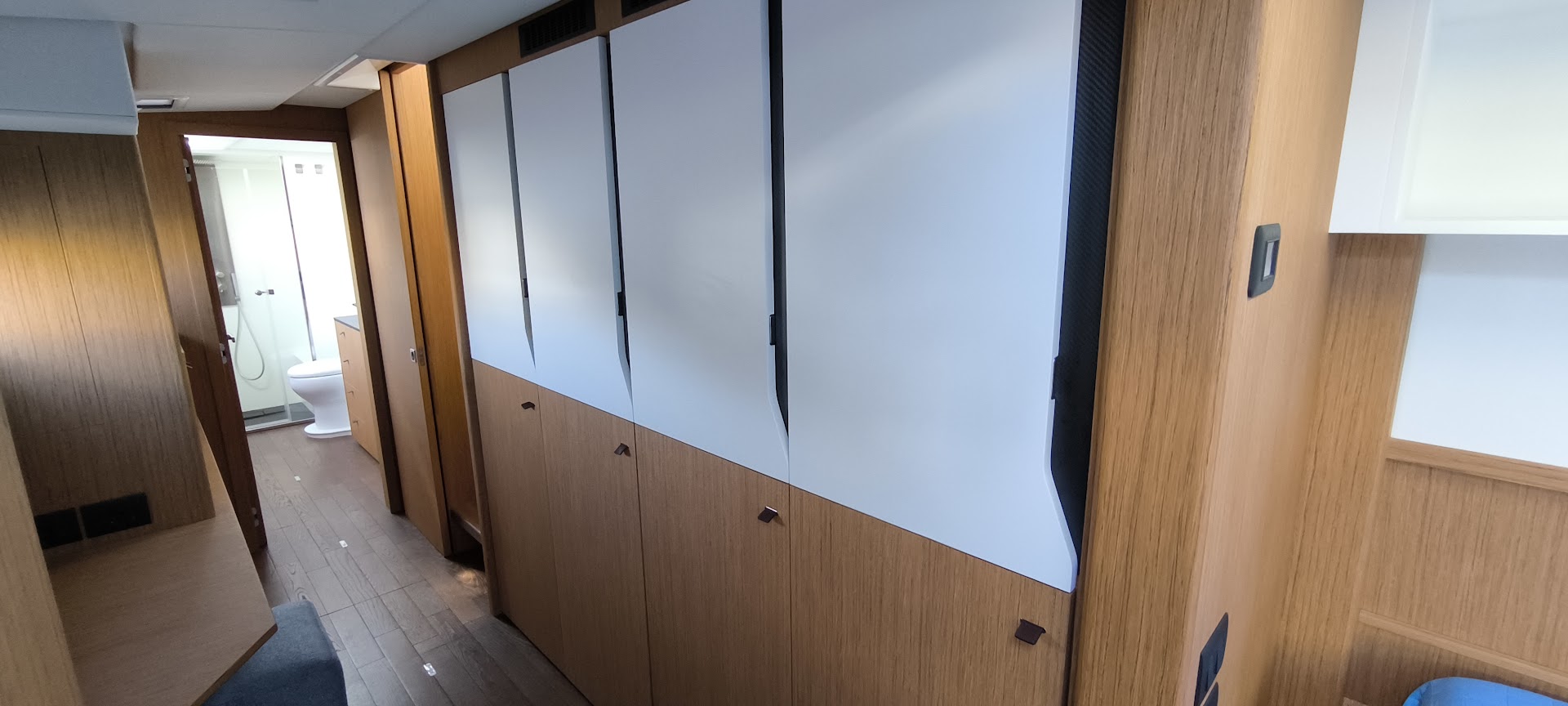

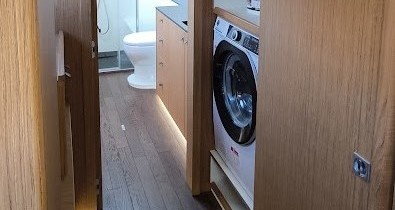

1.8m x 2m (5.9’ x 6.6’) bed aft; numerous wardrobe closets and Hoover H-Wash 7kg washing machine midship; bathroom forward including shower stall.

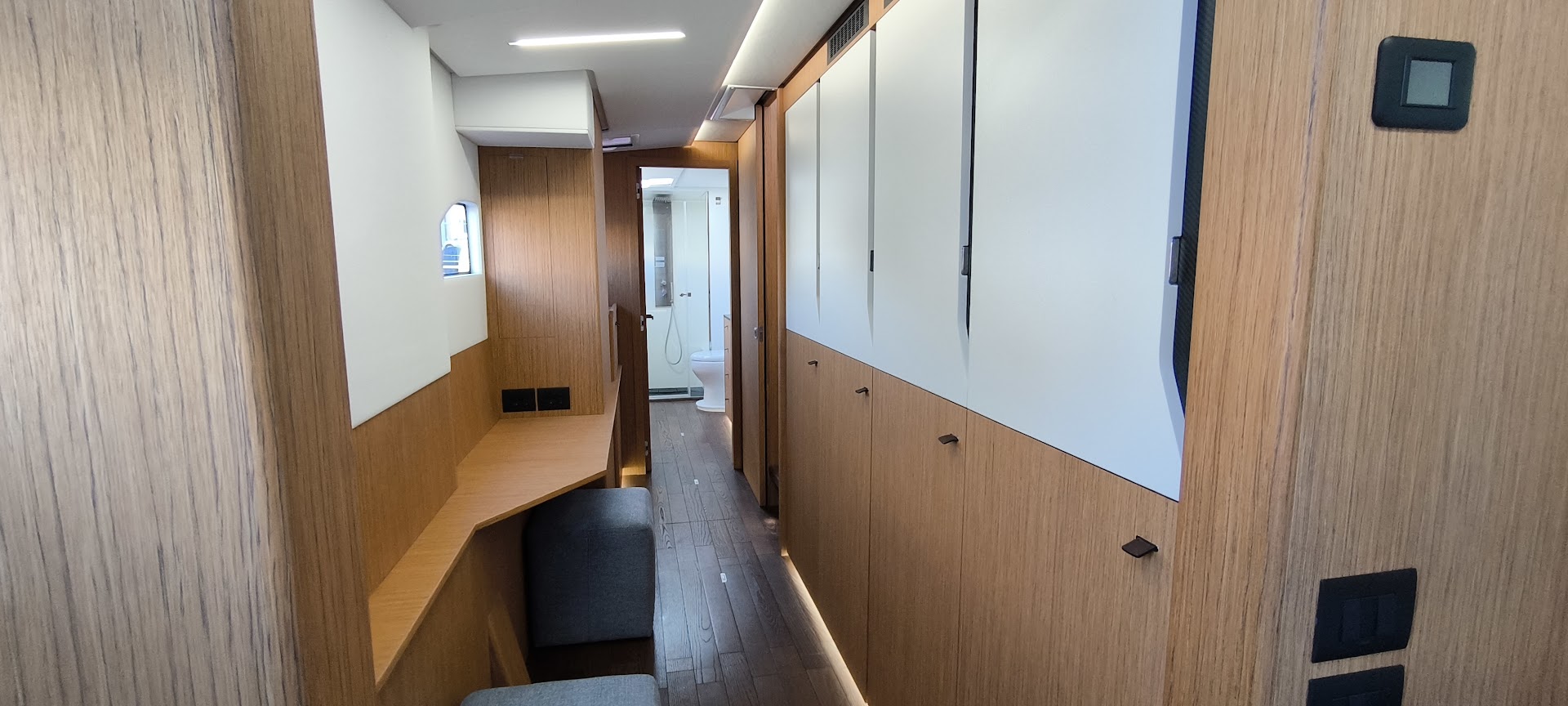

STARBOARD HULL (Guests)

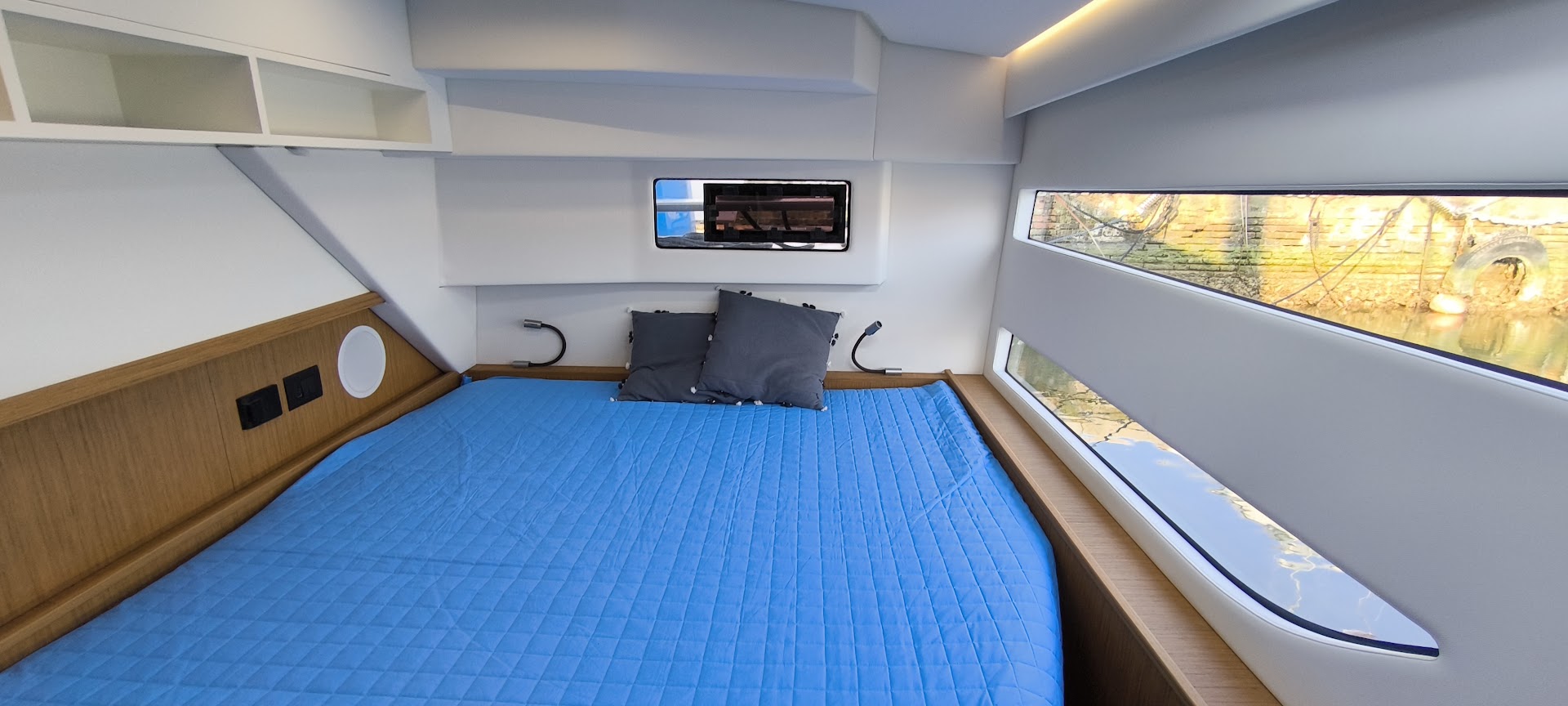

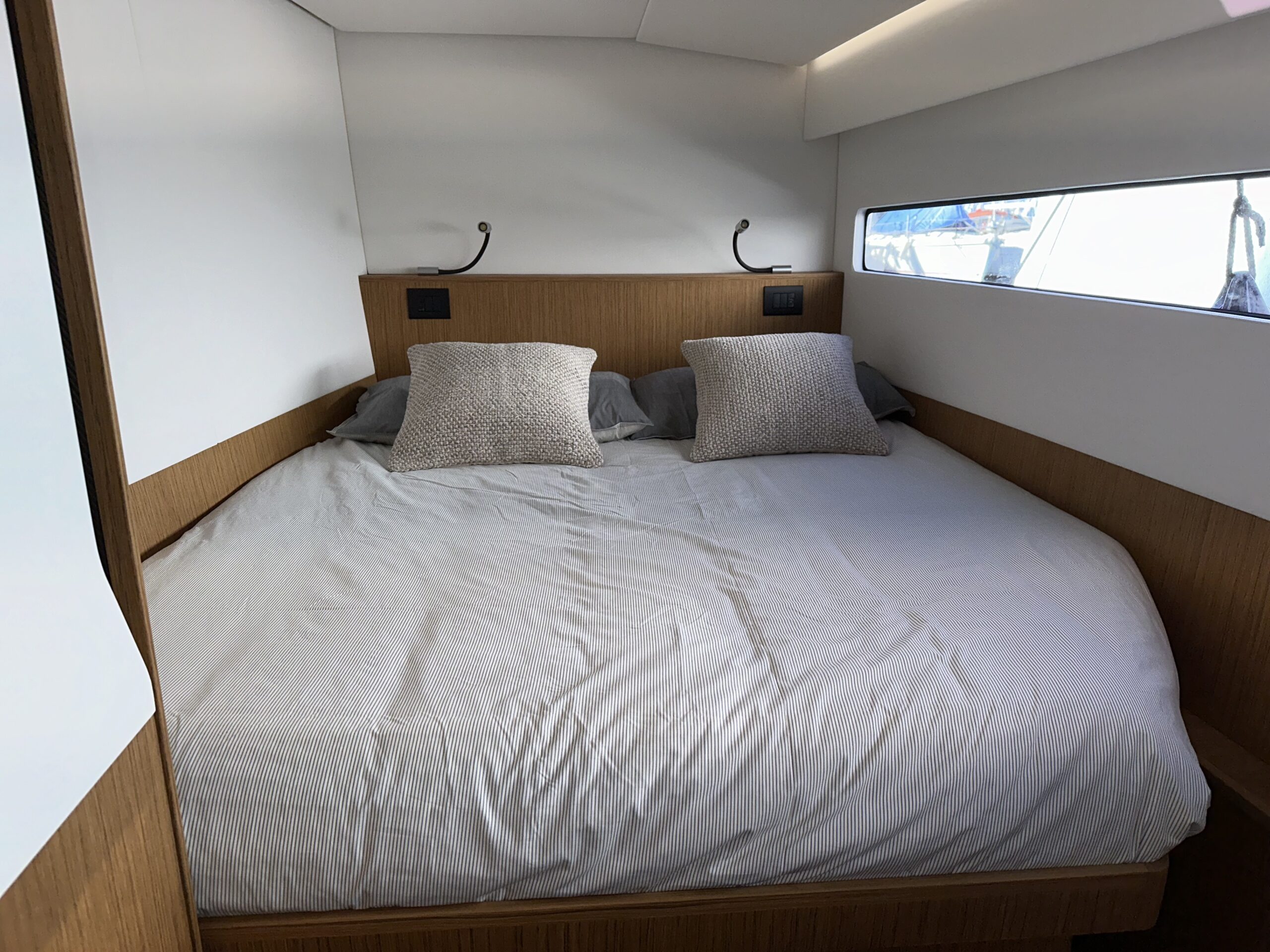

Aft stateroom with 1.8m x 2m (5.9’ x 6.6’) bed, wardrobe storage

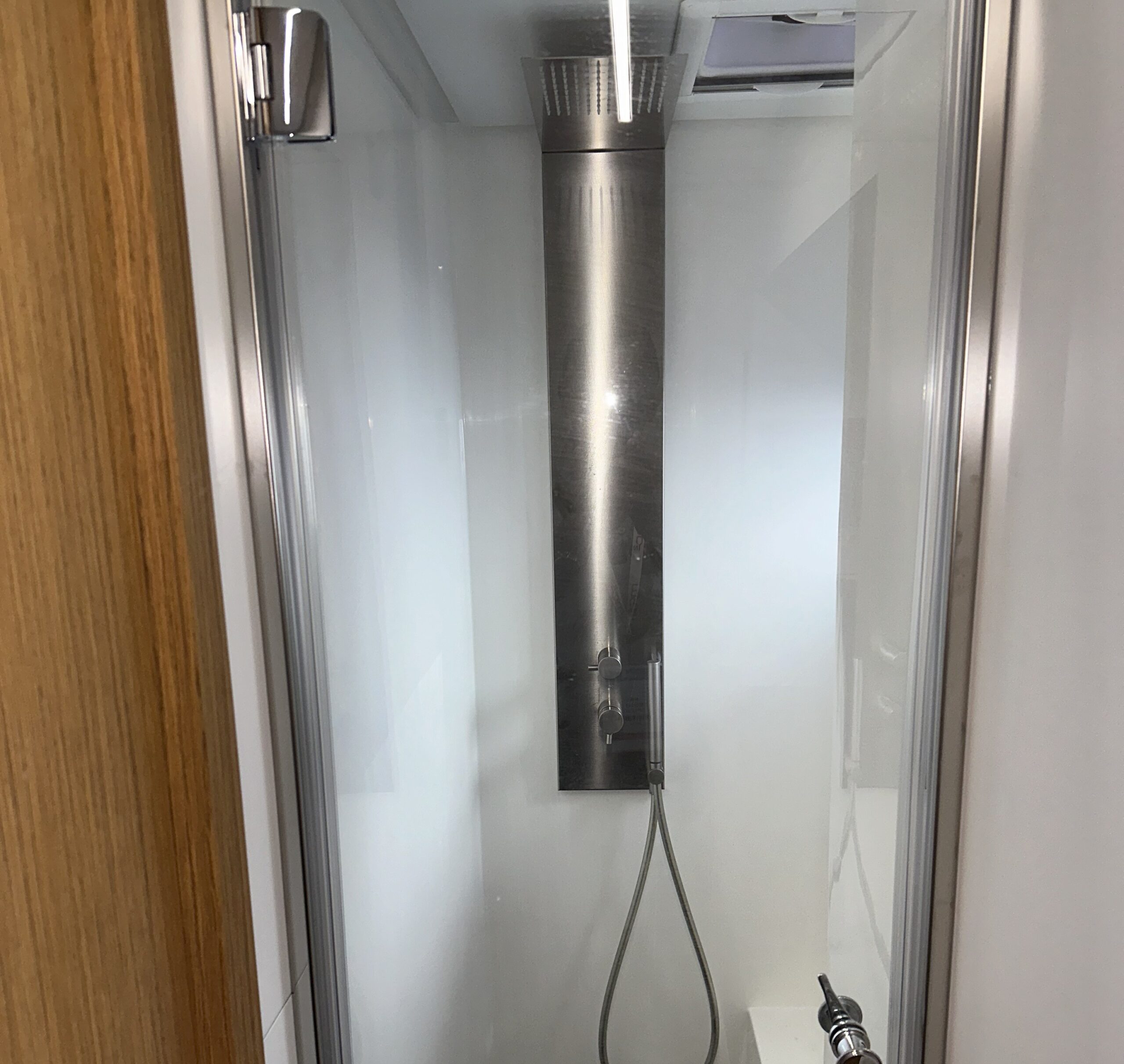

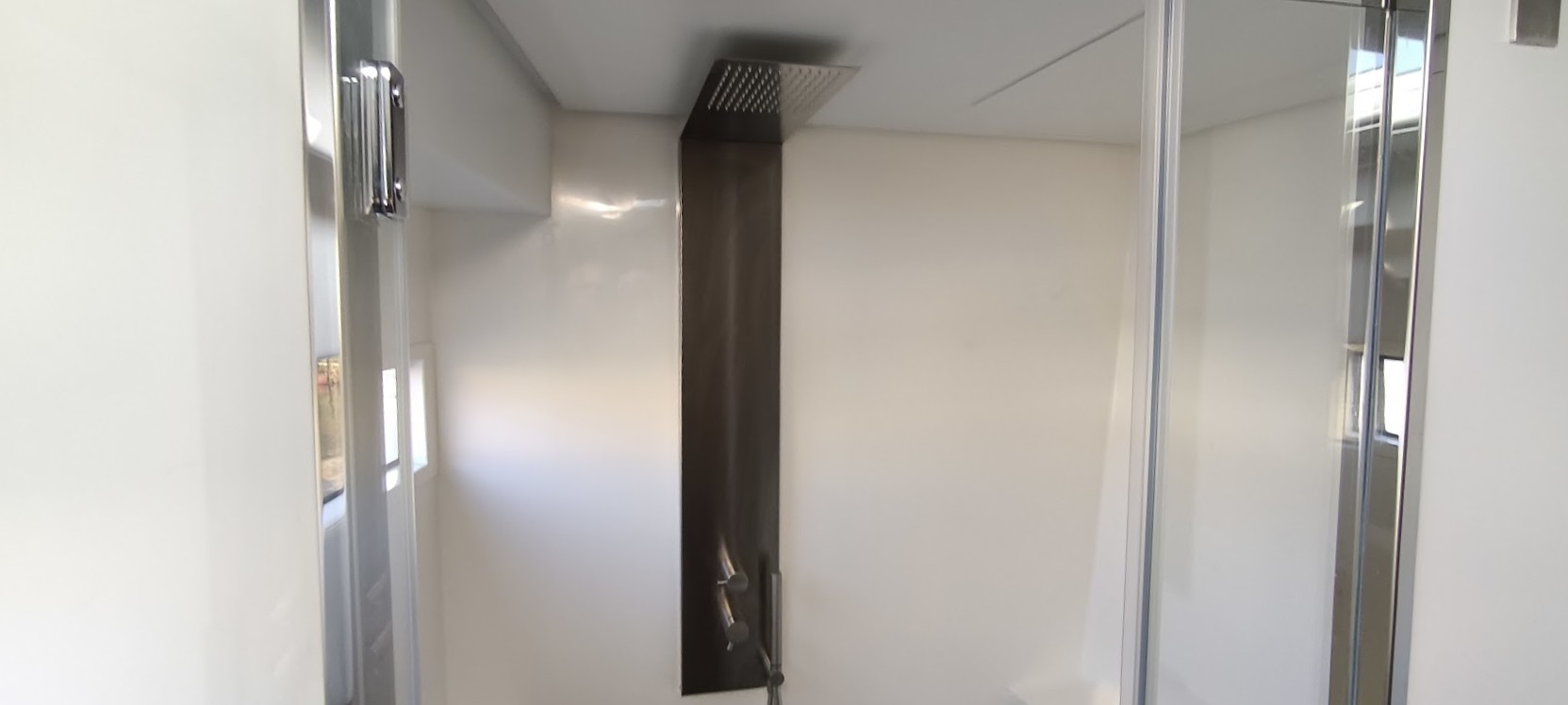

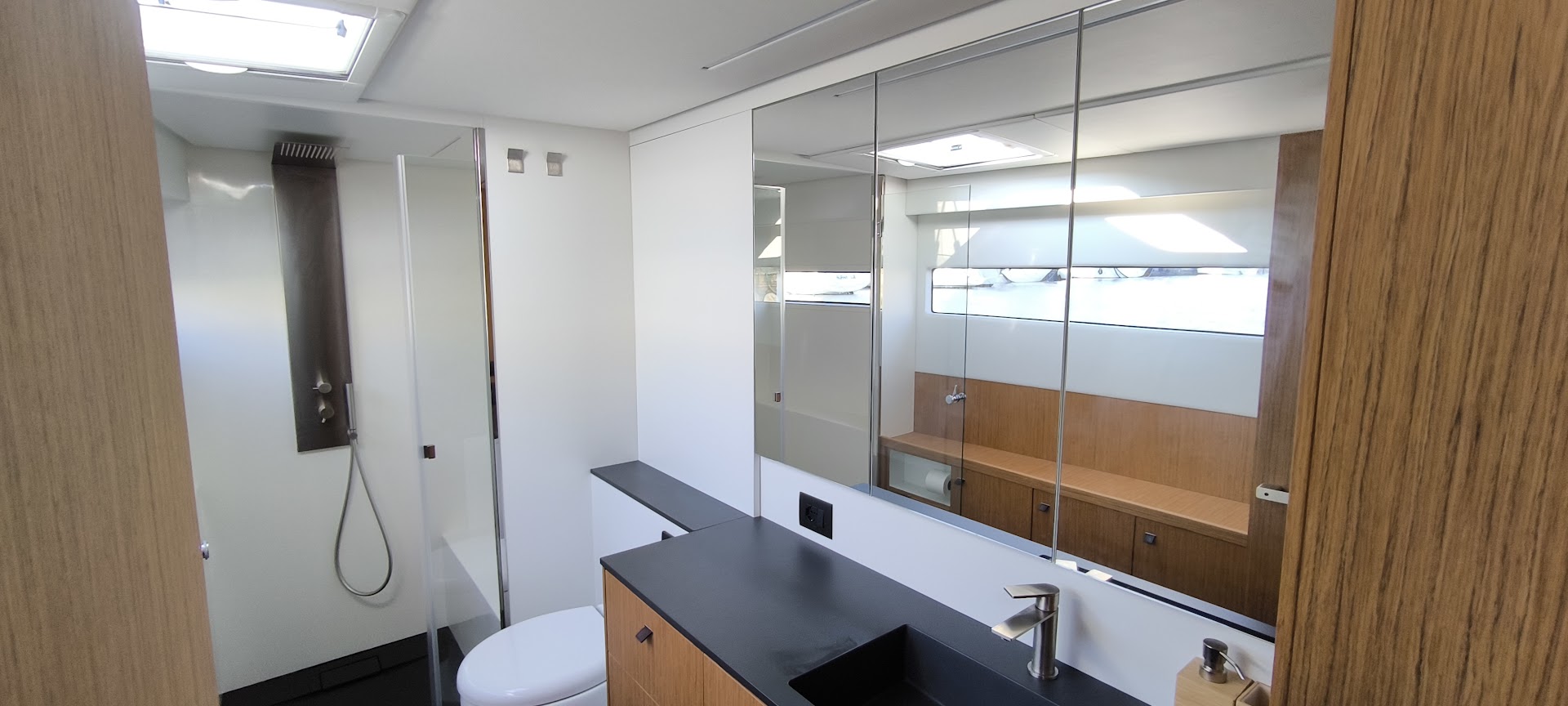

Midship bathroom including shower stall, wardrobe storage

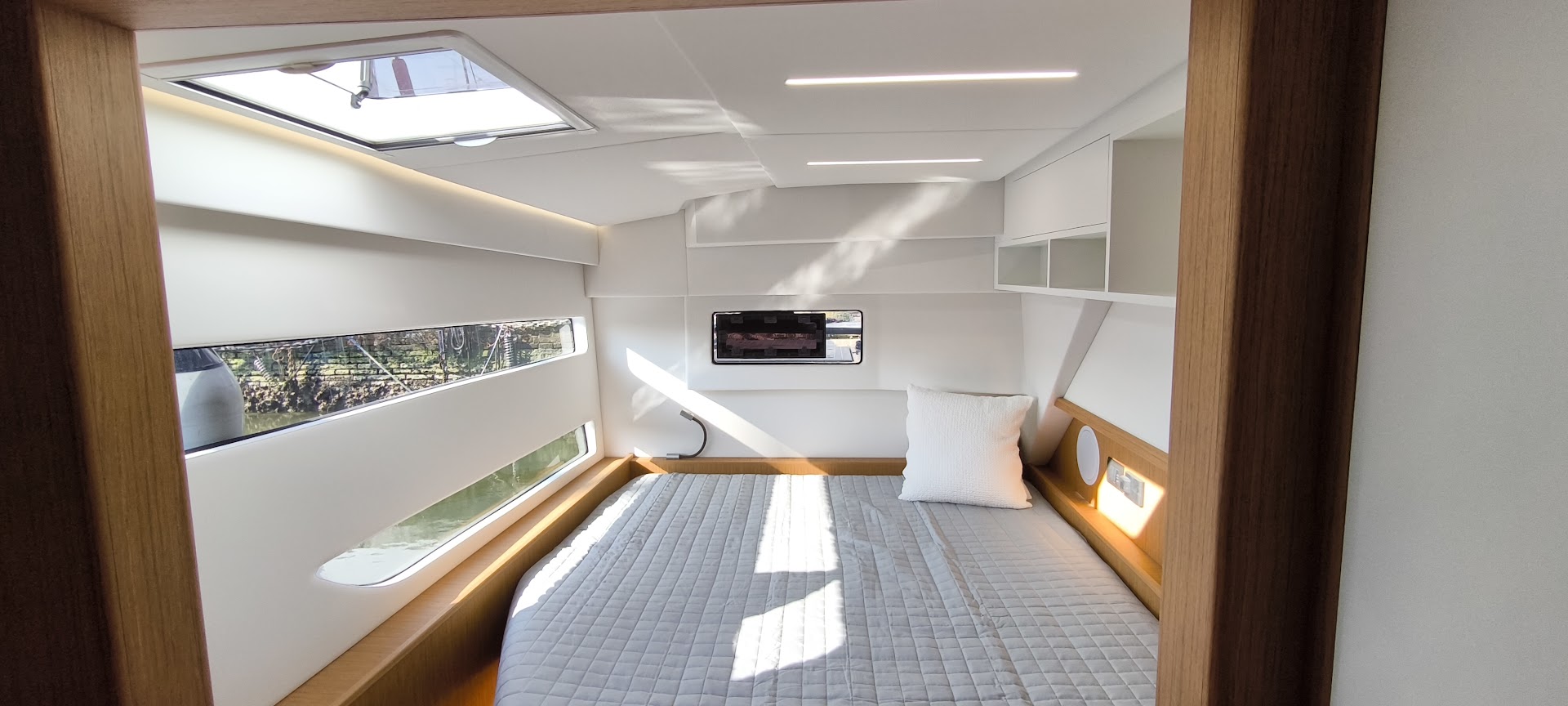

Forward stateroom with 1.6m x 2m (5.2’ x 6.6’) bed, wardrobe storage

MISCELLANEOUS:

Webasto 50,000BTU Air Conditioning
Webasto Pro 90 Heater System

SPECIAL DEMO PRICE: €2,500,000 LOCATION: Roma, IT

don@navigatoryachtgroup.com +1-561-301-8649

This document is property of Navigator Yacht Group; reproduction of any or all parts of its contents is prohibitive without written permission by Navigator Yacht Group.

Details on this vessel have been obtained from sources believed reliable but are not guaranteed. Buyer assumes responsibility of determining accuracy of the data. Offered subject to prior sale, price change, inventory change, or withdrawal without notice.
