Designed by French architect François Perus the C-Cat 48 is offered in various galley-up layouts including a 3- cabin and 2-bathroom club version with option to modify the port forward cabin as an office or with upper/lower berths, or custom layout to your preference. The deck design consists of dual aft helms with all sail controls led to a very comfortable cockpit for safe and easy sail management and C-daggerboards for added lift.

Hull construction consists of white gelcoat, Gurit® Corecell™ M SAN Polymer marine foam core. Unique is the bridgedeck and both hulls are laminated in one-shot eliminating any junctures for a stronger, harmonious, and lighter hull using resin-infused epoxy and post cured. Primary bulkheads are carbon fiber (total of 5) as are the carbon fiber C-daggerboards. All through hulls below and above the waterline are installed in a solid laminate preventing migration of water into the core.

Deck construction is full carbon fiber laminate consisting of white gelcoat w/diamond non-skid, Gurit® Corecell™ M SAN polymer marine foam core.  As with the hull lamination, the deck, cockpit, and coach roof are laminated in one-shot using resin-infused epoxy and post cured. Additional carbon fiber components include the mast, longeron/bow sprit, Martingale spreader, C-Daggerboards and davits. All deck hardware installed in a solid laminate preventing migrations of water into the core. The deck to hull is bonded using fiberglass and resin creating a monolithic shell for added stiffness. Handmade Yachting Technology at its best . . . “Built For Sailors by Sailors”

HANDMADE YACHTING TECHNOLOGY

PRINCIPAL DIMENSIONS

STANDARD INVENTORY

Hulls:

• White Gelcoat (colors optional)
• Gurit® Corecell™ M SAN Polymer Marine Foam Core
• Unidirectional & Multidirectional E-Glass Fiber Inner/Outer Skin
• Resin Infused Matrix of Epoxy/Vinylester
• Carbon Fiber Primary & Secondary Bulkheads
• Hulls & Bridgedeck Laminated in One Shot to Eliminate Junctions & Secondary
• Laminations Creating a Uniform Harmonious Shell and Less Weight
• All Bulkheads Fully Laminated to Hulls & Deck

Carbon Fiber Deck:

• White Gelcoat w/Molded Diamond Non-Skid
• Gurit® Corecell™ M SAN Polymer Marine Foam Core
• Resin Infused Matrix of Epoxy/Vinylester
• Laminated in One Shot to Eliminate Junctions & Secondary Laminations Creating a
• Uniform Harmonious Deck and Less Weight
• Deck to Hull Junction Epoxy Laminated Creating a dry and strong Monolithic Shell
• Carbon Fiber Forward Crossbeam & A-Frame Spreader
• Carbon Fiber 1-Piece Longeron/Bowsprit
• Carbon Fiber C-Shaped Daggerboards & Daggerboard Casings
• Carbon Fiber Tender Davits

• 2x Yanmar 4JH45 4-Cylinder 45 hp Engines w/Yanmar SD60 Saildrives
• 2x Flex-O-Fold 3-Blade Folding Props
• 2x 12V / 2x 24V Alternators
• 2x 24V Mastervolt Alternators 1 including in base price
• 2x Engine Blowers
• 2x 80Ah Engine Batteries
• 2x 270 lt (2x 71 gal) Polypropylene Diesel Tanks
• 2x Fuel/Water Separators
• 2x Wet Exhaust Mufflers
• Engine Room Sound Insulation
• Mechanical Dual Steering System w/Composite Helms & Stainless Rudder Shafts

• 12VDC/24VDC/110VAC 60Hz System
• Electrical Distribution Panel w/Circuit Protection, Volt & Amp Meters, Fuel/Water Gauges
• Shore power + Mastervolt CombiMaster 24/3000-60 Charger/Inverter
• Mastervolt Master Bus Display
• 2x 24VDC (4x 120Ah) AGM House Batteries
• Engine Battery Parallel Switch
• LED Interior Lights
• LED Navigation Lights (deck level and tri-color masthead)
• 2x 12VDC Interior Outlets
• 6x 110VAC Interior Outlets

• 1x 300lt (79 gal) Polypropylene Fresh Water Tank
• 1x 45 lt (12 gal) Polypropylene Black Water Tank (owner’s bathroom)
• 1x 24VDC Pressure Water @ Galley, Bathrooms, Transom Shower
• 4x 24VDC Bilge Pumps w/Manual Override @ Electrical Panel (2 per hull)
• 2x Manual Bilge Pumps Located in Cockpit (1 per hull)

• Forward Chain & Windlass Deck Locker Near Mast Base
• 1500W Windlass 25Kg Delta Anchor w/70m 10mm Galvanized Chain
• Forward Deck Locker Near Mast Base (water tank & storage)
• Forward Deck Storage Locker Near Mast Base (optional genset, water maker, etc.)
• Port & Starboard Forepeak Lockers w/Access via Deck Hatch
• 6x Stainless Mooring Cleats
• 2x Stainless Mooring Cleats for Tender
• Nylon Trampoline
• 2x Stainless Bow Pulpits w/Seats
• 2x Stainless Stern Pushpits
• 2x Stainless Daggerboard Rails
• Carbon Forward Crossbeam & A-Frame Spreader w/Anchor Roller
• 6x Stainless Stanchions
• Integrated Fiberglass Toerail
• Plexiglass Salon Windows
• Plexiglass Cockpit Sliding Door to Salon
• Plexiglass Galley Sliding Window
• Hard Top Bimini w/LED Lights
• “L” Shaped Bench Seating to Starboard w/Storage Below
• Straight Bench Seating to Port w/Storage Below
• 2x Aft Cockpit Sole Storage Lockers (1 port / 1 starboard)
• Fixed Fiberglass Cockpit Table
• 2x Aft Helm Stations w/Composite Steering Wheels & Electronic Consoles
• Dedicated Gas Bottle Compartment
• 2x Carbon Fiber Tender Davits
• Port Transom Stainless Swim Ladder w/Shower
• Emergency Tiller

• Painted Carbon Fiber Mast
• Painted Aluminum Boom w/Trellis
• Stainless Dyform Wire Shrouds w/2 Set of Spreaders
• Stainless Rod Headstay
• Dyform Wire Martingale
• 1x Harken 50.2 STAE Mainsail Utility Winch (halyard/topping lift/2x single line reefs)
• 2x Harken 50.2 STA Radial Mainsail Winches
• Dual 3:1 Mainsheet Bridle w/2x Rope Clutches or Harken Traveler
• 2x Harken 60.2 STA Radial Winch Primary Winches (headsails)
• 1x Harken 50.2 STA Headsail Halyard Winch (on mast)
• Harken Self-Tacking Jib T-Track
• Harken Genoa T-Tracks/Fairlead Blocks on Coachroof
• 14x Rope Clutches
• 2x Deck Organizers
• 1x Discontinuous Jib Furler
• Harken Mainsail 2:1 Dyneema Halyard
• Dyneema Mainsail Sheet, Jib Halyard, Code 0 Halyard
• Kevlar Membrane Square Top Mainsail w/Lazy Jacks & Sail Cover
• Kevlar Membrane Genoa w/UV Sun Protection
• Masthead Windex
• 2x Winch Handles

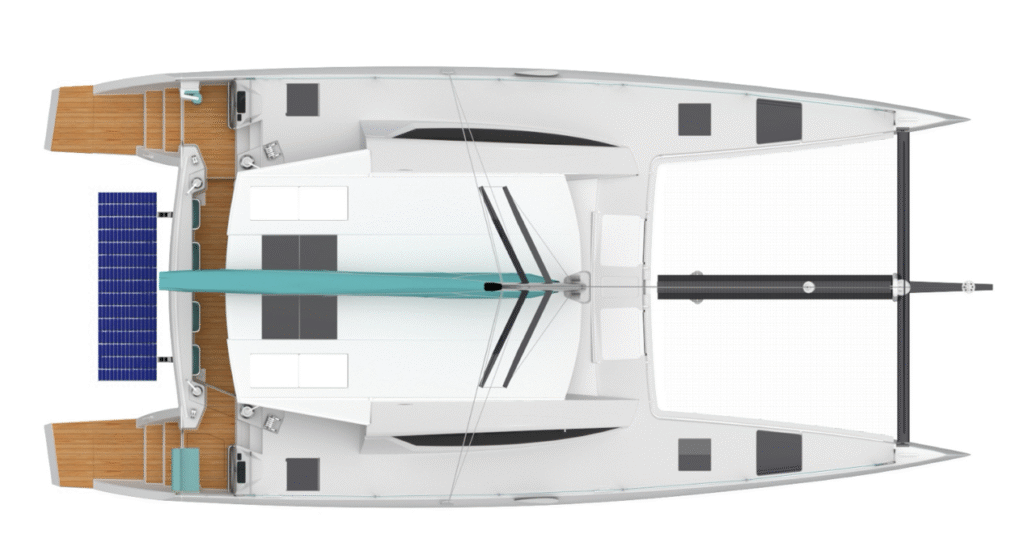

STANDARD DECK LAYOUT

Chart Table

• Raymarine i70 Color MFD
• Raymarine Ray 63 VHF
• Fusion Stereo w/2x Cockpit Speakers

Port Helm Station

• Raymarine 7” Axiom GPS/Wi-Fi Color Display
• Raymarine i70 Color MFD

Starboard Helm Station

• 7” Axiom GPS/Wi-Fi Color Display
• Raymarine i70 Color MFD
• Raymarine Evolution EV-200 Linear Auto Pilot w/ Ray P70 Control Head

Bridgedeck:

Galley

• U-shaped galley to starboard facing aft along cockpit bulkhead w/composite counter & wood base and multiple storage lockers below counter
• Stainless sink & hot/cold pressure water and 4-burner gas stove w/oven
• Additional galley counter space to port facing aft along cockpit bulkhead w/150 lt (40 gal) front-loading stainless fridge and 50 kt (13 gal) front-loading stainless freezer
• 2x Overhead Hatches
• LED ceiling lights

Salon

• Large L-shaped settee to port w/2x storage compartments & 1x drawer below
• Fixed salon table w/wood storage base
• LED ceiling lights
• 2x Overhead Hatches
• 2x Opening portholes in forward window

Nav Station

• Facing forward to starboard
• Chart table w/storage compartments
• Electronic Console
• AC/DC electrical panel

Starboard Owner’s Hull

• Queen size bed aft w/2x drawers below
• Inboard shelf w/USB outlet
• Bench seat inboard w/lockers above
• Wardrobe lockers inboard
• LED ceiling lights
• 2x LED reading lights
• 2x Opening portholes
• 1x Overhead hatch

Midship

• Access from salon via steps & privacy door
• Inboard wardrobe lockers
• Desk outboard
• LED ceiling lights
• 1x Opening porthole outboard

Forward Bathroom

• Vanity cabinet inboard with white porceline sink, hot & cold pressure water, large
• mirrored, 2x cabinets
• 24VDC Planus toilet w/fresh or salt water flush inboard & black water tank
• Separate shower stall forward with adjustable shower head, hot & cold pressure water, teak seat & grate w/24VDC shower sump pump
• 1x Overhead hatch
• 1x Opening porthole outboard
• Forward of shower stall is a closet for linen or wet locker or optional washing machine

Port Guest Hull

• Aft transvers queen berth w/side access & technical compartment below
• Bench seat w/storage
• Wardrobe locker
• LED ceiling lights
• 2x LED reading lights
• 2x Opening portholes
• 1x Overhead hatch

Midship

• Access from salon via steps

Guest Bathroom

• Midship inboard with componsite vanity & sink w/hot & cold pressure water, mirror, 2x cabinets
• Manual toilet w/overboard discharge
• Separate shower stall with adjustable shower head, hot & cold pressure water, teak seat & grate w/24VDC shower sump pump
• LED ceiling lights

Forward Guest Stateroom

• Standard twin berth w/storage below
• Cabinet w/shelves on forward bulkhead
• Wardrobe lockers inboard & seat inboard
• LED ceiling lights
• LED reading lights
• 1x Porthole outboard
• 1x Deck hatch

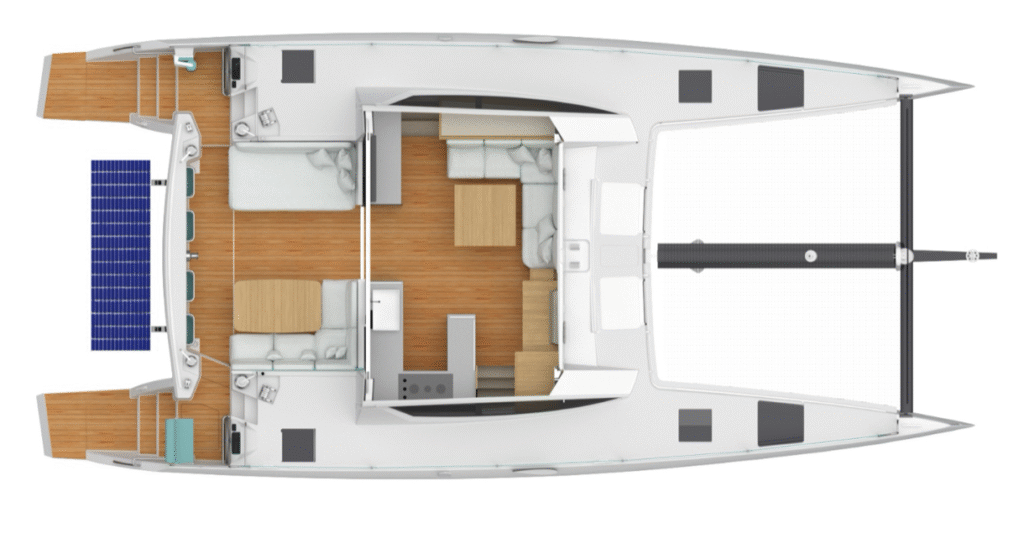

CLUB VERSION BRIDGEDECK LAYOUT

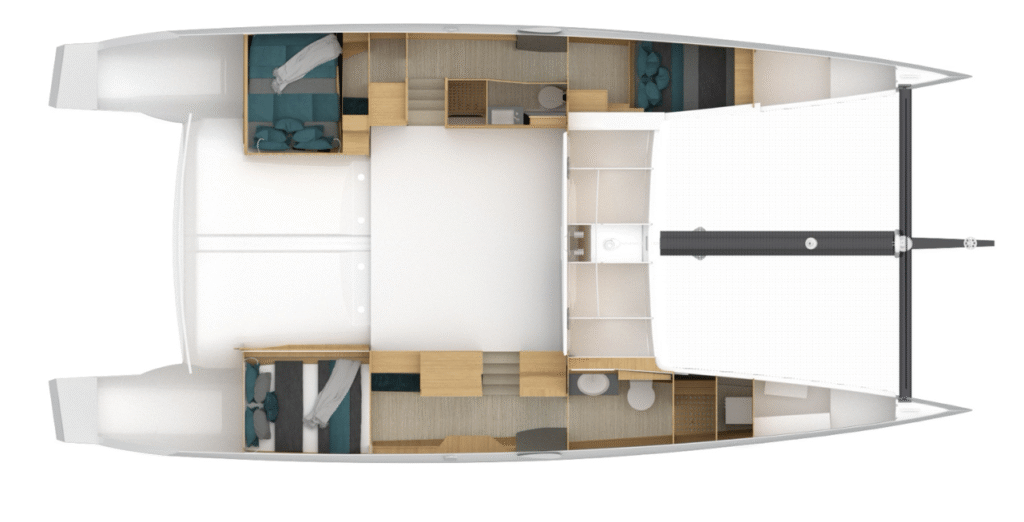

CLUB VERSION HULL LAYOUT

Optional Layouts Available

Interior Decor:

• Bulkheads & Interiors w/Natural Oak Finish (other wood veneers optional)
• Floor Surface in Oak Finish (hulls)
• Floor Surface in Oak Laminate (bridgedeck)
• Ceilings Covered in Eco Leather Fabric
• Hull Liners Finished in Eco Leather w/PVC Book-Match Oak Wood Cabinetry
• High Density Foam Mattresses
• Upholstery of Your Choice From Our Samples (optional soft goods available)
• Cabin Blinds/ Mosquito Screens

• Antifouling
• Launching
• Mast Stepping
• Sea Trails
• Vinyl Boat Name & Hailing Port
• Filled Gas Cylinder
• Full Diesel Tank
• 30-Days Mooring @ Shipyard

COMAR YACHTS S.R.L. – Viale Traiano n ° 27 00054 Fiumicino (RM) US June 2025
